This is a user guide for CMSClient version V1.00.00.47, it’s applied to software version is equal or newer than V1.00.00.47. If you are running older version (e.g. V1.00.00.46, V1.00.00.45), please download and upgrade your existing one to the latest. It should be noted that Yoosee has no app be compatible with Windows smartphone. If you have a smartphone running Windows OS, obviously you can not use Yoosee camera. The Yoosee software team will not release App for Windows based smartphone.

What CMSClient does?

CMSClient provides users a centralized video surveillance solution. It allows users to manage multiple cameras simultaneously, users can preview, record, playback, even receive alarm alerts by using it.  Users also can change yoosee camera’s network settings (such as IP address, gateway, DNS), can shift recording video resolution from SD to HD, can modify camera’s password.

Installation of CMSClient software

The software doesn’t contain any virus, if your anti-virus software report virus warning, please check if you have downloaded the software from official website. The software requires permission to access your network/Internet, it uses RTSP stream protocol to communicate with cameras locally, and P2P protocol to communicate with Internet cameras. When installing the software, ensuring it allows to pass Windows firewall.  The software will keep communicating with remote servers intending to establish P2P connection, it doesn’t spy your video, doesn’t transmit/upload any video clips to remote servers.

Logon CMSClient Software

CMSClient software now allows users to login through three different types of account.

• Admin login: local login, don’t require users to register an account. No need to input password, click “OK” to login immediately. The software can automatically discover local cameras, but can not discover Internet cameras.
• Phone Number login: remote login with your registered yoosee account, after logon, the software will list added cameras in your account.
• Mail/user ID login: remote login with your registered yoosee account, after logon, the software will list added cameras belongs to your account.

Moreover, select either “Phone number login” or “Mail/user ID login”, the software can receive motion detection (or sensor triggered) alert to computer. When motion detection alarm occurs, the software will pop-up a new window automatically to alert users, it also can play selectable audible automatically to remind users.

How to add Yoosee Cameras?

After logon, CMSClient will automatically discover local connected cameras, click “Add all” to add them into your software. Please note the displayed p2p password and rtsp password default is “qwe123”, it’s an incorrect password, just ignore them.

Except adding automatically, users can click “+” icon on the left bottom to manually add cameras. In “Device manager” window, local connected cameras will be listed on the left column, click “>>” button can add to software which will appear in right column. Click “Manual add device”, you can add local connected cameras via entering device ID, device password, RTSP password. Click”Add shared device” to add cameras as a guest user. In pop-up windows, you should paste the shared link. To know how to get shared link, you can read this article – How to use Yoosee App’s sharing function?

How to use CMSClient software?

Once you added devices to software, you’re able to use each functions of it. Select device you want to manage, right click mouse will pop-up a menu list.

• Device property: change camera name, device password, rtsp password and group.
• Delete node: delete camera from this list/software.
• Start monitoring: start to preview real-time video (if it shows you a crying face, it means password is incorrect)
• Smooth/standard definition/high definition: before click start monitoring, you should choose default image resolution, smooth equals low resolution, standard definition equals VGA (640×480), HD equals 1280×720 or 1920×1080.
• IPC config: you’re able to tweak camera’s network settings (e.g. IP address, DNS), record video resolution (SD, or HD), password.  It only works on the premise that your camera’s password is correct. If you encounter “network timeout” “permission error” “password incorrect” error, to solve this, you need to logon software with yoosee registered account.

CMSClient Playback Function

You’re able to playback recorded video clips right from your computer. The CMSClient can only allows users to play remotely and locally recorded video clips, but also can allow you convert them to friendly .mp4 files which can be recognized and played by regular media players.

Click “Search” button on the left top, the camera can search files, click the file name to playback. Additionally, you can click folder icon to open a file to play it. All yoosee camera will record video with .av file extension. These raw files can not be recognized or played by regular media players, you can use the converter which the software has included to convert .av files to .mp4 files.

If you don’t want to install and use CMSClient software, still want to play .av files in another computer, you can read this article – How to play .264 video files from IP cameras/DVRs/NVRs?

CMSClient software is a powerful video surveillance management tool, it includes other function to provide a great flexibility. Click gear icon on the top of software, it will pop-up a “CMS config” window.

• File save path: select the folder path to store recorded video footage.
• Reserve space: allowing users to modify reserved space for video storage in your HDD.
• Record time for package: the time length to patch a video file when recording video. If the value is “60” min, the software will patch/generate a video file in every hour when software is recording on computer.
• Cycle record: turn on/off over-write function, automatically erase/overwrite HDD when space is full.
• Auto start record when monitoring: record video while watch video stream.
• Connect all of device automatically: automatically display video for all cameras/channels after logon software.
• Render mode: Directdraw, GDI
• Monitor: auto, rtsp, p2p
• Message notification: choose whether receiving message notification or not when there is a motion detection alarm.

If you logon software with registered yoosee account, the software will have “Alarm trigger” option. This open allows you to select time length of pop-up video when alarm occurs. You’re able to choose different audio files, the computer will play the audio to remind users.

<p>The post User guide for Yoosee App PC Software – CMSClient first appeared on NVR IPCAMERA SECURITY.</p>

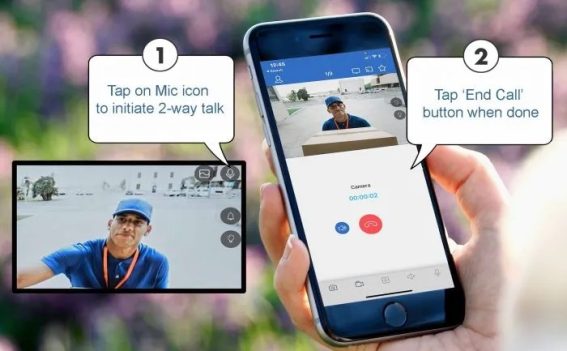

We can talk directly on phone app for asking courier to put package to a certain place you point, and hear sound from app or TV monitor connected to NVR

We could be alerted any time a person enter your property by receiving push notification from free phone APP, and the alarm light will be triggered to drive away the suspicious objects ( Note: APP has No Monthly Fees)

High Resolution 2592 X 1944 pixel to provide your vivid and clear image no matter in day or night, and IP 67 Waterproof to withstand Changeable Weather like Snowy/Rainy Day

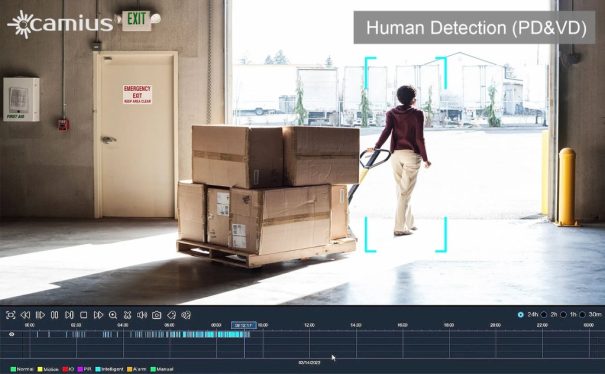

We can customize the surveillance area or set a line for human/vehicle, and the alarm alerts will be triggered when detecting human/vehicle crossing the line or intruding the alarm area （These function may only work with Hiseeu NVR）

Version 2020-2022 PoE System FAQs in total

.

Further support, plz email us at email love@hiseeu.com

Or contact us at +1 917 688 2228

.

Important Notes:

These FAQs are only adaptable to following Models NVR Model : H5-NVR-P-8,

Camera Model: HB215-PA, HB212-PA, HB915B-PA

Mobile Phone APP: XMEye Pro         PC Client :VMS

Hisseu PoE Camera System User Guide v1

Contents:

A:  Forget NVR Password?

B:  Add Device on PC Client Software (VMS）?

C:  How to Sign up account on Mobile APP (XMEye Pro) ?

D:  Add Device on Mobile Phone APP (XMEye Pro)?

E:  How to enable Alarm Notifications on APP XMEye Pro?

F:  Configure Offline Camera or Add a New Camera?

G:  No Video Display on TV Monitor Or Blank Screen?

H:  Why DVR/NVR can’t record or playback video?

.

Detail Solutions:

A:  Forget NVR Password?

1. Please click the mouse from the home screen, and “Logo Out–>Log Out”

2. Right click the mouse again, click “ Main Menu”–> “Forget password –> Forget answer”, you will see the “QR Code”

3. Please open your mobile APP “XMeye Pro”

（1）Click the Scan icon on the top left corner

（2）Scan the “CAPTCHA” on the TV monitor, then you will get a code from the mobile phone APP or from your email, and enter the code into “CAPTCHA”, so you will be able to reset the password on the Monitor connected to DVR

.

B: Add Device on PC Client Software (VMS）?

VMS download link:

For Windows （2023 newest version）

https://download.xm030.cn/d/MDAwMDE0OTM=

For Mac ( 2022 version)

https://download.xm030.cn/d/MDAwMDA2NDA=

1. Download PC Client “VMS” and installed

2. Login with the default User Name and Password. Click “SIGN IN”.

Default User name is: admin

Default Password is: admin

3. Navigate to “Device Manager”–>”Manual Add”

4. Login Type: Cloud ID Device Name:

Name Your Device as you like

Cloud ID : Device Serial Number. We need to go to the TV Monitor connected to the NVR , and find out the information on TV Monitor UI, then right click the mouse to navigate to the path of “Main Menu–>Advanced–>Version” to find out the information “serial number”

User Name and password: Input the user name and password that you created for the NVR , and we also need to find this from the Monitor UI.

.

5. Navigate to “Live View”, Click on the device name(serial number), then select “Open All By Sub Stream”

.

C:  How to Sign up account on Mobile APP (XMEye Pro) ?

Please follow these instructions to sign up for an account via your mobile number.

1. Click on Sign Up

2. Sign Up by email or Select Mobile Number

3. Select the correct country code +1, input your mobile number and click on “Get code”

4. A code will be sent to the mobile phone number, input the verification code and continue.

.

D:  Add Device on Mobile Phone APP (XMEye Pro)?

Steps:

–>1. Please connect the NVR/DVR box to your Router via Network Cable; (Some customers think it can support WIFI connection, while wired systems only support wired router connection, and have to be wired to router via ethernet cable)

–>2. Go to Monitor UI Interface, and Navigate to “Main Menu > Network > Net Service”, if the “Cloud Status” shows connected, means NVR/DVR is online (Please skip step3),

–>3. If the cloud status shows “Probing DNS”, Please Navigate to “Main Menu > Network > Check the icon of “Enable DHCP”–>Apply;

–>Reboot the DVR by unplugging the power adapter and re-plug it, then double-check the cloud status ( only cloud status shows )

–>4. Go to your TV Monitor, navigate to “Main Menu–>Advanced–>Version”–> You will see the serial number.

The QR code contains Serial number info. We need this information after we add the device to mobile phone APP

–>5. Open the mobile APP “XMeye Pro” and register an account by your email first

–>6. Click”+” to add device–>Choose “NVR”

Device Serial Number: Click the “Scan” icon to Scan QR Code On the NVR UI Interface (Main Menu–Advanced–Version), (QR code contains username and password)

No need to input the username and password manually.

And click “OK”, and go back to the Device page on App,and you will see the device shows status:online ,

E:  How to enable Alarm Notifications on APP XMEye Pro?

1.Make the Alarm setting is already set on Monitor UI Interface

2. Please right-click mouse and navigate to “Main Menu–> Alarm–>Motion Detect/Human Detect/Face Detect–> Enable “Mobile Reported”–>click “OK”

(Default Setting is for Channel 1, Please select “All” channels.)

2.Open “XMeye Pro” mobile App, and navigate to “Event–>Device (the one you named)–>Enable “Allow Notifications”

.

F:  Configure Offline Camera or Add a New Camera?

—>1. After connect the camera to NVR via network cable, if the camera power on properly, the camera’s indicator light should be blinking.(see picture attached)

.

When you cover the camera’s photocell or put the camera in dark place, the infrared LED should turn on red color.

—>2. If camera powered on properly please follow below instructions.

1.Right-click mouse navigate to “Quick Setup(or Channel Set) –>Cancel

2. In the second box, if any camera status is offline or not connected, please select it and click ”Delete” first

3. Click “Search”, can you see new IP address showed on the topper box?

4. Select the IP address in topper box and click Network–>Auto Assigned–>OK

5. If auto assigned successfully, please click “Add” to add the camera.

.

.

G:  No Video Display on TV Monitor Or Blank Screen?

My UI Interface shows “No signal” or “Black Screen” ？

We need to divert this issue into two situations:

1.NVR Indicator light is on:

(1) Cause: The camera system’s video output resolution is 1080P. If your TV monitor resolution is below 1080P, this issue will occur.

Steps:

Please right-click and hold your mouse for over 10 seconds to see if the system can reboot or not. Or, please try to connect the system to another TV monitor with a higher resolution (above 1080P)

.

(2) Cause: The hard disk drive inside of the DVR box is broken, and use the screwdriver to open the DVR box to unplug the wires of the hard disk drive, and reboot the DVR to have a try. If the DVR box can be rebooted after unplugging the wires of the hard disk drive(HDD), which means the HDD is having an issue, and needs a replacement, plz contact email love@hiseeu.com for replacement HDD

After steps, if the thing still cann’t be resolved, which means the NVR box is broken, plz contact email love@hiseeu.com for replacement NVR box if their warranty is still 1 year

.

2.NVR Indicator light is off:

(1) Cause: The power adapter 52V 2.5 A connected to the NVR box is broken

Step: Use another power supply 52V 2.5 A to power on the NVR unit to have a try ( If you do not have a spare one, can contact us to buy a new one or we send you a new one if your warranty is still under 1 year )

.

(2) Cause: The hard disk drive inside of the NVR box is broken Step: Use the screwdriver to open the NVR box to unplug the wires of the hard disk drive, and reboot the DVR to have a try. If the NVR box can be rebooted after unplugging the wires of the hard disk drive(HDD), which means the HDD is broken, and needs a HDD replacement, plz contact email love@hiseeu.com for replacement HDD

.

H:Why DVR/NVR can’t record or playback video?

.

If HDD(Hard disk drive) is having issue or something wrong with record setting, the DVR can’t record/playback the video

.

1.Check if the hard drive status is normal or error

Navigate to NVR/DVR Monitor UI Interface: Navigate to “Main Menu–>Advanced–>HDD info”

If status shows “Error” or No hard drive info , which means the hard drive is broken. (need to replace hard dirve)

2.Check the record plan is set up for 24/7 continuous recording

Navigate to “Main Menu–>Record Conf”

Channel : select “All”

Period: “00:00-24:00”

Select “Regular”

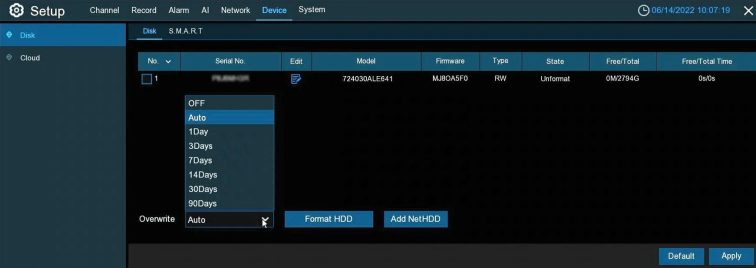

3. Please make sure the HDD was set up to “Overwrite”. (if it was set to “stop”, the system would stop recording when the storage is full)

Navigate to “Main Menu–>General–>Storage Full”

Add Device on Guard Station PC Client Software

Add device to “Guard Station” Download link: https://www.dropbox.com/sh/jeftu4sqwy4y1u8/AAD4PkyEJxg6j4H1n20PxBkZa?dl=0

.

Please sign up for the mobile APP(Guard Viewer) account and add the device first.

Download and run “Guard Station” on the PC

1) Please Navigate to “Device Management”> “Cloud Device”> Click on “Login”

2) Login with your APP account and password.

3) After Login, the device you added to the APP will list here

Please click on “Control Panel”> “Live View”> Double-Click Camera to load the live view video

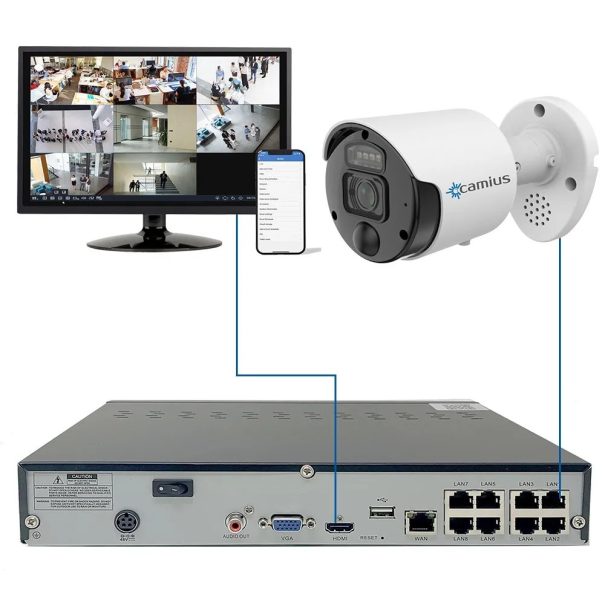

Add Cameras to NVR or PoE Switch (Router)

Add Cameras to NVR/ PoE Switch or Router

1. Add camera via NVR PoE Port

• If the camera is connected to NVR PoE port directly, the IP address

range should be modified to “172.16.0.X” (X is between 2 to 255)

Please right-click mouse and navigate to Camera

For brand new camera (password is 123456 by default), NVR will detect

and add camera automatically.

If the camera’s user name or password has been changed, you are required to input the info manually.

Move the mouse to the status icon , you will see the error message. “Offline [incorrect Username to Password]”

Please click on the edit icon to input password manually and click on “OK” to continue.

2.Add Camera to NVR via PoE Switch or Router

NVR will detect the camera under the same WLAN and list IPC here

• Click on plug icon to add the camera. If the camera has default user name: admin, password: 123456.

NVR will add it automatically.

• If the camera’s password has been changed, please click on the setting icon to modify the info.

• In this situation, the camera IP address range should be the same as NVR’s IP range

(You can check NVR IP by navigating to Network>Basic> TCP/IP). If not, please contact the technician to modify the camera’s IP first.

Camera Not working

Camera not working?

1.(Port issue) Insert the camera to another port of the NVR to have a try, and wait at least 5 minutes

2. (Camera issue) Make sure if the camera infrared light will turn on red or not in the night time

3. Also plz right click your mouse to “Menu-Camera”, and take a photo of this whole page and send it to us

（Check how many cameras are discovered）

Also go back to the home screen and Check connection status, to see if it shows” Network disconnected” or “incorrect user name and password”

Device Offline on APP or NVR?

Device Offline on APP or NVR?

If the device shows offline on mobile phone app  “Guard Viewer” , we need to make sure the NVR is connected to network perfectly or not

Go next to your Monitor that connected to NVR, and check out the network status

first navigate to this path first : “Menu–Network–Basic–P2P” , also check the device status is online or not,

if it shows: network disconnected, plz enable the DHCP in this path ” Menu–Network–Basic-TCP/IP ” and click “Apply” . After that, go back to “P2P” and check if the device status is online or not

Also , please make sure the PPPOE needs to be disabled, plz navigate to “Network–Advanced–PPPoE”

Enable Alarm light on Each Camera?

Enable Alarm light on Each Camera?

.

(Alarm light would only work during the night time when the alarm was triggered)

.

1. Set up the Alarm light First Right-click your mouse to “Menu– VCA — Intrusion Detection/Crossing Line Detection– Triggered Actions” , and draw the rules for the alarm type

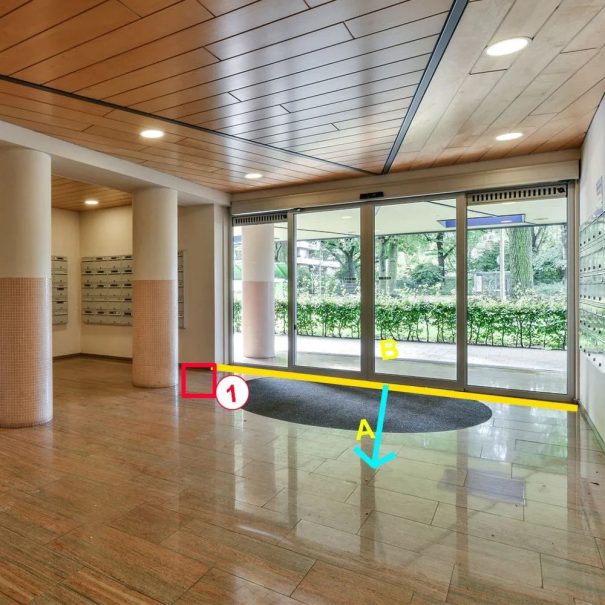

After you set up an alarm type (Like”Intrusion Detection”, or “Crossing Line Detection”), Click on “Alarm Linkage”, you will have the option to Enable “Alarm Light” (Spotlight is only Available During the Night)

2. Enable Alarm Light on “Triggered Action– Alarm Light” for each channel, and Click “OK”

Forget NVR Password？

If you forget your current password, please follow the instructions to reset it.

1. In the system login interface, please click on “Enter Password” > “Forgot Password”

2.If you filled in your email address as a reserved email when you set up the system, you can reset the device password via the APP(Guard Viewer) by navigate to “Me–General–Forget Device Password”

3.Scan the above QR code by app and the security code will be sent to your email address.

4. Enter the security code from email to reset the password

Additionally, If you the email doesn’t belong to you, plz contact us at love@hiseeu.com for more support

Add Device to APP(Guard Viewer)

.

Auto add is not suggested. Please tap on “Later” if you see this message box.

.

In this situation, it will Auto Search to discover the NVR device connected to the local network. But once your mobile phone disconnects with LAN WiFi, you will not be able to view it anymore.

Please Add devices in this way

1.  Please Tap on “ Menu” icon> Tap on “Devices”> “Add”,

2. Tap on “Scan”> “OK” to scan the NVR QR code

3.Navigate to “Menu– Network> Basic> P2P”

• If the Device Status is “Network connected…” , means device is online   and ready for remote view

• If the Device Status is “Offline” , please check the network connection first, if the problem remains, please feel free to contact us at Love@Hiseeu.com

After you add the device successful, the “Device status” will be “Online”, and your APP account username will display here.   • You can check your APP user name by navigate to “Me”

• If the username doesn’t belong to you, please click on “Delete” and add it again.

4.Add NVR by scanning device QR code and click on “save”

5.   Please Tap on “Menu ” icon, Tap on “Live View” “Add”

6. Select the device and tap on “Start Live View”

Human Tracking/Detect for Model PK-4YHD985-CT ?

1.To enable human tracking , Set preset point “21”. Here is the video link for your reference: https://www.amazon.com/live/video/07adae4ec34a47618bd754cc6c1f8966?ref_=dp_vse_ibvc1

2.To enable human detection, plz go to this path “Menu–Alarm-Motion” , and choose the camera you want, to enable it

(This doesn’t support customize area)

No Video on TV Monitor or blank Screen?

.

The camera system video output resolution is 1080P, if your TV monitor resolution below that will occur this issue.

.

If possible, could you please try to connect the system to another TV monitor with a higher resolution(above 1080P).

Or, please hold your mouse wheel over 10seconds to see if the system can reboot or not.

If not, plz contact us for further support

How to share Device to others via APP Guard Viewer?

.

One device linked to One User ONLY. The NVR system ONLY can be controlled by one authorized account, who can share the device with others in order to prevent attacking or hacking.

For admin user, please follow the instructions to share the device with others:

.

1.Type on “Menu Icon ” and navigate to “Devices”

.

2.Tape on “… ” > “Share”, You can select a single channel to share or select the entire NVR system to share

(1) Share device by typing in the user name you wanted to share with and selecting function as needed.

• The other user needs to register a Guard Viewer APP account and provide the user name for sharing.

• After that, when this user login the APP will find the device by navigate to “Devices”

(2) Share device by generate a QR code

• Create a sharing password and set the valid period

• Click “Generate”, your APP will generate a QR code

• Other users can use the APP to add the device by scanning the QR code you sent

Download the mobile APP and Sign up for an Account

.

1. Download and install the app.

Please scan the QR code to download the free APP “Guard Viewer”

You also can visit the Apple Store or the Google Play Store to download the Guard Viewer app for iOS or Android devices. Alter installation, tap the icon to launch the app.

2.Register an account and login

For first time use, please create a new account and add the following steps:

Please tap Sign up and follow the on-screen prompt to register an account by email.

<p>The post Hisseu PoE Camera System User Guide v1 first appeared on NVR IPCAMERA SECURITY.</p>

By downloading the firmware from this web page you are agreeing to Hikvision’s Software User License Agreement. Please be aware that Hikvision products are region-specific and regionally supported. If you have purchased your Hikvision products from an online source or unauthorized distributor, they may not be compatible with the North American region’s firmware and are considered to be “gray market” product. If your camera has “CH” in the serial number, you are most likely using a “gray market” product.

Updating the firmware from this site can lead to several complications in those cameras, up to and including camera failure.  Restoring a “gray market” product to its original condition is a factory process and will result in a Chinese interface. As Hikvision warranty is void in this case, you must rely on the dealer for any service, support, and warranty of the “gray market” product. If you have any questions or concerns about the official status of your Hikvision distributor, please contact Hikvision USA Customer Service at cust.usa@hikvision.com.

.

Upgrade Device Firmware

For a device added via IP/Domain, its new version can be detected by the Mobile Client. Once detected, you can upgrade the device to its latest version.

1.Enter the Device Information page.

• On the device list page, if the page is in the list mode, swipe the device name to the left and tap .

• On the device list page, If the page is in thumbnail mode, tap the device name or tap .

• On the Live View page. Tap  and then tap Settings.

Note:

For details about how to enter the Live View page, see Start and Stop Live View.

2.Tap  > Device Version to enter the Device Version page.

3.Tap Upgrade and then tap UPGRADE on the pop-up window.

The Mobile Client will download the upgrade file first and then start upgrading the device.

Note:

You can also enable the Mobile Client to automatically download the upgrade file in Wi-Fi networks once a new device version is detected. For details, see Auto-Download Upgrade File.

.

UPDATING FIRMWARE

Hikvision regularly updates the firmware in our products to resolve potential issues and keep your system running smoothly. Below, you can find guidance on how to update your system accordingly.

Updating Hikvision IP Camera Firmware

To upgrade the firmware of a Hikvision IP camera, please follow the steps below:

1.Locate the appropriate firmware by clicking this link

2.Click on the firmware, then click download.

3.Agree to the license terms and conditions when prompted.

4.Locate the downloaded firmware file (this typically will be in the default download folder, unless prompted for a download location, then choose Desktop) and extract it by right-clicking on the file and selecting extract all or unzip. When prompted for an extract location, choose Desktop to extract the final file to. A file labeled DIGICAP will appear on the desktop.

5.After the file is extracted, log into the camera using Internet Explorer or Firefox web browsers. If prompted to install the plugin (or to allow the plugin to run), follow the prompt to proceed with the upgrade procedure.

6.Log into the camera using the administrator username and password, then go to the Configuration tab. In this tab, go to Basic Configuration then System, and then click on the Maintenance tab.

7.On the bottom of the page under Remote Upgrade, press the Browse button to locate and choose the firmware file, which was previously saved on the Desktop. After selecting the file, click Open, then click Upgrade.

8.The camera will display a prompt that a reboot is necessary to complete the upgrade. Click OK. The camera will reboot when the firmware is successfully upgraded.

Click here to see a video tutorial of the above steps.

Upgrading Hikvision DVR/NVR Firmware

To upgrade the firmware of a Hikvision DVR or NVR, please follow the steps below:

1.Insert a USB flash drive into the computer’s USB port (Please note that the USB flash drive does not need to be empty; it may contain other files and documents).

2.Locate the appropriate firmware by clicking this link

3.Click on the firmware, then click download.

4.Agree to the license terms and conditions when prompted.

5.Locate the downloaded firmware file (this typically will be in the default download folder, unless prompted for a download location, then choose Desktop) and extract it by right-clicking on the file and selecting extract all or unzip. When prompted for an extract location, choose the USB flash drive (typically labeled by letters E, F and so on) to extract the final file to. A file labeled DIGICAP will appear in the USB flash drive.

6.After the firmware has been extracted (unzipped), remove the USB flash drive from the computer and insert it into one of the available USB ports on the DVR/NVR unit.

7.On the DVR/NVR, go to the Main Menu, and then go to Maintenance.

8.From the sub-menus on the left click Upgrade. This will display the content of the USB flash drive.

9.Choose the DIGICAP file and press Upgrade.

10.An information window will pop up prompting that the unit will reboot after the upgrade is complete. Click YES.

11.To verify that the firmware has been upgraded, after the DVR/NVR is rebooted, go to the Main Menu, and then go to System Information. The current firmware version will be displayed.

New Hikvision Firmwares 2024

Also Read : Hikvision How To Tutorials Chapter 1

How do I get Firmware Updates for my Hikvision Gear?

Hikvision Australia’s website has firmware updates for available IP cameras.
https://www.hikvision.com/au-en/

Use the search bar to try and find your product. Firmware updates are usually available on the product page.

IF YOU BOUGHT EQUIPMENT FROM US:

You will need to contact us if you can’t find your camera listed or if you require firmware for your NVR / DVR.
You will need to also provide the full serial number of the device as well as your current firmware.
This is to ensure upgrades are done properly. In some instances middlle firmware is required before upgrading to the latest version.

We do not recommend doing intercom firmware upgrades. Please check with us if there is any doubt.

If you didn’t buy equipment from us, please contact the people who you bought the equipment from.

How to Upgrade Camera Firmware via Hikvision NVR

This Video shows you how to upgrade your Camera firmware from the NVR.

Hikvision Australia’s website has firmware updates for available IP cameras.
https://www.hikvision.com/au-en/Support/Downloads/Firmware/IPC

NOTE this is only for IPC.

You will need to contact us if you can’t find your camera listed or if you require firmware for your NVR / DVR.
You will need to also provide the full serial number of the device as well as your current firmware.
This is to ensure upgrades are done properly. In some instances middlle firmware is required before upgrading to the latest version.

We do not recommend doing intercom firmware upgrades. Please check with us if there is any doubt.

 .

Lates Hikvision Firmwares 2024

How do I update Hikvision firmware remotely for my TetherX installation?

If your system was installed by one of our security installation partners please contact them to update your cameras. If you would like to update your Hikvision devices yourself please follow the guide below.
​

.

1.Download the latest Hikvision firmware by visiting the Hikvision Downloads Page

Hikvision Downloads Page

Note: the UK firmware is different from the US firmware. For UK firmware, please follow use the UK Downloads page.
​
​

2.Extract the firmware archive, it should contain the file: digicap.dav

3.Create a tunnel into your Hikvision device.

How to create a tunnel?

​

4.Login to your Hikvision device and navigate to “Configuration” then “Maintenance”.

​

5.At the bottom of the page under the ‘Upgrade’ header, press on “Browse”

​

6.Use the file navigator window that pops up to select the digicap.dav file you downloaded earlier
​

7.Click on ‘Upgrade’

.

The actual upgrade will take up to 10 minutes and the device will automatically reboot at the end of the upgrade process.
​
This video from Hikvision Technical Support shows the upgrade process:

.

Click here to see a video tutorial of the above steps.

00 Temperature Screening-2020-07-10

01 Density Control-2020-07-10

02 Mask Detection-2020-07-17

03 Front Ends-2020-12-02

04 Back Ends-2023-03-15

Access Control & Video Intercom-2020-12-02

Accessaries-2021-12-01

Alarm-2023-06-21

ANPR & Speed Radar Display-2023-07-10

Dell image-2022-12-12

Mobile-2023-07-03

Paxton related materials-2023-05-26

Portable Series-2024-02-06

Thermal-2023-07-07

Transmission & Display-2022-12-16

.

DVR-2023-08-11

IPC-2021-11-04

NVR-2021-11-26

PTZ-2021-09-23

fw and model list.xlsx10.27KB2019-04-09

.

.

.

.

.

Hikvision Firmware Download –
Intelligent Traffic Products

.

Hikvision Firmware Download –
Access Control Products

.

.

.

.

.

.

<p>The post New Hikvision Firmwares 2024 first appeared on NVR IPCAMERA SECURITY.</p>

Lorex Fusion: Download the Lorex App

The following article provides instructions for downloading the Lorex App and connecting your Lorex Fusion Collection recorder to the app.

Prerequisite

Before you start, your Fusion recorder must be powered on and connected to your router using the included Ethernet cable. For Basic System Setup instructions, refer to your Fusion recorder’s Quick Start Guide or Manual on the product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

Download the Lorex App

Once your Fusion recorder has connected to the Lorex App, complete the final Fusion steps by connecting your Fusion Wi-Fi cameras and accessories.

For setup instructions using the new local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (New Local UI).

For setup instructions using the previous local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories.

Lorex Fusion: Frequently Asked Questions

The following frequently asked questions (FAQs) provide more information about your Lorex Fusion Collection. Where applicable, the FAQ includes links to articles where you may find more information.

Lorex Fusion Troubleshooting FAQ.

What is Lorex Fusion?

Our Lorex Fusion recorders incorporate the newest (fusion) technology to connect both Lorex Wired and Fusion Wi-Fi Cameras, Doorbells, Floodlights, and Sensors to one system. Lorex Fusion Wi-Fi Cameras and Accessories can connect to one recorder for continuous 24/7 recording and local, secure storage (up to 10TB). Everything can be accessed from your Lorex App for easy control of all devices.

.

Why do I get an offline message and a blank screen for the (B463AJ) 2K battery doorbell’s channel on the Fusion recorder?

Being a battery-operated doorbell, it will always go to sleep after a period of inactivity to conserve battery life. Once the doorbell is correctly paired to your Fusion recorder, the offline message means the doorbell has gone to sleep but is still connected and can be awakened. When motion is detected, or when the call button is pressed, there will be live video from that channel. You can also manually wake up the doorbell through the Lorex app, by activating the liveview.

.

Can my Battery Video Doorbell record continuously?

To conserve battery life, Wi-Fi Battery Video Doorbells only record when motion is detected. They do not record continuously.

.

Which recorders are part of Fusion?

For a list of Lorex Fusion Recorders, please refer to the Product Compatibility Chart.

.

Can I connect all Lorex Wi-Fi Cameras and Accessories to my Fusion recorder?

Only Lorex Fusion Compatible Wi-Fi Cameras and Accessories can connect to Lorex Fusion Recorders.

.

Which Lorex Wi-Fi Cameras and Accessories are part of Fusion?

See the following list of Lorex Fusion Wi-Fi devices:

.

Should I update my Lorex Fusion recorder’s firmware?

It is recommended to update your system firmware to the latest version to ensure remote connectivity and to support newly added Fusion Wi-Fi devices.

.

Does my Lorex Fusion recorder require a network setup?

Yes, a network setup is required to connect Fusion Wi-Fi cameras and accessories to your Fusion recorder. Ensure you connect the included Ethernet cable to your recorder’s LAN port and your router.

.

Does it matter which router I use?

Yes, due to its strong signal, the dual-band router is suitable for high resolution video recording and for connectivity between devices. Ensure that your Fusion Wi-Fi cameras and accessories and your Fusion recorder are all connected to a dual-band router (2.4 GHz/5 GHz bands).

.

How many Lorex Fusion Wi-Fi Cameras and Accessories can I connect to my Fusion recorder?

This depends on your Fusion recorder and the number of Fusion Wi-Fi channels it comes with. For full technical specifications, refer to the Product Specifications on your recorder’s product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

What is a Fusion Wi-Fi channel?

A Fusion Wi-Fi channel is the channel you use to add a single Fusion Wi-Fi camera to your system. A 16-channel security system with 8 PoE ports/channels (for wired camera connection) and 8 Fusion Wi-Fi channels means that 8 Fusion Wi-Fi cameras and accessories can connect to the entire system.

Note: Fusion Wi-Fi channel’s are only available on certain Lorex Fusion recorders. For a list of Fusion recorders, see the Product Compatibility Chart.

.

How many Fusion Wi-Fi channels are on my Lorex Fusion Recorder?

The number of Fusion Wi-Fi channels varies per Fusion recorder. For full technical specifications, refer to the Product Specifications on your recorder’s product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

How do I setup my Lorex Fusion system?

Complete your Fusion setup in the following order:

After connecting your Fusion system, ensure you adjust your Fusion settings.

.

Are there Fusion setup tutorial videos?

For a video walk-through of the Fusion setup with the new local UI (N845, N846, N847, N864, D863, D881 Series), please watch here.

For a video walk-through of the Fusion setup with the previous local UI (N841, N842, N843, N844, N861, D862, D871 Series), please watch here.

.

How do I setup my Lorex Fusion recorder and wired cameras?

For Basic System Setup instructions, refer to your recorder’s Quick Start Guide or Series Manual on the product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

How do I connect my Lorex Fusion Wi-Fi camera or accessory to my Fusion recorder?

For full setup instructions, please click on the article corresponding with your model number.

.

Which password should I enter to connect my Lorex Fusion Wi-Fi camera or accessory to my Fusion recorder?

Enter the same password that you created in the Lorex App when setting up your Fusion Wi-Fi device.

.

What is continuous recording?

Once your Lorex Fusion Wi-Fi camera connects to your Fusion recorder, your camera’s recording settings are automatically set to continuous. This means that your Fusion Wi-Fi camera will record 24/7 or for the entire duration of the recording schedule onto your Fusion recorder’s hard drive. It is worth noting that recordings on the camera are limited due to the size of its onboard storage, while recordings on the recorder are extensive (3TB to 10TB). Continuous recording captures everything in the background, and you can playback to catch anything you missed.

.

Do all Lorex Fusion Wi-Fi cameras record continuously?

No, to conserve battery life, battery-operated video doorbells do not record continuously (24/7).

.

How do I set my Lorex Fusion Wi-Fi camera to continuous recording?

After Fusion setup, your Wi-Fi camera is automatically set to Continuous recording. To adjust your camera’s recording settings, login to your recorder and navigate to the devices menu. For instructions, please see the article Lorex Fusion: Adjust Settings.

Note: Battery-operated video doorbells do not record continuously (24/7). Being a battery-operated doorbell, it will always go to sleep after a period of inactivity to conserve battery life. Once the doorbell is correctly paired to your Fusion recorder, the offline message means the doorbell has gone to sleep but is still connected and can be awakened. When motion is detected, or when the call button is pressed, there will be live video from that channel. You can also manually wake up the doorbell through the Lorex app, by activating the liveview.

.

How come I’m receiving duplicate notifications in the Lorex App?

After completing the Fusion setup, your Wi-Fi camera or accessory is connected to the Lorex App twice – once as a single device and then a second time as a device connected to your recorder. To avoid receiving duplicate notifications from the same camera or accessory, you will need to Turn off Alerts for your Wi-Fi device connected to your recorder. For instructions, please see the article Lorex Fusion: Adjust Settings.

.

After Fusion setup, where is my Lorex Fusion Wi-Fi camera’s video footage being stored?

Your Lorex Fusion Wi-Fi camera saves recorded motion detection videos onto the local microSD card (not always included). Once you’ve connected your Fusion Wi-Fi camera to your Fusion recorder, your camera’s recording settings is automatically set to 24/7 Continuous recording, and all recorded video is stored on your recorder’s extensive hard drive (up to 10TB).

.

What features are supported in my Fusion recorder vs. the Lorex App?

Please see the following list of features supported in either your Fusion recorder and/or the Lorex App:

.

Can I use my web browser to access my Lorex Fusion Wi-Fi camera?

You can only access your camera on the Lorex App, recorder, or on the Lorex Cloud Client.

.

When modifying the password in the Lorex Cloud Client, which password should I enter?

Enter the password for your Wi-Fi camera or accessory created in the Lorex App during setup.

.

Where can I order the Lorex Fusion Collection?

To order, go to lorex.com.

Lorex Fusion: Troubleshooting

The following article provides some troubleshooting tips for setting up your Lorex Fusion Collection.

.

My Fusion Wi-Fi camera or accessory is not appearing in the device list.

.

My Fusion Wi-Fi camera or accessory is not connecting to my Fusion recorder.

• Give your Fusion Wi-Fi camera or accessory a few minutes to establish a connection.

• Check to see if your Fusion recorder has the most up-to-date firmware. New Local UI: Login to your recorder and navigate to System > Update & Reset > Upgrade, then click Check for Updates.  Previous Local UI: Login to your recorder and navigate to Main Menu > Information > Update/Reset > Update, then click Check for Updates. For instructions on updating your recorder’s firmware through USB, see the article How to manually upgrade the firmware of your recorder.

• Ensure that your Fusion Wi-Fi cameras and accessories and your Fusion recorder are powered on.

• The same password created for your Fusion Wi-Fi camera or accessory in the Lorex App must be entered in your Fusion recorder. If you have forgotten the password, then reset your Fusion Wi-Fi camera or accessory and connect it to the app again.

• (Applies to the previous local UI only) If your password for your Fusion Wi-Fi camera or accessory is entered incorrectly in your Fusion recorder, then your Wi-Fi device will lock itself. Reset your Fusion Wi-Fi camera or accessory and connect it to the app again.

• Ensure that you are entering the password for your Fusion Wi-Fi camera or accessory created in the Lorex App, and not the Lorex App account password. Those are two separate passwords.

• Ensure that your Fusion Wi-Fi camera or accessory is connected to a dual-band router (2.4 GHz/5 GHz bands).

• Ensure that you are connecting the Fusion Wi-Fi camera or accessory to an available Fusion Wi-Fi channel, and not a Wi-Fi channel that already has a Wi-Fi device connected to it.

.

I don’t know the password for my Fusion Wi-Fi camera or accessory.

If you don’t know the password for your Fusion Wi-Fi camera or accessory, then you will need to reset the device and connect it to the Lorex App again.

To reset your Fusion Wi-Fi camera or accessory:

.

I’m receiving duplicate notifications in the Lorex App.

After completing the Fusion setup, your Wi-Fi camera or accessory is connected to the Lorex App twice – once as a single device and then a second time as a device connected to your recorder. To avoid receiving duplicate notifications from the same camera or accessory, you will need to Turn off Alerts for your Wi-Fi device connected to your recorder. For instructions, please see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (N910 Series)

The following article provides instructions for connecting your Lorex Fusion Collection Wi-Fi Cameras and Accessories to your N910 Fusion recorder.

.

Our Lorex Fusion recorders incorporate the newest (fusion) technology to connect both wired and Wi-Fi cameras, doorbells, floodlights, and motion sensors to one system. All Fusion compatible Wi-Fi cameras and devices connect to one recorder for continuous 24/7 recording and private local storage. Access everything from the Lorex App for easy control of all devices.

Note: To conserve battery life, Wi-Fi Battery Video Doorbells only record when motion is detected. They do not record continuously.

For any connection issues, see the article Lorex Fusion: Troubleshooting.

.

Part One — Wired Setup

Setup your Fusion recorder and wired cameras. For Basic System Setup instructions, refer to your recorder’s Quick Start Guide or Manual on the product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

Important: Network setup is required for your system — use the included Ethernet cable to connect your recorder to your router.

.

Part Two — Connecting your Lorex Fusion Wi-Fi Camera

Connect your Lorex Fusion Wi-Fi Camera to the app and then from your recorder scan your network to add it.

.

Option A — Connecting Your New Lorex Fusion Wi-Fi Camera to Your Recorder

Add compatible Lorex Fusion Wi-Fi Cameras and Accessories onto Fusion Wi-Fi channels on the recorder.

To connect your New Lorex Fusion Wi-Fi Camera to the recorder:

Note:

.

Option B — Connecting Your Existing Lorex Fusion Wi-Fi Camera to Your Recorder

Add compatible Lorex Fusion Wi-Fi cameras and accessories onto Fusion Wi-Fi channels on the recorder.

Note:

To enable remote viewing for the mobile app, you will need to:

To connect your Existing Fusion Wi-Fi camera to the recorder:

1.From the Live View display, click the pair icon  in the center of the Fusion Wi-Fi channel’s screen.

Note: It may take a few minutes for your Lorex Fusion Wi-Fi Camera’s video feed to appear.

To turn off duplicate notifications, adjust your camera’s recording settings, or link motion sensors to cameras, see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (N845, N846, N847, N864, D863, D881 Series)

The following article provides instructions for connecting your Lorex Fusion Collection Wi-Fi cameras and accessories to the Lorex App and to your Fusion recorder.

Note: These Fusion instructions apply to the new local UI only. For Fusion instructions that apply to the previous local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories.

.

Before you start

.

Watch the Lorex Fusion setup tutorial video

For a video walk-through of the fusion setup, please watch here.

.

Connect your Fusion Wi-Fi cameras and accessories to the Lorex App

Follow the Lorex App steps to add your Lorex Fusion Wi-Fi cameras and accessories. Refer to your camera’s documentation at help.lorextechnology.com for detailed setup instructions. Search your camera’s model number to access the product support page.

Note:

2.In-app, tap the  icon to add your Wi-Fi camera.

.

Connect your Fusion Wi-Fi cameras and accessories to your Fusion recorder

Note: You can add one Wi-Fi camera or accessory to one Fusion Wi-Fi channel. The number of Fusion Wi-Fi channels varies per Fusion recorder. For full technical specifications, refer to the Product Specifications on your recorder’s product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

2.From the Live View display, click the pair icon  from the center of the Fusion Wi-Fi channel.

Note: If your Lorex Fusion recorder and Fusion Wi-Fi camera share the same password, then the devices will automatically connect without entering the password.

.

After successfully connecting to your Fusion recorder, your Fusion Wi-Fi camera or accessory connection status turns green. For any connection issues, see the article Lorex Fusion: Troubleshooting.

To turn off duplicate notifications, adjust your camera’s recording settings, or link motion sensors to cameras, see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (N841, N842, N843, N844, N861, D862, D871 Series)

The following article provides instructions for connecting your Lorex Fusion Collection Wi-Fi cameras and accessories to the Lorex App and to your Fusion recorder.

Note: These Fusion instructions apply to the previous local UI only. For Fusion instructions that apply to the new local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (New Local UI).

.

Before you start

.

Watch the Lorex Fusion setup tutorial video

For a video walk-through of the Fusion setup, please watch here.

.

Connect your Fusion Wi-Fi cameras and accessories to the Lorex App

Follow the Lorex App steps to add your Lorex Fusion Wi-Fi cameras and accessories. Refer to your camera’s documentation at help.lorextechnology.com for detailed setup instructions. Search your camera’s model number to access the product support page.

Note:

2.In-app, tap the  icon to add your Wi-Fi camera.

.

Connect your Fusion Wi-Fi cameras and accessories to your Fusion recorder

Note:

After successfully connecting to your Fusion recorder, your Fusion Wi-Fi camera or accessory connection status turns green. For any connection issues, see the article Lorex Fusion: Troubleshooting.

To turn off duplicate notifications, adjust your camera’s recording settings, or link motion sensors to cameras, see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Adjust Settings

The following article provides instructions for adjusting your Lorex Fusion Collection settings.

.

Turn off duplicate notifications

After completing the Fusion setup, your Wi-Fi camera or accessory is connected to the Lorex App twice – once as a single device and then a second time as a device connected to your recorder. To avoid receiving duplicate notifications from the same camera or accessory, you will need to Turn off Alerts for your Wi-Fi device connected to your recorder.

To turn off duplicate notifications:

2.Under your Fusion recorder, swipe left to find your Fusion Wi-Fi camera or accessory.

3.Tap on your Fusion Wi-Fi device’s notification icon .

.

.

Adjust the recording settings for your Fusion Wi-Fi camera or accessory

After Fusion setup, your Lorex Fusion Wi-Fi camera’s recording settings will automatically adjust to Continuous, recording 24/7 directly to your recorder’s hard disk drive.

To adjust the recording settings (new local UI):

To adjust the recording settings using the previous local UI, navigate to Main Menu > CAMERA > Recording > Recording and follow the same steps as above.

.

Set the recording schedule for your Fusion Wi-Fi camera or accessory

You can set a custom recording schedule according to your needs. For example, you can set the system to record continuously during business hours and record on motion detection only outside of business hours.

• Click-and-drag on each day to customize the recording schedule. The schedule is set up as a grid, with each block representing two hours.

• Click  beside 2 or more days to link schedules (). This allows you to quickly change multiple schedules at once.

• To make fine adjustments to a schedule, click . This will allow you to set exact start and end times for a schedule.

• To disable all recording of the selected type on the selected day, click .

To set the recording schedule using the previous local UI, navigate to Main Menu > STORAGE > Schedule and follow the same steps as above.

.

Link sensors to cameras

Once you’ve completed the Fusion setup, you can link motion and door/window sensors to any compatible camera, so that when the sensors are triggered the linked automatically cameras record.

.

To learn more about using your Lorex Fusion system, visit the Fusion page or refer to the Lorex Fusion: Frequently Asked Questions article.

.

<p>The post Lorex Fusion Troubleshooting FAQ first appeared on NVR IPCAMERA SECURITY.</p>

ATTENTION: Prior to purchasing and installing an accessory antenna, read the product specifications of your receiver to determine if your receiver has a weatherproof housing. Installing your weatherproof receiver outdoors provides a better line-of-sight between the receiver and the camera, increasing the strength of the wireless signal. See your product specifications to determine the weatherproof rating of your receiver.

The Directional Wireless Panel Antenna and the Omni-Directional Antenna are used to extend the range of one or multiple wireless or wire-free cameras.

Directional Wireless Panel Antenna (ACCANTD9)

Omni-Directional Antenna (ACCANTO8)

Use the 2.4GHz Directional Wireless Panel Antenna (ACCANTD9) to focus a wireless signal onto one specific wireless device (camera or receiver) to increase the range of transmission. A clear line-of-sight between the antenna and the wireless device needing range extension is required.

Use the 2.4GHz Omni-Directional Antenna (ACCANTO8) to enhance the signal of one or multiple cameras that are paired to a single or dual antenna receiver. You may also use two Omni-Directional Antennas to extend the range of all cameras paired to a dual antenna receiver.

REQUIREMENT: To connect the antenna directly to the camera or receiver, the device must have a removable SMA type antenna. Visit www.lorextechnology.com/compatibility to ensure the antenna is compatible with your camera or receiver model.

Lorex Wireless Cameras and Monitors guide 2024

Also Read  : Lorex Camera Troubleshooting

Recommended Antenna Installation Methods

Your antenna needs will vary depending on the setup of your camera system, the number of cameras that require range extension, and the number of channels on your wireless receiver. Review the scenarios below to ensure you have the correct antenna and installation method to meet your needs.

Click a setup scenario to see the recommended installation method:

Combining Accessory Antennas

If you have installed your accessory antenna according to the recommended installation methods and would like to enhance wireless signal strength even further, you may add an additional Directional Wireless Panel Antenna (ACCANTD9) directly to a camera. The additional Directional Wireless Panel Antenna can be used with a Directional Wireless Panel Antenna or with an Omni-Directional Antenna attached to the receiver.

Click an antenna combination to see recommended installation methods:

Scenario 1: Extend the range of one camera paired to a single antenna receiver

To extend the range of one camera connected to a single channel receiver, use the Directional Wireless Panel Antenna (ACCANTD9).

The Directional Wireless Panel Antenna can be connected in two configurations.

Configuration 1. Connect the antenna directly to the camera

Configuration 2. Connect the antenna directly to the wireless receiver

REQUIREMENT: The antenna connects using an SMA cable and replaces the existing antenna on either the camera or wireless receiver. Check www.lorextechnology.com/compatibility to determine if your product is compatible with the antennas.

Scenario 2: Extend the range of one camera paired to a dual antenna receiver

To extend the range of one camera connected to a multi-channel receiver, use the Directional Wireless Panel Antenna (ACCANTD9). Connect the Directional Wireless Panel Antenna directly to the camera.

Scenario 3: Extend the range of select cameras paired to a dual antenna receiver

To extend the range of select cameras on a multi-channel receiver, use the Omni-Directional Antenna (ACCANTO8).

Connect the Omni-Directional Antenna to one of the antenna ports on the wireless receiver.

REMINDER: Each antenna port on a dual antenna receiver is associated with specific camera channels. One antenna communicates with odd numbered channels (1, 3, and 5), while the other antenna communicates with even numbered channels (2, 4, and 6). See the table below for dual antenna channel configurations.

If you connect the Omni-Directional Antenna to an antenna port and your wireless signal does not improve, try switching the Omni-Directional Antenna to the other antenna port or pairing your camera to a different camera channel.

Scenario 4: Extend the range of all cameras paired to a dual antenna receiver

To extend the range of all cameras on a dual antenna receiver, connect an Omni-Directional Antenna (ACCANTO8) to each antenna port on the receiver.

IMPORTANT: Two Omni-Directional Antennas are required to accommodate this setup.

Combination 1: Combine two Directional Wireless Panel Antennas

If you are using a Directional Wireless Panel Antenna (ACCANTD9) to enhance the signal of a single camera with a single channel receiver, you can use an additional Directional Wireless Panel Antenna to further enhance the wireless signal.

Connect one Directional Wireless Panel Antenna directly to the camera and one Directional Wireless Panel Antenna directly to the wireless receiver. To maximize signal strength, it is recommended to aim the two antennas directly at each other with a clear line-of-sight.

Combination 2: Combine a Directional Wireless Panel Antenna with an Omni-Directional Antenna

If you are using an Omni-Directional Antenna (ACCANTO8) to enhance the signal of multiple cameras, you can further enhance the signal of a specific camera by connecting a Directional Wireless Panel Antenna (ACCANTD9) directly to the camera.

A clear line-of-sight between the Directional Wireless Panel Antenna and the Omni-Directional Antenna is recommended to maximize signal strength.

Lorex SD Pro App: Changing / resetting the password

If the password for the Lorex SD Pro app to view the Wireless Home Monitor is lost or forgotten it will need to be reset.

To reset the Lorex SD Pro app password:

1.Ensure that your Wireless Home Monitor is connected to a network router using the included Ethernet cable.

2.On the Wireless Home Monitor tap the Menu icon ().

3.Use the joystick to select Settings > Network > Reset Password.

4.Select Yes to confirm.

5.Tap the Menu icon () repeatedly until all the menus are closed.

6.Launch the SD Pro app and enter the default password. Refer to your user manual for your default password. You will be prompted to create a new password.

Lorex SD Pro App: Setting up Wireless Home Monitor remote access

You can access and view wireless cameras from a Wireless Home Monitor system using an iPhone, iPad, or Android smartphone or tablet using the Lorex SD Pro app. It is available at the App Store or Google Play Store.

Prerequisites:

To set up the mobile application:

LW2700 Wireless Home Monitor: Included cables and accessories

LW2700 Series Wireless Home Monitors support wireless cameras using a wireless signal. They do not have an internal battery and require a connection to a power source. Refer to your user manual for model specific information on cables and accessories. Click here for downloads and documentation for your product.

Most wireless home monitors include the following cable connections and accessories when purchased:

Network: Wireless camera Internet requirements

Standard wireless cameras that connect to a DVR / NVR, do not need access to the Internet to function. Stand-alone IP cameras do not require an Internet connection for basic functions, but an Internet connection is required for full functionality.

Security Cameras: Understanding Field of View (FOV)

Field of View (FOV) is the maximum observable area that is seen at any given moment through an optical device such as a camera lens. The coverage of the area can be measured using the horizontal and vertical distances to find the diagonal of the area in degrees. Mathematically, the FOV is calculated using the horizontal dimension of the sensor (h) and the Focal Length (F).

You can find the camera’s Field of View details in the Specifications sheet. Click here for additional support content including security camera documentation.

The Camera Lens, Sensor and Focal Length

Focal length (F) is the distance between the center of a lens and its sensor. The size of the lens is the aperture size.

These factors affect field of view. A narrower focal length captures more of the scene and displays a larger field of view. A wider focal length magnifies a scene and decreases the field of view. The higher the focal length value the lower the FOV.

Types of Camera Lenses

Fixed: a fixed camera focal length provides an Angular FOV which is permanently set and cannot be adjusted by the user. Varifocal: the camera focal length can be manually adjusted by the user. Generally, this is done manually with screws or dials. At Lorex we have motorized varifocal cameras that allow you to digitally zoom using your phone or NVR without losing details. These lenses provide flexibility and customization for your camera image needs.

The importance of Field of View

A wide angle lens or smaller lenses produce a greater field of view and captures more objects in a scene enhancing your ability to cover larger and wider areas such as foyers, parking lots or warehouses.

A narrow angle lens or larger lenses produce a smaller field of view; capturing a limited area, but the camera quality image improves in detail. These are designed to monitor a specific object, such as cash registers, entrances/exits, hallways or objects of value.

How to Calculate the FOV

To calculate the FOV requires the sensor size and the focal length of the lens: h = Sensor Size F = Focal Length of the Lens

FOV is represented by this equation: FOV = 2tan-1(h) / 2F

Example: h = 4.7mm F = 6mm FOV = 2tan-1(h) / 2F = 2tan-1(4.7)(12) = 2tan-1(0.39) = 2(21.4°) = 42.8°

W482CAD – 2K Wi-Fi Camera : Frequently Asked Questions

The following FAQ article answers many of the general questions about the 2K Wi-Fi Camera with Smart Deterrence (W482CAD). Where applicable, the FAQ includes links to articles where you may find more information.

.

Where do I place my Lorex 2K Wi-Fi Camera?

.

How should I position my Lorex 2K Wi-Fi camera?

When mounting the camera on a wall, make sure of the following:

 Accuracy of person detection will be influenced by multiple factors, such as the person’s distance from the camera, the height of the person, and the height and angle of the camera. Night vision will also impact the accuracy and distance of detection.

.

How do I enable motion detection and person detection?

1.Launch the Lorex App.

2.Tap  icon above the channel thumbnail on the Devices screen.

3.Tap Motion Detection Settings.

4.Tap  icon to enable Motion Detection.

Note: If motion detection is disabled, general/person/vehicle detection will automatically disable and you will not receive any motion detection notifications in the Lorex App.

.

How do I customize Motion Zones™?

Motion Zones™ allows you to customize your device’s motion detection region. Motion Zones™ screen consists of the following settings:

To set Motion Zones™

1.Launch the Lorex App.

2.Tap  icon above the channel thumbnail on the Devices screen.

3.Tap Motion Detection Settings.

4.Tap Motion Zones™.

 For full instructions on how to set customized Motion Zones™, see Configuring Motion Zones™.

.

Why am I receiving so many notifications?

There are a few ways you can lower the number of notifications you are getting.

.

How do I enable Color Night Vision?

1.Lauch the Lorex App.

2.From the Devices screen, tap  icon to configure device settings.

3.Tap  icon to disable Auto Night Vision.
Note: Disabling Auto Night Vision will force the camera into Color Night Vision mode. Recommended in low-light conditions.

.

How to activate Two-Step Verification?

1.Launch the Lorex App.

2.Tap Settings.

3.Tap Account Settings.

4.Tap Two-Step Verification.

5.Tapicon to enable Two-Step Verification.

For detailed setup instructions, see Two-Step Verification Setup.

.

How to optimize video quality?

1.Launch the Lorex App.

2.Tap  icon above the channel thumbnail on the Devices screen.

3.Tap Video Settings.

4.Tap  icon to enable HDR (High Dynamic Range).

Note: Enabling HDR optimizes video picture in high-contrast conditions such as under-lit and over-lit areas.
By default, the video quality is set to High (2x1080p HD).

.

What is Home & Away™?

Lorex App can automatically use your location to manage your notifications when you are at home or away. The app will notify you when you are inside/outside of your set home perimeter.

To start using this feature, navigate to your mobile device settings and enable Location services for Lorex App.

For detailed setup instructions, see Configuring Home & Away™.

.

How do I activate the LED deterrence light when motion is detected?

1.Lauch Lorex App.

2.From the Devices screen, tap  icon to configure device settings.

3.Tap Deterrence Light Brightness.

4.Tap  icon to enable camera’s deterrence light whenever motion or person is detected.

.

How do I remove the 2K Wi-Fi Camera from my account?

1.Launch the Lorex App.

2.From the Devices screen, tap  icon to configure device settings.

3.Tap Remove Device.

.

How to permanently delete data of 2K Wi-Fi Camera?

Refer to Formatting Device Storage for more information.

.

Does my device support WPA2 or WPA3?

Your device supports Wi-Fi Protected Access 2 (WPA2) which is the industry standard security protocol for Wi-Fi networks. WPA2 offers security against unauthorized access and data interception and is supported by most Wi-Fi routers including those that support both WPA2 and WPA3. It employs Advanced Encryption Standard (AES), an encryption mechanism, which secures communication between your camera and Wi-Fi network to keep transmitted data confidential. For information on which devices support WPA2 and which devices support WPA3, please refer to “WPA2 and WPA3 Supportive Devices.”

.

What are the compatible SD cards?

Refer to Compatible SD Cards and Storage Sizes for more information.

.

What devices are compatible with the 2K Wi-Fi camera?

Refer to Product Compatibility Chart for more information.

W482CAD – 2K Wi-Fi Camera : Installation

This article provides instructions to install your Lorex 2K Wi-Fi camera with Smart Deterrence (W482CAD).

.

What is included in the box?

The above contents are based on one camera.

.

How to connect with Lorex App

3.Open the Lorex App app and create an account or login with your credentials.

4.Tap  icon to add a new device, then follow the in-app instructions to complete the device setup.

For full instructions on Lorex App setup, see Connecting with Lorex App.

.

How to mount 2K Wi-Fi Camera to the wall

.

How to mount 2K Wi-Fi Camera to the ceiling

Wi-Fi Security Cameras – How to Read a MicroSD card

To view the contents of a MicroSD card on a laptop or computer, follow these steps:

a. Select the day to play back:

b. Click on the available folder:

c. Within the folder, click either the day folder (Video files) or the jpg folder (Snapshots):

d. Click to select a video time from 00 – 23 hours:

6.Click the MP4 video file to view the video.

Wireless Home Monitor: Audio not working

If the audio is not working on your Wireless Home Monitor:

• Ensure that the protective film is removed from the camera lens.

• Ensure that the monitor volume is not muted. A mute icon () will be visible on the screen if the volume has been muted.

• Turn the monitor volume up using the volume buttons on the side of the unit. Location will vary by model. For exact location of volume buttons for your model, refer to your user manual. Click here for downloads and documentation for your product.

• The camera must be in Full Screen mode for audio. Tap the Channel Select icon () to switch between channels in Full Screen mode. Audio is disabled in Quad mode.

If audio is not working after increasing the volume and viewing in Full Screen mode, restore the system to default settings.

To restore your monitor to default settings:

CAUTION: Restoring to default settings will erase any setting input on the monitor. Your monitor will need to be reconfigured.

1.On the monitor tap the Menu icon ().

2.Use the joystick to select Settings > Default Settings.

3.Select Yes.

.

<p>The post Lorex Wireless Cameras and Monitors guide 2024 first appeared on NVR IPCAMERA SECURITY.</p>

How To Enable IP Camera Offline, Analog Camera Disconnection Notification Alerts

One of the most important features of any security system is its ability to alert you when something goes wrong. Whether it’s an IP camera offline or an analog camera that stopped working, a storage failure, or any other exception, you want to know about it as soon as possible. That’s why Camius DVR and NVR camera systems offer various options for setting up alerts or notifications for different events. While cheap IP and analog CCTV camera systems often lack this feature, Camius provides this advanced functionality, setting it apart from other systems.

Exception Settings in Camius NVR and DVR camera systems

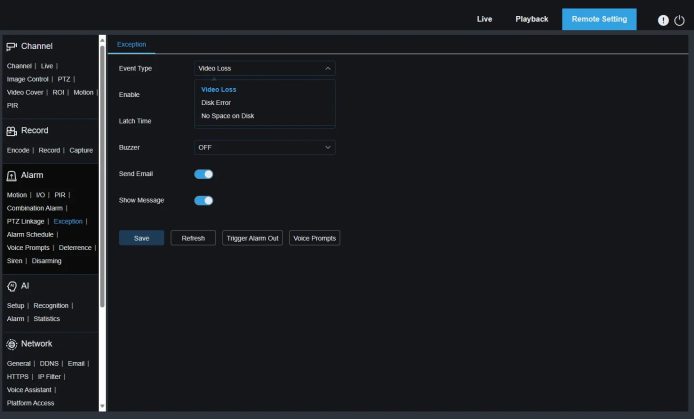

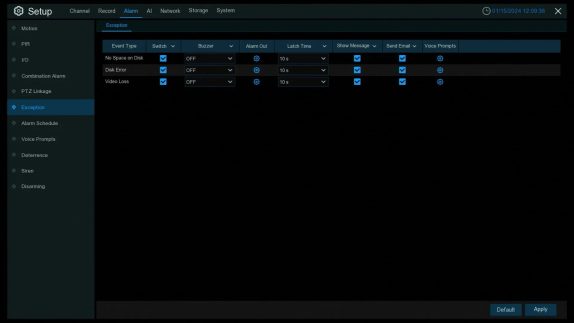

Camius NVRs have ‘Exception’ settings under Setup >> Alarm >> Exception, where you can choose the alarm type. These include:

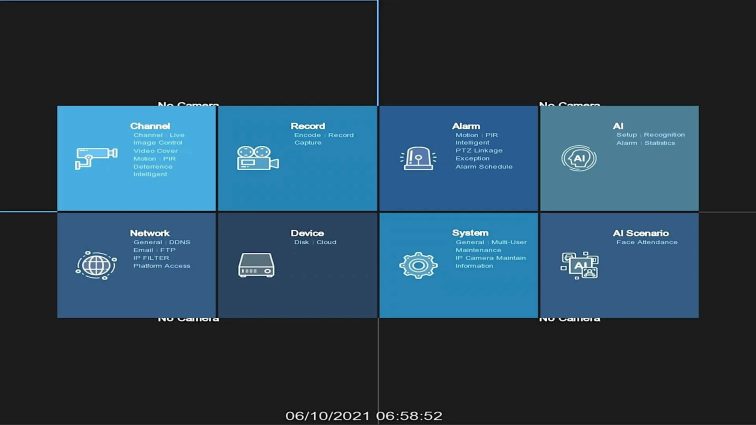

This is an example of the NVR’s local user interface menu while the recorder is connected to the monitor

Local User Interface and Web Browser Interface

The settings can be accessed through two interfaces:

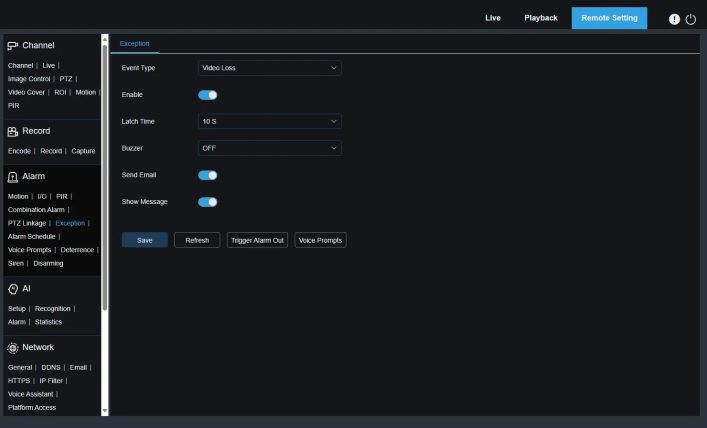

This is an example of the menu while you access the Camius DVR or NVR recorder using a web browser

Push Notifications alerting about wireless or wired analog / IP camera offline on Camius View App

In addition to the settings on your Camius Security Camera DVR or NVR Network Video Recorder, you can also set up push notifications on your Camius View app. These notifications include Video Loss alarm and HDD alarm. To do this, you’ll first need to add the NVR to your app (follow this guide about adding the Camius DVR or NVR to the Camius View app).

Once the NVR is added, you can select the types of push notifications you want to receive directly from the app.

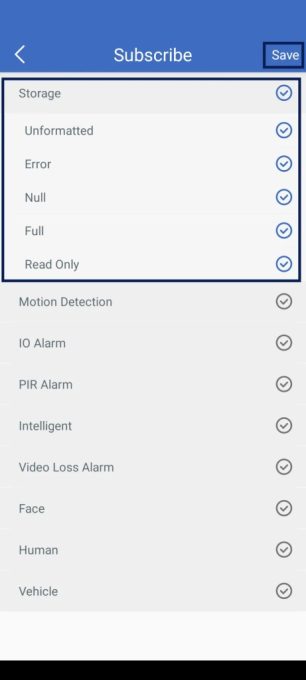

Push Notifications related to Storage (HDD or Micro SD card) installed to the Camius camera system)

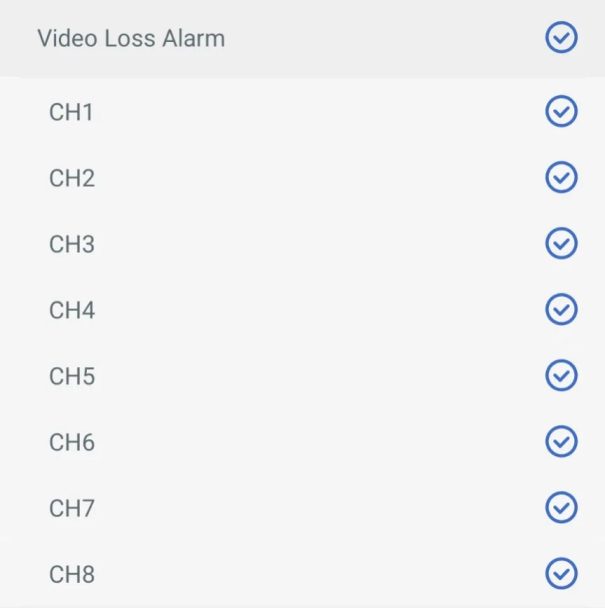

Push Notifications related to the IP or Analog or Wireless Camera Disconnection

Read Also : LaView NVR Setup and User Guide

Regular maintenance can prevent issues like a CCTV camera disconnected, ensuring continuous surveillance.

Regular maintenance can prevent issues like a CCTV camera disconnected, ensuring continuous surveillance. However, sometimes problems may arise that affect the connection of your security cameras. In such cases, you need to troubleshoot the issue and find the cause of the disconnection. Depending on the type of camera system you have, the steps may vary. For analog security camera systems, you need to check the power supply, the cabling, and the DVR settings. For wired PoE power over ethernet camera systems, you need to check the network connection, the IP address, and the NVR settings. To learn more about how to troubleshoot these issues, you can refer to the following guides:

How to Setup DDNS on Camius DVR and NVR Surveillance Recorder?

To setup DDNS for Camius security cameras, you’ll first need to register for a DDNS service, obtain a domain name, activate DDNS in your camera’s network settings, and then input your DDNS account’s hostname, username, and password.

If you want to access your Camius DVR or NVR recorder remotely from your PC, you might encounter some difficulties with dynamic IP addresses. A dynamic IP address is one that changes every time you connect to the internet, making it hard to establish a stable connection with your recorder. That’s where DDNS comes in handy.

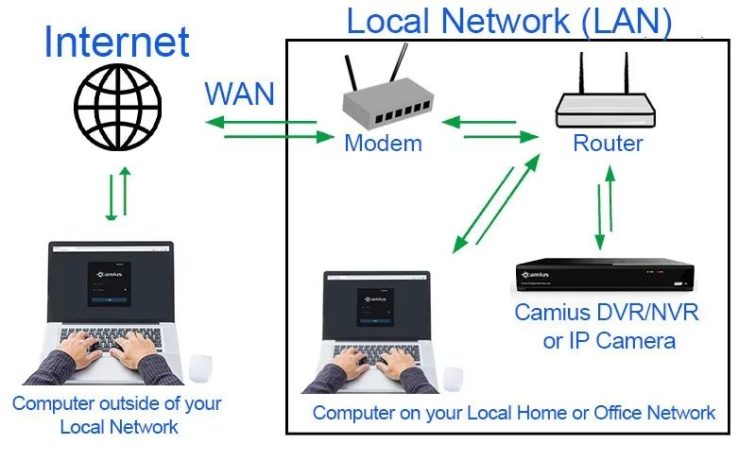

What is DDNS?

Dynamic DNS, or DDNS, stands for Dynamic Domain Name System, and it allows you to assign a static domain name to your recorder, regardless of its IP address. This way, you can always connect to your recorder using the same URL without worrying about IP changes.

Dynamic DNS lets you access your Camius security camera device on the internet with an easy-to-remember web address like “camiusnvr.dyndns.com” instead of a hard-to-remember IP address like 216.144.47.245. This is useful when you want to connect to your security camera, DVR, NVR from anywhere in the world.

Setting up DDNS

In this guide, we will take you through the steps of setting up DDNS on your Camius DVR or NVR recorder. You will need to have an account with a DDNS service provider, such as DDNS_3322, DYNDNS, NO_IP, CHANGEIP, or DNSEXIT.

Step 1:

Create an account on your preferred DDNS service provider website and a domain name (which is a hostname for your Camius DVR/NVR or an IP camera). Each of these providers offers free and paid accounts, which you need to select based on your requirements.

You will need to provide your email address and create a password. After verifying your email, you will be able to log in to your dashboard. The process of creating an account with DDNS service providers is similar.

Create a domain name for your recorder on the DDNS server. You can usually choose any domain name (hostname) you like, as long as it is not already taken. For example, you can use something like camius.no-ip.org or camius2023.dyndns.com

Step 2:

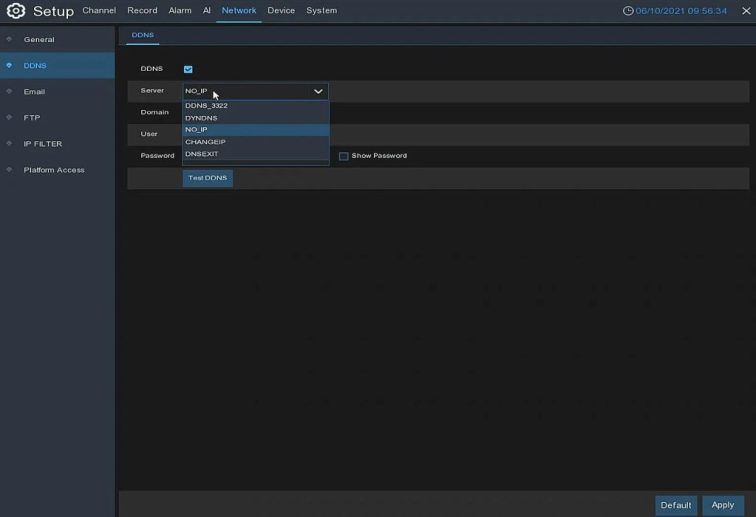

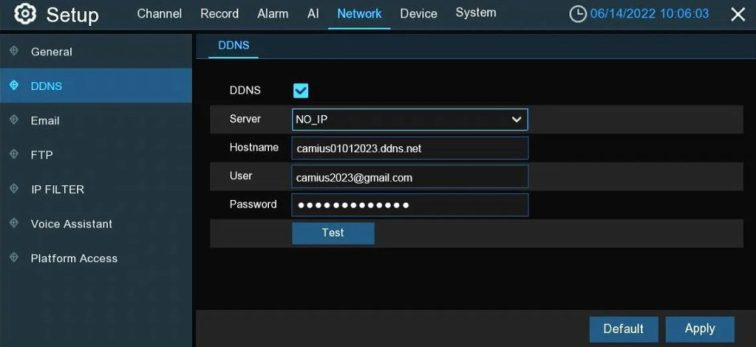

Configure DDNS settings on your Camius DVR or NVR recorder.

Step 3:

Step 4:

Enter the Domain name (hostname) in a web browser tab bar to access your Camius DVR/NVR remotely from a PC or Mac. Enjoy!

How do I backup NVR or DVR settings?

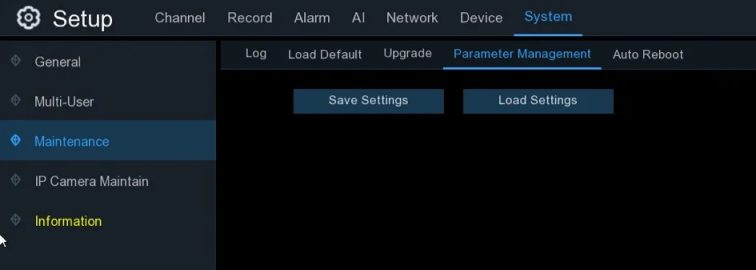

You can export the main menu settings you have configured to a USB flash drive, or import an exported setting file from USB flash drive to the NVR.

Camius user interface menu for reference to backup NVR, DVR configuration

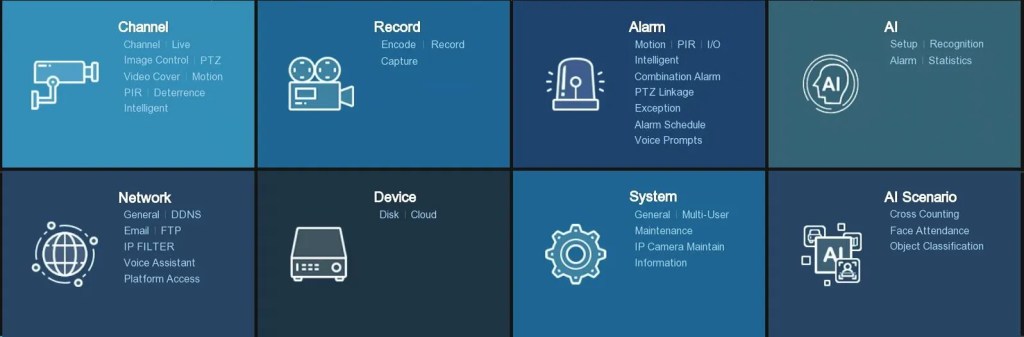

Camius IPVAULT2256PR menu (16 Channel NVR)

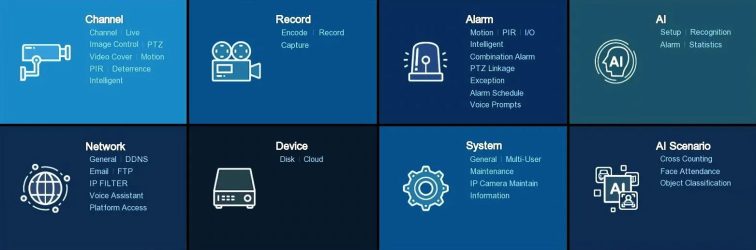

Camius TRIVAULT4K2168R menu (16 Channel Hybrid DVR)

Camius IPVault1128PR menu (8 Channel NVR)

Camius IPVault1128PR menu (8 Channel NVR)

.

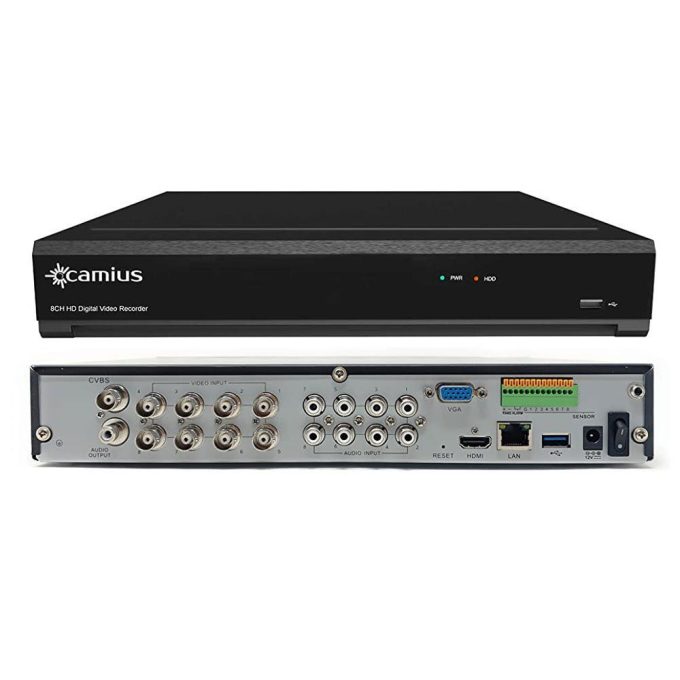

Camius Hybrid DVR Camera Systems are in high demand by Gas Stations and Retail Stores

Security and surveillance are paramount today, especially for businesses like gas stations and retail stores. The demand for advanced surveillance solutions has risen with the increasing need to protect assets, employees, and customers. Camius, a renowned provider of security systems, introduces its innovative Hybrid DVRs, a perfect solution for enhancing security in gasoline pumps and retail stores. This article explores the numerous advantages and unique features of Camius Hybrid DVR camera recorders that make them stand out in the market.

1. Gas Stations, Retail stores upgrade to Camius 4K security at minimal cost

One of the major benefits of choosing Camius DVR camera systems is their cost-effectiveness. Camius innovative 8 and 16-channel DVR recorders significantly reduce the cost of upgrading surveillance systems by eliminating the need for new wiring. Business owners can retain their existing coaxial wiring infrastructure and only replace the DVR recorder and cameras when necessary.

Traditional camera upgrades often entail the labor-intensive process of rewiring the entire premises, which can be time-consuming and expensive. With Camius DVR camera systems, this hassle is eliminated. The compatibility with existing coaxial wiring not only saves costs on new cabling but also reduces the installation time, causing minimal disruption to the business operations during the upgrade process.

Moreover, reusing the same wiring infrastructure does not compromise the system’s performance or reliability. Camius DVRs are designed to seamlessly integrate with the existing coaxial cables, ensuring smooth transmission of high-definition video and data without any loss in quality.

By opting for Camius DVR camera systems, business owners can enjoy cutting-edge surveillance technology without breaking the bank. The ability to upgrade to the latest DVR recorder and cameras as needed while keeping the existing wiring makes Camius an economical and future-proof choice for filling stations and retail stores.

In conclusion, Camius Hybrid DVRs offer various benefits, including reduced upgrade costs, compatibility with existing wiring, and ease of installation. Business owners can enhance their security measures without a significant financial burden and rest assured knowing they have invested in a reliable, advanced, and cost-effective surveillance solution.

2. The Power of Hybrid DVRs

2.1 What are Hybrid DVRs?

Hybrid DVRs combine the capabilities of traditional Digital Video Recorders (DVRs) and Network Video Recorders (NVRs). They allow users to utilize both analog and IP cameras, providing flexibility and compatibility with existing systems.

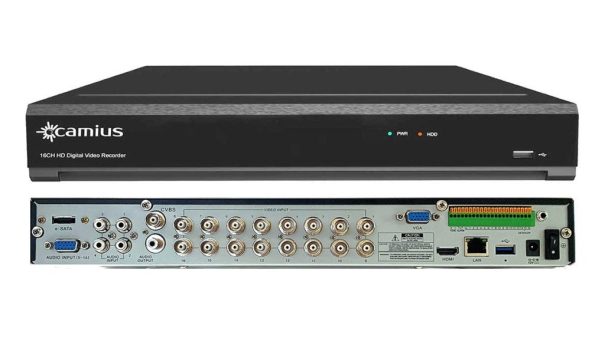

12 Channel Hybrid DVR camera recorders

24 Channel Hybrid DVR camera recorders

2.2 The Advantages of Hybrid Technology

Camius Hybrid DVRs offer businesses the best of both worlds. By supporting analog and IP cameras, they enable a seamless transition from analog to IP surveillance, protecting previous investments while embracing modern technologies.

3. Ultra High Definition Surveillance

3.1 Crystal Clear Resolution

Camius Hybrid DVRs support high-definition cameras, capturing clear and detailed images. This level of resolution is crucial for identifying faces, license plates, and other critical details in businesses.

3.2 4K Ultra HD Recording

With 4K Ultra HD recording capabilities, Camius surveillance DVR camera reocrders ensure that every inch of the surveillance area is captured in astonishing clarity, leaving no room for ambiguity or doubt.

4. Intelligent Video Analytics

4.1 Smart Motion Detection

Camius Hybrid DVRs are equipped with intelligent video analytics, including smart motion detection. This feature lets the system detect and alert users of unusual activities, such as unauthorized access, loitering, or suspicious movements. Only with Camius DVR records can you detect video motion, vehicles, and pedestrians! You can also set multiple motion detection areas for analog and IP cameras.

Web browser view

4.2 Advanced AI Technology

Integrating advanced AI technology empowers these DVRs to recognize specific objects, track movements, and even provide heat mapping to identify high-traffic areas in commercial locations.

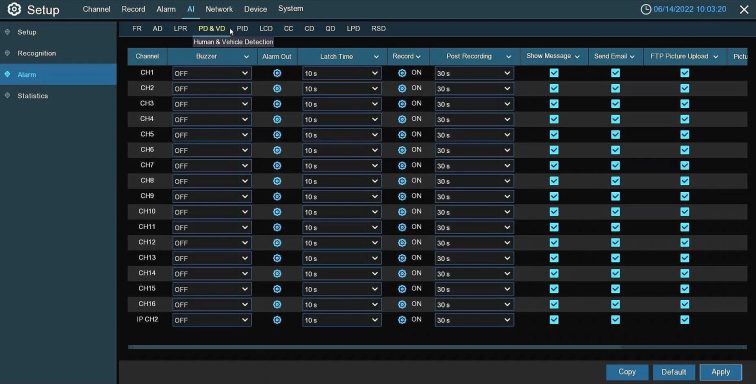

AI functions with Analog and Camius IP cameras (TRIVAULT4K2168R)

5. Remote Access and Mobile Monitoring

5.1 Stay Connected Anywhere, Anytime

Camius Hybrid DVRs offer remote access capabilities, enabling business owners and managers to monitor their business premises using smartphones, tablets, or computers from anywhere in the world. Whether you have a Windows PC, Apple Mac or iPhone, iPad, Android smartphone, or tablet, the DVR is compatible!

5.2 Real-time Alerts on the Go

With mobile monitoring, users receive real-time email alerts and push notifications on their devices, ensuring prompt actions can be taken in case of emergencies or security breaches.

6. Enhanced Storage Options

6.1 Efficient Data Storage

Camius Hybrid DVRs support various storage options, including 3.5″ SATA HDD, 2.5″ SSD, and even Cloud storage, ensuring ample space to retain crucial surveillance footage for extended periods.

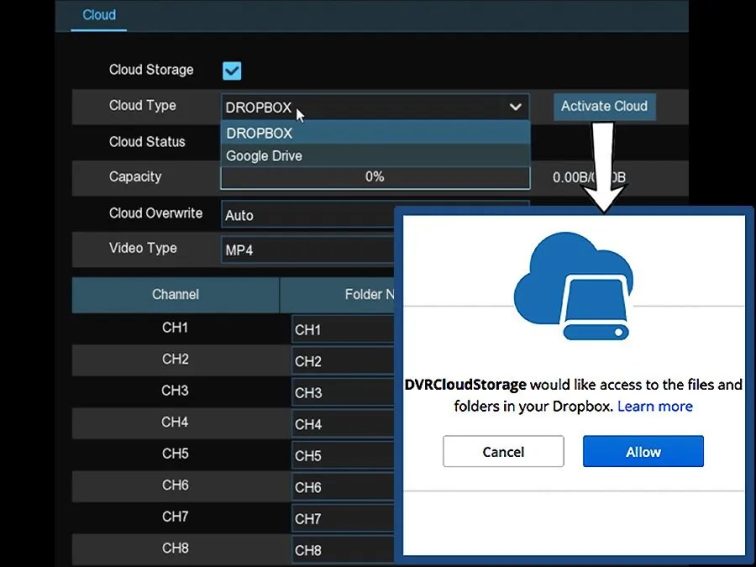

Camius Hybrid DVR camera recorders work with Dropbox and Google Drive. Click HERE for more information.

6.2 Scheduled Backup and Archiving

The DVRs allow users to schedule automated backups and archiving, providing an additional layer of data protection and seamless storage management.

7. DVR Recorder with User-Friendly Interface

7.1 Easy Setup and Configuration

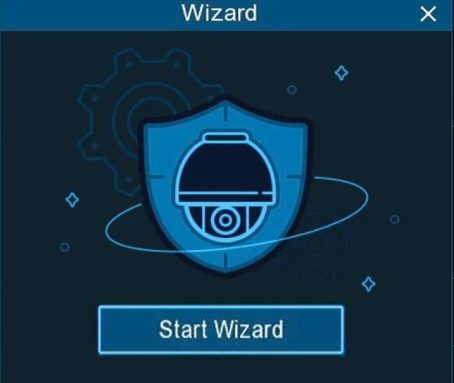

Camius Hybrid digital video recorders boast a user-friendly interface, simplifying the setup and configuration process. Business owners can quickly deploy the system without requiring extensive technical expertise.

CLICK HERE for the DVR installation guide

7.2 6.2 Intuitive Control

The intuitive control panel and mobile app make it effortless for users to navigate through various features and access the necessary information promptly.

8. Conclusion

Camius Hybrid DVRs have proven to be a game-changer for businesses, offering a perfect security solution with their hybrid capabilities, high-definition surveillance, intelligent video analytics, remote access, and user-friendly interface. By choosing Camius Hybrid DVRs, businesses can ensure comprehensive security, loss prevention, and a safer environment for customers and employees alike.

FAQs

1. Are Camius Hybrid DVR camera recorders compatible with existing security camera systems?

Yes, Camius Hybrid DVR recorders are designed to be compatible with both analog CVBS, AHD, CVI and TVI  and IP Onvif conformant cameras, making them an ideal choice for businesses looking to upgrade their security systems without discarding existing cameras.

2. How can I access the recorded footage remotely?

You can access the recorded footage remotely through Camius’ user-friendly mobile app or Camius DVR software. Simply install the app on your smartphone or tablet, and you can monitor your gas pumps and retail stores from anywhere with an internet connection.

3. What is the storage capacity of Camius Hybrid DVRs?

Camius Hybrid DVRs support various storage options, including HDD, SSD, and Cloud storage. The capacity can be chosen based on the business’s needs and the required retention period for surveillance footage. CLICK HERE for the list of compatible hard drives

4. How reliable are Camius Hybrid DVRs in terms of data protection?

Camius analog DVR camera recorders come with advanced data protection features, including scheduled backup and archiving. These ensure that your surveillance footage is securely stored and protected from data loss or tampering.

How to use 2 way audio security cameras?

The feature of two way audio security cameras empowers users to both receive and transmit audio through their IP camera, adding an extra layer of interactivity and communication to the security setup.

Camius presents its cutting-edge 4K spotlight PoE cameras that come equipped with built-in high-quality microphones and speakers, eliminating the need for external attachments to enable the two-way audio function. For optimal performance, it is recommended to install Camius PoE cameras alongside Camius PoE or Non PoE NVR recorders or Hybrid DVRs.

 .

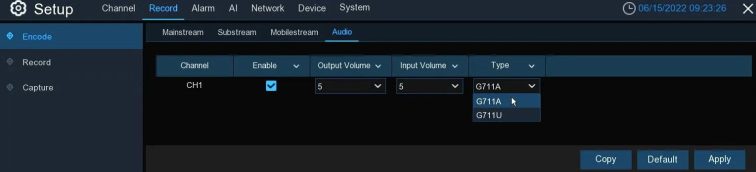

The latest R series NVR and DVR recorders facilitate seamless control of Camius spotlight cameras, microphones, and speaker volumes directly from the NVR settings. Additionally, users can conveniently modify the audio encoding format per their requirements. To troubleshoot two-way audio, turn down the input volume and output volume and test switching audio code type (G711A and G711U).

Two factors can affect the audio quality: network and distance.

The recommended distance for the microphone to transmit quality sound is 9.5 to 16 feet.

To engage in two-way audio communication, the Camius View app is the go-to platform.

Here’s a simple guide to using the 2 way audio security cameras feature:

It’s important to note that the two-way audio experience with Camius security cameras is characterized by live bidirectional communication and not an intercom-type function.

In most scenarios, the mute function is enabled by default. By enabling audio, users can record audio from the microphone of their security camera. To listen to the recorded audio, whether in live mode or during playback, it is necessary to open the individual channel in full screen on which the audio-enabled security camera is operating. This applies to both NVR and app usage.

However, it’s crucial to exercise caution while utilizing surveillance audio, as its usage might be restricted or subject to regulations depending on the location. Always ensure to verify with local authorities on the proper and legal use of security cameras with audio to avoid infringing upon privacy laws. Unauthorized audio recording can be considered illegal in certain jurisdictions. Hence, Camius emphasizes the significance of complying with local laws and assumes no liability for the misuse of its surveillance cameras that do not align with the respective regulations.

The Impact of Artificial Intelligence in IP Cameras: Why Camius Stands Out

In recent years, the integration of artificial intelligence (AI) has revolutionized various industries, and the field of IP cameras and other security systems is no exception. AI-powered IP camera systems have significantly enhanced surveillance capabilities, enabling advanced analytics, real-time monitoring, and improved security. Among the leading players in this field, Camius stands out as a pioneering brand that has embraced AI technology to deliver exceptional performance and innovation. In this article, we will explore the applications of AI in IP camera systems and why Camius has become a prominent name in this industry.

The Role of Artificial Intelligence in Security Camera System

Artificial intelligence has transformed IP camera systems by providing advanced functionalities and intelligent features that greatly enhance their effectiveness. Here are some critical applications of AI in IP camera systems:

Why Camius Stands Out

Among the various brands in the IP camera industry, Camius has emerged as a frontrunner in implementing AI technology into their camera systems. Here are some reasons why Camius stands out:

Artificial intelligence has revolutionized the IP camera industry, enabling advanced analytics, real-time monitoring, and enhanced security. Camius has distinguished itself within this landscape by harnessing AI technology to deliver cutting-edge IP camera systems. Through its robust AI algorithms, customizable solutions, real-time insights, scalability, and user-friendly interfaces, Camius has established itself as a prominent player in the field. As AI continues to evolve, Camius remains committed to pushing the boundaries of innovation.

<p>The post Camius Devices FAQs and How-Tos first appeared on NVR IPCAMERA SECURITY.</p>

As the latest technology of Meeso Communications, H.265X has the advantages of low bit rate and low cost, it will surely stand out in the new round of market competition and achieve a new leap.

Add H265X Camera to Recoder

Read More :

1. XMEYE NVR Installation Guide
2. How to connect an IP camera to the XMEYE JFEYE DVR?
3. XMEYE Devices Password Reset New Method

In this article, I will show you how to add H.265X compression standard Camera to Dahua, Kbvision video recorder.

1. Settings on Camera

To add a Camera to a Dahua, Kbvision DVR, you need to adjust a few parameters as follows:

2. Add Camera to Recoder

After you have set the parameters on the Camera, you can add the following to the Recoder:

3. Check results

Here’s what you get when you’ve added the recorder:

A. View Camera on Web Browser

• Watch the main stream live:

• Watch live substream:

• Review recording:

B. View Camera on TV screen (HDMI/VGA)

• Watch the main stream live:

• Preview sub-stream:

• Review recording:

C. View Camera on SmartPSS software (PC)

• Go to main stream:

• Preview sub-stream:

• Review recording:

D. View Camera on DMSS (Phone) software

• Live view of main stream, sub stream and replay recording:

Thanks for following this post!!!

<p>The post Add H265X Camera to Recoder first appeared on NVR IPCAMERA SECURITY.</p>

There are two possible ways to reset the password with the new firmware. However both need the person to access the NVR either by being in front of it or by access in on the computer (entering the IP address on the browser). The screenshots shown on this guide will be the ones we can get on the NVR itself:

Bring up the login screen by right-clicking anywhere and clicking on the “Menu” option. When you see the login screen, click on the “Forgot Password” link:

After that, either 2 types of screens will come up: The first one is to enter an email address to get a new temporary password:

Please enter a valid email address to get your new temporary password:

The second type of screen is the same as the one it will show when we click “Next” after entering the email address:

When you reach this screen, you can follow one of the following options:

How To Reset Password 2M NVR

Read More :

1. ONVIF Camera Discovery and Stream Troubleshooting Guide
2. How to Add DeskCamera to Dahua NVR
3. How To Connect a Amcrest NVR Using ONVIF

Option 1:

If you have downloaded the 2M Guard App for your phone, you can do the password reset yourself.

Click on the “Local Config” option:

Click on the “Forget Device Password” option and scan the QR code on the NVR screen:

After that, a message will appear saying that the temporary password will be sent to the registered email address:

Click on “OK” to send the password and wait for the confirmation page:

Click “OK” again and wait. The email will look like this:

Take note of the security code and enter it on the “Security Code” field of the Retrieve Password screen (The security code is case sensitive, this means that upper and lower case letters matter):

After entering the security code, press “Enter” and press “OK”. After that, a new pop-up screen will appear to enter a new password on the “Password” field. Don’t forget to enter the same new password on the “Confirm” field:

After that, click on “OK”.

Option 2:

If you don’t have the 2M Guard App downloaded, you can take a picture of the QR code shown on the “Retrieve Password” screen. Here is an example of the picture you should take.

After you take the picture, please contact Technical Support to receive more instructions. We will do the password reset using the QR code picture taken.

NOTE: Please do NOT exit from the “Retrieve Password” screen after you take the picture of the QR code. The security code only lasts for a day, so please keep that in mind before starting a password reset process.

How can I reset the password for the 2M 8000 Series NVR?

This is valid for models 2MN-8004-P4, 2MN-8008-P8, 2MN-8116-P16, 2MN-8232-P16

There are two very similar ways you can reset the NVR password if it has been forgotten, but both methods begin the same way: obtaining the serial number of the device. It can be found in different areas: the sticker on the side of the box, the sticker on the bottom of the device, or when you click Forgot Password on the NVR local screen, and it will begin with “210..” and be 20 characters long (a mixture of numbers and letters).

By clicking on Forgot Password it will open a new window that will show the serial number and ask for the security code. Contact tech support for the security code. Make sure you are in front of the device at the time of calling because it will need to be entered within a frame of time. Once the correct security code has been entered the window will change to enter a new password. It is recommended to create a strong password.

The second method to reset the password begins the same. Obtain serial number → contact tech support → enter security code into the password box. After entering the code another window will open asking for the security code again and the new password.

How to Access Device from Web

This guide is valid for models 2MT-4004, 2MT-4008, 2MT-4088, 2MT-4016, 2MN-8004-P4, 2MN-8008-P8, 2MN-8116-P16, 2MN-8232-P16.

When devices are connected to the network, they can also be accessible from a computer. The first thing you need to make sure of is that the computer you are using and the DVR/NVR are connected to the same network (network is coming from the same router for both devices). You will first need to obtain the IP address of the DVR/NVR from Menu → System → Network → IPv4 address.

After noting the IP address of your device, open Internet Explorer and in the address search bar type in the DVR/NVR IP address. If the NVR and the computer are on the same network then it will pull up the login page of the DVR/NVR. The credentials will be the same as when you log into the local interface of your device.

<p>The post How To Reset Password 2M NVR first appeared on NVR IPCAMERA SECURITY.</p>

How to connect a Uniview Cube camera to wifi using a PC
