ONWOTE Poe NVR Setup Guide

ONWOTE Poe NVR Setup Guide
ONWOTE Poe NVR Setup Guide
ONWOTE Poe NVR , ONWOTE is committed to providing highest-definition smart total security solutions for industrial, commercial and home users, focusing on commercial grade construction quality, reliability and artificial intelligent operation. We will always stand behind our products, “Value every customer” is our motto.
.What is the Default Password of the ONWOTE System?

The default password for your ONWOTE system is 123456 or 1234@abcd. If neither can work, please contact us at support@onwote.com to reset password.

1.How to reset camera

1. Please install SearchoTool on your computer: http://onwote.com/Download#Tools

2. Please connect one of the NVR poe port to your computer directly.

http://onwote.com/_upload/images/202301181639382488.png

3. Launch Searchool on your computer and search cameras.

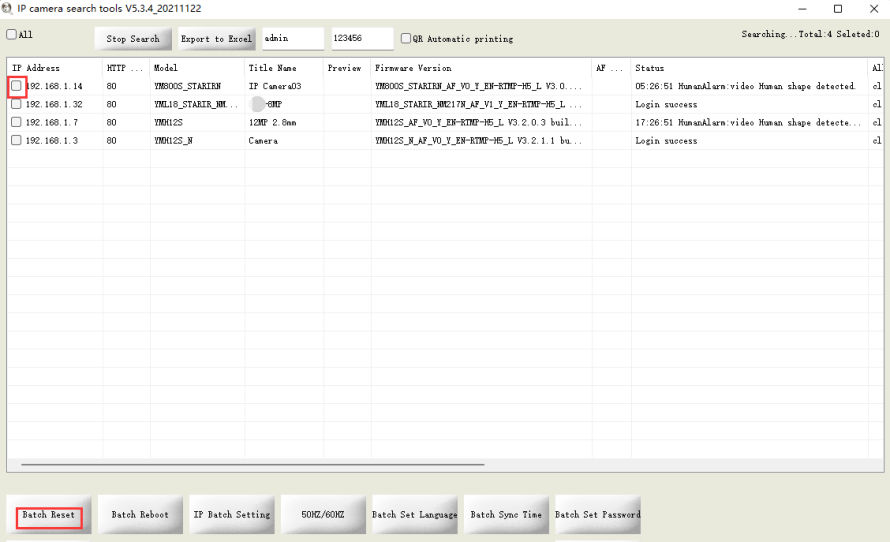

4. Check in your camera and click Batch Reset to Reset your camera. Please wait for about 3 minutes until the camera finished resetting.

http://onwote.com/_upload/images/202303161727429650.png

.

1.Set auto cruise for the 20X zoom PTZ camera

1. Please click the image of the dome camera and click http://onwote.com/_upload/images/202301181644223642.png icon to go to the PTZ page.

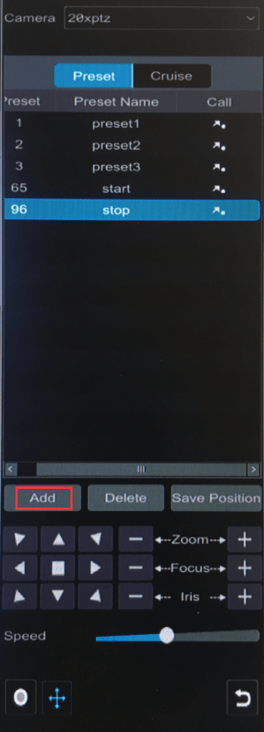

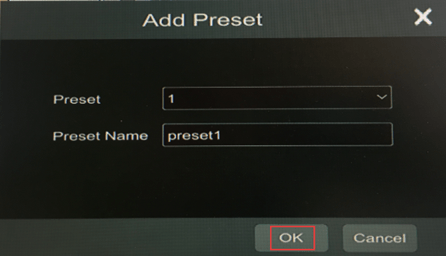

2. Please click “Add” to add preset, click OK to save this preset. Then move your camera to another position to set the next preset.

http://onwote.com/_upload/images/202301181646443535.png   http://onwote.com/_upload/images/202301181647050797.png

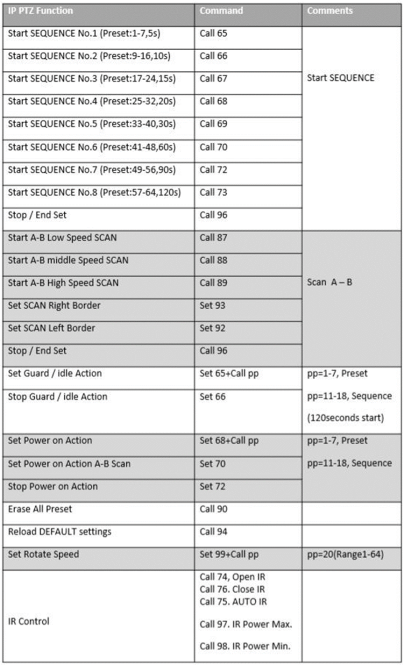

3. Please set command for the camera according to the command list below.



Examples:

If you set preset 65, call 65 mean auto cruise from preset 1- preset7.

If you want to stop cruise, please add preset 96 and call 96.

If you set preset 87 and call 87, it means the camera will scan from left to right in low speed.

If you set preset 96 and call 96, the camera will stop cruising.a

http://onwote.com/_upload/images/202301181652149141.png

ONWOTE Poe NVR Setup Guide

Read More : How to Connect POE NVR via the Onvif Protocol?

.

1.How to uninstall hard drive

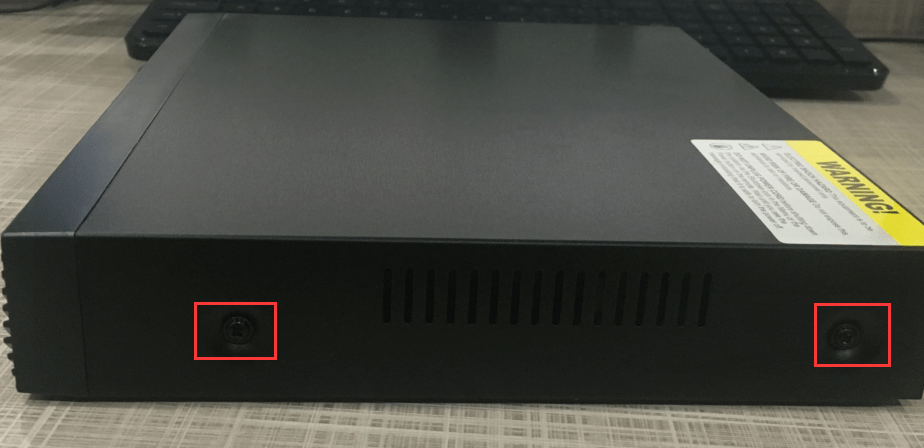

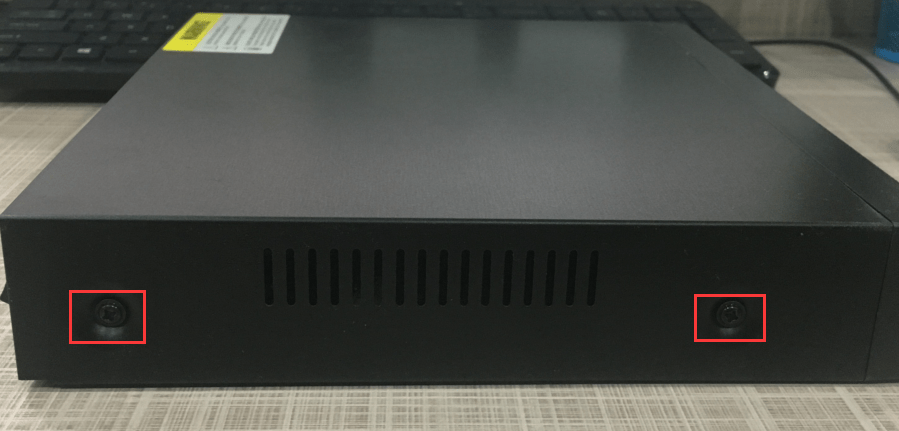

Step1: Turn off the NVR, unscrew it and remove the cover.

http://onwote.com/_upload/images/202301181654202675.png

http://onwote.com/_upload/images/202301181654223135.png

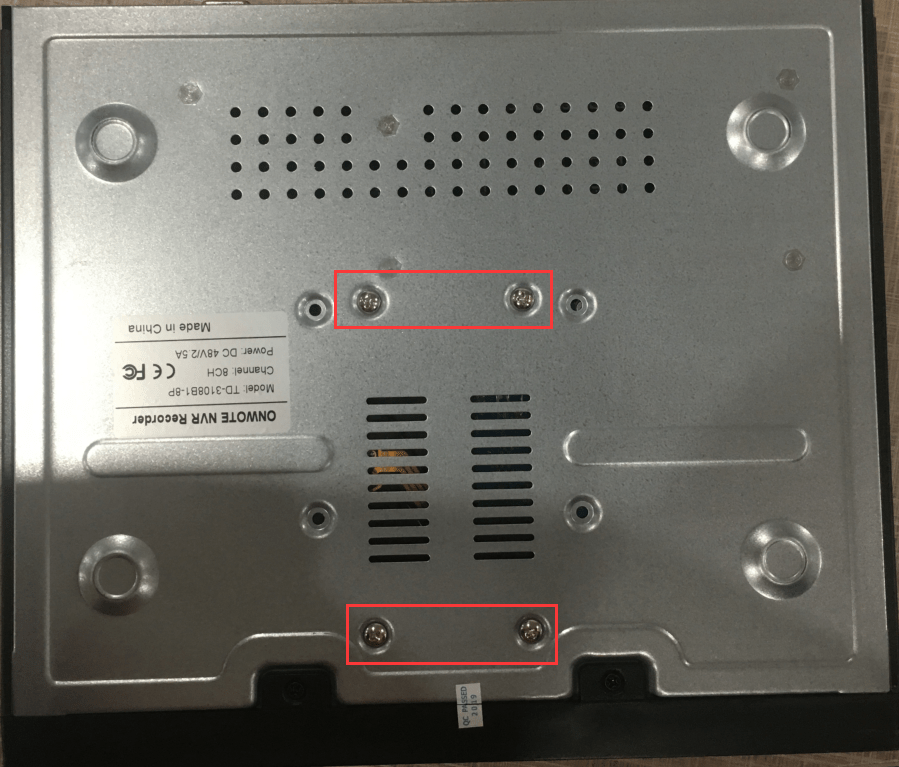

Step2: Unscrew the screws on the bottom of the NVR.

http://onwote.com/_upload/images/202301181654210810.png

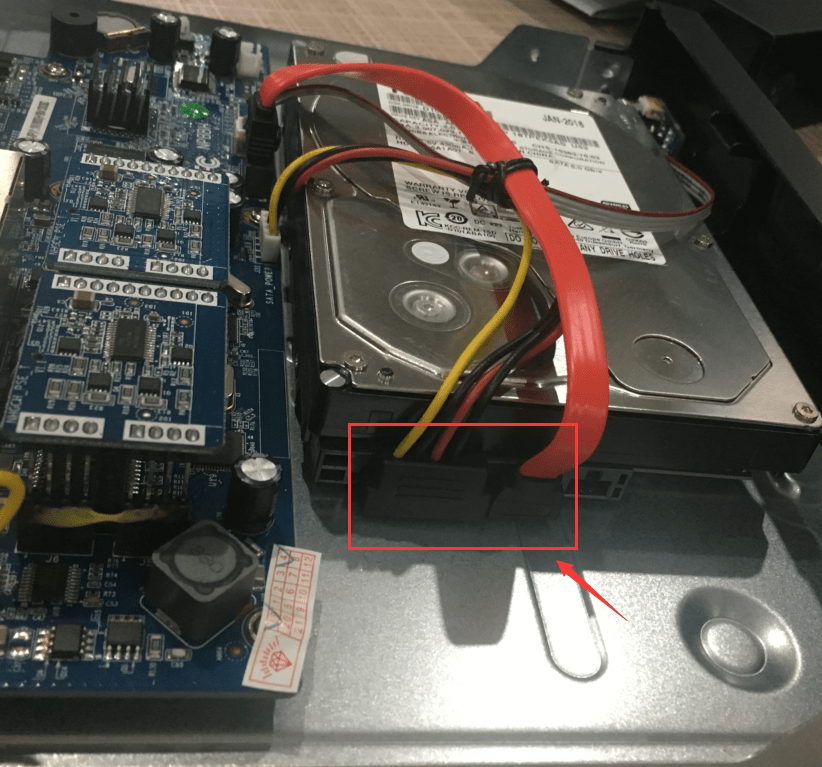

Step3: Unplug the 2 cable from the Hard drive

http://onwote.com/_upload/images/202301181654218115.png

1.How to use your systen with PoE switch-NVR LAN port-RouterPoE switch

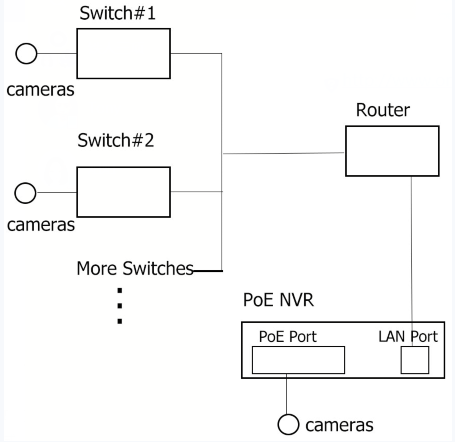

1. Connect the switches one by one, then connect the poe switch and NVR with the same router.

http://onwote.com/_upload/images/202301181656033750.png



2. Change the cameras IP to the same segment with your router/enable DHCP of your cameras.

Please the SearTool and install it on your computer (connected to the same router):

http://onwote.com/Download#Tools

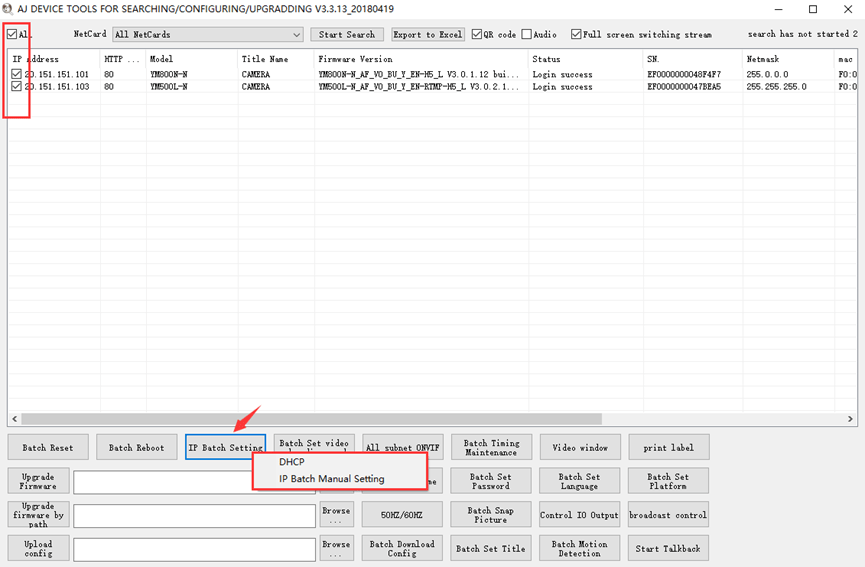

Please use SearchTool to detect the camera. Then check in the cameras and click Batch Edit IP. Click DHCP to enable DHCP of your camera or choose IP Batch Manually Setting to change the camera's IP address to the same segment with your router manually.

http://onwote.com/_upload/images/202301181656567774.png

e.g.: If the gateway of your router is 192.168.1.1, please change the camera's IP to 192.168.1.X(X can be numbers from 50-100) and each camera has a different IP.



3. Add cameras on NVR

Please go back to the monitor which is connected with the NVR. Go to Settings—Camera—Add camera to add the cameras.

.

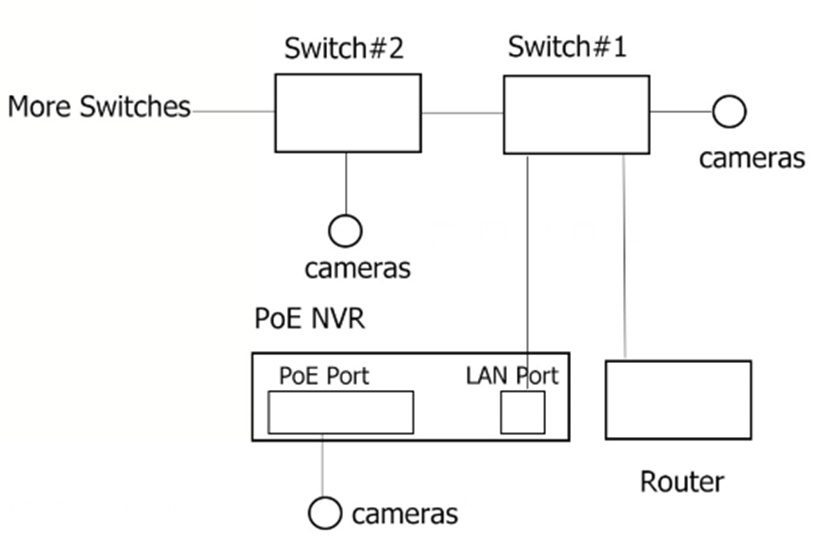

1.How to use your systen with PoE switch-NVR LAN port-PoE switch

1. Connect the switches one by one, then connect the router and NVR with one of the switches.

http://onwote.com/_upload/images/202301181659506201.png

2. Change the cameras IP to the same segment with the NVR's LAN port.

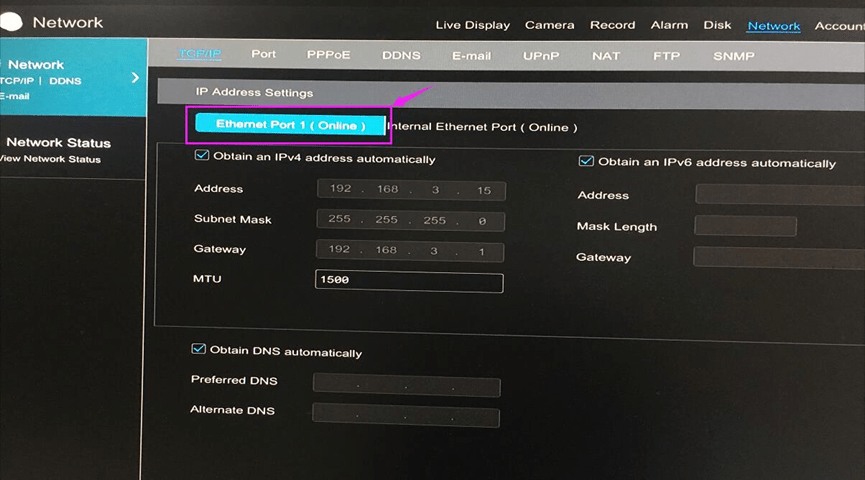

Please go to Settings——TCP/IP to check the IP of the NVR:

eg:

http://onwote.com/_upload/images/202301181700364890.png

Please download the software SearchTool and install it on your computer (connected to the same router):

http://onwote.com/Download#Tools



Please use SearchTool to detect the camera. Then check in the cameras and click Batch Edit IP. Click DHCP to enable DHCP of your camera or choose IP Batch Manually Setting to change the camera's IP address to the same segment with your NVR's IP manually.

http://onwote.com/_upload/images/202301181701486129.png

e.g.: If your NVR's IP is 192.168.1.16, please change the camera's IP to 192.168.1.X(X can be numbers from 50-100) and each camera has a different IP.



3. Add cameras on NVR

Please go back to the monitor which is connected with the NVR. Go to Settings—Camera—Add camera to add the cameras.

1.View video on app SuperLive plus

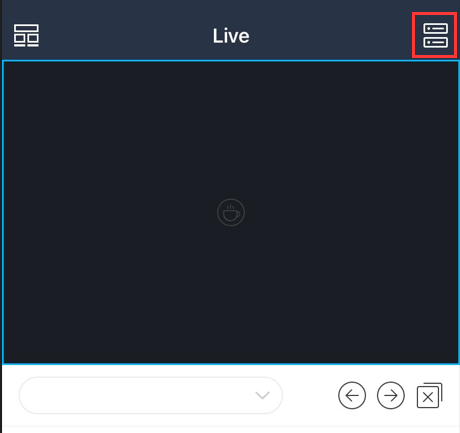

1.1. Launch “Superlive Plus”, tap on the button on top right:

http://onwote.com/_upload/images/202302011605439352.png

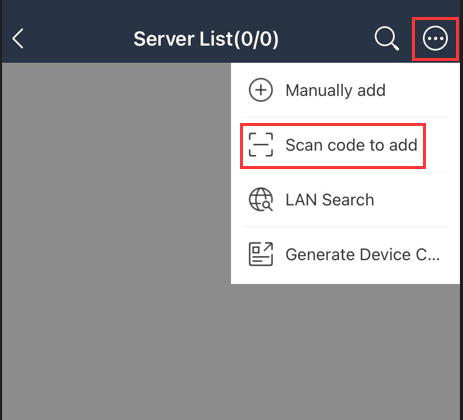

2.2. Tap on http://onwote.com/_upload/images/202302011605439098.png and choose Scan code to add.

http://onwote.com/_upload/images/202302011605439811.png

3.3. Scan QR code of your camera system on NVR monitor to add device (How to find QR code/ serial number?– NVR Setting–Network–NAT)

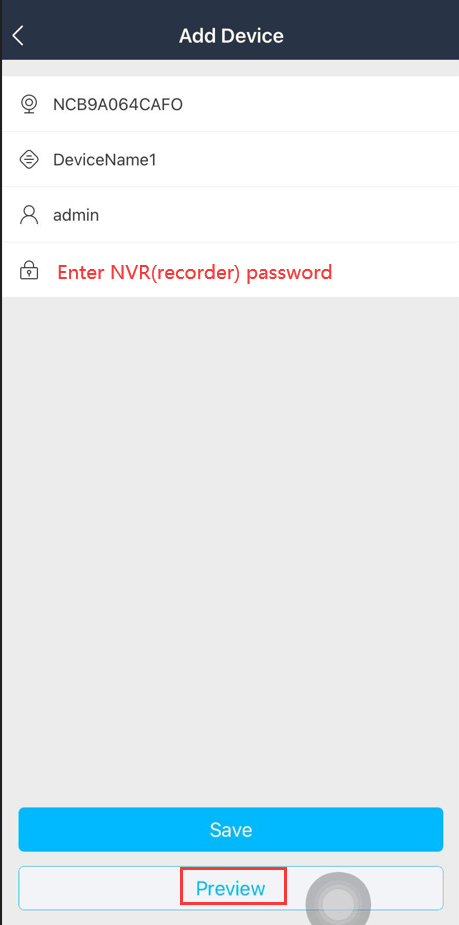

4.Enter the password of your NVR and click Preview. (The password is the one you use to login your system on the monitor, default password is 123456.)

http://onwote.com/_upload/images/202302011605445172.png

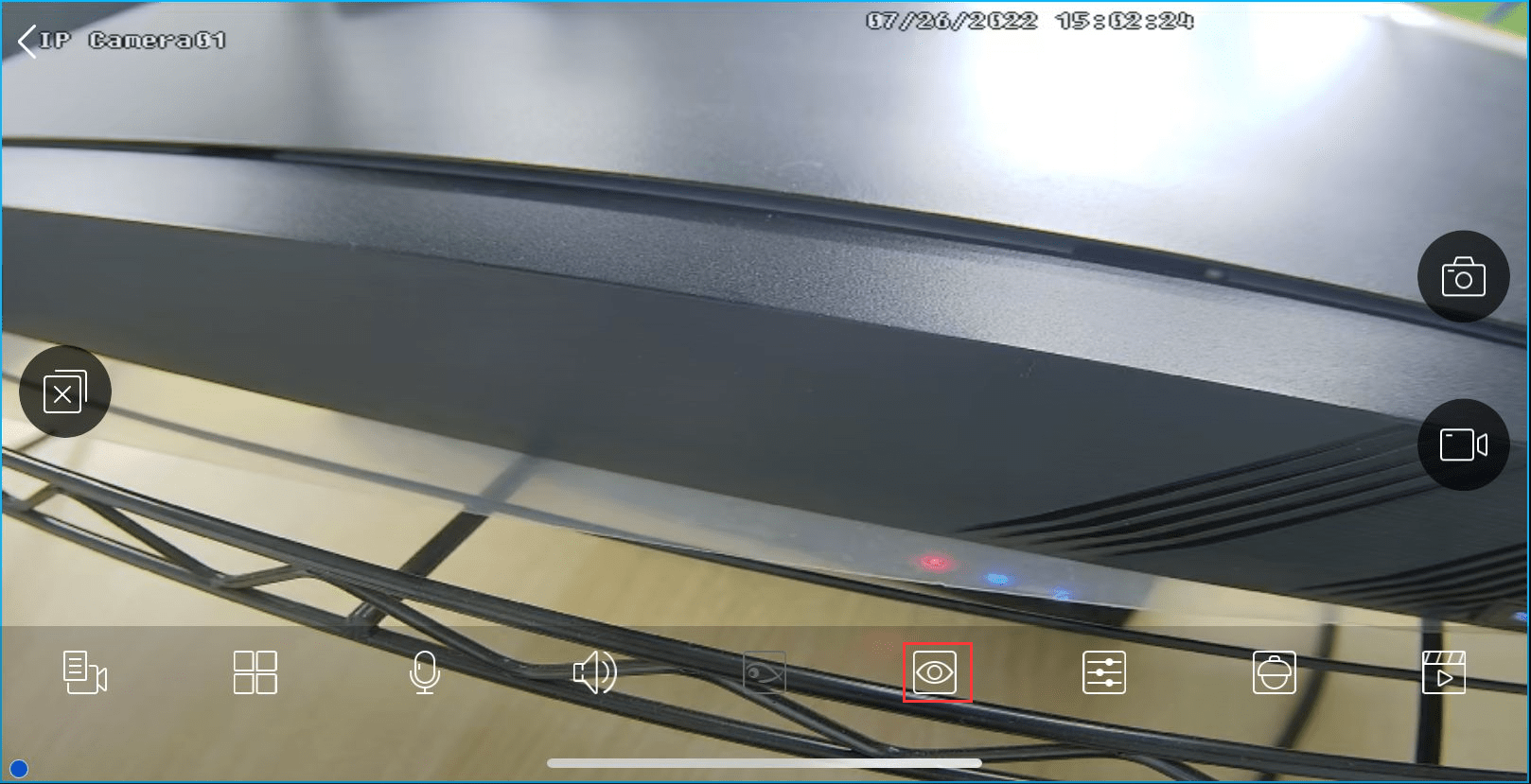

5.4. View video in full screen and super definition.
1.    Click one iamge and tap on http://onwote.com/_upload/images/202302011605444390.png to view video in full screen.
2.http://onwote.com/_upload/images/202302011605440924.png
3.    Tap on the icon http://onwote.com/_upload/images/202302011605450210.png and choose Super definition; Super definition mode requires higher internet speed.
4.

http://onwote.com/_upload/images/202302011605455425.png

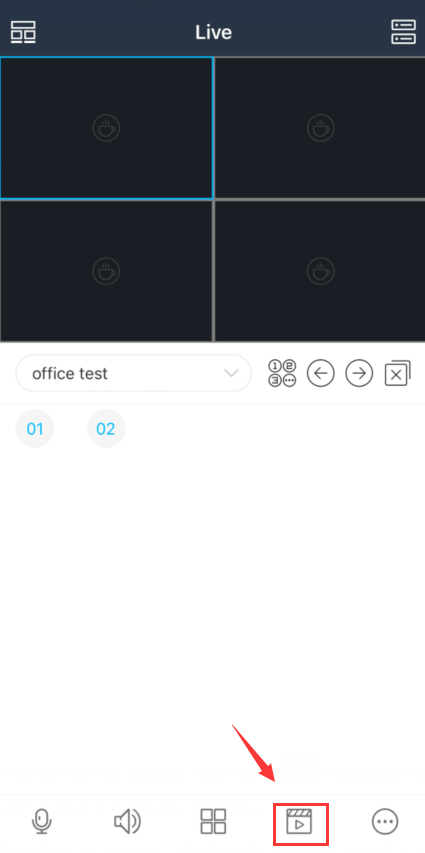

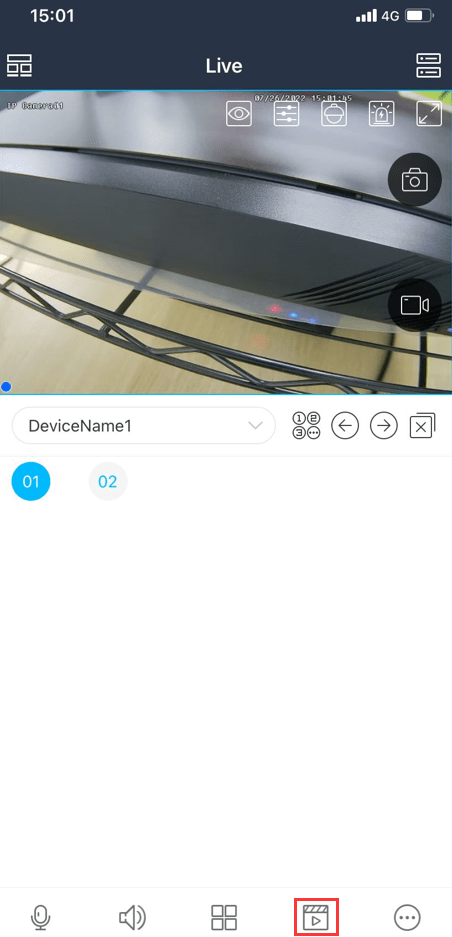

6.5. Playback on mobile app.

  Click the playback button http://onwote.com/_upload/images/202302011605445836.png to playback.

http://onwote.com/_upload/images/202302011605443414.png

1.How to change NVR output resolution on App

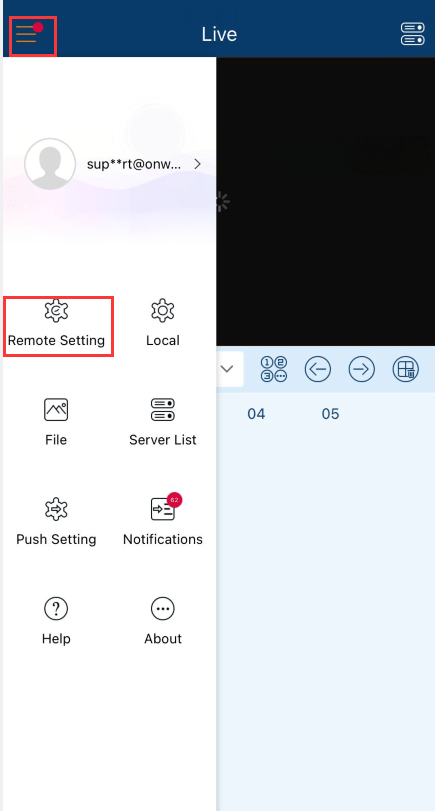

1.1.Please open SuperLive plus, tap on the button on top left and choose Remote Setting.

http://onwote.com/_upload/images/202302011616396966.png

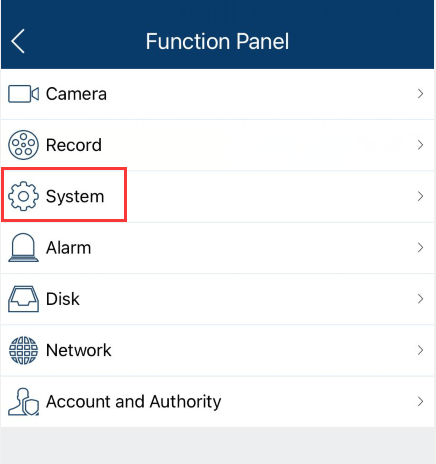

2.2.Tap on your device, choose System

http://onwote.com/_upload/images/202302011616402757.png

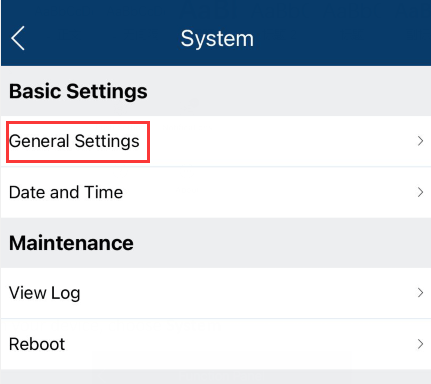

3.3. Choose General setting.

http://onwote.com/_upload/images/202302011616396624.png

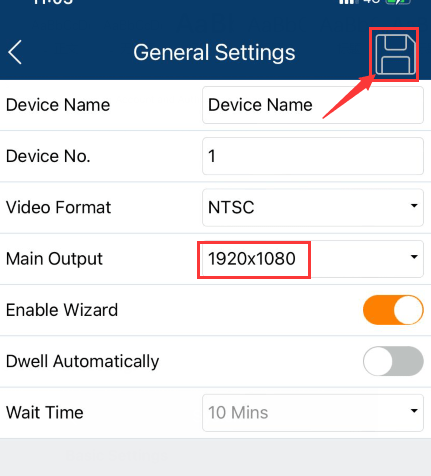

4.4. Change Main output to the same with your monitor. Click save button on the top right to save changes.

http://onwote.com/_upload/images/202302011616407767.png

1.Change time format on the camera image



1.1. Please install SearchTools on your computer: http://onwote.com/Download#Tools
2.a. If only have single poe cameras, please just power on the cameras using power adapter or poe switch and connect it to your router (same one with the one you connected with your computer).

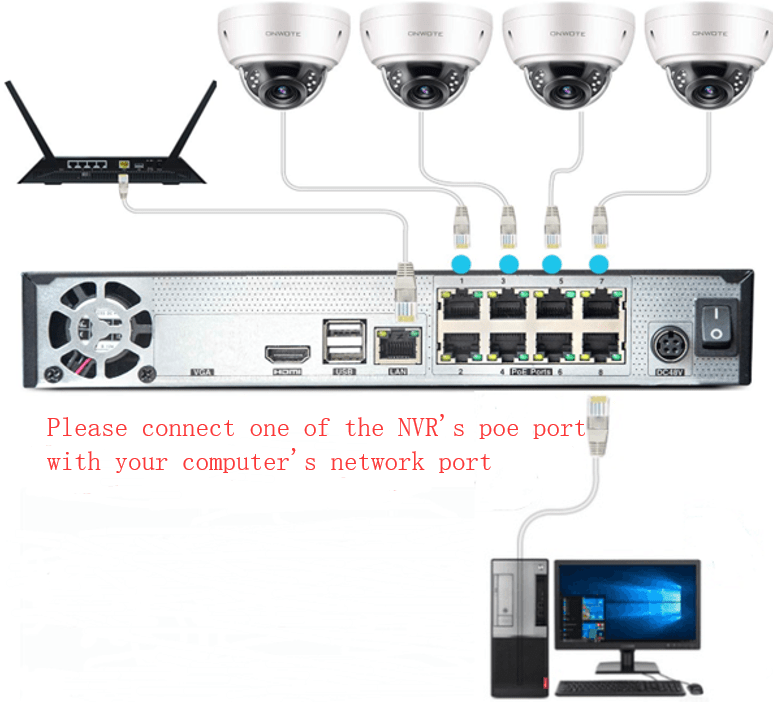

3.b. If you have ONWOTE NVR, please connect one of your NVR's poe port with your computer. If your computer doesn't have a network port, please refer to option “a”.

http://onwote.com/_upload/images/202302011620145415.png

3. Please open SearchTools on your computer and search the cameras.

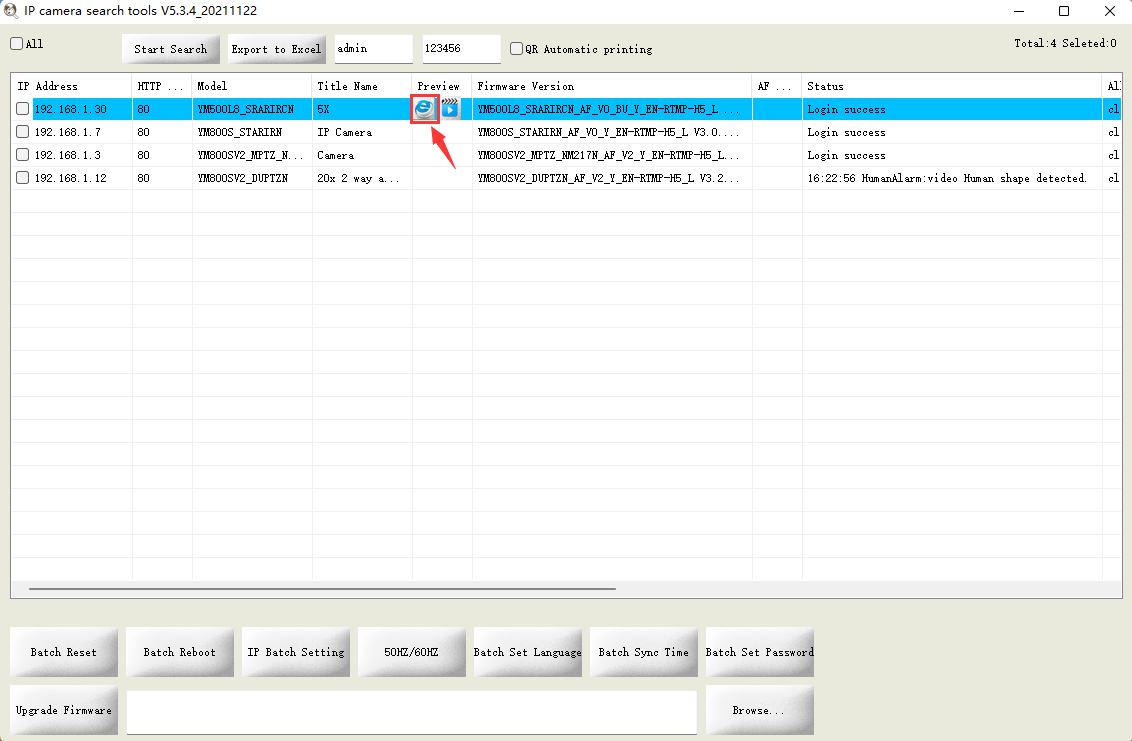

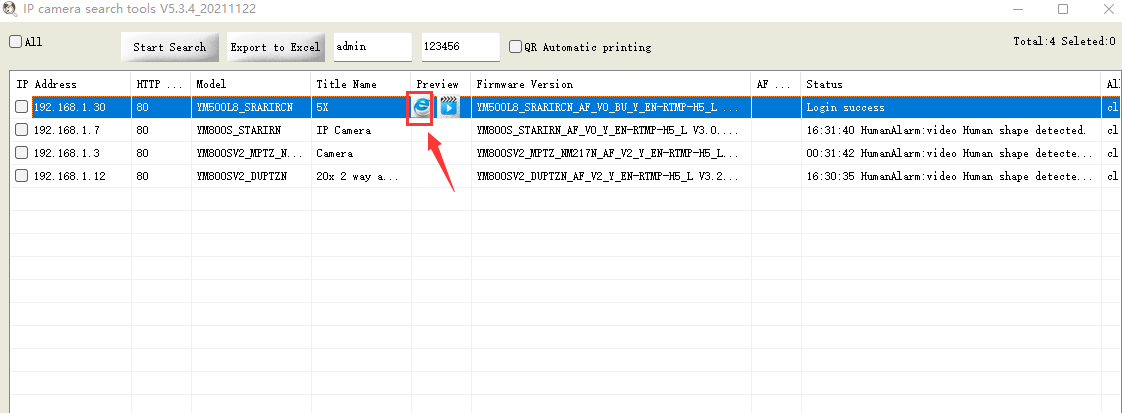

4. Please choose one camera, move your mouse to Preview, click on “e” to go to web client.

http://onwote.com/_upload/images/202302011623177925.png

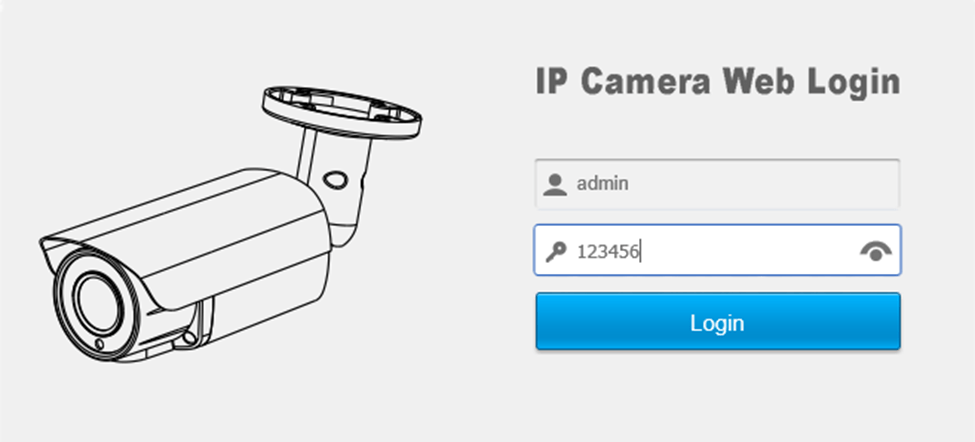

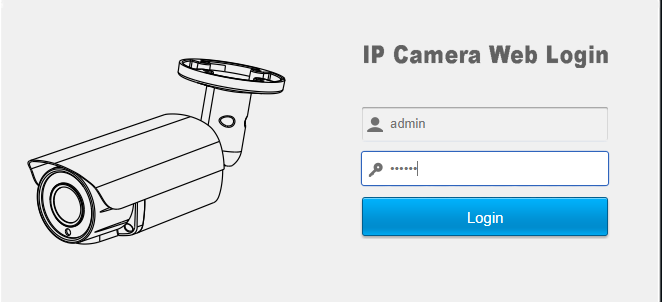

5. Your browser will open a page automatically, please login with admin and password 123456

http://onwote.com/_upload/images/202302011623556172.png

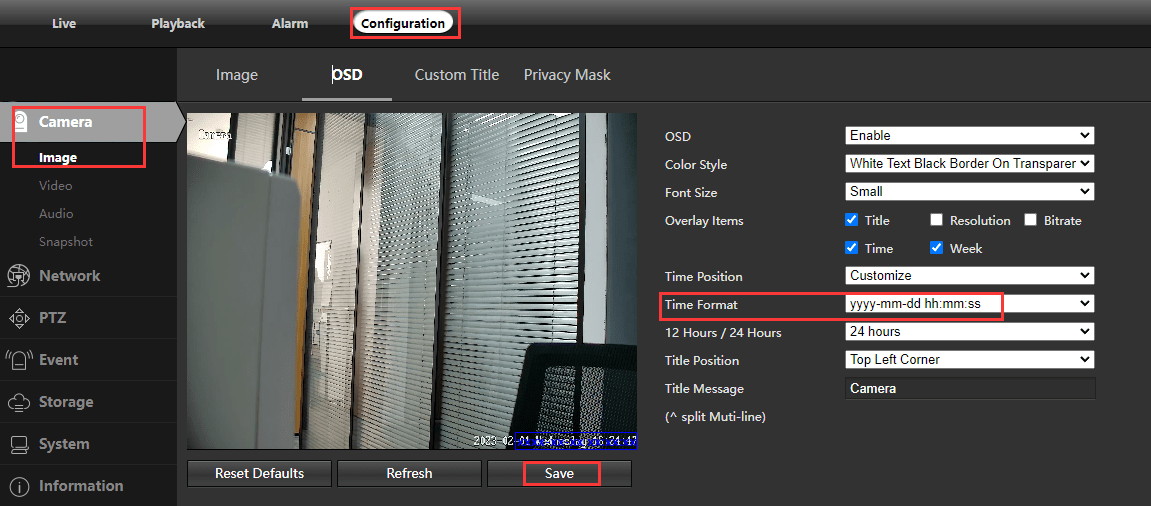

6. Please go to —Image—. Change Time Format and click on Save.

http://onwote.com/_upload/images/202302011625460482.png

.

1.How to disable red box on camera image
1.1. Please install SearTools on your computer: http://onwote.com/Download#Tools
2.a. If only have single poe cameras, please just power on the cameras and connect it to your router (same one with the one you connected with your computer).
3.b. If you have NVR, please connect one of your NVR's PoE port with your computer. If your computer doesn't have a network port, please refer to option “a”.

http://onwote.com/_upload/images/202302011627235139.png

3. Please open SearchTools on your computer and search the cameras. Move your mouse to Preview behind the camera, click on“e to go to web client.

http://onwote.com/_upload/images/202302011632016525.png

4. Your browser will open a web page automatically. Login the camera web page using Username: admin  Password: 123456

http://onwote.com/_upload/images/202302011627239904.png

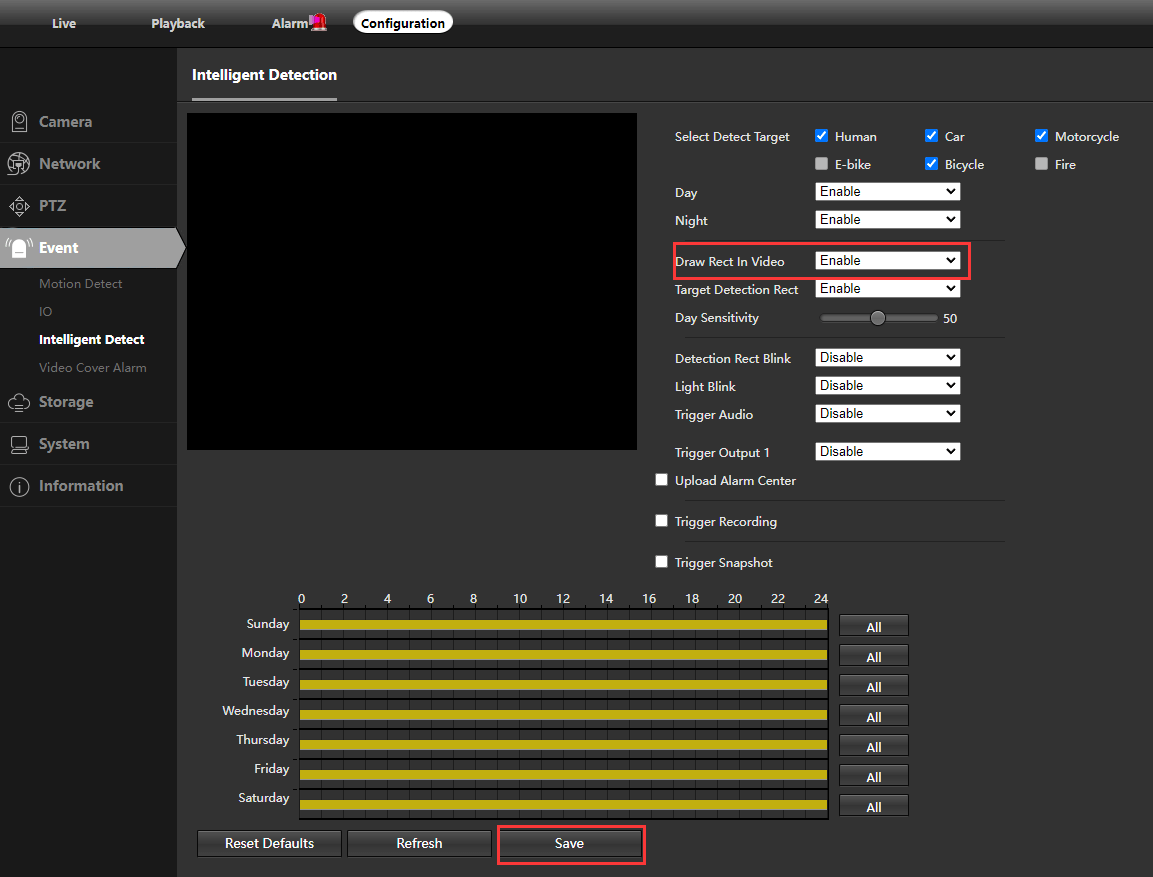

5. Choose Configuration—Event—Intelligent Detect, disable Draw rect in video, click on Save.

http://onwote.com/_upload/images/202302011635377799.png

.

1.How to view video on Mac

Here is the software for MAC: http://onwote.com/Download#Software#NVRTD…Series

Please download it and install it on your MAC. If you MAC doesn't allow it to install the software, please go to System preference—Security& Privacy to change the authority.



Add device and view video on MAC

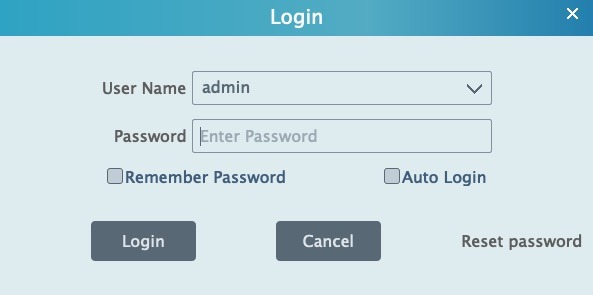

User: admin  Default Password: 123456

http://onwote.com/_upload/images/202302021641405175.jpeg

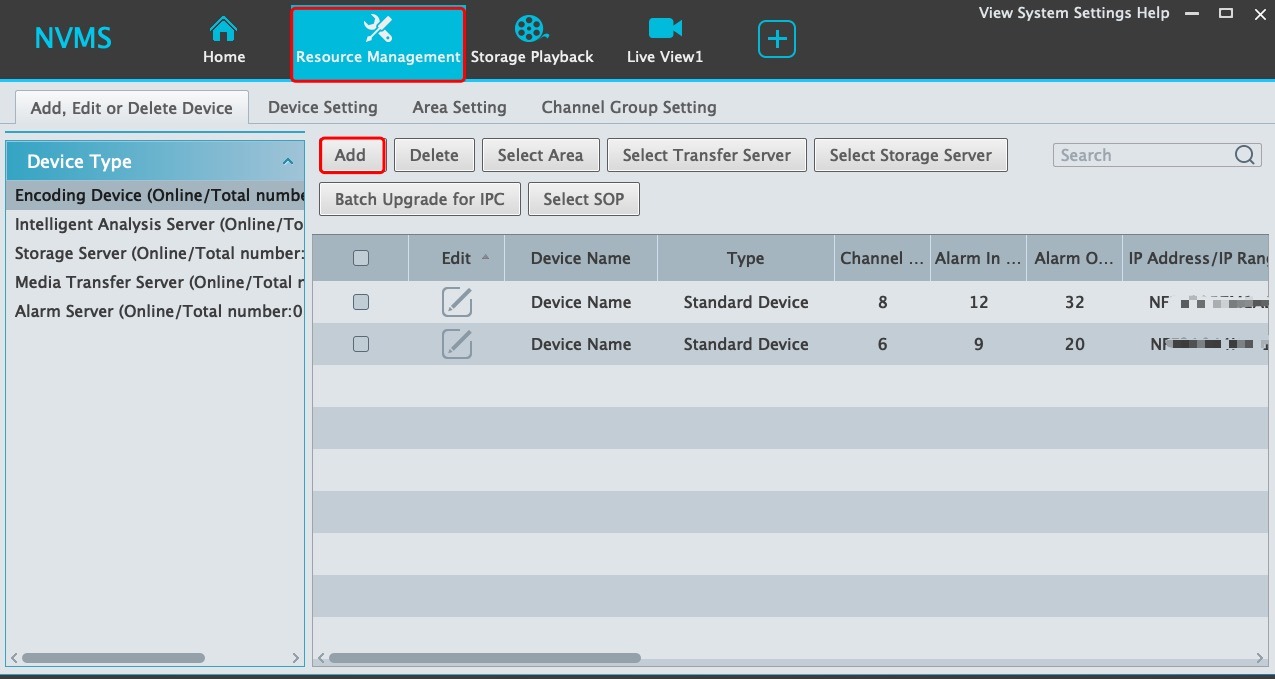

Choose Resource Management, click on Add

http://onwote.com/_upload/images/202302021641405976.jpeg

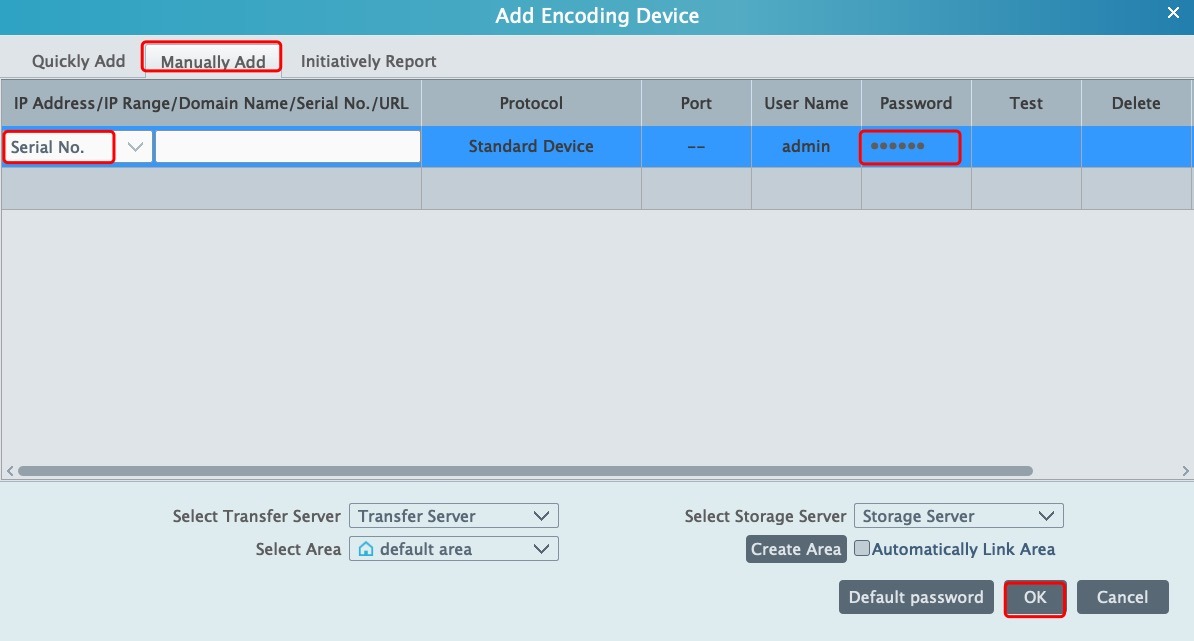

Click on Manually Add, change IP to Serial No.. Input the serial number and password of your system. Click OK to save device. (How to find the serial number?—Go to NVR monitor, choose Settings—Network—NAT, the serial number is below the QR code.

http://onwote.com/_upload/images/202302021641415586.jpeg

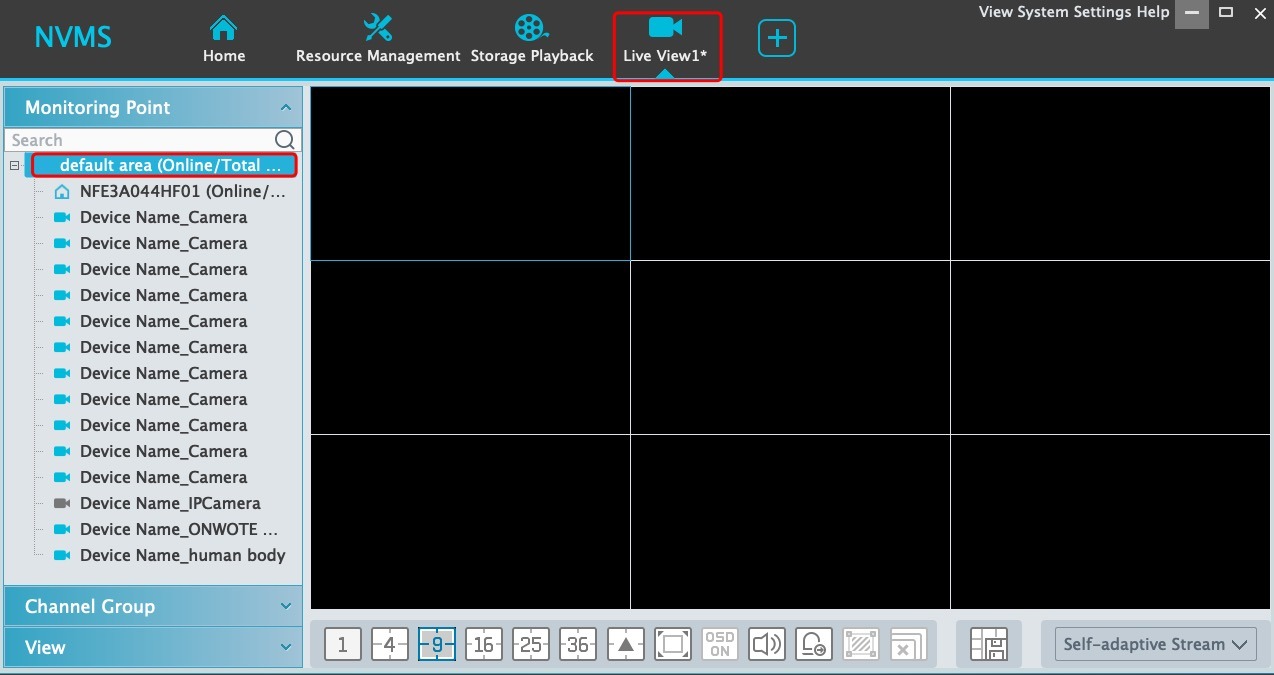

You will go back to Resource Management page after you clicked OK. Please wait for 3-5 minutes, until the information of your device turns to black on this page, then go to Live View1*, double click on the Default area to view video.

http://onwote.com/_upload/images/202302021641410898.jpeg

.

1.How to view video on windows PC using NVMS

Here is the new software for windows PC: http://onwote.com/Download#Software#NVRTD…Series

User: admin  Default Password: 123456



http://onwote.com/_upload/images/202302021659321026.jpeg

Choose Resource Management, click on Add

http://onwote.com/_upload/images/202302021659322472.jpeg



Click on Manually Add, change IP to Serial No. Input the serial number and password of your system. Click OK to save device. (How to find the serial number?—Go to NVR monitor, choose Settings—System—Information, the serial number is below the QR code.

http://onwote.com/_upload/images/202302021659327003.jpeg

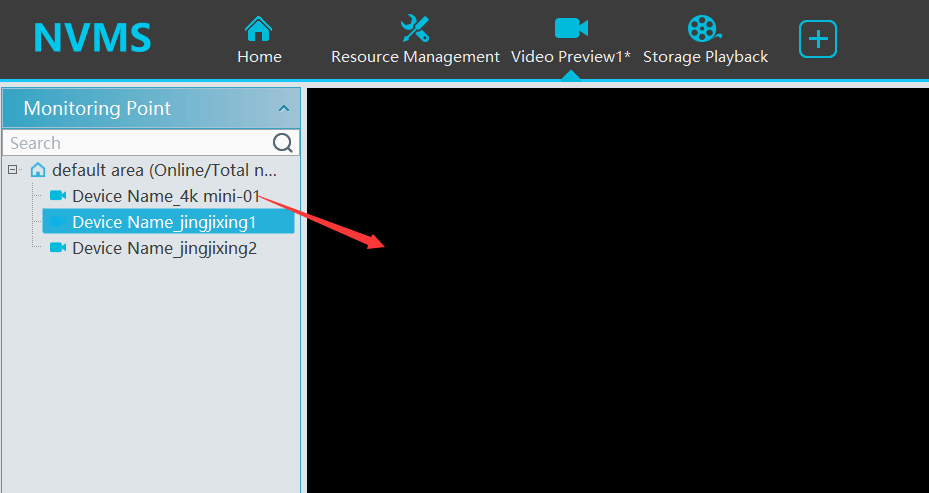

You will go back to Resource Management page after you clicked OK. Please wait for 3-5 minutes, until the information of your device turns to black on this page, then go to Video Preview1*, drag the camera to the right side one by one to view video.

http://onwote.com/_upload/images/202302021659332013.png

.

1.How to add a new user on NVR
1.1. Set a new permission group for the new user

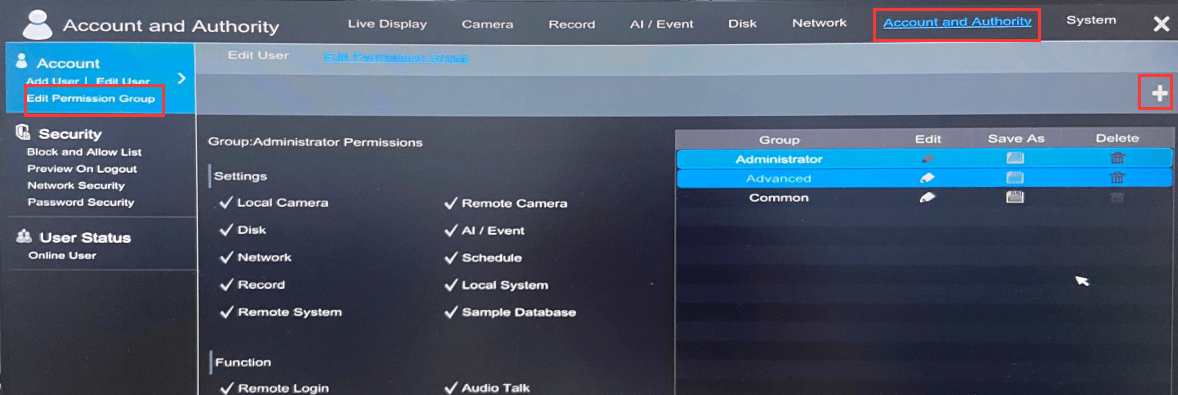

Please click on Start button on bottom left corner of the monitor, choose Setting—Account and Authorithy. Click Edit Permission Group under Account. Click on the top right corner to add a group.

http://onwote.com/_upload/images/202302021702022325.png

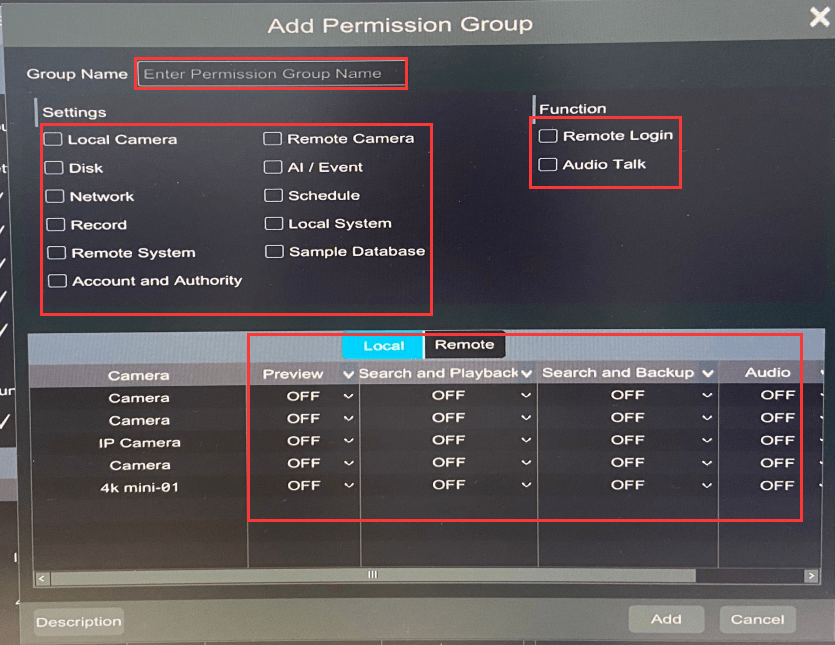

Set a name for the group. Then check in the setting and functions you need and set Local and remote authority for the group.

http://onwote.com/_upload/images/202302021702038760.png









2.2. Set a new user

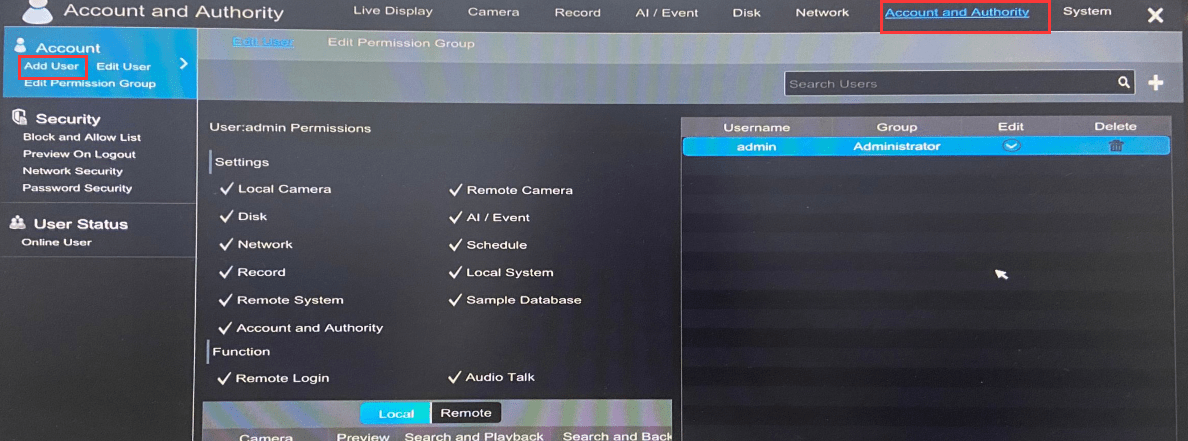

   Click Add user under Account.

http://onwote.com/_upload/images/202302021702033702.png

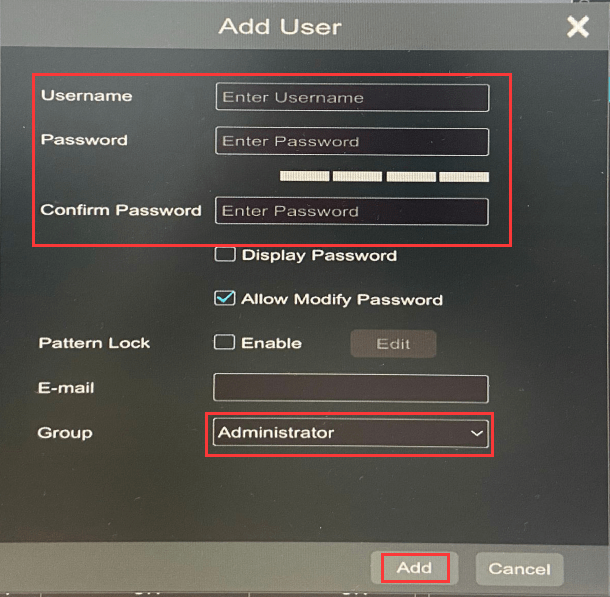

Set name and password for the user, select a permission group for the user and click on Add to add a new user.

http://onwote.com/_upload/images/202302021702027149.png

.

1.How to playback

a) Playback on NVR

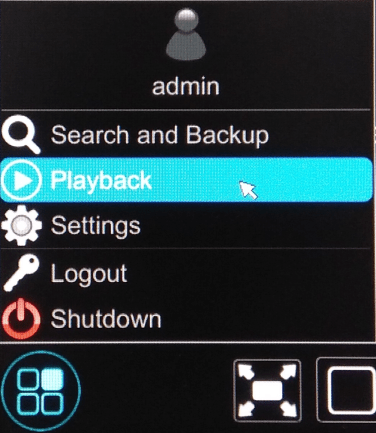

1. Click Start http://onwote.com/_upload/images/202302021705558953.png -> Playback, go to the NVR playback menu;

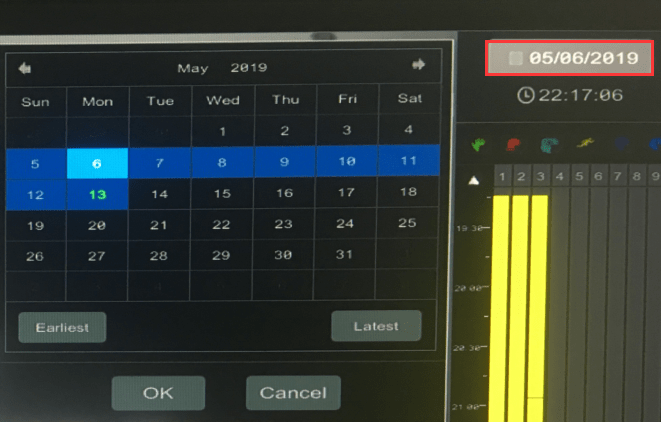

2. Select the date and time to start playback.

3. Click the time bar on the right side to playback the specific time period.

http://onwote.com/_upload/images/202302021705560154.png http://onwote.com/_upload/images/202302021705572947.png



b)Playback on mobile app.

Open your app and click the playback icon http://onwote.com/_upload/images/202302021710213666.png to playback.

http://onwote.com/_upload/images/202302021710428281.png



1.How to backup from NVR

Attention: Please use “VLC”player(https://www.videolan.org/vlc/index.en_GB.html) to play the video you back up from the nvr system.

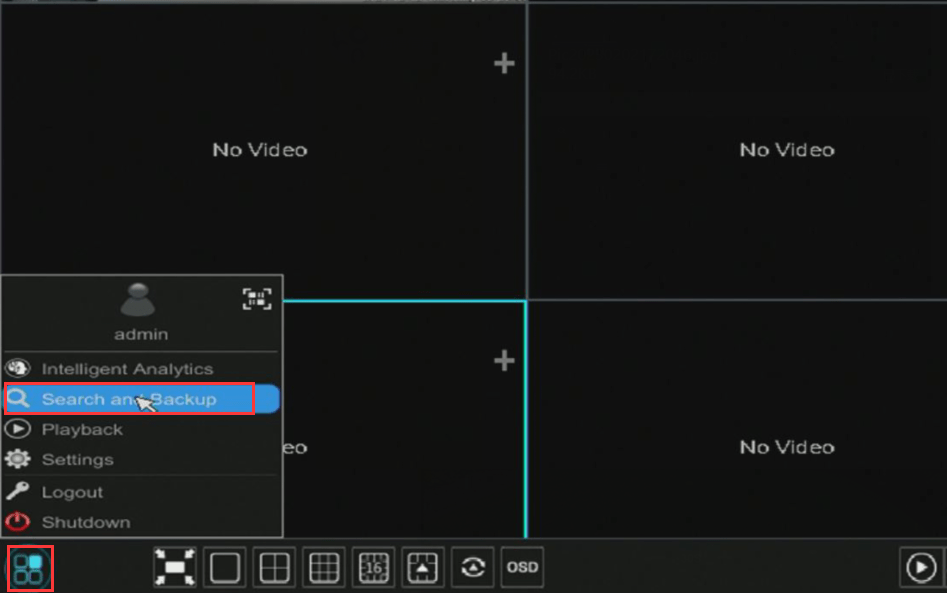

1. Insert a USB disk into the NVR USB port. Click Start http://onwote.com/_upload/images/202302021712453271.png -> Search and Backup;



http://onwote.com/_upload/images/202302021725570348.png

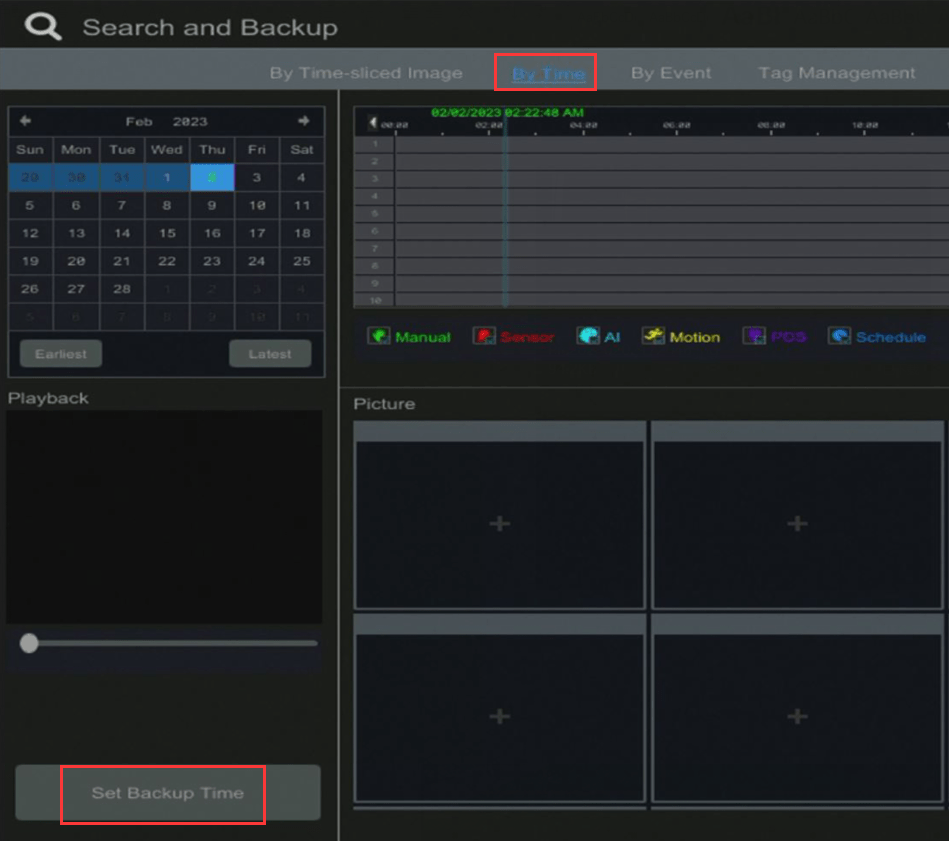

2. Choose By Time. Click Set Backup Time.

http://onwote.com/_upload/images/202302021727076039.png

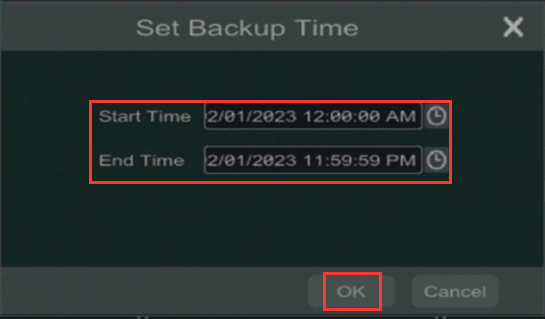

3. Set backup time, click OK.

http://onwote.com/_upload/images/202302021727512638.png

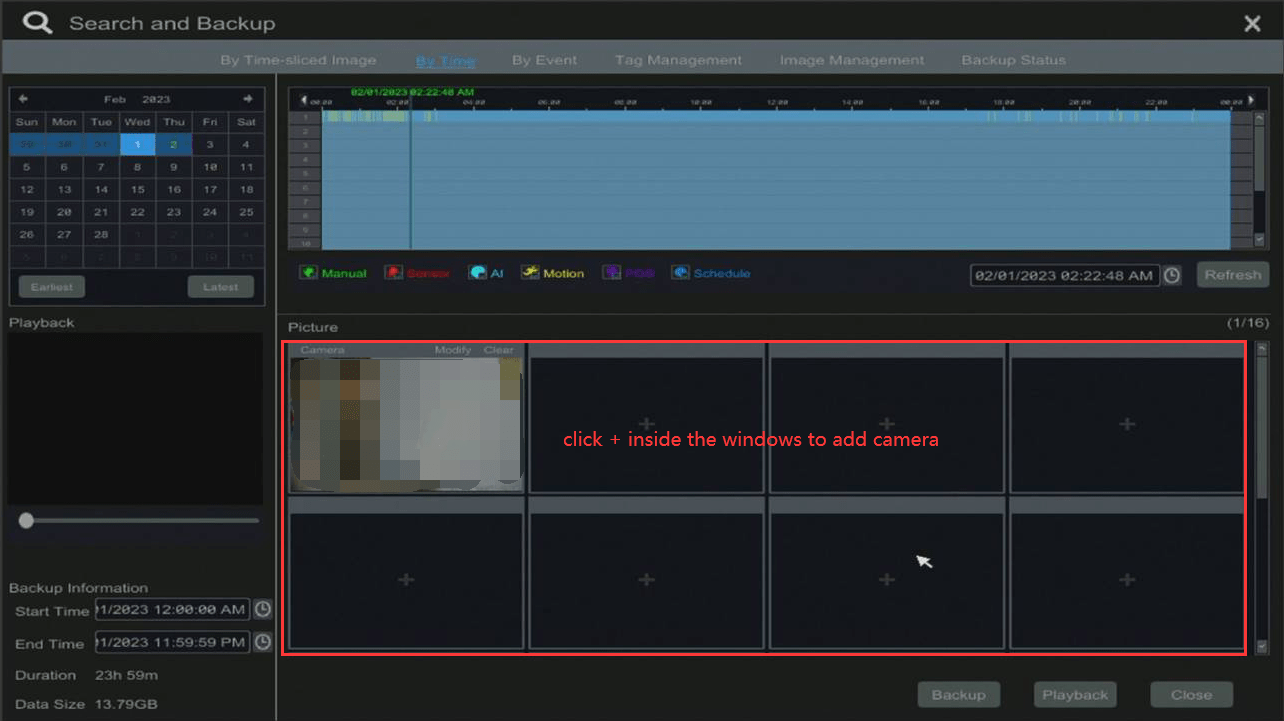

4. Click + inside the windows to add camera.

http://onwote.com/_upload/images/202302021730254718.png

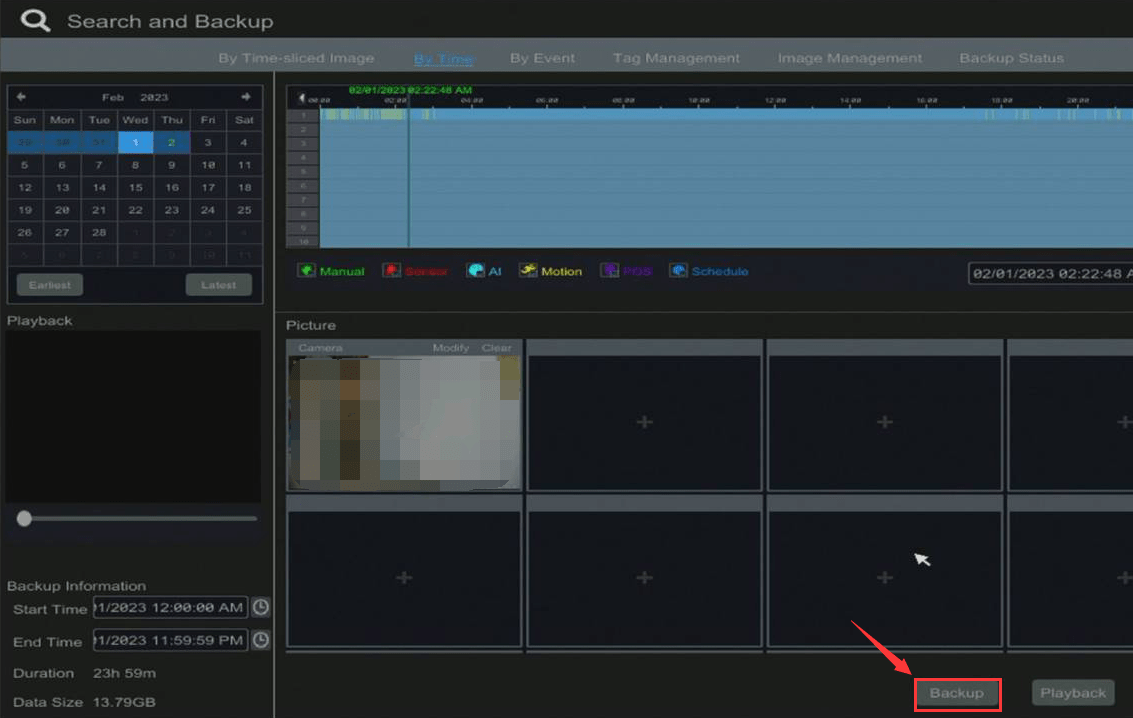

5. Click Backup to back up video to your USB disk.

http://onwote.com/_upload/images/202302021732084553.png

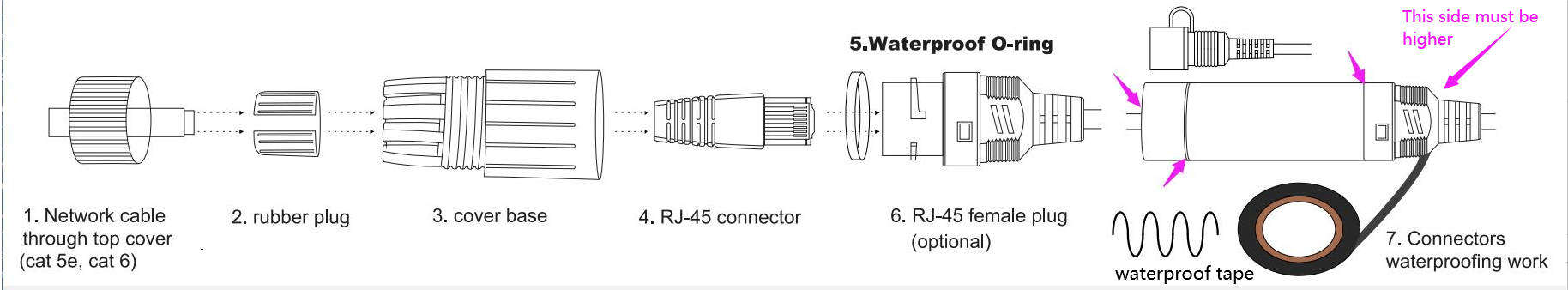

1.How to install waterproof lid

Please pay attention to the position of the Waterproof O ring. The end connected with the camera must be higher than the end connected with the cable.

http://onwote.com/_upload/images/202310271448481057.png

.

.

.
