- The required software and tools:SecureCRT,TFTPServer, serial port cable (connect with computer), TTL converter ,cross serial cable(connect with device),direct serial cable(connect with device).
- Tools introduction:
- Installation and configuration of SecuerCRT
1)Get the SecuerCRT package, installation according to clew click next, do not need to configure until completion.
2)Click the SecuerCRT icon,appear below pic,set serial port
Click File→connect,see as follow pic
Choose “sessions”,ans click(new session),see as follow pic
In the protocol options choose “serial”,and click next.
Notice: wo can look up our computer to choose which port is. my computer →device manager→port(COM and LPT),the default have com1 ang com2,so we can choose either of them.
Fill in the datas as the pic,cilck next
Click “finish”.
- Installation and configuration of TFTPServer:
- Get the TFTPServer package,and unzip it.
- Click the “TFTPServer.exe”icon,see as below pic
Click (option),see as below pic
Log file name(L):this route is where you installation the TFTPServer
TFTPServer root:the route of upgrade program
- The serial port cable which connect with computer(direct serial cable),show as below pic
Both ends of the serial cable for RS232 head.
- TTL converter
The needs for TTL converter is not the same for different devices.
- Cross serial cable and direct serial cable
Usually we just use 2,3,5.
2——RXD Receive Data
3——TXD Transmit Data
5——GND System ground
The cross connection method:2 connect with middle round hole of our equipments;3 connect with square hole;5 connect with the other round hole.
The direct connection method:3 connect with the equipment’s middle round hole;2 connect with square hole;5 connect with the other round hole.
Here we’ve already separated cross serial cable from direct serial cable,and signaled it.
The red stands for direct serial cable;blue stands for cross serial cable.as follow pic:
- Next I’ll introduce our devices which needs TTL converter, which needs direct serial cable or cross serial cable.
- When we use the TTL converter ,we also need use the direct serial port cable.
Support device: DVR5004A-B,DVR5008A-B,DVR5004C-B,DVR5008C-B,DVR5004C-S
DVR5008C-S,DVR5016C-S,DVR5004T-S,DVR5008T-S and so on.
The wiring pic as bellow,for example 5004T-S
Find the serial port, in the lower left corner of device
The whole of connection as follows
Here we use direct serial port cable,the other head of cable connect with TTL converter.
Above all those sets ,we have the environment to upgrade the device,connect COM1
Click “connect”,and reboot the device,see as follow pic tips

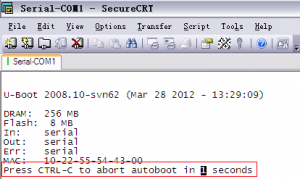

Press control+c, into the command line
When upgrading,make sure that the computer connect with device all the time.
Use “updata.img”package to upgrade the device.
Open “TFTPServer.exe”,and choose the right route where you put the program is
Input command:
U-boot # sip 10.6.1.17(here Ip is your computer Ip,you also can check it over the TFTPServer)
U-boot # lip 10.6.2.17(here Ip is dvr‘s temporary Ip,make sure that it is in the same route with computer )
U-boot # run up (start upgrading)
After finish upgrading,it will return u-boot mode automatically,reboot the device.
- It needs cross serial port cable when the TTL converter is not used.The cross serial cable connect with computer directly,and the other head connect with device.
Support device:DVR5004C-C,DVR5008C-C,DVR5016C-C.DVR5008E-S,DVR5016E-S,
DVR5024E-S,DVR5032E-S,DVR5004E-E,DVR5008E-E,DVR5016E-E,DVR5004H-E,
DVR5008H-E,DVR5016H-E,DVR5016H-S,DVR5014H-E,DVR5018H-E,DVR5116H-E.
DVR5116H-S and so on.
