ACH20-1B Thermal Monocular Camera: Using the App

Take some time to learn about using your thermal monocular camera through the companion Thermal Connection app.

Live View Settings

The Live View is the first screen you will see when your camera connects to the app. It includes the following features:

Digital Zoom

Zoom in on a certain part of your camera’s image to magnify details.

1.From Live View, tap .

2.Tap your preferred zoom range.

3.Tap OK to save.

Color Palette

Select your camera’s color palette for enhanced visual representations of thermal imaging.

1.From Live View, tap .

2.Tap on one of the following color palettes:

Note: Not all color palettes are suited for every situation. Select the option that best shows the thermal differences for your specific application.

Record Images & Videos

1.From Live View, tap .

2.Tap the screen to display the capture and record icons.

3.To capture images: Tap .

4.To start or stop recording videos: Tap .

Note: A blinking red dot next to a recording timer on the left of the screen indicates that your camera’s recording.

Function Settings

Enable some of your camera’s features, like the laser pointer, fire detection, or track hot and cold points.

Laser Pointer

Use the laser pointer to illuminate a point of interest with a bright spot of colored light.

 LASER RADIATION:

Exposure to laser light can cause significant damage to the eyes. Never look into the laser beam directly or through a piece of optical equipment.

After a few seconds, the laser pointer automatically turns off.

Fire Detection

Detect fires in your camera’s image with a red box surrounding the source. If enabled, you can set the fire detection sensitivity from high to low.

Hot & Cold Points

Track the hottest and lowest temperatures in your camera’s image at the same time. If enabled, your camera’s image will display a red target tracking the hottest point and a blue target tracking the lowest point.

System Settings

Customize your camera’s system settings or sign out.

Automatic Sleep Mode

Select how long your camera waits before entering sleep mode.

Automatic Shutdown

Select how long your camera waits before turning off.

Change Measurement Unit (Meter to Feet)

Change your camera’s measurement unit.

Sign Out

Disconnect your camera from the app by signing out of the app.

Restore to Default Settings

Restore your camera’s menu and app settings to its factory default settings.

ACH20-1B Thermal Monocular Camera: Troubleshooting

The following article provides some troubleshooting tips for using your thermal monocular camera.

.

Camera’s image/screen is blurry.

Adjust your camera’s diopter to your eyesight. Before you begin, it is highly recommended that you adjust your camera’s diopter to your eyesight. Focusing your view will minimize eye strain and fatigue.

Camera’s Wi-Fi hotspot is not showing.

• Wait a moment for it to appear in your phone’s Wi-Fi settings.

• When enabling your camera’s hotspot in your camera’s settings, try to press  a couple more times.

• Ensure you have allowed the app to use your location, otherwise it will not be able to detect your camera’s Wi-Fi. Navigate to your phone’s settings, then open the Thermal Connection app settings, and enable Location — While Using the App.

Camera is not connecting to the app.

The Wi-Fi password is case sensitive. Make sure you enter the serial number in the same letter format, whether that is uppercase or lowercase.

Camera has disconnected from the app.

Camera’s Live View is frozen in the app.

If the Live View is frozen perform a hard close of the app, then open it again.

Digital zoom is not working.

Digital zoom will not work while your camera’s menu is open. Press  to exit the menu.

Camera is not recording images and videos.

Recording images and/or videos will not work while the menu is open or when your camera is connected to a computer. Press  to exit the menu.

Camera’s screen is black.

Restart your camera. Press and hold  to turn your camera off, and then back on.

Camera is not charging or slow to charge.

• Ensure you use the supplied micro-USB cable and that it is properly connected.
 DANGER

◦ Improper battery replacement or use may result in fire, explosion, or other hazards.

◦ Only use accessories regulated by the manufacturer. Never use the charging cable or power adapter with another product.

◦ Make sure the plug is properly connected to the power socket.

◦ DO NOT charge your camera within 2 m of flammable materials.

◦ DO NOT connect multiple devices to one power adapter. The plug in the power socket could overheat and possibly cause a fire.

• Ensure the USB Mode is set to Off.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to USB Mode.

◦ Press  to open the setting.

◦ Press  to select Off.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

Camera’s battery keeps draining.

You can preserve your camera’s battery life in the following ways:

• Turn off any camera settings or functions that are not being used.

• Use your camera without the app. First, sign out your camera from the app, and then turn the Wi-Fi hotspot off.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to WiFi.

◦ Press  to open the setting.

◦ Press  to select Off.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

• Set your camera to go into automatic sleep mode after 1 minute of inactivity has passed. First set your camera’s sleep mode (Suspend Mode) to be automatic, and then set the automatic sleep mode (Auto Suspend) to 1 minute.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to Suspend Mode.

◦ Press  to open the setting.

◦ Press  to select Automatic.

◦ Press  to confirm your setting.

◦ Press  to navigate to Auto Suspend.

◦ Press  to open the setting.

◦ Press  to select 1 Min.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

• Set your camera’s screen brightness to low.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to Brightness.

◦ Press  to open the setting.

◦ Press  to select Low.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

• Set your camera’s automatic shutdown to 60 minutes or less.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to Auto Shutdown.

◦ Press  to open the setting.

◦ Press  to select 60 Mins or less.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

Camera’s image has lots of graininess or scratches.

• Turn your camera off, attach the lens cap, and allow it to rest for a few hours before using again.

• To improve your camera’s image quality set the FFC Mode to Auto.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to FFC.

◦ Press  to open the setting.

◦ Press  to select Auto.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

• To manually correct pixel defects in your camera’s image, set the DPC settings to Manual.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to DPC.

◦ Press  to open the setting.

◦ Press  to select one of the options:

· Auto: (Default) Your camera automatically calibrates defective pixels.

· Press  to start auto DPC.

· Close the lens cap until your camera signals that auto correction is complete.

· Manual: Correct the defective pixels manually.

· Press  to start DPC manually.

·  Press to switch between the X-axis and Y-axis.

· Press and hold  or  to start correction.

· Restore: DPC is restored to original state.

◦ Press  to confirm your setting.

◦ Press  the exit the menu.

ACH20-1B Thermal Monocular Camera: Frequently Asked Questions

The following FAQ answers many of the general questions about your thermal monocular camera.

.

How does my thermal monocular camera work?

To improve the visibility of objects in complete darkness, haze, or tough conditions, your thermal monocular camera uses infrared sensors to detect heat given off by a person, animal, or other objects. It creates images of that radiation called thermograms, which display the relative temperatures of different objects with different shades or colors. In a thermogram, warm objects stand out in a contrast or often cooler background. It is widely used in outdoor scenarios for hunting, rescue, animal observation, and more.

Is my thermal monocular camera battery-operated or hard wired?

Your thermal monocular camera is battery-operated, however, to charge the battery you will need to connect the micro-USB cable into your camera’s USB port and the other end into a power source.

Does my thermal camera only work at night?

No. Although thermal imaging cameras are most commonly used for nighttime vision, they can also be useful in daylight. The detection of heat radiation and the high contrast of thermal imaging cameras allow you to see the outlines of (warm-blooded) animals that camouflage well in their environments. It can also help distinguish animals or people in foggy or smoky conditions.

Can my thermal camera see-through walls, metal, or glass?

No, thermal imaging cameras do not see-through surface but detect surface temperatures.

Is thermal imaging and night vision the same thing?

No, thermal imaging can produce pictures without visible light while night vision cameras work by boosting ambient light. Their only common purpose is increasing visibility in low light conditions.

Can bright sunlight damage my camera’s lens?

Yes, aiming your camera’s lens with the lens cap open at powerful light sources (i.e. the sun) is not recommended, as this may adversely affect the accuracy or damage the thermal imager.

What is the clicking noise my camera makes?

This is simply the noise your camera makes while you are shifting it between different fields of view. The noise you are hearing is your camera focusing and calibrating the image to achieve the highest resolution possible.

Should I charge my camera’s battery before first use?

Since your camera’s battery is delivered partially charged, it is recommended that you fully charge it before first use.

How do I charge my camera’s battery?

Your camera has the following 4 battery charging statuses, as shown by the LED charging indicator located under the USB port.

How do I turn my camera on or off?

Press and hold .

Where can I find the mobile app?

The Thermal Connection Application can be downloaded on your smartphone with a valid Internet connection from iTunes or Google Play respectively.

See the article Connecting to the App for more details.

Why do I need to allow my Location Permission on the app?

The app requires permission to detect your Wi-Fi network in order to connect your camera to the app.

How do I connect my camera to the app?

See the article Connecting to the App for full details.

How do I disconnect my camera from the app?

For steps on disconnecting your camera from the app, see the article Using the App.

What is my camera’s Wi-Fi name and password?

Where can I find my camera’s serial number?

Your camera’s serial number can be found on:

• The serial tag located on the side of your camera.

• Your camera’s system information.

◦ Press and hold  to open the menu.

◦ Press  or  to navigate to (System Information).

◦ Press  to open your camera’s system information.

How do I record images & videos?

• To capture images: Press

• To start or stop recording videos: Press and hold  for 3 seconds. A blinking red dot next to a recording timer on the left of the screen indicates that your camera is recording.

Note: Your camera cannot record images or videos while the menu is open or when connected to a computer.

For steps on recording images and videos from the app, see the article Using the App.

How do I zoom in my camera’s image?

To switch the zoom range: Press . Keep pressing to zoom in and out.

For steps on using digital zoom from the app, see the article Using the App.

How do I turn the laser pointer on?

 LASER RADIATION:

Exposure to laser light can cause significant damage to the eyes. Never look into the laser beam directly or through a piece of optical equipment.

To turn the laser on: Quickly press  two times.

For steps on using the laser pointer from the app, see the article Using the App.

How do I change my camera’s color palette?

To quickly change the color palette: Press .

For steps on switching the color palette from the app, see the article Using the App.

Which color palettes can I choose from?

Select your camera’s color palette for enhanced visual representations of thermal imaging. Switch between any of the following color palettes:

Note: Not all color palettes are suited for every situation. Select the option that best shows the thermal differences for your specific application.

How do I measure my target’s distance?

Measure the range distance between your camera and your target using the pre-set ranging modes for animals, people, etc.

• Press and hold  to open the menu.

• Press  or  to navigate to Ranging Mode.

• Press  to open the setting.

• Press  to select one of the options:

◦ Wolf: Measure your distance from a wolf, with a pre-set height of 1.2 m.

◦ Customize: Enter a custom height to measure your distance from your target.

◦ Wild Boar: Measure your distance from a boar, with a pre-set height of 0.9 m.

◦ Human: Measure your distance from a human, with a pre-set height of 1.8 m.

◦ Rabbit: Measure your distance from a rabbit, with a pre-set height of 0.3 m.

• Press  to confirm your setting.

• Press  to exit the menu.

How do I change my camera’s measurement unit?

For steps on changing the measurement unit from the app, see the article Using the App.

How do I track hot & cold points?

Track the hottest and lowest temperatures in your camera’s image at the same time. If enabled, your camera’s image will display a red target tracking the hottest point and a blue target tracking the lowest point.

• Press and hold  to open the menu.

• Press  or  to navigate to Hot Point.

• Press  to open the setting.

• Press  to select one of the options:

◦ Off: Hot and cold points is turned off.

◦ On: Your camera will track hot and cold points.

• Press  to confirm your setting.

• Press  to exit the menu.

For steps on enabling hot & cold points from the app, see the article Using the App.

How do I enable fire detection?

Detect fires in your camera’s image with a red box surrounding the source. If enabled, you can set the fire detection sensitivity from high to low.

• Press and hold  to open the menu.

• Press  or  to navigate to Fire Warning.

• Press  to open the setting.

• Press  to select one of the options:

◦ Off: Fire detection is turned off.

◦ High, Middle, or Low: Your camera will detect fires based on the sensitivity level.

• Press  to confirm your setting.

• Press  to exit the menu.

For steps on setting fire detection from the app, see the article Using the App.

How do I enable the fire detection alarm?

Set your camera to sound an alarm when fire is detected in the image.

Note: The fire detection alarm works only when your camera has fire detection enabled on either High, Middle, or Low.

• Press and hold  to open the menu.

• Press  or  to navigate to Alarm.

• Press  to open the setting.

• Press  to select one of the options:

◦ Off: Fire detection alarm is turned off.

◦ On: Your camera will sound when fire is detected.

• Press  to confirm your setting.

• Press  to exit the menu.

How do I export recordings?

Export recorded images and videos from your camera’s microSD card.

• Press and hold  to open the menu.

• Press  or  to navigate to USB Mode.

• Press  to open the setting.

• Press  to select Mass Storage.

• Press  to confirm your setting.

• Connect the micro-USB cable into your camera’s USB port and the other end into an available USB port on your computer.

• The microSD card’s storage will open on your computer desktop. Select files to export, then copy them onto your computer.

• After exporting, disconnect the micro-USB cable from your camera and computer.

• Press  to select USB Mode Off.

• Press  to confirm your setting.

• Press  to exit the menu.

Where does my camera store recorded images and videos?

Your camera stores recorded images and videos onto the microSD card.

What is my camera’s maximum storage capacity?

You can insert a microSD card with up to 256GB storage space.

How do I hide the icons on the top right of my camera’s image?

• Press and hold  to open the menu.

• Press  or  to navigate to Status Bar.

• Press  to open the setting.

• Press  to select Off.

• Press  to confirm your setting.

• Press  to exit the menu.

How do I change the language displayed in my camera’s menu?

• Press and hold  to open the menu.

• Press  or  to navigate to Language.

• Press  to open the setting.

• Press  to select your preferred language.

• Press  to confirm your setting.

• Press  to exit the menu.

Note: This will only change the language in your camera’s menu, not the app.

How do I restore my camera’s settings to default?

For steps on restoring your camera’s settings to default from the app, see the article Using the App.

How do I update my camera?

Update your camera through the microSD card.

Note: To download the latest firmware update for your camera, contact the Technical Support team.

• Press and hold  to open the menu.

• Press  or  to navigate to USB Mode.

• Press  to open the setting.

• Press  to select Mass Storage.

• Press  to confirm your setting.

• Connect the micro-USB cable into your camera’s USB port and the other end into an available USB port on your computer.

• The microSD card’s storage will open on your computer desktop. Copy the update program to the microSD card.

• Press and hold  and  at the same time for 3 seconds. A blue screen will indicate that an update is in progress.

After a few minutes the update will complete and you will see your camera’s live view image.

Where can I download my camera’s latest firmware update?

To download the latest firmware update for your camera, contact the Technical Support team.

Can I mount my camera to a tripod?

Yes, the tripod thread can be found on the bottom of your camera.

Can I access my camera’s Live View from an external monitor?

Yes, you can access your camera’s Live View from your computer by connecting your camera using the micro-USB cable.

What is the buzzer option in the app settings?

The buzzer is not compatible with your camera.

ACH20-1B Thermal Monocular Camera: Connecting to the App

Follow the steps below to connect your thermal monocular camera to the Thermal Connection app.

Note: The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows: Wi-Fi 2.4 GHz (2.4 GHz to 2.4835 GHz) 20 dBm.

.

Step 1 – Download the App

Download your camera’s mobile app, Thermal Connection.

.

Step 2 – Enable Your Camera’s Wi-Fi Hotspot

Looking into your camera:

• Press and hold  to open the menu.

• Press  or  to navigate to WiFi.

• Press  to open the setting.

• Press  to select AP (Access Point).

• Press  to confirm your setting.

• Press  the exit the menu.

Step 3 – Connect to the App

You will now be able to view your camera from the app and make some minor setting adjustments.

.

<p>The post Thermal Monocular Camera user manual first appeared on NVR IPCAMERA SECURITY.</p>

VOSKER V300 Ultimate Camera Setup and User Guide

HOW TO UPDATE YOUR V300 ULTIMATE CAMERA FIRMWARE

VOSKER V300 Ultimate
.

Latest firmware released: January 23, 2024

Installation instructions for PC :

Installation instructions for MAC :

How to Install your V300 Ultimate Camera

Before installation

Verify:

What you’ll need for installation

Choose between:

Recommended installation – Camera

Recommended installation – Universal Solar Power Bank

For more information on how to install your VOSKER camera to get the best picture quality, read the article “What Can I Do To Increase My Photo Quality?”.

Download:

› Quick Start Guide (PDF)

Troubleshooting steps:

If the Universal Solar Power Bank is discharged, charge it by plugging the DC power adapter in the 5 V IN port.

CAUTION:

WARNING: Failure to follow these safety instructions may result in fire, electric shock, damage, or other injuries. This power pack is not a toy. Keep away from children and operate outside.

.

HOW TO INSTALL YOUR V300 CAMERA

Before installing your camera, we recommend that you test the coverage of the location you will be placing your camera. Consider using a VOSKER security box to protect your V300 security camera against theft and breakage.

Here are some of the best practices for installing your VOSKER camera:

Note: Make sure to place the camera in an area that gets a good amount of sunlight during the day (enough to cover 50% of the solar panel). This will help maximize the battery life of your camera.

For more information on how to install your VOSKER camera to get the best picture quality, read the article “What Can I Do To Increase My Photo Quality?”.

.

HOW TO ACTIVATE MY V300 CAMERA?

Before activating your camera:

Note: A 24-hour charge of the battery unit is recommended before the first-time installation.

Activating your camera with VOSKER mobile app:

Activating your camera with the VOSKER web app:

Turning your camera on:

The V300 powers on and secures a strong signal.

Note: There may be a 20-120 seconds delay for the camera to make the first communication or transfer the first photo/video to the app.

EVERYTHING YOU NEED TO KNOW ABOUT V300 LIVE STREAMING

A strong cellular signal on both devices will ensure smooth live streaming.

The V300 series offers the amazing feature of live-streaming as a 40-minute add-on that can be shared between compatible devices over a 12-month period.

Want to test it out first? Upon activation, every V300 includes two minutes of live streaming during the free seven-day trial period.

How to start a live-streaming

What is the difference between live-streaming and 10-second Full HD video?

The live-streaming allows you to see what is happening live around your camera. It can last as long as you have live-streaming minutes in your account. It is great when you receive a notification, and you want to check if there are still some movements.

Your camera stores a 10-second Full HD video on the servers at every detection. You can request the video to understand better what happened during the detection. Simply click on a photo and press the button “Request Full HD video”.

What is the impact on the battery life?

The more you use those features, the more it takes a toll on the battery life.

This is especially true if the V300 doesn’t get a steady and strong signal. Just like your cell phone, the camera will work harder to connect to the cellular tower and communicate information.

If you see the battery life dropping, consider adding the Universal Solar Powerbank to sustain your camera from 6 to 12 months.

How to buy additional live-streaming minutes?

You can easily purchase a live-streaming add-on which will add 40 minutes shareable among all VOSKER streaming devices for the next 12 months.

Mobile app:

Web app:

Warning: you need a transmission plan (Base, Alerted or Elite) before buying the live-streaming add-on.

.

<p>The post VOSKER V300 Ultimate Camera Setup and User Guide first appeared on NVR IPCAMERA SECURITY.</p>

Lorex Fusion: Download the Lorex App

The following article provides instructions for downloading the Lorex App and connecting your Lorex Fusion Collection recorder to the app.

Prerequisite

Before you start, your Fusion recorder must be powered on and connected to your router using the included Ethernet cable. For Basic System Setup instructions, refer to your Fusion recorder’s Quick Start Guide or Manual on the product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

Download the Lorex App

Once your Fusion recorder has connected to the Lorex App, complete the final Fusion steps by connecting your Fusion Wi-Fi cameras and accessories.

For setup instructions using the new local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (New Local UI).

For setup instructions using the previous local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories.

Lorex Fusion: Frequently Asked Questions

The following frequently asked questions (FAQs) provide more information about your Lorex Fusion Collection. Where applicable, the FAQ includes links to articles where you may find more information.

Lorex Fusion Troubleshooting FAQ.

What is Lorex Fusion?

Our Lorex Fusion recorders incorporate the newest (fusion) technology to connect both Lorex Wired and Fusion Wi-Fi Cameras, Doorbells, Floodlights, and Sensors to one system. Lorex Fusion Wi-Fi Cameras and Accessories can connect to one recorder for continuous 24/7 recording and local, secure storage (up to 10TB). Everything can be accessed from your Lorex App for easy control of all devices.

.

Why do I get an offline message and a blank screen for the (B463AJ) 2K battery doorbell’s channel on the Fusion recorder?

Being a battery-operated doorbell, it will always go to sleep after a period of inactivity to conserve battery life. Once the doorbell is correctly paired to your Fusion recorder, the offline message means the doorbell has gone to sleep but is still connected and can be awakened. When motion is detected, or when the call button is pressed, there will be live video from that channel. You can also manually wake up the doorbell through the Lorex app, by activating the liveview.

.

Can my Battery Video Doorbell record continuously?

To conserve battery life, Wi-Fi Battery Video Doorbells only record when motion is detected. They do not record continuously.

.

Which recorders are part of Fusion?

For a list of Lorex Fusion Recorders, please refer to the Product Compatibility Chart.

.

Can I connect all Lorex Wi-Fi Cameras and Accessories to my Fusion recorder?

Only Lorex Fusion Compatible Wi-Fi Cameras and Accessories can connect to Lorex Fusion Recorders.

.

Which Lorex Wi-Fi Cameras and Accessories are part of Fusion?

See the following list of Lorex Fusion Wi-Fi devices:

.

Should I update my Lorex Fusion recorder’s firmware?

It is recommended to update your system firmware to the latest version to ensure remote connectivity and to support newly added Fusion Wi-Fi devices.

.

Does my Lorex Fusion recorder require a network setup?

Yes, a network setup is required to connect Fusion Wi-Fi cameras and accessories to your Fusion recorder. Ensure you connect the included Ethernet cable to your recorder’s LAN port and your router.

.

Does it matter which router I use?

Yes, due to its strong signal, the dual-band router is suitable for high resolution video recording and for connectivity between devices. Ensure that your Fusion Wi-Fi cameras and accessories and your Fusion recorder are all connected to a dual-band router (2.4 GHz/5 GHz bands).

.

How many Lorex Fusion Wi-Fi Cameras and Accessories can I connect to my Fusion recorder?

This depends on your Fusion recorder and the number of Fusion Wi-Fi channels it comes with. For full technical specifications, refer to the Product Specifications on your recorder’s product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

What is a Fusion Wi-Fi channel?

A Fusion Wi-Fi channel is the channel you use to add a single Fusion Wi-Fi camera to your system. A 16-channel security system with 8 PoE ports/channels (for wired camera connection) and 8 Fusion Wi-Fi channels means that 8 Fusion Wi-Fi cameras and accessories can connect to the entire system.

Note: Fusion Wi-Fi channel’s are only available on certain Lorex Fusion recorders. For a list of Fusion recorders, see the Product Compatibility Chart.

.

How many Fusion Wi-Fi channels are on my Lorex Fusion Recorder?

The number of Fusion Wi-Fi channels varies per Fusion recorder. For full technical specifications, refer to the Product Specifications on your recorder’s product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

How do I setup my Lorex Fusion system?

Complete your Fusion setup in the following order:

After connecting your Fusion system, ensure you adjust your Fusion settings.

.

Are there Fusion setup tutorial videos?

For a video walk-through of the Fusion setup with the new local UI (N845, N846, N847, N864, D863, D881 Series), please watch here.

For a video walk-through of the Fusion setup with the previous local UI (N841, N842, N843, N844, N861, D862, D871 Series), please watch here.

.

How do I setup my Lorex Fusion recorder and wired cameras?

For Basic System Setup instructions, refer to your recorder’s Quick Start Guide or Series Manual on the product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

.

How do I connect my Lorex Fusion Wi-Fi camera or accessory to my Fusion recorder?

For full setup instructions, please click on the article corresponding with your model number.

.

Which password should I enter to connect my Lorex Fusion Wi-Fi camera or accessory to my Fusion recorder?

Enter the same password that you created in the Lorex App when setting up your Fusion Wi-Fi device.

.

What is continuous recording?

Once your Lorex Fusion Wi-Fi camera connects to your Fusion recorder, your camera’s recording settings are automatically set to continuous. This means that your Fusion Wi-Fi camera will record 24/7 or for the entire duration of the recording schedule onto your Fusion recorder’s hard drive. It is worth noting that recordings on the camera are limited due to the size of its onboard storage, while recordings on the recorder are extensive (3TB to 10TB). Continuous recording captures everything in the background, and you can playback to catch anything you missed.

.

Do all Lorex Fusion Wi-Fi cameras record continuously?

No, to conserve battery life, battery-operated video doorbells do not record continuously (24/7).

.

How do I set my Lorex Fusion Wi-Fi camera to continuous recording?

After Fusion setup, your Wi-Fi camera is automatically set to Continuous recording. To adjust your camera’s recording settings, login to your recorder and navigate to the devices menu. For instructions, please see the article Lorex Fusion: Adjust Settings.

Note: Battery-operated video doorbells do not record continuously (24/7). Being a battery-operated doorbell, it will always go to sleep after a period of inactivity to conserve battery life. Once the doorbell is correctly paired to your Fusion recorder, the offline message means the doorbell has gone to sleep but is still connected and can be awakened. When motion is detected, or when the call button is pressed, there will be live video from that channel. You can also manually wake up the doorbell through the Lorex app, by activating the liveview.

.

How come I’m receiving duplicate notifications in the Lorex App?

After completing the Fusion setup, your Wi-Fi camera or accessory is connected to the Lorex App twice – once as a single device and then a second time as a device connected to your recorder. To avoid receiving duplicate notifications from the same camera or accessory, you will need to Turn off Alerts for your Wi-Fi device connected to your recorder. For instructions, please see the article Lorex Fusion: Adjust Settings.

.

After Fusion setup, where is my Lorex Fusion Wi-Fi camera’s video footage being stored?

Your Lorex Fusion Wi-Fi camera saves recorded motion detection videos onto the local microSD card (not always included). Once you’ve connected your Fusion Wi-Fi camera to your Fusion recorder, your camera’s recording settings is automatically set to 24/7 Continuous recording, and all recorded video is stored on your recorder’s extensive hard drive (up to 10TB).

.

What features are supported in my Fusion recorder vs. the Lorex App?

Please see the following list of features supported in either your Fusion recorder and/or the Lorex App:

.

Can I use my web browser to access my Lorex Fusion Wi-Fi camera?

You can only access your camera on the Lorex App, recorder, or on the Lorex Cloud Client.

.

When modifying the password in the Lorex Cloud Client, which password should I enter?

Enter the password for your Wi-Fi camera or accessory created in the Lorex App during setup.

.

Where can I order the Lorex Fusion Collection?

To order, go to lorex.com.

Lorex Fusion: Troubleshooting

The following article provides some troubleshooting tips for setting up your Lorex Fusion Collection.

.

My Fusion Wi-Fi camera or accessory is not appearing in the device list.

.

My Fusion Wi-Fi camera or accessory is not connecting to my Fusion recorder.

• Give your Fusion Wi-Fi camera or accessory a few minutes to establish a connection.

• Check to see if your Fusion recorder has the most up-to-date firmware. New Local UI: Login to your recorder and navigate to System > Update & Reset > Upgrade, then click Check for Updates.  Previous Local UI: Login to your recorder and navigate to Main Menu > Information > Update/Reset > Update, then click Check for Updates. For instructions on updating your recorder’s firmware through USB, see the article How to manually upgrade the firmware of your recorder.

• Ensure that your Fusion Wi-Fi cameras and accessories and your Fusion recorder are powered on.

• The same password created for your Fusion Wi-Fi camera or accessory in the Lorex App must be entered in your Fusion recorder. If you have forgotten the password, then reset your Fusion Wi-Fi camera or accessory and connect it to the app again.

• (Applies to the previous local UI only) If your password for your Fusion Wi-Fi camera or accessory is entered incorrectly in your Fusion recorder, then your Wi-Fi device will lock itself. Reset your Fusion Wi-Fi camera or accessory and connect it to the app again.

• Ensure that you are entering the password for your Fusion Wi-Fi camera or accessory created in the Lorex App, and not the Lorex App account password. Those are two separate passwords.

• Ensure that your Fusion Wi-Fi camera or accessory is connected to a dual-band router (2.4 GHz/5 GHz bands).

• Ensure that you are connecting the Fusion Wi-Fi camera or accessory to an available Fusion Wi-Fi channel, and not a Wi-Fi channel that already has a Wi-Fi device connected to it.

.

I don’t know the password for my Fusion Wi-Fi camera or accessory.

If you don’t know the password for your Fusion Wi-Fi camera or accessory, then you will need to reset the device and connect it to the Lorex App again.

To reset your Fusion Wi-Fi camera or accessory:

.

I’m receiving duplicate notifications in the Lorex App.

After completing the Fusion setup, your Wi-Fi camera or accessory is connected to the Lorex App twice – once as a single device and then a second time as a device connected to your recorder. To avoid receiving duplicate notifications from the same camera or accessory, you will need to Turn off Alerts for your Wi-Fi device connected to your recorder. For instructions, please see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (N910 Series)

The following article provides instructions for connecting your Lorex Fusion Collection Wi-Fi Cameras and Accessories to your N910 Fusion recorder.

.

Our Lorex Fusion recorders incorporate the newest (fusion) technology to connect both wired and Wi-Fi cameras, doorbells, floodlights, and motion sensors to one system. All Fusion compatible Wi-Fi cameras and devices connect to one recorder for continuous 24/7 recording and private local storage. Access everything from the Lorex App for easy control of all devices.

Note: To conserve battery life, Wi-Fi Battery Video Doorbells only record when motion is detected. They do not record continuously.

For any connection issues, see the article Lorex Fusion: Troubleshooting.

.

Part One — Wired Setup

Setup your Fusion recorder and wired cameras. For Basic System Setup instructions, refer to your recorder’s Quick Start Guide or Manual on the product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

Important: Network setup is required for your system — use the included Ethernet cable to connect your recorder to your router.

.

Part Two — Connecting your Lorex Fusion Wi-Fi Camera

Connect your Lorex Fusion Wi-Fi Camera to the app and then from your recorder scan your network to add it.

.

Option A — Connecting Your New Lorex Fusion Wi-Fi Camera to Your Recorder

Add compatible Lorex Fusion Wi-Fi Cameras and Accessories onto Fusion Wi-Fi channels on the recorder.

To connect your New Lorex Fusion Wi-Fi Camera to the recorder:

Note:

.

Option B — Connecting Your Existing Lorex Fusion Wi-Fi Camera to Your Recorder

Add compatible Lorex Fusion Wi-Fi cameras and accessories onto Fusion Wi-Fi channels on the recorder.

Note:

To enable remote viewing for the mobile app, you will need to:

To connect your Existing Fusion Wi-Fi camera to the recorder:

1.From the Live View display, click the pair icon  in the center of the Fusion Wi-Fi channel’s screen.

Note: It may take a few minutes for your Lorex Fusion Wi-Fi Camera’s video feed to appear.

To turn off duplicate notifications, adjust your camera’s recording settings, or link motion sensors to cameras, see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (N845, N846, N847, N864, D863, D881 Series)

The following article provides instructions for connecting your Lorex Fusion Collection Wi-Fi cameras and accessories to the Lorex App and to your Fusion recorder.

Note: These Fusion instructions apply to the new local UI only. For Fusion instructions that apply to the previous local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories.

.

Before you start

.

Watch the Lorex Fusion setup tutorial video

For a video walk-through of the fusion setup, please watch here.

.

Connect your Fusion Wi-Fi cameras and accessories to the Lorex App

Follow the Lorex App steps to add your Lorex Fusion Wi-Fi cameras and accessories. Refer to your camera’s documentation at help.lorextechnology.com for detailed setup instructions. Search your camera’s model number to access the product support page.

Note:

2.In-app, tap the  icon to add your Wi-Fi camera.

.

Connect your Fusion Wi-Fi cameras and accessories to your Fusion recorder

Note: You can add one Wi-Fi camera or accessory to one Fusion Wi-Fi channel. The number of Fusion Wi-Fi channels varies per Fusion recorder. For full technical specifications, refer to the Product Specifications on your recorder’s product support page. Visit help.lorextechnology.com and search your Fusion recorder’s model number.

2.From the Live View display, click the pair icon  from the center of the Fusion Wi-Fi channel.

Note: If your Lorex Fusion recorder and Fusion Wi-Fi camera share the same password, then the devices will automatically connect without entering the password.

.

After successfully connecting to your Fusion recorder, your Fusion Wi-Fi camera or accessory connection status turns green. For any connection issues, see the article Lorex Fusion: Troubleshooting.

To turn off duplicate notifications, adjust your camera’s recording settings, or link motion sensors to cameras, see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (N841, N842, N843, N844, N861, D862, D871 Series)

The following article provides instructions for connecting your Lorex Fusion Collection Wi-Fi cameras and accessories to the Lorex App and to your Fusion recorder.

Note: These Fusion instructions apply to the previous local UI only. For Fusion instructions that apply to the new local UI, please see the article Lorex Fusion: Connect Your Wi-Fi Cameras and Accessories (New Local UI).

.

Before you start

.

Watch the Lorex Fusion setup tutorial video

For a video walk-through of the Fusion setup, please watch here.

.

Connect your Fusion Wi-Fi cameras and accessories to the Lorex App

Follow the Lorex App steps to add your Lorex Fusion Wi-Fi cameras and accessories. Refer to your camera’s documentation at help.lorextechnology.com for detailed setup instructions. Search your camera’s model number to access the product support page.

Note:

2.In-app, tap the  icon to add your Wi-Fi camera.

.

Connect your Fusion Wi-Fi cameras and accessories to your Fusion recorder

Note:

After successfully connecting to your Fusion recorder, your Fusion Wi-Fi camera or accessory connection status turns green. For any connection issues, see the article Lorex Fusion: Troubleshooting.

To turn off duplicate notifications, adjust your camera’s recording settings, or link motion sensors to cameras, see the article Lorex Fusion: Adjust Settings.

Lorex Fusion: Adjust Settings

The following article provides instructions for adjusting your Lorex Fusion Collection settings.

.

Turn off duplicate notifications

After completing the Fusion setup, your Wi-Fi camera or accessory is connected to the Lorex App twice – once as a single device and then a second time as a device connected to your recorder. To avoid receiving duplicate notifications from the same camera or accessory, you will need to Turn off Alerts for your Wi-Fi device connected to your recorder.

To turn off duplicate notifications:

2.Under your Fusion recorder, swipe left to find your Fusion Wi-Fi camera or accessory.

3.Tap on your Fusion Wi-Fi device’s notification icon .

.

.

Adjust the recording settings for your Fusion Wi-Fi camera or accessory

After Fusion setup, your Lorex Fusion Wi-Fi camera’s recording settings will automatically adjust to Continuous, recording 24/7 directly to your recorder’s hard disk drive.

To adjust the recording settings (new local UI):

To adjust the recording settings using the previous local UI, navigate to Main Menu > CAMERA > Recording > Recording and follow the same steps as above.

.

Set the recording schedule for your Fusion Wi-Fi camera or accessory

You can set a custom recording schedule according to your needs. For example, you can set the system to record continuously during business hours and record on motion detection only outside of business hours.

• Click-and-drag on each day to customize the recording schedule. The schedule is set up as a grid, with each block representing two hours.

• Click  beside 2 or more days to link schedules (). This allows you to quickly change multiple schedules at once.

• To make fine adjustments to a schedule, click . This will allow you to set exact start and end times for a schedule.

• To disable all recording of the selected type on the selected day, click .

To set the recording schedule using the previous local UI, navigate to Main Menu > STORAGE > Schedule and follow the same steps as above.

.

Link sensors to cameras

Once you’ve completed the Fusion setup, you can link motion and door/window sensors to any compatible camera, so that when the sensors are triggered the linked automatically cameras record.

.

To learn more about using your Lorex Fusion system, visit the Fusion page or refer to the Lorex Fusion: Frequently Asked Questions article.

.

<p>The post Lorex Fusion Troubleshooting FAQ first appeared on NVR IPCAMERA SECURITY.</p>

ATTENTION: Prior to purchasing and installing an accessory antenna, read the product specifications of your receiver to determine if your receiver has a weatherproof housing. Installing your weatherproof receiver outdoors provides a better line-of-sight between the receiver and the camera, increasing the strength of the wireless signal. See your product specifications to determine the weatherproof rating of your receiver.

The Directional Wireless Panel Antenna and the Omni-Directional Antenna are used to extend the range of one or multiple wireless or wire-free cameras.

Directional Wireless Panel Antenna (ACCANTD9)

Omni-Directional Antenna (ACCANTO8)

Use the 2.4GHz Directional Wireless Panel Antenna (ACCANTD9) to focus a wireless signal onto one specific wireless device (camera or receiver) to increase the range of transmission. A clear line-of-sight between the antenna and the wireless device needing range extension is required.

Use the 2.4GHz Omni-Directional Antenna (ACCANTO8) to enhance the signal of one or multiple cameras that are paired to a single or dual antenna receiver. You may also use two Omni-Directional Antennas to extend the range of all cameras paired to a dual antenna receiver.

REQUIREMENT: To connect the antenna directly to the camera or receiver, the device must have a removable SMA type antenna. Visit www.lorextechnology.com/compatibility to ensure the antenna is compatible with your camera or receiver model.

Lorex Wireless Cameras and Monitors guide 2024

Also Read  : Lorex Camera Troubleshooting

Recommended Antenna Installation Methods

Your antenna needs will vary depending on the setup of your camera system, the number of cameras that require range extension, and the number of channels on your wireless receiver. Review the scenarios below to ensure you have the correct antenna and installation method to meet your needs.

Click a setup scenario to see the recommended installation method:

Combining Accessory Antennas

If you have installed your accessory antenna according to the recommended installation methods and would like to enhance wireless signal strength even further, you may add an additional Directional Wireless Panel Antenna (ACCANTD9) directly to a camera. The additional Directional Wireless Panel Antenna can be used with a Directional Wireless Panel Antenna or with an Omni-Directional Antenna attached to the receiver.

Click an antenna combination to see recommended installation methods:

Scenario 1: Extend the range of one camera paired to a single antenna receiver

To extend the range of one camera connected to a single channel receiver, use the Directional Wireless Panel Antenna (ACCANTD9).

The Directional Wireless Panel Antenna can be connected in two configurations.

Configuration 1. Connect the antenna directly to the camera

Configuration 2. Connect the antenna directly to the wireless receiver

REQUIREMENT: The antenna connects using an SMA cable and replaces the existing antenna on either the camera or wireless receiver. Check www.lorextechnology.com/compatibility to determine if your product is compatible with the antennas.

Scenario 2: Extend the range of one camera paired to a dual antenna receiver

To extend the range of one camera connected to a multi-channel receiver, use the Directional Wireless Panel Antenna (ACCANTD9). Connect the Directional Wireless Panel Antenna directly to the camera.

Scenario 3: Extend the range of select cameras paired to a dual antenna receiver

To extend the range of select cameras on a multi-channel receiver, use the Omni-Directional Antenna (ACCANTO8).

Connect the Omni-Directional Antenna to one of the antenna ports on the wireless receiver.

REMINDER: Each antenna port on a dual antenna receiver is associated with specific camera channels. One antenna communicates with odd numbered channels (1, 3, and 5), while the other antenna communicates with even numbered channels (2, 4, and 6). See the table below for dual antenna channel configurations.

If you connect the Omni-Directional Antenna to an antenna port and your wireless signal does not improve, try switching the Omni-Directional Antenna to the other antenna port or pairing your camera to a different camera channel.

Scenario 4: Extend the range of all cameras paired to a dual antenna receiver

To extend the range of all cameras on a dual antenna receiver, connect an Omni-Directional Antenna (ACCANTO8) to each antenna port on the receiver.

IMPORTANT: Two Omni-Directional Antennas are required to accommodate this setup.

Combination 1: Combine two Directional Wireless Panel Antennas

If you are using a Directional Wireless Panel Antenna (ACCANTD9) to enhance the signal of a single camera with a single channel receiver, you can use an additional Directional Wireless Panel Antenna to further enhance the wireless signal.

Connect one Directional Wireless Panel Antenna directly to the camera and one Directional Wireless Panel Antenna directly to the wireless receiver. To maximize signal strength, it is recommended to aim the two antennas directly at each other with a clear line-of-sight.

Combination 2: Combine a Directional Wireless Panel Antenna with an Omni-Directional Antenna

If you are using an Omni-Directional Antenna (ACCANTO8) to enhance the signal of multiple cameras, you can further enhance the signal of a specific camera by connecting a Directional Wireless Panel Antenna (ACCANTD9) directly to the camera.

A clear line-of-sight between the Directional Wireless Panel Antenna and the Omni-Directional Antenna is recommended to maximize signal strength.

Lorex SD Pro App: Changing / resetting the password

If the password for the Lorex SD Pro app to view the Wireless Home Monitor is lost or forgotten it will need to be reset.

To reset the Lorex SD Pro app password:

1.Ensure that your Wireless Home Monitor is connected to a network router using the included Ethernet cable.

2.On the Wireless Home Monitor tap the Menu icon ().

3.Use the joystick to select Settings > Network > Reset Password.

4.Select Yes to confirm.

5.Tap the Menu icon () repeatedly until all the menus are closed.

6.Launch the SD Pro app and enter the default password. Refer to your user manual for your default password. You will be prompted to create a new password.

Lorex SD Pro App: Setting up Wireless Home Monitor remote access

You can access and view wireless cameras from a Wireless Home Monitor system using an iPhone, iPad, or Android smartphone or tablet using the Lorex SD Pro app. It is available at the App Store or Google Play Store.

Prerequisites:

To set up the mobile application:

LW2700 Wireless Home Monitor: Included cables and accessories

LW2700 Series Wireless Home Monitors support wireless cameras using a wireless signal. They do not have an internal battery and require a connection to a power source. Refer to your user manual for model specific information on cables and accessories. Click here for downloads and documentation for your product.

Most wireless home monitors include the following cable connections and accessories when purchased:

Network: Wireless camera Internet requirements

Standard wireless cameras that connect to a DVR / NVR, do not need access to the Internet to function. Stand-alone IP cameras do not require an Internet connection for basic functions, but an Internet connection is required for full functionality.

Security Cameras: Understanding Field of View (FOV)

Field of View (FOV) is the maximum observable area that is seen at any given moment through an optical device such as a camera lens. The coverage of the area can be measured using the horizontal and vertical distances to find the diagonal of the area in degrees. Mathematically, the FOV is calculated using the horizontal dimension of the sensor (h) and the Focal Length (F).

You can find the camera’s Field of View details in the Specifications sheet. Click here for additional support content including security camera documentation.

The Camera Lens, Sensor and Focal Length

Focal length (F) is the distance between the center of a lens and its sensor. The size of the lens is the aperture size.

These factors affect field of view. A narrower focal length captures more of the scene and displays a larger field of view. A wider focal length magnifies a scene and decreases the field of view. The higher the focal length value the lower the FOV.

Types of Camera Lenses

Fixed: a fixed camera focal length provides an Angular FOV which is permanently set and cannot be adjusted by the user. Varifocal: the camera focal length can be manually adjusted by the user. Generally, this is done manually with screws or dials. At Lorex we have motorized varifocal cameras that allow you to digitally zoom using your phone or NVR without losing details. These lenses provide flexibility and customization for your camera image needs.

The importance of Field of View

A wide angle lens or smaller lenses produce a greater field of view and captures more objects in a scene enhancing your ability to cover larger and wider areas such as foyers, parking lots or warehouses.

A narrow angle lens or larger lenses produce a smaller field of view; capturing a limited area, but the camera quality image improves in detail. These are designed to monitor a specific object, such as cash registers, entrances/exits, hallways or objects of value.

How to Calculate the FOV

To calculate the FOV requires the sensor size and the focal length of the lens: h = Sensor Size F = Focal Length of the Lens

FOV is represented by this equation: FOV = 2tan-1(h) / 2F

Example: h = 4.7mm F = 6mm FOV = 2tan-1(h) / 2F = 2tan-1(4.7)(12) = 2tan-1(0.39) = 2(21.4°) = 42.8°

W482CAD – 2K Wi-Fi Camera : Frequently Asked Questions

The following FAQ article answers many of the general questions about the 2K Wi-Fi Camera with Smart Deterrence (W482CAD). Where applicable, the FAQ includes links to articles where you may find more information.

.

Where do I place my Lorex 2K Wi-Fi Camera?

.

How should I position my Lorex 2K Wi-Fi camera?

When mounting the camera on a wall, make sure of the following:

 Accuracy of person detection will be influenced by multiple factors, such as the person’s distance from the camera, the height of the person, and the height and angle of the camera. Night vision will also impact the accuracy and distance of detection.

.

How do I enable motion detection and person detection?

1.Launch the Lorex App.

2.Tap  icon above the channel thumbnail on the Devices screen.

3.Tap Motion Detection Settings.

4.Tap  icon to enable Motion Detection.

Note: If motion detection is disabled, general/person/vehicle detection will automatically disable and you will not receive any motion detection notifications in the Lorex App.

.

How do I customize Motion Zones™?

Motion Zones™ allows you to customize your device’s motion detection region. Motion Zones™ screen consists of the following settings:

To set Motion Zones™

1.Launch the Lorex App.

2.Tap  icon above the channel thumbnail on the Devices screen.

3.Tap Motion Detection Settings.

4.Tap Motion Zones™.

 For full instructions on how to set customized Motion Zones™, see Configuring Motion Zones™.

.

Why am I receiving so many notifications?

There are a few ways you can lower the number of notifications you are getting.

.

How do I enable Color Night Vision?

1.Lauch the Lorex App.

2.From the Devices screen, tap  icon to configure device settings.

3.Tap  icon to disable Auto Night Vision.
Note: Disabling Auto Night Vision will force the camera into Color Night Vision mode. Recommended in low-light conditions.

.

How to activate Two-Step Verification?

1.Launch the Lorex App.

2.Tap Settings.

3.Tap Account Settings.

4.Tap Two-Step Verification.

5.Tapicon to enable Two-Step Verification.

For detailed setup instructions, see Two-Step Verification Setup.

.

How to optimize video quality?

1.Launch the Lorex App.

2.Tap  icon above the channel thumbnail on the Devices screen.

3.Tap Video Settings.

4.Tap  icon to enable HDR (High Dynamic Range).

Note: Enabling HDR optimizes video picture in high-contrast conditions such as under-lit and over-lit areas.
By default, the video quality is set to High (2x1080p HD).

.

What is Home & Away™?

Lorex App can automatically use your location to manage your notifications when you are at home or away. The app will notify you when you are inside/outside of your set home perimeter.

To start using this feature, navigate to your mobile device settings and enable Location services for Lorex App.

For detailed setup instructions, see Configuring Home & Away™.

.

How do I activate the LED deterrence light when motion is detected?

1.Lauch Lorex App.

2.From the Devices screen, tap  icon to configure device settings.

3.Tap Deterrence Light Brightness.

4.Tap  icon to enable camera’s deterrence light whenever motion or person is detected.

.

How do I remove the 2K Wi-Fi Camera from my account?

1.Launch the Lorex App.

2.From the Devices screen, tap  icon to configure device settings.

3.Tap Remove Device.

.

How to permanently delete data of 2K Wi-Fi Camera?

Refer to Formatting Device Storage for more information.

.

Does my device support WPA2 or WPA3?

Your device supports Wi-Fi Protected Access 2 (WPA2) which is the industry standard security protocol for Wi-Fi networks. WPA2 offers security against unauthorized access and data interception and is supported by most Wi-Fi routers including those that support both WPA2 and WPA3. It employs Advanced Encryption Standard (AES), an encryption mechanism, which secures communication between your camera and Wi-Fi network to keep transmitted data confidential. For information on which devices support WPA2 and which devices support WPA3, please refer to “WPA2 and WPA3 Supportive Devices.”

.

What are the compatible SD cards?

Refer to Compatible SD Cards and Storage Sizes for more information.

.

What devices are compatible with the 2K Wi-Fi camera?

Refer to Product Compatibility Chart for more information.

W482CAD – 2K Wi-Fi Camera : Installation

This article provides instructions to install your Lorex 2K Wi-Fi camera with Smart Deterrence (W482CAD).

.

What is included in the box?

The above contents are based on one camera.

.

How to connect with Lorex App

3.Open the Lorex App app and create an account or login with your credentials.

4.Tap  icon to add a new device, then follow the in-app instructions to complete the device setup.

For full instructions on Lorex App setup, see Connecting with Lorex App.

.

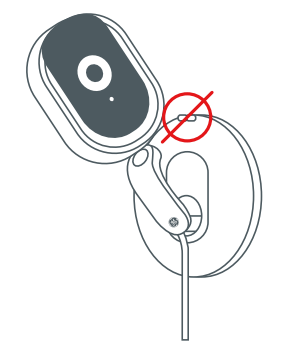

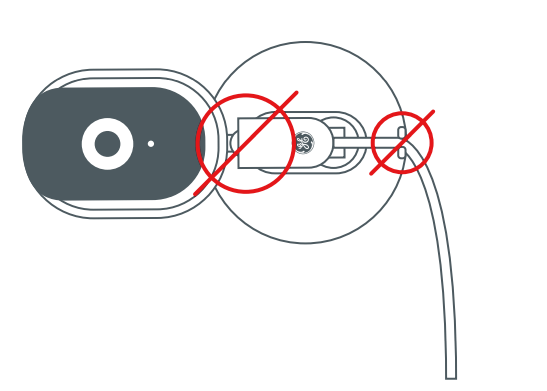

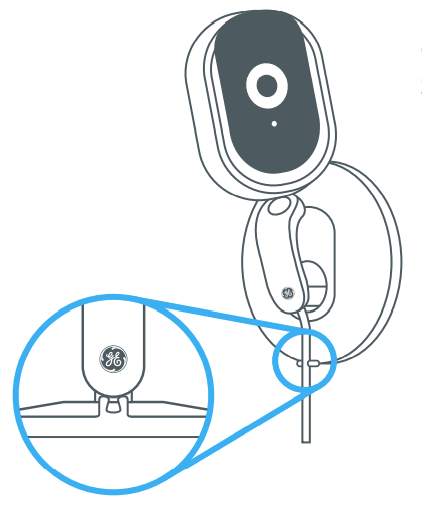

How to mount 2K Wi-Fi Camera to the wall

.

How to mount 2K Wi-Fi Camera to the ceiling

Wi-Fi Security Cameras – How to Read a MicroSD card

To view the contents of a MicroSD card on a laptop or computer, follow these steps:

a. Select the day to play back:

b. Click on the available folder:

c. Within the folder, click either the day folder (Video files) or the jpg folder (Snapshots):

d. Click to select a video time from 00 – 23 hours:

6.Click the MP4 video file to view the video.

Wireless Home Monitor: Audio not working

If the audio is not working on your Wireless Home Monitor:

• Ensure that the protective film is removed from the camera lens.

• Ensure that the monitor volume is not muted. A mute icon () will be visible on the screen if the volume has been muted.

• Turn the monitor volume up using the volume buttons on the side of the unit. Location will vary by model. For exact location of volume buttons for your model, refer to your user manual. Click here for downloads and documentation for your product.

• The camera must be in Full Screen mode for audio. Tap the Channel Select icon () to switch between channels in Full Screen mode. Audio is disabled in Quad mode.

If audio is not working after increasing the volume and viewing in Full Screen mode, restore the system to default settings.

To restore your monitor to default settings:

CAUTION: Restoring to default settings will erase any setting input on the monitor. Your monitor will need to be reconfigured.

1.On the monitor tap the Menu icon ().

2.Use the joystick to select Settings > Default Settings.

3.Select Yes.

.

<p>The post Lorex Wireless Cameras and Monitors guide 2024 first appeared on NVR IPCAMERA SECURITY.</p>

We offer a wide range of security cameras for different application. These security cameras adopt two megapixel progressive scan CMOS image sensor and high performance SoC to deliver 1080p FHD resolution video. Depends on your choice, most of them are embedded with Tuya Internet of Thing platform which provides the P2P connection, a few of them are empowered by Yoosee cloudlink platform.

The P2P connection just performs as the bridge between your smartphone and the connected security cameras. This eliminates the sophisticated procedure to setup the cameras, there is no need to tweak your router to do port forwarding or apply DDNS rules. All of camera has a microSD/TF card slot design to support up to 128GB video recording capability. Users can play the video on their iOS and Android devices remotely, no need to take the card out from the cam. Additionally, it supports motion activated recording, schedule recording, 24 hours full-time recording different modes.

They are smart cameras supports Wi-Fi connection, ensuring you connect them to 2.4G band Wi-Fi, as they currently don’t support 5G band. It’s sure that they work with your dual-band routers. All of them supports motion detection, when detecting the presence of intruders, users can get informed immediately through push notification. Some advanced models integrate with Passive Infrared (PIR) motion sensor to improve the accuracy of detection and avoid false alarms.

Outdoor security camera: adopting full-sealed design to support ingress protection grade IP66 waterproof and dustproof design, they are suitable for outdoor installation. PT camera supports pan/tilt rotation, you’re able to rotate the camera on your smartphone, hence the camera can cover a large area.

Indoor security camera: affordable indoor security cameras adopt aesthetic design, modern and small size, they supports both desktop and wall mounted or ceiling mounted installation. Supporting wireless network connection can be feasibly installed. Some cameras are powered by rechargeable batteries (typically 4.7V 18650) to offer completely wire-free installation. They’re plug&play cameras support quick DIY installation, no trenching and wiring.

Baby monitor: cute design small size indoor security camera, both parents and children loves them. Built-in microphone and speaker, parents can chat with their children. Privacy-protection design, the camera can rotate to the position where can hide the lens to stop video monitoring.

.

.

Smart Life and Tuya APP

The camera can be connected to either the Smart Life or Tuya smart app, both of which have the same function, so just choose the app you use regularly.

How To Connect Smart Life or Tuya Camera?

There are 2 ways to add a Smart Life and Tuya camera, we recommend using ‘OR Code’ to add a camera.

Before adding the Smart Life and Tuya camera, please connect the camera to the power supply, if it is a battery camera you will need to turn on the power switch.

Once the camera has been powered up wait for the camera to start up (about 20 seconds) and then you can start connecting the camera.

OR Code connect camera

We recommend using OR Code to connect Smart Life and Tuya cameras.

1. Click on the ‘+’ icon, select ‘Camera & Lock’ and Smart Camera (Wi-Fi)

2. Click Make sure the indicator is flashing quickly or a prompt tone is heard, then click Next

3. Enter your wifi password, then click Next.

4. Hold the mobile phone screen in the front of the camera, the distance between the two should be 15 to 20 cm, Try not to shake the mobile phone during the scanning. when you hear ‘Connect Router’, click “I Heard a Prompt”, and wait for connecting.

Note

If it is a mini battery camera, there is only an indicator light, no voice prompt. Please check your operating instructions for the indicator light.

5. wait for the camera to connect to wifi ( approx. 30 seconds)

Wi-Fi Mode connect camera

Not all Smart Life and Tuya cameras support Wi-Fi Mode connectivity, please contact your camera’s seller for details.

1. Click on the top right corner to switch to Wi-Fi Mode, then click on the Next step.

.

See also  Smart Life and Tuya camera Troubleshooting: Fix WIFI, Reset, Offline, and camera not working issues

.

2. Select AP Mode, enter your wifi password and click Next.

3. Click Go to Connect, connect to the camera’s hotspot wifi, then return to the Smart Life or Tuya APP.
wifi name: SmartLife-XXXX or SL-XXXX

4. wait for the camera to connect to wifi ( approx. 30 seconds)

Troubleshooting

Why can’t the Smart Life and Tuya camera scan the QR code?

1. Ensure that the lens is not blocked. If the camera lens has a protective film, remove it before you scan the QR code.
2. Place the app QR code in front of the camera at a distance of15 cm to 20 cm.Adjust the angle and distance until you hear a prompt.
3. If it is a battery camera, please check the status of the indicator
4. Reset the camera, resetting the camera will restore the camera to factory settings.
5. Try to connect to the camera using Wi-Fi Mode

Why can’t the Smart Life and Tuya camera connect to wifi?

If you have any problem with adding camera to the app, please refer to the following steps to troubleshoot:

How can I get Smart Life and Tuya camera connected to another Wi-Fi?

If the current Wi-Fi of the camera and Wi-Fi you would like to switch can be connected at the same time, you can switch the Wi-Fi directly by selecting Wi-Fi Network in the interface of Setting.

If the camera is disconnected to the current Wi-Fi, the App will say “Device disconnected”. You can reset the camera and reconnect it.

Why can’t I connect to the Smart Life and Tuya camera?

If you can’t connect to the camera, usually due to a wifi problem, you can try resetting the camera and reconnecting it. It is recommended to connect next to the router.

Why does App shows the camera has been bound to another account?

There are the following possible reasons for the camera prompting that it has been bound by another account during network configuration:

Unbinding method:

How to set up Smart Life or Tuya camera?

If you can’t find certain settings on your Smart Life or Tuya camera, then your camera doesn’t support this feature and you are advised to contact your camera seller for details.

Share Camera

You can share your Smart Life or Tuya camera with your family or friends to use the camera for multiple people.

The other party needs a Smart Life or Tuya account to use the camera, and can only share the same app.

1. Click on the icon in the top right corner to enter the settings screen, select Share Device, click on Add Sharing.

2. You can enter the shared account number or copy the link to your friend or family member, who can then use the camera.

Recording setting

You need to insert the memory card to see the recording settings.

Click on Recording settings, open Local Recording.
By default, the camera is in Non-Stop recording mode, you can change the Recording Mode.

View recording video

In the live video screen of the camera, click on Playback to view the video on the memory card, the coloured time indicates the recorded video.

Click on the ‘‘date icon, you can select the recording date. By default the sound is turned off, click on the ‘‘ in the top right corner to turn on the video sound.

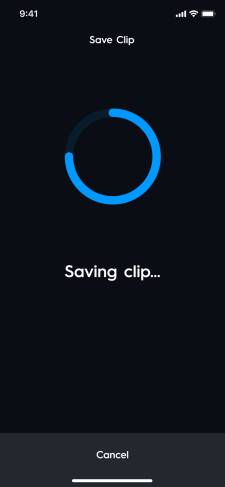

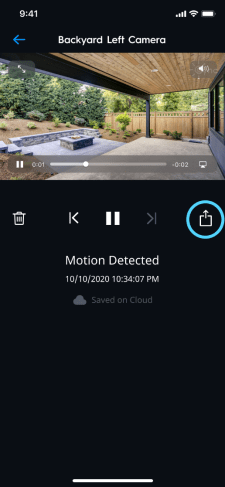

Save recording video to your phone

Click on the record icon, you can save the video to your phone.

Detection Alarm Setting

Click on Detection Alarm Settings, turn on Motion Detection Alarm and the app will send a notification to your mobile phone when the camera detects a moving object.

If there are frequent false alarms, you can adjust the detection sensitivity and turn on Human Body Filtering to reduce false alarms.

Detection area

If you don’t want to detect the whole frame, you can select a specific area,Drag/Resize the red frame to set an detect area.

Siren Sound

When the camera detects motion or sound, the camera will make a Siren sound.
You can turn on Trigger Siren in Detection Alarm Settings, and adjust the sound timing and volume in Siren Adjustment.

Motion Tracking Setting

Motion Tracking can follow objects automatically. You can turn on Motion Tracking in the Detection Alarm Settings.

Basic Function Settings

In Basic Function Settings, you can switch on and off the camera’s Status Indicator, Flip Screen, Time Watermark and Talk Mode.

Voice Intercom Settings

The Smart Life or Tuya camera has two voice modes, speech may be affected by the environment. We recommend that you select one-way or two-way speech according to the actual situation.

Controlling camera movement

You can swipe the video screen to control the camera movement, or click the Direction control button

Quickly move the camera

In the Site screen, click on Site added succe… Save the camera’s current location, so that you can move the camera to the saved location quickly by clicking on the picture.

Common Problem

How to watch the Smart Life and Tuya camera on TV?

if your TV is a smart TV and you can search for the app you are using in the TV’s App Store, you can download and use this app to stream your camera video to the TV;
If the app you are using cannot be searched in the TV’s App Store, it means that this function is not supported at the moment.

.

How to turn on the camera motion detection function and adjust the sensitivity?

Please see Detection Alarm Setting.
If motion detection is often delayed and unable to capture moving objects, it means that the network in your home is poor or the connection delay with the cloud server is high.
If it still does not take effect, it is recommended that you remove the device and add it again, and perform the above steps again.

.

Can multiple people use a Smart Life or Tuya camera simultaneously?

Yes, you can share the camera with your family or friends.

.

Does the Smart Life or Tuya camera support NVR or DVR function?

Not all camera devices support the NVR and DVR functions. If your device supports it, you can find the option to set the NVR and DVR function in the device’s setting page. If there is no option to set the NVR and DVR function, it means your device does not support NVR and DVR functions.

If your camera supports ONVIF or RTSP, you can connect an NVR.

.

How can I enable the camera to turn on/off the motion detection function at the time I need?

You can set the timer to turn on or off in Detection Alarm Setting > Schedule

.

<p>The post Tuya Camera User Guide Ultimate Manual first appeared on NVR IPCAMERA SECURITY.</p>

How to properly install the security camera?

 When installing security cameras, LongPlus always recommends placing cameras up high. The outdoor installation location should be 7ft away from the ground. Here are the best places to install security cameras around your home: front & back doors, garage & driveway, yard, common areas, main stairway or hallway, or any side doors or large first-floor windows that an intruder could gain access through.

 🟠 Typically, home cameras are placed in the corners of the room to optimize the viewing angle. LongPlus recommends at least two cameras to fully cover a large space, such as a living room. To fully monitor your home, users can add cameras in each room to achieve a complete home monitoring system.

LongPlus Camera User Guide

Read Also : IMOU Ranger IP Camera How To Use

🟠 Battery cameras can not be installed behind a window/glass if you want to use the “Motion Detection” feature.

Battery cameras use PIR (passive infrared) motion detection, an energy-efficient (saving battery power) technology that captures motions by detecting infrared radiation (radiant heat) emitted or reflected by objects. When the camera is mounted behind a window/glass, infrared radiation does not pass through the window/glass. As a result, the “Motion Detection feature” does not work reliably. If you want the camera to detect motions outside, it is recommended that you mount the camera outside.

For plug-in/wired cameras, the answer is yes, as they use camera video analytics rather than PIR sensors to detect motions. As long as they “see”, they can detect motions. So you can mount the camera behind a window/glass with confidence.

How to find the serial number of LongPlus security camera?

🟠 Each LongPlus security camera has a serial number. These are usually located on the body label of the security camera, starting with S/N:*****. Also, if you’ve added your camera to the app, you can also tap the camera “setting” icon > tap the “>” extension icon > tap the “More info” button to find the camera’s serial number.

Is LongPlus security camera waterproof?

🟠 Yes. The waterproof rating of LongPlus camera is IP65. It can be “protected against water jets from any angle”. Generally, the camera can be used outdoors on ordinary rainy and snowy days. However, it may get damaged in extreme weather. But if the camera is installed under the roof or in a place with some shelter, it can get protection to a certain extent. Besides, please don’t expose the camera’s charging port, power button, and microSD card slot to water.

What do the indicator lights on LongPlus security camera mean?

🔵 Solid Blue Light – The camera is working properly.

🟡 Solid Yellow Light – The camera is charging.

🟢 Solid Green Light – The camera charging is complete.

⚪ No Light – The camera is in sleep/off mode.

Can I talk to someone via LongPlus App?

🟠 Yes, LongPlus security camera features two-way audio capability, which means you can listen and talk to someone in real-time with simple clicks in the App.

Do LongPlus security cameras need an app to work?

🟠 Yes! All LongPlus smart security cameras are connected to the LongPlus APP. Compatible and compatible with the latest versions of iOS/Android devices. Installing LongPlus app is a breeze and it comes with voice prompts to guide you step-by-step in minutes.

What is the default language of LongPlus security cameras?

🟠 The default language of LongPlus security camera is set during production and testing in the factory production process. After connecting with LongPlus APP, the language of the camera will follow the language of the APP.

Can I see the infrared light at night?

🟠 No, the night vision infrared light is invisible to human eyes. If you turn on your phone’s camera and point it at the camera lens, then you will be able to see it.

How to format a Micro SD card?

🟠 Sometimes after inserting a Micro SD card, the camera will report “Please use the app to format your SD card first”, that’s because your Micro SD card is not the FAT32 format that the camera supports. In this case, please tap the camera Setting icon > tap SD card > tap Format to format it.

How to record/save videos on a Micro SD card?

🟠 Installing a Micro SD card does not mean the camera will record a video to the Micro SD card all the time.

When the camera detects a movement, it will record a video to the cloud and the cloud recording will display in the Library in the app. If apart from the cloud recordings you want to save backup videos on a Micro SD card at the same time, you can insert a Micro SD card into the camera.

🟠 Here are tips:

1. Find the Micro SD card slot and insert your Micro SD card: Mostly, the Micro SD card slot is next to the power button and is under the rubber plug of the camera body. However, for some models of cameras, you may need to take off the outer shell of the camera to find the Micro SD card slot.

2. If the Micro SD card is detected, you will hear “SD card detected” at the time when it is inserted, and you can see both the storage of the Micro SD card and “SD Card Video” in the app.

Please note that the camera only supports legitimate brand-name (SanDisk, Samsung, Kingston) Micro SD cards, but may not be able to support no-brand, fake, expansion (the storage is extended), and read-only (you aren’t able to put a file to it) Micro SD cards

How to view videos on the Micro SD card?

You can view videos on the Micro SD card from the app or on your computer.

To view videos on the Micro SD card from the app, please tap the camera “setting” icon on the app homepage > tap “SD card video” on the “Camera Setting” page > select the date on the top > swipe the screen left and right until the green vertical line overlaps the grey “bubble”( If there is no grey “bubble”, that means there are no motions detected in that period).

If you want to zoom in on the specific time before playing a video, you can swipe two fingers left and right at the same time or tap the “magnifying glass” icon.

How to activate cloud storage?

🟠 The cloud storage we gift you is automatically activated and contains free 3 days rolling cloud storage. You can view the cloud-stored videos in the last 7 days at any time.

When the SD card is full will it overwrite the older files?

🟠 Yes, when the SD card is full, the camera will delete the earlier recorded video so you don’t need to format the SD card manually.

Can the camera be used without a memory card?

🟠 Without a memory card, the recorded video will be automatically saved in the cloud, you can watch the video for nearly 7 days in the cloud.

How long does it take to charge LongPlus camera once?

🟠 It will take about 8 -15 hours to fully charge the camera once. When the security camera is fully charged, the indicator light will turn solid green.

Why can’t the battery be charged?

🟠 The following factors may cause charge failure. Please check them one by one:

(1) The charging device is not suitable, or it malfunctions. Please make sure the power adapter and charging cable are in good condition. The power adapter specification is “5V/1.5A”.

(2) The charging port is defective. Possible causes include: the Micro USB cable and the charger or the charging port of the camera are not plugged in properly; there are objects in the charger or the charging port of the camera.

(3) Please confirm whether there are objects in the camera’s charging port or the charger port and clean it before charging.
Please ensure that the Micro USB cable is in good contact with the ports on both ends of the charger and camera.

(4) You can try to connect the Micro USB cable and the charger to other devices (such as mobile phones or computers) to see if they work normally. If anyone doesn’t work, please change to a new one to try again.

(5) The long-time operation leads to charge port oxidation or internal looseness. Please repair or replace the charge port immediately.
The charging cable is damaged or broken. Please replace the Micro USB cable that can work normally.

(6) The charging cable should not be too long. The required cable length is generally not more than 16 feet (5 m). Please replace the Micro USB cable with a suitable length.

(7) The charging environment is not suitable; excessively high or low temperature makes charging impossible. Please move to a place with an appropriate temperature environment (0°C ~ 45°C) for charging.

If the above are ruled out but the issue still persists, please submit feedback from the app for further technical assistance.
