The debate between Dahua custom firmware and stock updates is not merely about aesthetic UI changes or minor bug fixes. It directly impacts kernel stability, ONVIF compliance, cybersecurity vulnerabilities, and the integration capabilities with third-party VMS platforms. In this deep-dive technical comparison, we will dissect the architectural differences, risks, performance metrics, and operational realities of both approaches.

Whether you are managing a localized residential deployment or scaling up a multi-site industrial installation, understanding the underlying binaries of your surveillance gear is non-negotiable. Let’s analyze how stock builds and modified firmware stack up against each other.

Understanding Dahua Stock Firmware: The Manufacturer Baseline

📌 İlginizi Çekebilir: Dashcam Troubleshooting Guide Boot – Shutdown – Power

Stock firmware represents the official, digitally signed software packages released directly by Dahua Technology or its authorized regional distributors. These builds are compiled specifically for defined hardware platforms—distinguished by Dahua’s complex naming conventions that encode sensor types, processor architectures (such as HiSilicon or Ambarella), and form factors.

The primary advantage of stock firmware lies in its vendor support ecosystem and compliance framework. When critical vulnerabilities are discovered, official patches are rolled out to secure the RTSP streams, fix buffer overflows, and harden the embedded Linux kernel. Furthermore, standard system administration tasks—such as cross-brand integration—rely heavily on standardized protocols. For instance, configuring complex event triggers requires strict adherence to protocol standards, similar to how engineers integrate hardware inputs as seen in guides detailing How to connect alarm device to VIGI NVR across mixed-vendor environments.

However, stock firmware is notorious for its strict regional locking (region-specific serial numbers and CN/global firmware differentiation), rigid feature restrictions, and forced telemetry or P2P cloud integrations that security-conscious organizations prefer to disable. Upgrading these systems often requires referencing comprehensive documentation, much like reviewing a modern Hikvision NVR and IP System User Manual 2026 to understand baseline deployment parameters and configuration workflows.

Dahua Custom Firmware: Unlocking Potential or Opening Pandora’s Box?

📌 İlginizi Çekebilir: Network Camera Troubleshooting Guide

Custom firmware (often referred to as modded, patched, or hacked firmware) refers to modified binary images compiled by third-party developers, gray-market vendors, or open-source security enthusiasts. These builds are typically engineered to bypass regional restrictions, unlock advanced Intelligent Video System (IVS) analytics on entry-level hardware, remove forced P2P backdoors, or inject custom root access (SSH/Telnet) scripts.

Engineers often turn to custom firmware out of necessity when dealing with grey-market import hardware. A classic pain point in the security industry is the “Region Error” or “Upgrade Failed” prompt when a camera purchased from an overseas market attempts to run a global stock update. Custom firmware patches the bootloader (u-boot) and replaces the system image (romfs/squashfs) to bypass these hardware checks.

Key Drivers for Adopting Custom Firmware:

• Regional Unlocking: Converting Chinese domestic market (CNSZ) cameras to run English language global web interfaces.
• Feature Parity Bypass: Enabling perimeter protection, SMD Plus (Smart Motion Detection), or face recognition on hardware tiers where Dahua restricted these features via software flags.
• Advanced Network Control: Permanently disabling proprietary cloud telemetry, default telnet backdoors, and hardcoded P2P protocols for strict air-gapped network environments.
• Root Shell Access: Gaining native Linux root access via busybox to write custom cron jobs, execute local Python scripts, or stream RTSP directly to edge storage without vendor software overhead.

Technical Comparison: Stock vs. Custom Firmware Matrix

To provide a clear engineering overview, the following matrix compares the core technical attributes, risks, and operational capabilities of Dahua stock updates versus custom firmware modifications.

The Hidden Risks of Custom Firmware: Bricking, Malware, and Zero-Days

While the allure of unlocking advanced features or circumventing regional locks is strong, deploying custom firmware introduces severe risks that can compromise an entire enterprise security network. The embedded Linux environment inside an IP camera runs with high privileges, and compromising a single edge device often provides threat actors with a pivot point into the internal VLAN.

1. Permanent Hardware Bricking: Dahua devices utilize sophisticated bootloader verification processes. If a custom firmware image flashes an incorrect u-boot address, overwrites the flash memory sector incorrectly, or suffers a power interruption during a modified TFTP recovery flash, the device becomes an unrecoverable paperweight—often requiring a hardware-level UART serial interface pinout soldering job to restore.

2. Injected Malware and Cryptominers: Because custom firmware binaries are rarely open-source or cryptographically signed by trusted authorities, you are placing blind trust in anonymous developers. Numerous instances have been documented where “free unlocked firmware” downloaded from underground forums contained hidden Mirai botnet strains, remote access trojans (RATs), or background cryptomining scripts that saturated the camera’s CPU and bandwidth.

3. Breaking ONVIF and RTSP Authentication Chains: Security updates from Dahua continually patch authentication protocols (migrating away from legacy Digest Authentication to more secure token-based or TLS 1.3 standards). Custom firmware builds often freeze the software version in time, leaving the device vulnerable to trivial brute-force attacks or man-in-the-middle (MitM) interception.

Best Practices for Enterprise Firmware Management

For professional integrators and system administrators, maintaining a robust firmware lifecycle management policy is critical. Relying on custom firmware in mission-critical environments (such as financial institutions, critical infrastructure, or healthcare facilities) introduces unacceptable liability.

Instead of seeking custom workarounds for hardware limitations, implement these engineering strategies:

• Procure Regional-Compliant Hardware: Always source hardware through authorized local channels to eliminate the need for regional firmware patches.
• Establish an Air-Gapped Update Testing Lab: Never push stock firmware updates directly to production NVRs. Deploy updates to an isolated bench test network first to verify stream stability, ONVIF responsiveness, and storage integration.
• Isolate Surveillance VLANs: Regardless of whether you use stock or custom firmware, isolate your IP cameras on a dedicated, non-routable VLAN with strict firewall rules blocking outbound WAN traffic to prevent unauthorized telemetry.
• Disable Unused Protocols: Turn off legacy protocols such as CGI, multicast discovery, P2P cloud services, and legacy CGI commands within the stock firmware web GUI.

Conclusion

The choice between Dahua custom firmware and official stock updates boils down to a fundamental trade-off between operational control and enterprise risk management. Custom firmware offers alluring workarounds for regional restrictions and unlocks deep system-level access, but it exposes your infrastructure to critical security vulnerabilities, stability failures, and legal liabilities.

For professional deployments, sticking to official, cryptographically signed Dahua stock updates—paired with strict network segmentation and hardened configuration baselines—remains the gold standard for long-term reliability and cybersecurity compliance.

Sıkça Sorulan Sorular

Can Dahua custom firmware unbrick a region-locked camera?

In many cases, specialized custom firmware or modified bootloaders are used specifically to bypass “Hardware Version Mismatch” or “Region Error” flags on imported cameras. However, the flashing process itself carries a high risk of permanently bricking the device if the u-boot or flash partition layout is corrupted.

Does updating to the latest Dahua stock firmware delete my configuration settings?

Standard stock firmware upgrades via the web interface usually include an option to “Preserve Configuration.” However, major version jumps (e.g., moving from an older major build to a newly structured modern firmware release) may require a factory default reset to ensure system stability and proper database indexing.

How can I check if my Dahua camera firmware is authentic?

Authentic firmware can only be downloaded directly from official Dahua regional portals or authorized distribution partners. You should verify the MD5/SHA256 checksums provided by the manufacturer before initiating any flash sequence over the local web GUI or ConfigTool.

<p>The post Dahua Custom Firmware versus Stock Updates What You Need to Know first appeared on NVR IPCAMERA SECURITY.</p>

When a manufacturer pushes a firmware patch, the primary engineering goals usually revolve around patching Common Vulnerabilities and Exposures (CVEs), optimizing H.265/Smart Codec performance, or enhancing edge-AI analytics capabilities like perimeter protection and facial recognition. Unfortunately, these security hardening and feature-expansion measures frequently alter API structures, deprecate legacy authentication profiles, or break ONVIF service bindings. For end-users deploying advanced configurations or exploring the Best DIY Home Security Systems of 2025, these silent updates can result in sudden video stream dropouts, telemetry failure, and authentication loops.

Understanding the ONVIF Protocol Architecture in Dahua Firmware

📌 İlginizi Çekebilir: How to Record Dash Cam and Deleted Footage

To comprehend why Dahua firmware updates frequently break third-party NVR compatibility, one must dissect how the ONVIF specification is implemented at the firmware level. ONVIF is not a single protocol; rather, it is a collection of XML-based, SOAP (Simple Object Access Protocol) web services categorized into specific profiles (Profile S for streaming, Profile G for recording/storage, Profile T for advanced video streaming, and Profile M for metadata).

Dahua’s proprietary firmware acts as a middleware layer translating incoming ONVIF SOAP requests into internal system calls (often handled by proprietary daemons like vod_server or DVRIP). When you upgrade a Dahua IP camera, several foundational layers of this middleware can shift:

• Authentication Overhauls: Modern firmware updates deprecate basic HTTP authentication and older WS-Security profiles in favor of digest authentication, WS-UsernameToken with strict nonces, and HTTPS-only transport layers. If an older third-party NVR attempts to query a newly updated Dahua camera using legacy WS-Security profiles, the handshake fails immediately.
• XML Schema and WSDL Modifications: Updates to the camera’s internal Web Services Description Language (WSDL) can introduce namespaces or schema validations that an older third-party NVR cannot parse, resulting in ONVIF device discovery failures.
• Transport Layer Security (TLS) Cipher Suites: Recent Dahua firmware hardens SSL/TLS implementations, disabling TLS 1.0 and 1.1 and restricting cipher suites to TLS 1.2 and 1.3 with forward secrecy. If a third-party recording server runs an outdated OpenSSL library, the TLS handshake during an RTSP over HTTPS stream setup will be terminated by the camera.

The Impact of Security Hardening on Third-Party NVRs

In recent years, regulatory pressures (such as NDAA compliance frameworks and rising cyberattacks against IoT devices) have forced manufacturers like Dahua to implement aggressive default security postures. The most notable milestone in Dahua’s firmware evolution was the mandatory elimination of the default “admin/admin” credential, alongside the enforcement of wizard-based activation.

While these measures protect the edge device from botnets, they introduce significant integration challenges for third-party NVRs:

• ONVIF User Account Discrepancies: Dahua firmware splits user management into local web UI users and ONVIF service users. During a firmware upgrade, if the ONVIF service account is not explicitly synchronized or if the profile lacks permissions for specific scopes, third-party NVRs lose PTZ (Pan-Tilt-Zoom) control, audio channels, and alarm input/output triggers while maintaining a degraded video-only RTSP stream.
• CGI Command Path Alterations: Many non-ONVIF integrations rely on direct CGI API calls (e.g., HTTP GET requests for snapshot grabs or digital I/O toggling). Firmware patches frequently obfuscate or relocate CGI endpoints as a security countermeasure against enumeration attacks, instantly breaking third-party home automation integrations and non-ONVIF NVR drivers.
• RTSP Stream URI Modifications: Dahua has historically used predictable RTSP paths (e.g., rtsp://admin:password@ip:554/cam/realmonitor?channel=1&subtype=0). Certain firmware updates introduce token-based RTSP authentication or dynamic path generation, rendering static stream URLs stored in third-party VMS (Video Management Software) configurations invalid.

Comparative Analysis: Firmware Versions vs. ONVIF/Third-Party Interoperability

The following matrix outlines how different generations of Dahua firmware impact ONVIF feature sets and third-party NVR stability:

Troubleshooting and Mitigation Strategies

When an enterprise surveillance deployment or a residential setup—such as those utilizing insights from a MaxRanger4K Wireless Camera Setup Guide—suffers a disruption following a Dahua firmware update, a methodical diagnostic workflow must be executed.

Step 1: Verify ONVIF Service Status and User Privileges

Log directly into the Dahua IP camera’s native web interface using a modern browser. Navigate to Setting > Network > Access Platform > ONVIF. Ensure that the ONVIF service is toggled to “Enable.” Crucially, navigate to Setting > System > Account and verify that a dedicated ONVIF user account exists with the correct privilege levels (Operator or Administrator). Many firmware updates wipe out or disable secondary ONVIF accounts for security compliance.

Step 2: Check RTSP and Snapshot Transport Protocols

If the third-party NVR can discover the camera via ONVIF web services (WS-Discovery) but fails to display video, the transport layer is likely blocking the RTSP stream. Check the camera’s video encoding settings to ensure that the transport protocol matches the NVR’s capabilities (TCP vs. UDP). Furthermore, check if RTSP authentication is set to “Unauthorized” or “Digest” in the camera’s network security settings.

Step 3: Rollback or Intermediate Staging

If an enterprise environment relies heavily on custom third-party integrations that break under a modern firmware build, consult Dahua’s release notes for “rollback restrictions.” Some newer bootloaders implement an anti-rollback fuse, preventing downgrade procedures. If rollback is permissible, flash an intermediate firmware version that balances security fixes with legacy API support.

Best Practices for Managing Firmware Lifecycles in Hybrid Systems

To avoid unexpected downtime in mixed-vendor surveillance networks, administrators should adopt proactive lifecycle management policies:

Never Auto-Update Edge Devices: Disable automatic firmware updates on all cameras integrated with third-party NVRs or VMS platforms like Milestone, Blue Iris, or Synology Surveillance Station.

Establish a Staging Lab: Maintain an isolated test bench consisting of an identical camera model and third-party NVR hardware. Always test new firmware updates in the lab before rolling them out to production environments.

Document Custom URIs and API Maps: Keep an updated inventory of CGI commands, ONVIF ports (typically TCP 80 or 8080 for HTTP, 2020 for ONVIF service), and RTSP strings used across the infrastructure.

By understanding the underlying mechanics of how Dahua firmware updates interact with ONVIF and third-party systems, engineers can bridge the gap between rigorous cybersecurity standards and seamless hardware interoperability.

Frequently Asked Questions

Why did my third-party NVR lose PTZ control over my Dahua camera after a firmware update?

This typically happens because the firmware update reset the ONVIF user permissions or disabled the dedicated ONVIF user account. Log into the camera’s web UI, ensure the ONVIF service is enabled, and verify that a user with Administrator or Operator privileges is explicitly assigned to the ONVIF profile.

Can I downgrade my Dahua camera firmware if an update breaks ONVIF compatibility?

In most cases, yes, provided the specific firmware version does not include an anti-rollback bootloader restriction. Always check the official release notes from Dahua regarding firmware dependencies before attempting a downgrade via the web GUI or config tool.

How do I find the correct RTSP stream URL for a Dahua camera on a third-party NVR?

Standard Dahua RTSP streams follow the format rtsp://username:password@IP_Address:554/cam/realmonitor?channel=1&subtype=0 for the main stream. However, if the firmware enforces secure authentication, you may need to generate a token or adjust the RTSP authentication settings to “Digest” within the camera’s network configuration menu.

<p>The post How Dahua Firmware Updates Impact ONVIF and Third Party NVR Systems first appeared on NVR IPCAMERA SECURITY.</p>

When an update hangs at 99%, the device appears soft-bricked. The web interface becomes unresponsive, ping requests might drop intermittently, and the local video output freezes or displays a static boot splash screen. Understanding why this specific failure occurs at the final stage of execution requires a deep dive into embedded Linux bootloaders, partition structures, and real-time streaming protocol interactions.

This technical guide analyzes the underlying architectural causes of the Dahua 99% firmware update failure and provides actionable, step-by-step remediation workflows—ranging from web-daemon socket fixes to low-level TTL UART serial console flash recovery.

Anatomy of the Dahua Firmware Flashing Sequence

📌 İlginizi Çekebilir: How to Record Dash Cam and Deleted Footage

To diagnose why an update fails at 99%, we must first examine how embedded System-on-Chip (SoC) platforms (such as Hisilicon, Ambarella, or Texas Instruments used in Dahua hardware) execute firmware writes. A standard Dahua firmware package (usually ending in .bin) is a structured container holding multiple compressed partition images (e.g., dhboot.bin, romfs-usr.img, web-com.img, custom-x.spkg).

The flashing operation follows a strict linear state machine:

• Phase 1: Ingestion & Temp Storage (0% – 30%): The firmware payload is sent via HTTP/HTTPS multipart form data or proprietary RPC commands (via ConfigTool/SmartPSS) to the device’s volatile RAM buffer (typically /tmp or a designated RAMDisk).
• Phase 2: Cryptographic Signature & CRC Validation (30% – 50%): The internal upgrade daemon checks the header checksums (CRC32/SHA256) and verifies the vendor digital signature against the hardware revision stored in the device’s EEPROM.
• Phase 3: Flash Unlocking & Partition Flashing (50% – 98%): The flash memory management subsystem (MTD – Memory Technology Devices) unmounts dynamic partitions, erases sectors on the SPI NOR or NAND flash, and streams the raw binary blocks into their respective memory offsets (e.g., /dev/mtd0 through /dev/mtd7).
• Phase 4: Post-Write Verification & Inter-Process Handoff (99%): The system issues a sync call to flush disk buffers, modifies the U-Boot environment variables to boot from the updated partition, and triggers a hardware reset command (sys_reboot).

The 99% mark represents the exact transition boundary between the completion of partition writing and the issuance of the hardware reboot signal. If the web socket breaks, memory becomes fully saturated, or the bootloader flags a partition boundary error during sync, the state machine freezes forever awaiting an acknowledgement signal that will never come.

Root Causes of the 99% Update Stall

The 99% hang rarely indicates a permanently destroyed processor; rather, it indicates a control lock or memory deadlock during the post-write phase. The primary technical culprits include:

1. Web Server Socket Termination & AJAX Timeout

Modern Dahua web interfaces utilize asynchronous JavaScript XML (AJAX) or WebSockets to poll the update daemon for progress status. During Phase 4, the camera shuts down background daemons—including parts of the web server (e.g., boa or lighttpd)—to ensure clean unmounting. If the socket closes before sending the final status frame, the client browser remains stuck rendering the 99% CSS state, even if the device has internally finished writing.

2. Dynamic RAM Exhaustion during Image Unpacking

High-resolution IP cameras running active AI features (SMD Plus, Perimeter Protection, Face Recognition) consume significant system RAM. If active RTSP streams, ONVIF discovery routines, or metadata pipelines are not halted prior to initiating the update, the system memory allocator fails when expanding compressed packages in /tmp. The write daemon stalls at the sync boundary due to Out-Of-Memory (OOM) killer thread locks.

Proper pre-installation staging is critical across all security hardware deployments. Similar operational considerations apply when setting up complex CCTV infrastructures, as outlined in our Smart Alarm Security Camera Installation Guide.

3. Mismatched Firmware Variant or Hardware Revision

Attempting to flash firmware designed for a different hardware revision (e.g., flashing an NTSC build onto a PAL hardware revision, or attempting to write a non-S2 revision onto an S2 board) often passes initial header checks. However, when writing the system partition at 99%, the block size exceeds the physical boundaries of the flash chip, preventing the mtd write execution loop from returning code 0 (success).

4. Virtual Network Adapter Interferences (ConfigTool Flashing)

When updating via Dahua ConfigTool or SmartPSS, the application broadcasts UDP packets to verify write progress. If the host PC has active hypervisor adapters (e.g., VMware, VirtualBox, Hyper-V) or multi-homed NICs, the return acknowledgement packet sent by the camera at 99% is routed into a black hole network interface. ConfigTool indefinitely waits for the frame acknowledgment.

Diagnostic and Recovery Methods

Before assuming a hardware device is bricked, systematically apply the following technical resolution pathways, ordered from least non-invasive to advanced low-level hardware debugging.

Method 1: Safe Soft-Reset and Browser Environment Isolation

In over 40% of cases, the camera has actually completed the flash write phase, and only the reporting UI is deadlocked. Do not immediately pull the power plug during an update, as doing so while an actual flash sector erase is occurring will permanently corrupt the bootloader.

• Wait Window: Allow the device a strict 15-minute grace period at 99% to ensure all underlying Flash MTD sync operations finish writing to SPI memory.
• Network Ping Check: Open a Command Prompt or Terminal and run a continuous ping:

  ping -t 192.168.1.108

• Force Socket Reset: Open a new isolated browser window (using Incognito/Private mode with cache disabled) or clear the browser’s DOM storage. Attempt to navigate directly to the IP address.
• ARP Cache Refresh: Flush your workstation’s local ARP table to ensure MAC address bindings haven’t changed:

  arp -d *
  ipconfig /flushdns

If the device answers ping commands and displays a login prompt on a fresh window, the firmware successfully updated, and the 99% freeze was purely a front-end rendering issue.

Method 2: Isolated Flashing via Dahua ConfigTool (Correct Adapter Binding)

If the web UI remains broken, the next step is using the standalone Dahua ConfigTool under strict network isolation parameters.

1. Disconnect your workstation from all Wi-Fi networks and disable all virtual network adapters (Network Connections -> Change Adapter Options -> Disable VirtualBox/VMware/VPN adapters).
2. Connect your PC directly to the Dahua camera or NVR using a single patch cable (or through a basic unmanaged PoE switch).
3. Assign your PC a static IPv4 address in the same subnet (e.g., 192.168.1.100 / Subnet Mask: 255.255.255.0).
4. Launch **Dahua ConfigTool** as an Administrator.
5. Navigate to Settings and explicitly set the target network card interface to your physical Ethernet MAC address.
6. Go to the Device Upgrade section, select the target device, load the verified matching firmware file, and execute the update.

Managing firmware lifecycles, configuration dumps, and cross-platform network camera deployments requires structured procedures similar to those detailed in the Hikvision NVR and IP System User Manual 2026, which covers technical protocols common across enterprise surveillance devices.

Method 3: Emergency TFTP Auto-Recovery Protocol

When the firmware flashing corrupts the system partition, causing a boot loop (where the device power LED turns on but fails to boot into the Linux kernel), Dahua SoCs feature a fallback recovery bootloader mechanism that looks for an automated TFTP server on boot.

This process pulls raw binary components automatically without needing Web UI access.

Required Tools:

• Dahua TFTP Server Utility (or standard tftpd32 / tftpd64 executable).
• Official matching firmware package.
• File extraction tool (7-Zip or Dahua Firmware Converter) to obtain raw partition files if necessary.

Execution Steps:

1. Set your management PC static IP strictly to 192.168.254.254 (Subnet: 255.255.255.0) or 192.168.1.108 (depending on the SoC generation default server query).
2. Place the Dahua TFTP tool in a directory containing the unpacked firmware binary components:
   • dhboot.bin / u-boot.bin
   • romfs-usr.img
   • web-com.img
   • pd-x.spkg
   • user-x.spkg
   • failed.txt / update.txt
3. Launch the TFTP Server application and select the local IP 192.168.254.254 in the interface binding dropdown.
4. Power cycle the stuck Dahua device (disconnect power, wait 10 seconds, reconnect).
5. Monitor the TFTP server logs. Upon initialization, the U-Boot sequence sends a UDP broadcast searching for the update files. The server will automatically push the individual image blocks to the unit.

[TFTP Server Log Output Example]
Connection received from 192.168.254.1:2048
Sending file 'dhboot.bin' : block 0 to 1024 ... success
Sending file 'romfs-usr.img' : block 0 to 8192 ... success
Sending file 'web-com.img' : block 0 to 4096 ... success
Device Flashing Completed Successfully. System Rebooting...

Do not interrupt power while the TFTP transmission log is actively transferring blocks. The camera will automatically flash the partitions and reboot into operational status.

Method 4: Low-Level Hardware UART TTL Serial Console Recovery

If the bootloader fails to trigger TFTP auto-recovery and the unit remains stuck at 99% or dead in a boot-loop, hardware engineers can hook into the board’s standard UART serial interface to manually execute U-Boot commands and re-flash raw memory sectors.

Hardware Requirements:

• USB to TTL Serial Converter (FT232RL, CP2102, or PL2303 chipsets).
• Terminal Emulation Software (PuTTY, Tera Term, or Serial Debugger).
• Precision Screwdriver set and Fine-tip soldering kit (if headers are unpopulated).

Safety Warning:

Connect ONLY TX, RX, and GND pins. DO NOT connect the 3.3V or 5V VCC pin from the USB adapter to the board, as this can instantly burn the board’s power management IC.

Pinout Connection Table:

Step-by-Step UART Serial Recovery Sequence:

1. Disassemble the device chassis to locate the 3-pin or 4-pin UART connector header on the PCB (typically labeled TX RX GND or marked near the primary SoC).
2. Connect the USB-to-TTL cable to your PC and the corresponding pins on the IPC/NVR motherboard.
3. Open PuTTY, set the Connection Type to Serial, enter your COM port (e.g., COM3), and configure the speed to 115200 Baud (Data Bits: 8, Stop Bits: 1, Parity: None, Flow Control: None).
4. Open the serial console window, press and hold Ctrl + B or hit the Spacebar continuously, and power on the Dahua device.
5. You should see the U-Boot prompt break:

   Hisilicon U-Boot 2010.06 (May 12 2021 - 14:22:01)
   DRAM:  256 MB
   NAND:  128 MiB
   Hit any key to stop autoboot:  0
   hisilicon #

6. Set the temporary environment variables to match your network TFTP setup:

   setenv ipaddr 192.168.1.108
   setenv serverip 192.168.1.10
   saveenv

7. Test connectivity by pinging your host PC from the U-Boot interface:

   ping 192.168.1.10

8. Erase damaged memory partitions and re-write clean binaries directly via raw memory commands:

   tftp 0x82000000 dhboot.bin
   sf probe 0
   sf erase 0 0x50000
   sf write 0x82000000 0 0x50000

   tftp 0x82000000 romfs-usr.img
   sf erase 0x50000 0x400000
   sf write 0x82000000 0x50000 0x400000

   reset

Upon entering the reset command, the SoC clears execution registers and boots into a clean kernel state, bypassing the 99% system hang completely.

Comparative Analysis of Recovery Strategies

The following structural matrix breaks down each remediation method based on technical overhead, risk profile, and success rates in production environments:

Preventative Engineering Best Practices for Dahua Firmware Deployment

To eliminate the occurrence of 99% update hangs across client sites and large-scale enterprise deployments, system administrators should strictly adopt the following update protocols:

• Stop All Video Streams Prior to Upgrading: Log into the camera UI and disable primary/sub-streams, or unmount the camera from the NVR temporarily to clear video encoding buffers from RAM.
• Never Skip Incremental Firmware Branches: Avoid jumping across major architectural builds (e.g., updating directly from System Version 2.400 to 4.000). Always follow the linear upgrade path specified in vendor patch notes.
• Verify Cryptographic Hash Checksums: Calculate the MD5 or SHA-256 hash of downloaded firmware packages before deploying them over network interfaces to catch corrupted downloads.
• Always Use Direct Wired Connections: Never initiate firmware updates over wireless links, cellular gateways, or high-latency VPN tunnels where packet fragmentations can drop the socket during the final CRC handshaking.
• Format Storage Drives: If updating an NVR/DVR system, temporarily stop recording and unmount internal SATA HDDs if the system shows high I/O wait times in system logs.

Frequently Asked Questions (FAQ)

1. Is my Dahua camera permanently bricked if the update remains at 99% for hours?

Not necessarily. In most cases, the physical memory writing process has completed successfully, but the web status reporting socket died before receiving the final confirmation payload. If the device ping responds or is visible in Dahua ConfigTool, a simple hard reboot (power cycle) will often boot the unit into the updated software system safely.

2. Why does Dahua ConfigTool fail at 99% even when connected directly to the camera?

ConfigTool relies on UDP broadcast packets to track update progress. Virtual network adapters created by software such as VMware, VirtualBox, Hyper-V, or active VPN clients capture these incoming broadcast frames. Disabling all virtual network interfaces in Windows Control Panel ensures the response packet reaches ConfigTool successfully.

3. What is the default IP address needed for the Dahua TFTP recovery process?

Most modern Dahua SoC bootloaders search for a TFTP server listening on host IP 192.168.254.254. However, older legacy architectures or custom OEM-branded variants may query target IP address 192.168.1.108 or 192.168.1.254. Configuring your network interface with aliases for both subnets ensures a successful auto-recovery listener link.

{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [
{
“@type”: “Question”,
“name”: “1. Is my Dahua camera permanently bricked if the update remains at 99% for hours?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Not necessarily. In most cases, the physical memory writing process has completed successfully, but the web status reporting socket died before receiving the final confirmation payload. If the device ping responds or is visible in Dahua ConfigTool, a simple hard reboot (power cycle) will often boot the unit into the updated software system safely.”
}
},
{
“@type”: “Question”,
“name”: “2. Why does Dahua ConfigTool fail at 99% even when connected directly to the camera?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “ConfigTool relies on UDP broadcast packets to track update progress. Virtual network adapters created by software such as VMware, VirtualBox, Hyper-V, or active VPN clients capture these incoming broadcast frames. Disabling all virtual network interfaces in Windows Control Panel ensures the response packet reaches ConfigTool successfully.”
}
},
{
“@type”: “Question”,
“name”: “3. What is the default IP address needed for the Dahua TFTP recovery process?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Most modern Dahua SoC bootloaders search for a TFTP server listening on host IP 192.168.254.254. However, older legacy architectures or custom OEM-branded variants may query target IP address 192.168.1.108 or 192.168.1.254. Configuring your network interface with aliases for both subnets ensures a successful auto-recovery listener link.”
}
}
]
}

<p>The post Fixing the Frustrating Dahua Firmware Update Stuck at 99 Percent first appeared on NVR IPCAMERA SECURITY.</p>

Whether you are hardening your infrastructure or troubleshooting specific device behaviors, staying up-to-date with firmware patches is non-negotiable. While configuring enterprise-grade systems requires rigorous attention to detail, similar diligence is necessary when handling consumer-facing devices, as seen in guides like How To Setup VicoHome Camera or when following best practices detailed in How To SetUp Anran Camera. Let’s dive deep into the most critical Dahua firmware bugs uncovered this year, their technical vectors, and the precise mitigation strategies you need to deploy.

An Overview of Recent Dahua Firmware Vulnerabilities

📌 İlginizi Çekebilir: How to Set Face Detection Function

Security researchers and internal bug bounty programs have flagged several high-severity Common Vulnerabilities and Exposures (CVEs) in Dahua’s ecosystem this year. These flaws primarily revolve around authentication bypasses, heap-based buffer overflows, and improper input validation in CGI endpoints. Attackers leverage these vulnerabilities to execute arbitrary code with root privileges, hijack video feeds, or pivot into wider local area networks (LANs).

To understand the scope of these issues, let us analyze a comparative breakdown of the top firmware flaws discovered this year, their CVSS scores, and the affected components.

Deep Dive: Top Dahua Firmware Bugs Discovered This Year

1. The CGI Authentication Bypass Vulnerability

The most alarming discovery this year centers around improper session validation within specific CGI scripts handled by the device’s web server daemon. Under certain conditions, crafted HTTP GET or POST requests directed at legacy API endpoints bypass the access control list (ACL). This allows unauthenticated remote attackers to extract sensitive configuration data, including password hashes, device serial numbers, and network topology maps.

Technical Mechanism: The vulnerability stems from a flaw in how the HTTP daemon parses string tokens in the authorization header. If a malformed string is supplied with specific padding, the validation logic returns a boolean true, granting administrative API access without checking valid session cookies or tokens.

2. NetSDK Heap-Based Buffer Overflow

Dahua’s proprietary Network SDK (NetSDK) facilitates communication between client applications, VMS platforms, and the hardware itself. A critical heap overflow vulnerability was discovered in the packet-handling subroutine of the NetSDK daemon running on IP cameras and recorders. When an attacker sends a specially crafted binary packet exceeding the pre-allocated memory buffer size, it corrupts adjacent heap memory structures.

Technical Mechanism: The routine fails to adequately bound-check incoming payload lengths before copying data via memory copy functions (such as memcpy). Successful exploitation can lead to a Denial of Service (DoS) by crashing the device daemon, or worse, achieving arbitrary code execution under the UID of root.

3. UPnP Service Remote Code Execution (RCE)

Universal Plug and Play (UPnP) is heavily relied upon for automatic port forwarding, but it has historically been a vector for network vulnerabilities. This year, researchers identified an insecure deserialization flaw in the embedded UPnP service module of several Dahua firmware builds. By sending malicious XML-RPC control messages over the local network (or via WAN if UPnP is improperly exposed), an adversary can execute system shell commands.

Step-by-Step Guide: How to Fix and Mitigate These Bugs

Securing your Dahua devices requires a multi-layered remediation strategy. Simply relying on perimeter firewalls is insufficient; you must patch the firmware and harden the device configuration directly.

Step 1: Audit Your Current Firmware Versions

Before applying patches, inventory your devices. Log into your NVR/DVR or individual IP cameras via the web interface, navigate to Setup > System > About, and record the current firmware version and build date. Cross-reference this information with Dahua’s official security advisory portal to identify vulnerable nodes.

Step 2: Download and Apply Official Firmware Patches

Dahua regularly releases patched firmware builds. Follow these steps to update your devices securely:

• Navigate to the official Dahua support or security advisory website.
• Search for your specific device model number (ensure regional variants match, e.g., -S2 vs -S3 models).
• Download the latest stable firmware binary file (usually a .bin file).
• Log into the device web GUI as an administrator.
• Go to Setup > System > Upgrade.
• Browse to the downloaded .bin file, click Update, and wait for the device to reboot completely. Do not power off the device during this process to avoid bricking.

Step 3: Network Hardening and Perimeter Defense

Firmware patching is only half the battle. Implement these network-level best practices immediately:

• Disable UPnP: Turn off Universal Plug and Play in both your router and the Dahua device settings to prevent automatic port mapping exploits.
• Close Port Forwarding: Avoid exposing standard HTTP (80/443) or media ports (37777) directly to the public internet. Instead, mandate the use of a secure, encrypted Virtual Private Network (VPN) like WireGuard or OpenVPN for remote access.
• Isolate the Surveillance VLAN: Place all IP cameras and NVRs on a dedicated VLAN with strict firewall rules blocking outbound internet access unless absolutely required for NTP or P2P cloud services (which should also be disabled if unused).
• Change Default Credentials: Enforce strong, complex passwords and disable or rename default administrative accounts.

Validating Your Security Posture

Once you have applied the latest firmware updates and executed network-level hardening, you must verify your changes. Use network scanning tools like Nmap to check for open ports, ensuring that no administrative interfaces are leaked externally. Additionally, monitor your device system logs for any unauthorized login attempts or abnormal CPU spikes indicative of exploit probing.

By proactively keeping your Dahua ecosystem patched and correctly configured, you can neutralize the risk of the latest firmware bugs and ensure robust, enterprise-grade video surveillance security.

How often does Dahua release firmware updates to address security vulnerabilities?

Dahua releases security patches and firmware updates on an as-needed basis when vulnerabilities are identified and verified by their internal security team or external researchers. Additionally, they publish cumulative security advisories periodically. It is recommended to check the official Dahua support portal quarterly for your specific device models.

Can I update multiple Dahua cameras and NVRs simultaneously?

Yes. For bulk updates, system administrators can use Dahua’s official PC software utility, the ConfigTool. The ConfigTool allows you to scan your local network, select multiple devices of the same model family, and push the .bin firmware file concurrently, saving significant time in enterprise deployments.

What should I do if a firmware update bricks my Dahua device?

If a device fails to boot after a firmware flash, first try power-cycling it. If it remains unresponsive, you may need to use the ConfigTool’s “Search” and recovery features, or utilize a hardware-level TFTP (Trivial File Transfer Protocol) recovery method if supported by the specific model. For high-end enterprise units, contacting authorized Dahua technical support is recommended to avoid voiding hardware warranties.

<p>The post Top Dahua Firmware Bugs Discovered This Year and How to Fix Them first appeared on NVR IPCAMERA SECURITY.</p>

Executing a firmware flash without a clear understanding of the underlying system architecture—including the U-Boot bootloader, dynamic Memory Technology Device (MTD) partition layouts, and System-on-Chip (SoC) cryptographic checks—can instantly render high-end hardware unbootable. In industry terms, the device becomes “bricked.” This comprehensive technical guide dissects the top dangerous Dahua firmware upgrade mistakes, dives into the binary structure of Dahua firmware packages, analyzes the mechanics of low-level boot failures, and provides advanced UART/TFTP recovery protocols for field engineers.

Understanding Dahua’s Embedded Firmware Architecture

📌 İlginizi Çekebilir: Dashcam Troubleshooting Guide Boot – Shutdown – Power

To understand why firmware upgrades fail catastrophically, we must first analyze the internal architecture of a standard Dahua IP camera or Network Video Recorder (NVR). Dahua devices operate on an embedded Linux framework hosted primarily on HiSilicon (e.g., Hi3516, Hi3536), Ambarella (e.g., S2L, S3L, CV22), or MStar/SigmaStar SoCs.

The non-volatile storage (SPI NOR/NAND flash) is divided into several MTD partitions managed by the U-Boot bootloader. A typical Dahua flash partition layout looks like this:

• /dev/mtd0 (Bootloader): Contains u-boot.bin, hardware environment variables (MAC address, Serial Number, System ID, Language Region), and hardware init routines.
• /dev/mtd1 (Kernel): Houses the compressed Linux kernel (uImage or zImage).
• /dev/mtd2 (RootFS): Read-only root filesystem, typically compressed via SquashFS.
• /dev/mtd3 (Config): Persistent data storage (JFFS2 or UBIFS) containing configuration files like config.json, system accounts, and network interfaces.
• /dev/mtd4 (Web/App): Holds web server assets, CGI scripts, and video pipeline daemons (such as dhip_server, media_server, and sonia).

Dahua firmware archives (typically distributed with a .bin extension) are essentially packed archives containing header-validated components: u-boot.bin.img, kernel.img, romfs-x.sqfs, user-x.sqfs, and web-x.sqfs. When a user uploads a firmware image via the web GUI or Dahua ConfigTool, a background daemon executes CRC32 signature verification, unpacks the compressed payloads to /tmp, and calls low-level flashing scripts that issue raw flash_erase and nandwrite commands. If this sequence breaks at any point, recovery requires low-level hardware debugging.

Mistake #1: Cross-Flashing Hardware Revisions and OEM/Region Mismatches

One of the most prevalent causes of hard-bricked Dahua hardware is attempting to flash a firmware image intended for a different hardware platform ID, OEM variant, or geographic region. Dahua manufactures millions of security cameras for white-label partners (e.g., Lorex, FLIR, IC Realtime, Honeywell) as well as regionally locked domestic (Chinese market) and international variants.

The System ID & Region Lock Mechanism

Within the U-Boot environment variables, Dahua sets immutable strings during factory provisioning:

hwid=IPC-HDBW5431E-Z:01:02:00:00:00...
vendor=Dahua
applanguage=English
hardware_version=V1.0

When an engineer attempts to flash an unbranded or original Dahua international firmware file onto an OEM-customized board—or directly flash a Chinese domestic camera (often bought at grey-market discount) with English firmware—the flasher utility may fail to check boundary conditions properly before issuing write operations. Alternatively, the update may succeed at the GUI stage, but upon rebooting, U-Boot’s hardware check routine detects an unauthenticated HardwareID or invalid vendor string.

The Technical Consequence: Infinite Kernel Panic Loop

When a region or OEM mismatch occurs, the Linux kernel initializes, but the main initialization daemon (/sbin/init) invokes the application supervisor daemon. The supervisor detects a region flag mismatch (e.g., region flag 0x01 vs binary expectation 0x02) and immediately invokes a system halting instruction or continuous hardware reset cycle:

[   12.450110] Dahua App Manager: Region validation failure! Expected REGION_US, got REGION_CN.
[   12.458991] System call 'do_system_halt' invoked by process 'sonia' (PID 412).
[   12.465112] Kernel panic - not syncing: Hard fault triggered by region check.

At this point, the camera is locked in an infinite bootloop, completely unreachable via standard IP protocols (HTTP/HTTPS/RTSP/DHIP).

Mistake #2: Skipping Incremental Upgrade Paths (The Flash Re-partitioning Trap)

A frequent operational mistake in enterprise security camera system maintenance is taking a legacy camera—say, running firmware build V2.400 from 2016—and flashing the newest V5.000 release directly. Engineers often assume firmware releases are cumulative and backward-compatible with all partition topologies. This assumption is dangerous.

Partition Table Overhauls across Major Versions

As IP camera functionality evolved (introducing AI metadata, facial recognition models, and HTTPS TLS 1.3 cryptographic libraries), the size requirements for the kernel and application partitions expanded. To accommodate larger binaries, Dahua periodically updates the device MTD partition map in major revision milestones.

Consider the structural shift between legacy V2.x and modern V4.x/V5.x releases:

• Legacy Partition Map: Kernel (4MB), RootFS (12MB), Web/App (16MB), Config (4MB).
• Modern Partition Map: Kernel (8MB), RootFS (24MB), Web/App (32MB), Config (8MB).

If you flash a new binary that expects an 8MB Kernel partition directly onto a target running a 4MB MTD layout, the flash writing utility will write past the boundary of /dev/mtd1 and overwrite the header sector of /dev/mtd2 (RootFS). Upon the next reboot, U-Boot attempts to mount SquashFS from the corrupted offset, throwing a fatal filesystem signature mismatch error.

[    3.102311] SQUASHFS error: squashfs_read_data failed to read block 0x0
[    3.108920] VFS: Unable to mount root fs on unknown-block(0,0)
[    3.114102] Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(0,0)

To safely bridge major generational shifts, integrators must identify the required intermediate “bridge firmwares” specified in Dahua’s official release notes before upgrading to the target version.

Mistake #3: Interrupting Flashing Sequences via Network Drops or Power Interruptions

Unlike modern consumer desktop operating systems that leverage transactional, dual-bank A/B partitioning schemes (where a new OS updates silently in the background on Partition B while Partition A runs live), most embedded IP cameras utilize a single-bank SPI NOR/NAND layout to reduce Unit Production Cost (BOM cost).

This means when a firmware upgrade is initiated, the system operates in a non-redundant destructive write state:

1. The target MTD block is completely erased using high-voltage erase blocks (flash_erase).
2. The new image sector is sequentially written byte-by-byte into the empty flash cell blocks.

If power drops—or if the network drops over a unstable Wi-Fi bridge or un-isolated PoE link—during step 1 or step 2, the flash chip is left with a half-erased or partially written payload. If this interruption occurs while writing mtd0 (U-Boot) or mtd1 (Kernel), the device loses its basic bootloader instructions. The primary processor (SoC) executes code starting at flash location 0x00000000. If that memory cell is zeroed or corrupt, the processor hangs permanently at hard reset, displaying no LED indicators, emitting no network traffic, and failing to execute serial bootstrap initialization.

Proper pre-installation planning is vital when updating complex CCTV infrastructures. For system integrators managing complete camera installations, reviewing standard workflows like our Smart Alarm Security Camera Installation Guide ensures baseline electrical stability, PoE power budget calculations, and network segmentation are fully validated prior to initiating firmware flashes.

Mistake #4: Bypassing Firmware Digital Signature Validation & Modification Errors

With increasing regulatory requirements (such as NDAA compliance and NIS2 directives), Dahua introduced encrypted firmware headers and RSA-2048 / SHA-256 digital signature validation in modern platform architectures (e.g., DH Vision, WizSense, WizMind). Modern bootloaders strictly check the public key embedded in OTP (One-Time Programmable) hardware fuse registers against the digital signature appended to the firmware container.

A severe mistake made by advanced hobbyists and security researchers is attempting to manually alter Dahua firmware archives—such as extracting romfs.sqfs, adding custom busybox utilities or shell hooks, repacking with standard mksquashfs, and re-flashing the image.

Hardware-Enforced Cryptographic Execution Traps

When a modified, re-packed, or custom-signed firmware binary is flashed onto a modern Dahua SoC enforcing signed execution, the low-level flashing tool may pass initial checksums if simple CRC32 checks are mimicked. However, during the stage-2 boot sequence, the U-Boot hardware engine verifies the RSA signature of uImage before passing execution control to memory.

## Checking Image at 0x82000000 ...
   Bad Magic Number
   Header Hash Check ... OK
   RSA Signature Check ... FAILED (Error Code: -0x004A)
### ERROR: Kernel Image digital signature invalid!
### System Halting. Hardware fuse security trip active.

Once security flags in hardware fuse registers or protected EEPROM sectors are tripped, the system locks out standard U-Boot shell access, making recovery exceptionally difficult without specialized JTAG programmers or unsoldering the flash chip for off-board reprogramming.

Mistake #5: Retaining Corrupted NVRAM & Failure to Reset Configuration Post-Upgrade

Firmware upgrades update executable binaries, daemons, and system libraries, but they frequently retain existing configuration files stored in the /config partition (e.g., /dev/mtd3 or /dev/mtd4) so users do not lose IP addresses, port maps, or user credentials. Retaining configuration states across massive firmware version leaps is a key source of persistent functional bricks.

Database Schema Mismatches and Daemon Crashes

Dahua cameras utilize internal SQLite databases and JSON structured data files to govern video encoding properties, ONVIF profiles, analytics regions of interest (ROI), and network protocols. When jumping between major software builds, the structural schema of config.json or system databases often shifts.

If an updated background service (e.g., media_server) reads an outdated configuration file containing missing key-value pairs or legacy data types, the process may trigger a core dump and crash repeatedly. To an administrator, the camera appears online via ping, but the Web GUI refuses to load, RTSP streams time out, and video feeds remain permanently offline.

In edge recording scenarios—such as dash cams, mobile NVRs, or local SD card-equipped IP cameras—a corrupt configuration daemon can also disrupt local storage indices, causing severe video fragmentation or silent recording failures. If you ever experience issues retrieving recorded video or missing footage during system maintenance, consult our troubleshooting guide on How to Record Dash Cam and Deleted Footage to systematically diagnose hardware storage versus firmware-level indexing anomalies.

Dahua Firmware Upgrade Failure Modes Matrix

The following comparative table summarizes the structural root causes, symptoms, technical impact levels, and primary recovery methods for common Dahua firmware upgrade mistakes:

Developer Guide: Advanced UART & TFTP Recovery Procedures

When a Dahua camera is soft-bricked due to a software mismatch, corrupt partition layout, or invalid configuration, standard IP-based tools like Dahua ConfigTool will fail to detect the device. The only method to recover the unit without unsoldering the flash chip is via the low-level UART (Universal Asynchronous Receiver-Transmitter) serial port embedded on the camera motherboard.

Step 1: Identifying physical UART connections

Open the camera enclosure and locate the 4-pin or 3-pin serial debugging header on the PCB. The pins are typically labeled or visible as bare solder pads near the SoC:

• VCC: 3.3V (DO NOT CONNECT to USB-to-TTL adapter to avoid frying the controller).
• GND: Ground (Connect to Adapter GND).
• TX: Transmit Data (Connect to Adapter RX).
• RX: Receive Data (Connect to Adapter TX).

Connect a USB-to-TTL Serial Adapter (such as an FTDI FT232RL or CP2102 set strictly to 3.3V logic levels) to the host PC.

Step 2: Accessing the U-Boot Bootloader

Launch a serial terminal software like PuTTY, Tera Term, or minicom using the standard Dahua serial terminal parameters:

• Baud Rate: 115200 (or 57600 on legacy devices)
• Data Bits: 8
• Stop Bits: 1
• Parity: None
• Flow Control: None

Power cycle the camera. As soon as text begins scrolling in the terminal, repeatedly send the key combination Ctrl + C or press * (asterisk) to interrupt the bootloader sequence. If successful, the terminal will drop to the U-Boot command prompt:

System startup...
U-Boot 2010.06-svn (Built: Jul 14 2021 - 10:12:45)

Hit any key to stop autoboot:  0
gsi_u-boot>

Step 3: Setting Up a Dedicated TFTP Recovery Server

To flash fresh firmware components directly from U-Boot, set up a TFTP server on your host machine (e.g., using Tftpd64 on Windows or tftpd-hpa on Linux).

1. Unpack the official, uncorrupted Dahua .bin firmware file using a extraction tool (like 7-Zip or Dahua Firmware Extractor) to obtain raw component binaries: u-boot.bin.img, kernel.img, romfs.img, user.img, web.img.
2. Place these .img files into your active TFTP root directory.
3. Assign your host PC a static IP address (e.g., 192.168.1.254).
4. Connect your host PC directly to the camera’s Ethernet port using a patch cable.

Step 4: Executing Recovery Commands via U-Boot Shell

In the U-Boot prompt on your terminal software, set environment variables to align the camera’s networking stack with your local TFTP server:

gsi_u-boot> setenv ipaddr 192.168.1.108
gsi_u-boot> setenv serverip 192.168.1.254
gsi_u-boot> saveenv

Test connectivity by pinging the server from U-Boot:

gsi_u-boot> ping 192.168.1.254
host 192.168.1.254 is alive

Once network connectivity is established, execute low-level flash commands to write the kernel, root filesystem, and web binaries back into their precise memory offsets. Dahua U-Boot implementations often include simplified automated macros such as run up or dh_upload. If automated scripts are absent, execute manual block transfers:

gsi_u-boot> tftp 0x82000000 u-boot.bin.img
gsi_u-boot> flwrite

gsi_u-boot> tftp 0x82000000 kernel.img
gsi_u-boot> flwrite

gsi_u-boot> tftp 0x82000000 romfs.img
gsi_u-boot> flwrite

gsi_u-boot> tftp 0x82000000 user.img
gsi_u-boot> flwrite

gsi_u-boot> tftp 0x82000000 web.img
gsi_u-boot> flwrite

After erasing corrupt sectors and writing pristine environment blocks, execute a factory configuration reset by erasing the configuration partition before triggering a system reboot:

gsi_u-boot> sf probe 0
gsi_u-boot> sf erase 0x00300000 0x00100000
gsi_u-boot> reset

The system will reboot, reconstruct default SQLite structural schemas, instantiate fresh runtime configuration indices, and initialize back to factory default state on the base network interface (typically 192.168.1.108).

Best Practices Checklist for Risk-Free Dahua Upgrades

To maintain maximum system operational uptime and eliminate hardware bricking risks across enterprise installations, implement this strict operational protocol before deploying any firmware update:

• Verify Serial Numbers and Exact Hardware Models: Cross-reference full product nomenclature (e.g., distinguishing strictly between DH-IPC-HDW5442TM-ASE and DH-IPC-HDW5442T-ZE). Hardware revisions frequently feature different SoC platform architectures entirely.
• Always Audit the Update Path: Review official vendor release notes for intermediate “bridge build” requirements. Never skip directly across multi-year software generations.
• Isolate Power and Network Links: Ensure cameras are connected to a dedicated Uninterruptible Power Supply (UPS) powered PoE switch. Never perform firmware upgrades over unstable wireless point-to-point bridges or active cellular modems.
• Export System Configuration Prior to Flash: Save a local backup of system configurations (.backup file) via Web UI or ConfigTool so network settings, IP rules, and user tables can be instantly restored post-flash.
• Perform Pre- and Post-Upgrade Reset: Apply a factory default reset prior to major cross-generational updates to clear stale runtime keys, and execute a soft reset post-upgrade to force full binary database migration.

What should I do if my Dahua camera has no status LEDs and will not respond to pings after an upgrade failure?

If the device shows no signs of network link light activity or LED illumination, the primary bootloader (U-Boot) partition has likely been erased or corrupted due to a power or network failure during the flash cycle. Recovery requires opening the housing, connecting a 3.3V USB-to-TTL adapter to the internal PCB UART headers, and interrupting the boot sequence via serial terminal software. If the UART console displays no output whatsoever, the SPI flash memory chip must be physically desoldered and reprogrammed using a hardware programmer like a CH341A or RT809F.

Can I flash original Dahua firmware onto a white-labeled or OEM camera (such as Lorex or IC Realtime)?

Directly flashing generic original Dahua firmware onto OEM-branded hardware usually results in a bricked state or an infinite kernel panic loop. OEM vendors customize the Vendor ID, System ID, and region flags inside the U-Boot environment variables. If the incoming firmware binary fails validation against these parameters during startup, the application supervisor daemon triggers a system halt. You must use firmware customized and signed specifically by the original OEM vendor unless you manually align the bootloader environment variables via serial console debugging.

Why does my camera ping successfully after a firmware upgrade, but the web interface fails to open?

This issue occurs when old, incompatible configuration files remain stored in non-volatile flash (the /config partition) while the application binaries and daemons are upgraded to a newer build. The updated web server or media daemons crash upon trying to parse obsolete JSON or SQLite configuration key-value structures. To fix this, perform a hard factory reset by holding down the physical reset button on the camera for 30 seconds while powered on, or issue a factory default command via the Dahua ConfigTool software over your local network.

If the device shows no signs of network link light activity or LED illumination, the primary bootloader (U-Boot) partition has likely been erased or corrupted due to a power or network failure during the flash cycle. Recovery requires opening the housing, connecting a 3.3V USB-to-TTL adapter to the internal PCB UART headers, and interrupting the boot sequence via serial terminal software. If the UART console displays no output whatsoever, the SPI flash memory chip must be physically desoldered and reprogrammed using a hardware programmer like a CH341A or RT809F.”

“@type”: “Question”,
“name”: “Can I flash original Dahua firmware onto a white-labeled or OEM camera (such as Lorex or IC Realtime)?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Directly flashing generic original Dahua firmware onto OEM-branded hardware usually results in a bricked state or an infinite kernel panic loop. OEM vendors customize the Vendor ID, System ID, and region flags inside the U-Boot environment variables. If the incoming firmware binary fails validation against these parameters during startup, the application supervisor daemon triggers a system halt. You must use firmware customized and signed specifically by the original OEM vendor unless you manually align the bootloader environment variables via serial console debugging.”

“@type”: “Question”,
“name”: “Why does my camera ping successfully after a firmware upgrade, but the web interface fails to open?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “This issue occurs when old, incompatible configuration files remain stored in non-volatile flash (the /config partition) while the application binaries and daemons are upgraded to a newer build. The updated web server or media daemons crash upon trying to parse obsolete JSON or SQLite configuration key-value structures. To fix this, perform a hard factory reset by holding down the physical reset button on the camera for 30 seconds while powered on, or issue a factory default command via the Dahua ConfigTool software over your local network.”

<p>The post Dangerous Dahua Firmware Upgrade Mistakes That Will Ruin Your Camera first appeared on NVR IPCAMERA SECURITY.</p>

In this technical, deep-dive architectural guide, we will analyze the most dangerous Dahua firmware upgrade mistakes, dissect the mechanics of failure at the Flash partition level, provide preventive workflows, and detail hardware-level UART/TFTP recovery protocols for bricked devices.

1. Cross-Flashing Incompatible Hardware Revisions and OEM Variants

📌 İlginizi Çekebilir: IPC360 Home Camera Manual

The most frequent cause of total system failure during a Dahua firmware update is flashing a payload compiled for a different System-on-Chip (SoC) or hardware revision. Dahua manufactures IP cameras utilizing multiple silicon platforms, primarily from vendors such as HiSilicon (e.g., Hi3516EV200, Hi3519A), Ambarella (S2L, S3L, CV22), and Novatek. Even if two camera models share identical physical enclosures and exterior designations (for instance, an IPC-HDW5442T-ZE), their internal board revisions (v1.0 vs. v2.0) may utilize completely different memory map addresses, image sensors (Sony STARVIS vs. SmartSens), and Ethernet PHY chipsets.

When an improper firmware binary is forced onto a camera—often made possible by legacy update utilities that lack signature validation—the bootloader writes kernel binaries and kernel module drivers to mismatched offset addresses in the MTD flash. Upon the subsequent reboot sequence, U-Boot attempts to mount the kernel image from a hardcoded memory offset (e.g., 0x00100000). If the magic byte headers do not match due to cross-flashing, the boot process halts with a kernel panic or enters an infinite boot loop (bootlooping).

The OEM and White-Label Trap

Dahua produces an extensive range of original equipment manufacturer (OEM) and white-label hardware for brands such as Lorex, FLIR, IC Realtime, EmpireTech, and Montavue. While the physical circuit boards inside these units are manufactured in Dahua facilities, their flash memory contains customized boot scripts and regional hardware locks stored inside the /pd (product data) partition. Attempting to flash generic Dahua open-market firmware onto an OEM camera—or vice versa—will result in a partition size mismatch or trigger anti-tamper security routines in the bootloader, effectively rendering the device unreachable over the network.

2. Flashing Firmware over Unstable Wireless Networks or High-Latency Links

A fundamental rule of embedded systems administration is that low-level Flash write operations require deterministic data streams. Uploading a 30MB to 120MB firmware image over an unstable Wi-Fi link, a degraded Power-over-Ethernet (PoE) runs with high packet loss, or a high-latency VPN bridge introduces severe risks of packet fragmentation and socket timeouts during the update stream transfer.

Dahua’s updating process relies on two distinct phases:

• Phase 1: File Transfer & Buffer Verification: The firmware payload is pushed to the camera’s temporary RAM buffer via HTTP/HTTPS POST requests or the proprietary DHIP protocol. The system verifies the internal payload payload CRC32 checksum.
• Phase 2: MTD Flash Erase and Write: The boot system executes low-level erasure commands (e.g., flash_eraseall) on the MTD device blocks before writing the new binary data block-by-block.

If network connection drops during Phase 1, the firmware update manager usually aborts safely without altering Flash memory. However, if latency spikes, socket timeouts, or TCP window collapses occur while the camera is actively executing IPC socket calls during Phase 2 (or during multi-part incremental updates), the flash daemon can stall mid-erase. This leaves the system with a cleared MTD sector (e.g., mtd3 containing the rootfs) and no valid executable system image to replace it. Upon power-cycle, the system fails to boot because the kernel or main executable daemons no longer exist in physical storage.

For complex deployments involving mixed topology networks, securing your network foundation prior to mass maintenance is mandatory. If you are managing hybrid wireless setups, consult our detailed MaxRanger4K Wireless Camera Setup Guide to understand proper signal stability parameters and prevent latency-induced payload corruption during remote updates.

3. Skipping Incremental Upgrade Paths (Version Jumping)

Enterprise camera systems evolve across major software generations (e.g., from early System V2.x up to System V4.0 / V5.0 WizMind baseline software). A fatal mistake made by network engineers is attempting a direct upgrade from an ancient firmware baseline straight to the latest security patch release—jumping over multiple intermediate major releases.

Major baseline releases frequently alter the underlying Linux partition scheme. For example, older firmware builds might utilize a 16MB SPI NOR Flash partitioned into five discrete MTD regions with an older kernel (Linux 3.0.8). A modern V4.0 firmware release for the same hardware family may require a 6-partition layout, an updated Linux 4.9+ kernel, updated crypt-keys, and expanded U-Boot environment variables.

Directly flashing a modern payload over an old partition scheme results in overlapping partition boundaries. The update engine will write new software over critical configuration partitions or U-Boot environment variables, leading to broken device identity parameters (MAC addresses erased or reset to 00:00:00:00:00:00) and non-functional streaming engines.

4. Interrupting Power During the MTD Writing Phase

Because Flash memory cannot write new data without first setting physical memory blocks to a logic high state (erasing), the process of updating an IP camera requires dedicated execution time. During an active flash sequence, the camera’s IR LEDs may flash, the status LEDs may toggle, and network activity on port 80/37777 will cease entirely.

Interpreting this period of network unresponsiveness as a system hang and manually disconnecting the PoE cable or pulling the 12V DC power jack is catastrophic. Interrupting power during an active Flash erase/write cycle leaves physical NAND/NOR gates in an indeterminate state. If the block containing the U-Boot bootloader (typically located at partition /dev/mtd0) is corrupted mid-write, the camera will suffer a absolute hardware brick. In this state, the SoC cannot initialize RAM, set up system buses, or locate recovery code upon power application.

5. Mismatching Language Regions and Breaking Anti-Rollback Protections

Dahua maintains strict regional hardware separation between mainland domestic Chinese models (often sold via unverified gray-market channels) and official International export models. Domestic Chinese cameras are programmed with hardcoded region identification flags within the secure boot block or EEPROM chips.

Attempting to flash an official International English/Multilingual firmware binary onto domestic Chinese hardware leads to immediate regional lock triggering. Dahua’s modern boot routines execute localized integrity scripts upon boot. If a language environment variable mismatch is detected (e.g., firmware language code En vs. board hardware code Cn):

• The camera may boot successfully, but default entirely to Chinese text while locking out the web management GUI.
• The camera will enter an emergency safety state, presenting a boot loop message on the serial debugging interface: Language mismatch! System Halt.
• The internal flash guard will permanently lock configuration changes until a hardware UART interface or specialized programmer is applied.

Furthermore, modern Dahua firmware includes explicit Anti-Rollback Protection. Attempting to downgrade a camera from a security-patched version (e.g., post-LOG4J or post-CVE patch sets) to an older, vulnerable release can burn electronic fuses (eFuses) or trigger software rollback flags. The system bootloader will detect an unauthorized lower version number and intentionally block the system from booting the old kernel image.

6. Failing to Reset to Factory Defaults Before and After Upgrading

While failing to execute a factory default might not physically ruin hardware, it frequently causes software corruption that renders camera services completely unusable—a state known as a “soft brick.”

Dahua IP cameras store operational variables (IP address, encoding profiles, motion detection region grids, analytics boundaries, ONVIF authorization tokens) inside compressed XML or JSON configuration files within the non-volatile /pd or /config partitions. When upgrading across major software revisions, the structure of these configuration files often changes; new configuration keys are added, and obsolete syntax is removed.

If an administrator updates firmware without resetting parameters to baseline defaults:

• The newly installed system daemons (such as avd, media_server, or netApp) will attempt to read legacy configuration files, leading to parsing exceptions.
• The video encoder daemon may continuously crash and restart, producing an RTSP stream failure while the web interface remains accessible.
• ONVIF integration with third-party Network Video Recorders (NVRs) will drop intermittently due to corrupted security token structures.

Dahua Firmware Upgrade Risk Matrix by Model Series

The following technical table provides an overview of common Dahua camera series, their underlying storage architecture, primary upgrade vector risks, and recovery capability ratings:

Understanding multi-vendor management requirements is essential when operating heterogenous security networks. Multi-brand IP surveillance management requires understanding vendor-specific firmware structures; for example, comparing Dahua’s MTD flash system with Hikvision’s platform detailed in the Hikvision NVR and IP System User Manual 2026 highlights distinct differences in bootloader recovery protocols and system architecture management.

Step-by-Step Hardware Recovery Protocol for Bricked Cameras

If a Dahua camera has been bricked due to an incomplete update, broken partition map, or network disruption, recovery via standard Web GUI or ConfigTool is impossible because system daemons are not running. The camera can often be saved using direct Universal Asynchronous Receiver-Transmitter (UART) serial access paired with a Trivial File Transfer Protocol (TFTP) server.

Phase 1: Physical Serial Interface Connection

To establish direct communications with the camera’s U-Boot bootloader, you must connect a USB-to-TTL Serial Adapter (such as an FTDI FT232RL chip module) directly to the diagnostic pad headers on the camera’s internal printed circuit board (PCB).

• Step 1: Disassemble the camera housing to expose the main circuit board. Locate the small 3-pin or 4-pin unpopulated header pad labeled TX, RX, and GND.
• Step 2: Connect the USB-to-TTL adapter pins to the PCB headers:
  • Adapter GND -> Camera GND
  • Adapter RX -> Camera TX
  • Adapter TX -> Camera RX
  • CRITICAL WARNING: Do NOT connect the 3.3V or 5V power pin from the serial adapter to the camera board. Power the camera via its standard 12V DC input or PoE splitter. Connecting external voltage lines can destroy the SoC terminal interface.
• Step 3: Open a terminal emulator (PuTTY, Tera Term, or Serial/Minicom on Linux) on your workstation configured to the following parameters:
  • Baud Rate: 115200
  • Data Bits: 8
  • Parity: None
  • Stop Bits: 1
  • Flow Control: None

Phase 2: Intercepting the Bootloader and TFTP Recovery

Once serial communication is active, you can interrupt the normal boot process and force U-Boot to download a known-good, factory-signed firmware file directly into system RAM via TFTP.

1. Apply power to the camera while repeatedly pressing CTRL + C or hitting the * key in your terminal window. The boot process will stop, leaving you at the U-Boot command line prompt:hisilicon # or dahua #
2. Configure a local TFTP server (such as SolarWinds TFTP or tftpd64) on a computer connected directly to the camera via an Ethernet switch. Place the clean, unpacked official Dahua firmware file (e.g., dh_update.bin) in the root TFTP directory.
3. Assign static IP network environment variables directly within the U-Boot terminal shell:setenv ipaddr 192.168.1.108 (Camera temporary IP address)

   setenv serverip 192.168.1.100 (Host PC running TFTP server)

   saveenv

4. Initiate the low-level firmware recovery command to download and flash the partition image automatically:run da or up (depending on the exact U-Boot variant built into your model)
5. If auto-update aliases are not present, manually load and program the core Flash partitions (e.g., kernel and rootfs):tftp 0x82000000 uImage

   sf probe 0

   sf erase 0x100000 0x400000

   sf write 0x82000000 0x100000 0x400000

6. Once writing completes successfully, issue the reset command:reset

The camera will reboot, initialize its flash filesystem, re-create default configuration trees, and respond to network discovery tools on its factory default IP address (typically 192.168.1.108).

Best Practices for Safe Dahua Firmware Maintenance

To eliminate bricking risks across enterprise operations, system integrators and IT administrators should implement the following operational security protocols:

• Verify Hardware Revisions via Web API: Never rely on external stickers alone. Query the hardware platform via the Dahua CGI API using your browser:http://<camera-ip>/cgi-bin/devInfo.cgi?action=getSystemInfo

  Cross-reference the hardwareVersion string directly against release notes.

• Isolate Network Streams During Updates: Disconnect all active RTSP streams, disable ONVIF background polling from NVRs, and pause third-party VMS integrations (Milestone, Genetec) before starting a flash task. This prevents thread locks during the write phase.
• Use Hardwired Ethernet and Uninterruptible Power (UPS): Never execute maintenance tasks over Wi-Fi. Ensure both the host workstation and the camera/PoE switch are connected to a backup UPS to protect against sudden power brownouts.
• Perform Incremental Upgrades: If updating a unit running multi-year-old firmware, download intermediate software baselines and step through each major version incrementally rather than jumping straight to the newest release.
• Backup Configuration Files First: Always export the working .Config file before proceeding. Navigate to System > Import/Export inside the Web GUI or execute a CGI backup request so device settings can be easily restored if a hard factory reset is required.

Frequently Asked Questions

Can a bricked Dahua camera be recovered without opening the housing and using UART?

If the bootloader (U-Boot) partition remains undamaged, you can often recover the camera without opening the case by using the “Dahua TFTP Auto Upgrade Utility.” By setting your workstation IP address to 192.168.254.254 (or 192.168.1.128 depending on camera generation) and running the utility on an isolated network switch, the camera’s bootloader will scan for the TFTP server during its initial power-on sequence and automatically pull down recovery firmware files without needing direct serial terminal intervention.

Why does my Dahua camera show a successful update, but all web pages load blank or missing options?

This issue occurs when old web asset files and client-side JavaScript files remain cached in your web browser, or when legacy internal configuration parameters clash with the upgraded software engine. Clear your web browser cache completely, access the web interface using an Incognito/Private window, or perform a full physical hard reset (holding the internal PCB hard-reset button for 30 seconds while powering on) to restore default Web UI templates.

Is it safe to upgrade Dahua camera firmware through an NVR’s PoE ports automatically?

Upgrading IP cameras directly through an NVR interface carries elevated risks if performed incorrectly. While modern Dahua NVRs support camera update pushes over the internal switch ports, network interruptions between the recorder and camera can fail silently. It is strongly recommended to connect a laptop directly to the NVR’s internal PoE switch subnet, assign a static IP address in that range, and upgrade each camera individually through its direct Web GUI interface to closely monitor progress bars and error output.

<p>The post Dangerous Dahua Firmware Upgrade Mistakes That Will Ruin Your Camera first appeared on NVR IPCAMERA SECURITY.</p>

What Firmware Is and Why Updates Are Essential

Unlike standard software applications that run within an operating system, or device drivers that allow the OS to manage specific peripherals, firmware is etched directly into non-volatile memory chips—such as EEPROM or SPI NOR flash memory. It executes before any operating system initializes, defining fundamental operating parameters, system clocking, hardware-level security keys, and boot pathways.

Operating hardware on obsolete firmware leaves devices vulnerable to operational decay and security breaches. The primary incentives for applying the latest firmware include:

• Patching Hardware-Level Security Vulnerabilities: Flaws like CPU speculative execution bugs (e.g., Spectre, Meltdown, Downfall) or router remote code execution (RCE) vulnerabilities cannot be resolved through standard OS updates; they require updated microcode pushed via firmware.
• Hardware Interoperability and Component Support: For computer motherboards, updating the BIOS/UEFI firmware expands compatibility to newly released CPU generations, faster DDR5 RAM profiles (EXPO/XMP), and updated PCIe protocol optimizations.
• Thermal and Power Efficiency: Firmware regulates voltage regulators (VRMs), fan speed curves, and thermal throttling profiles. Improved algorithmic management preserves the lifespan of silicon components.
• Resolved Memory Leaks and Hangs: Connected devices, such as networking gateways and network-attached storage (NAS) systems, suffer performance degradation over prolonged uptimes due to low-level memory handling bugs that new firmware releases eliminate.

Methods of Firmware Distribution and Management

The workflow for applying the latest firmware differs significantly depending on the device’s architecture, network connectivity, and management interfaces. Modern devices generally categorize their update mechanisms into three distinct workflows:

How to Safely Locate the Latest Firmware

The discovery phase demands rigorous attention to detail. Applying a firmware package designed for a different regional market or an altered hardware revision can permanently incapacitate a device. Follow this verification sequence prior to downloading any binary file.

1. Identify the Exact Device Telemetry

Never rely solely on commercial retail names. For example, a router marketed as “AC1750” may correspond to a technical model number such as “Archer A7” or “Archer C7,” and could span across revisions from V1.0 to V5.8. Each iteration often features distinct internal chipsets (e.g., switching from Broadcom to Qualcomm Atheros), demanding entirely different low-level drivers.

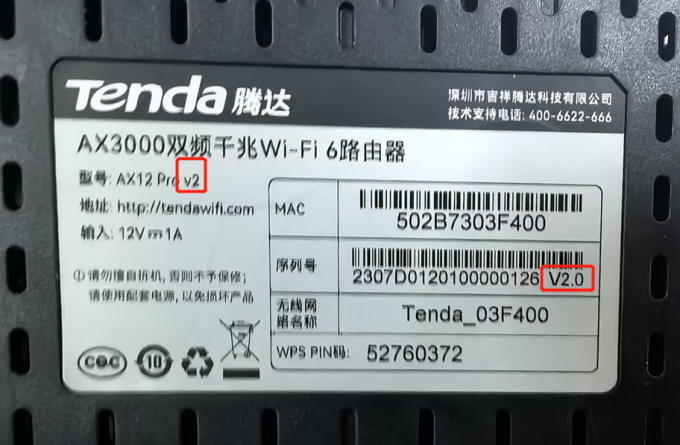

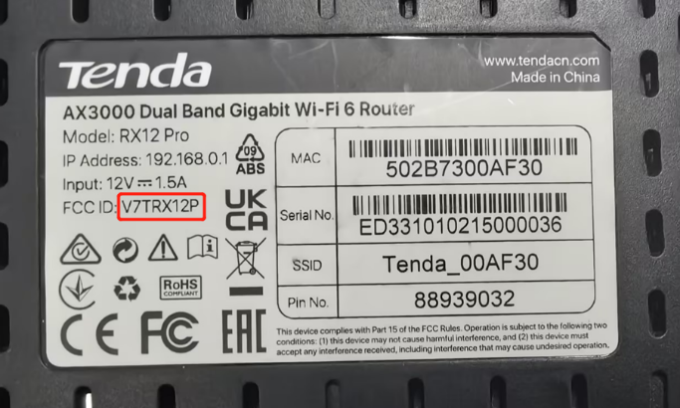

• Physical Labels: Inspect the underside or backplate of the hardware. Note the complete Model String, the Serial Number (S/N), and specifically the Hardware Version/Revision (Rev or Ver).

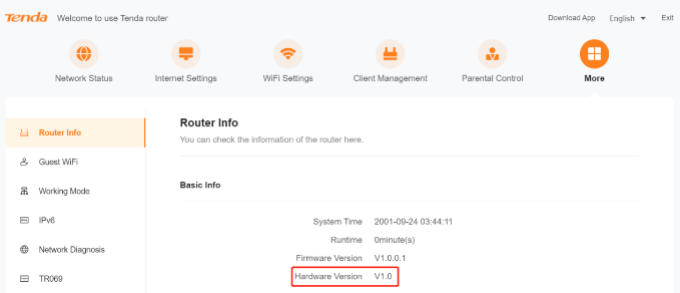

• System Interfaces: Access the internal administration dashboard (e.g., via IP address 192.168.1.1 for network hardware, or msinfo32 in Windows) to record the current build identifier and microcode version.
• Command-Line Querying: In Windows, execute the command wmic bios get smbiosbiosversion within PowerShell. On Linux systems, query low-level hardware tables by running sudo dmidecode -t bios.

2. Source Exclusively from Official OEM Repositories

Acquiring firmware images from third-party hosting platforms, user forums, or unverified aggregators exposes infrastructure to state-sponsored or cybercriminal supply-chain injection attacks. A compromised firmware payload can embed undetectable, persistent hardware rootkits (such as MoonBounce or CosmicStrand) that survive total operating system reinstallation and storage drive formatting.

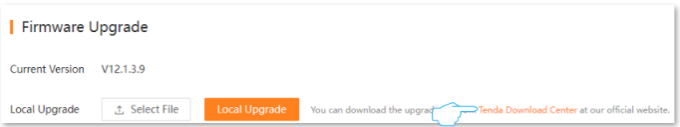

Navigate directly to the official vendor’s dedicated Global or Regional Support page. Ensure the connection uses an encrypted HTTPS channel with a verified SSL certificate belonging to the hardware manufacturer.

3. Review Release Documentation and Dependencies

Do not immediately jump from an aging firmware version directly to the bleeding-edge release without inspecting the vendor’s intermediate changelog notes. Manufacturers frequently outline “stepping-stone” requirements. For instance, updating a motherboard from a legacy 2018 BIOS to a 2024 BIOS may require an intermediate installation of a 2021 release to first modernize the underlying flash memory partition layout.

Step-by-Step Tutorial: How to Install the Latest Firmware

While specific interfaces vary by manufacturer, this universal six-step workflow applies to the vast majority of mission-critical hardware—including network switches, routers, computer motherboards, and storage arrays.

1. Establish Power Redundancy and Environmental Stability:
   Connect the target hardware to an Uninterruptible Power Supply (UPS) if available. For laptops, ensure the battery is charged to at least 80% and keep the AC power brick connected. Disconnect unneeded USB peripherals, external hard drives, and secondary monitors to mitigate hardware interrupt conflicts during the flash sequence.

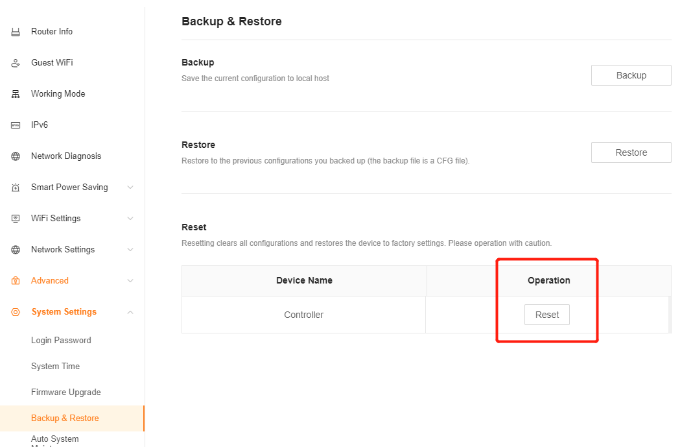

2. Export and Back Up the Current Configuration:
   If you are updating a network router, firewall, managed switch, or NAS, open the administrative web panel and locate the “Backup/Restore” menu. Export the active configuration profile (typically an .xml or .cfg file) to an external machine. Upgrading firmware often restores the device to factory default settings.
3. Prepare Dedicated Update Media (If Required):
   Motherboard BIOS/UEFI updates, as well as some direct storage firmware tools, require a physical USB drive. Format a reliable USB drive (32GB or smaller recommended) with the FAT32 file system (or FAT16 for older systems). Modern file systems such as NTFS, exFAT, or APFS are frequently unreadable by low-level pre-boot environments. Place the extracted firmware binary directly onto the root directory of the drive (e.g., E:FIRMWARE.CAP), avoiding subfolders.
4. Isolate the Network (For Networking Equipment):
   Never apply a router or firewall firmware update over an unstable Wi-Fi connection. Connect your maintenance computer to the device using a physical Cat6 Ethernet patch cable. Temporarily disable the computer’s Wi-Fi adapter to prevent spontaneous IP routing failovers during the flashing sequence.

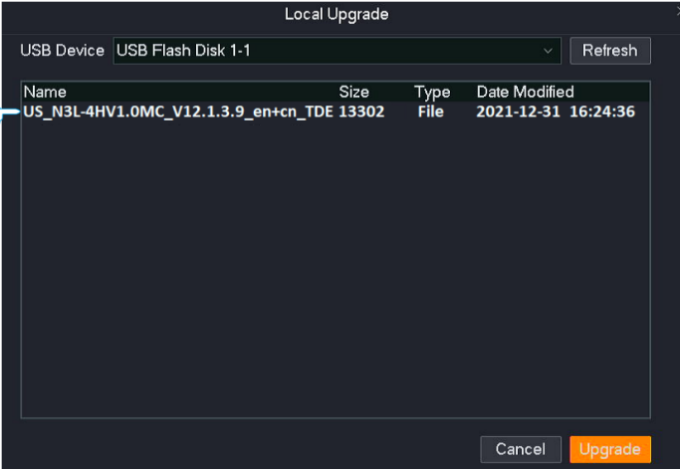

5. Initiate the Flashing Sequence via the Dedicated Interface:

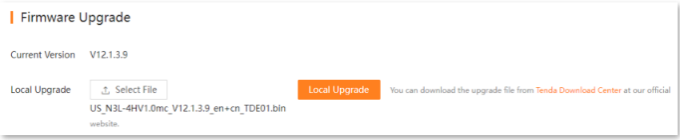

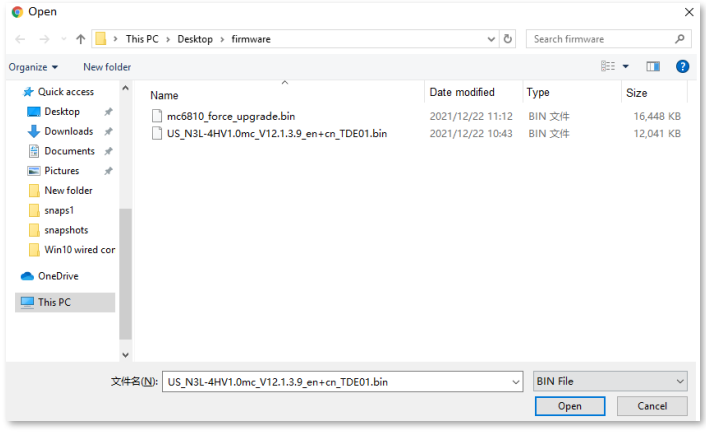

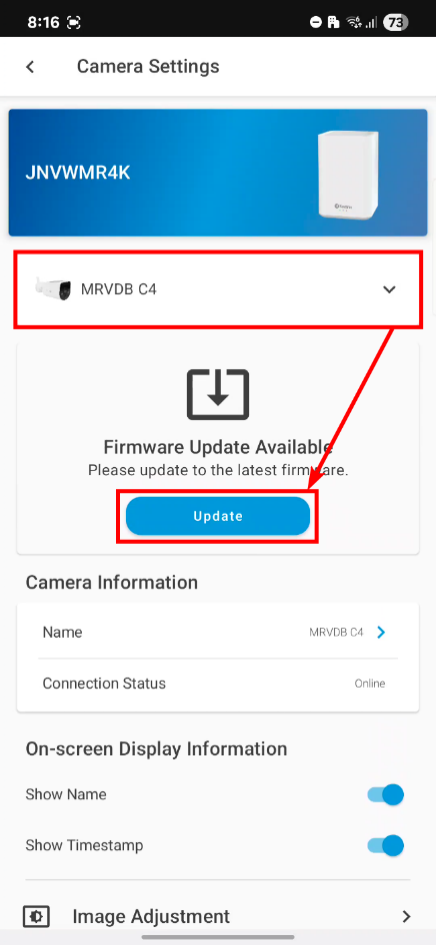

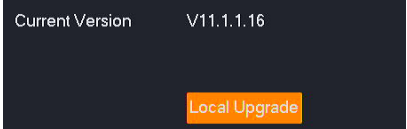

   Access the device’s firmware update portal—whether that is the UEFI environment (such as ASUS EZ Flash, MSI M-Flash, or ASRock Instant Flash) or the local administrative browser interface. Select the validated firmware file from your local disk or prepared USB drive. Confirm the execution prompt and do not touch, interact with, reboot, or unplug the hardware. The flash chip will cycle through an erase stage, a write stage, and a verification stage, typically lasting between two and ten minutes.
6. Conduct Post-Flash Verification and NVRAM/CMOS Reset:
   Allow the system to reboot automatically. Once rebooted, log back into the system or UEFI setup. Confirm that the displayed firmware version string accurately reflects the new release. If you updated a system motherboard, clear the CMOS or load “Optimized Defaults” within the BIOS to purge any lingering, incompatible hardware register tables from legacy NVRAM, then re-enable performance features like XMP/EXPO or secure virtualization.

Device-Specific Firmware Installation Nuances

1. Computer Motherboards (BIOS / UEFI)

Modern motherboards feature distinct technologies to safeguard the flashing procedure:

• Hardware BIOS Flashback: Many modern motherboards feature a dedicated “Flashback” button and a specific rear USB port. This allows the latest firmware to be written directly to the EEPROM without installing a CPU, memory, or graphics card—a lifesaver when updating an older motherboard to support an unreleased generation of processors.
• Dual-BIOS Configurations: Workstation and enthusiast boards frequently incorporate two physical SPI flash chips. If an update fails due to a power outage on BIOS chip A, a physical toggle or automatic boot sequence transitions the board to backup BIOS chip B, restoring operations.

2. Solid State Drives (SSDs) and Storage Arrays

Storage controllers utilize internal firmware to manage critical physical processes, including wear leveling, garbage collection algorithms, and SLC cache management. An unpatched bug in drive firmware can lead to catastrophic data corruption or unexpected drive locking (where the controller enters a permanent read-only state).

SSDs generally require proprietary software utilities provided by the storage vendor (e.g., Crucial Storage Executive, Western Digital Dashboard, Kingston SSD Manager, or Samsung Magician). These tools scan your operating system’s storage bus, detect attached drives, query serial numbers against cloud catalogs, and flash the microcode directly within the OS, prompting a controlled reboot to finalize the changes.

3. Internet of Things (IoT) and Smart Home Hardware

Smart security cameras, Zigbee/Z-Wave bridges, and smart locks rely primarily on automated Over-the-Air (OTA) firmware delivery orchestrated via mobile applications. However, these systems present unique points of failure:

• Ensure smart home devices are positioned within an area of strong, persistent Wi-Fi signal before authorizing an update. A signal drop mid-transfer can result in an unbootable IoT device.
• Battery-operated devices (smart thermostats, locks) often throttle or prohibit firmware updates entirely if their remaining charge is below 50%, as low voltages cause NAND write errors.

Troubleshooting and Recovery: Addressing Failed Flashes

Despite careful preparation, anomalous events like voltage drops, internal memory corruption, or USB bus timeouts can interrupt an installation cycle. Understanding remediation pathways is essential for avoiding premature device replacement.

Handling the “Bricked” State

When a device fails to complete POST (Power-On Self-Test) or boots into a repetitive boot-loop after an update, it is commonly referred to as “bricked.” A brick can be soft or hard:

• Soft Brick: The primary firmware image is corrupted, but the low-level bootloader or recovery partition remains intact. For routers, this typically means the device responds to a static IP address via TFTP (Trivial File Transfer Protocol). Setting your computer’s IP address to 192.168.0.66 or 192.168.1.2 and pushing an uncompressed stock firmware image via a local TFTP client can restore the device.
• Hard Brick: The bootloader partition itself has been erased or partially overwritten. The device exhibits no LED activity, no network handshakes, and zero response to reset buttons. Recovering a hard-bricked device requires direct-to-chip flashing using external hardware programming tools, such as an inexpensive CH341A USB programmer clamped directly onto the surface-mount SOP8/SOP16 SPI flash chip with a Pomona test clip.

Firmware Maintenance Best Practices

A proactive, disciplined approach prevents both obsolescence and unnecessary operational risks:

• Adopt an “If It Isn’t Broken, Read the Changelog First” Policy: While cybersecurity patches must be installed immediately, avoid upgrading device firmware merely for the sake of having the latest version number if the release only adds niche features you do not use, particularly on mission-critical equipment.
• Stagger Deployments in Multi-Device Environments: If you manage multiple identical access points, routers, or servers, never update every unit at the same time. Upgrade a single “canary” device first, monitor its operational stability for 72 hours, and then roll out the update across the remaining hardware fleet.
• Maintain a Local Offline Archive: Manufacturers periodically deprecate older hardware and remove historical driver and firmware downloads from their servers. When you acquire a device or update it, store the firmware binary and its cryptographic hash on an external, backed-up drive for future emergency rollbacks.

<p>The post How to Find and Install the Latest Firmware: Complete Guide first appeared on NVR IPCAMERA SECURITY.</p>

Unlike old analog cameras, a network camera acts as a smart, standalone device. It has its own IP address, a built-in computer chip, and a web server. It turns video into digital data and sends it over Wi-Fi or an Ethernet cable. [1, 2, 3, 4, 5]

How It Works

Key Benefits

If you want, let me know:

I can help you choose the right type for your needs.

[All cameras] How to troubleshoot when the camera’s web UI is not functioning properly?

Question

How to troubleshoot when the camera’s web UI is abnormal?

Below are two snapshots of the abnormal web UI.

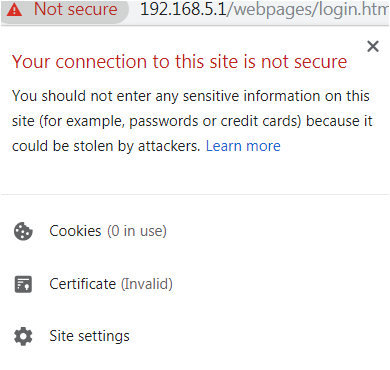

Answer

This problem commonly arises after a camera firmware update or if the camera’s IP address was previously assigned to a different camera. The browser’s cache persists with outdated webpage data from the camera’s pre-update state or from the prior camera, which leads to the camera’s webpage failing to display properly.

Kindly follow the instructions below to troubleshoot the issue:

Step 1. Please try using the Incognito mode on Chrome browser or InPrivate window on Edge browser.

Step 2. If you’re able to see the normal web UI while using an Incognito or InPrivate window, please follow the instructions below to clear the browser cache:

2.1 Open Chrome Browser: Launch the Google Chrome browser on your computer.

2.2 Open the Menu: Click on the three dots (menu) in the upper-right corner of the browser window.

2.3 Go to Settings: In the menu, select “Settings.”

2.4 Privacy and Security: In the left sidebar, click “Privacy and security.”

2.5 Clear Browsing Data: Click on “Clear browsing data.”

2.6 Choose Data to Clear: A new window will pop up. Ensure “Cached images and files” is checked. You can also check other options like “Browsing history” or “Cookies and other site data” if needed.

2.7 Select Time Range: Choose “All time” to clear the cache.

2.8 Clear Data: Click the “Clear data” button.

2.1 Open Edge Browser: Launch the Microsoft Edge browser on your computer.

2.2 Open the Menu: Click on the three dots (menu) in the upper-right corner of the browser window.

2.3 Go to Settings: In the menu that appears, select “Settings.”

2.4 Privacy, Search, and Services: In the left sidebar, click “Privacy, search, and services.”

2.5 Clear Browsing Data: Scroll down to the “Clear browsing data” section and click “Choose what to clear”.

2.6 Select Data to Clear: A new window will pop up. Make sure “Cached images and files” is selected. You can also select other types of data (like browsing history or cookies) if needed.

2.8 Choose Time Range: Select “All time” to clear the cache.

2.9 Clear Data: Click the “Clear now” button to delete the cached data.

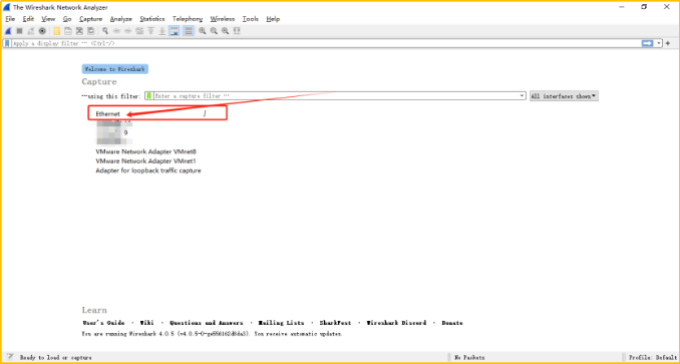

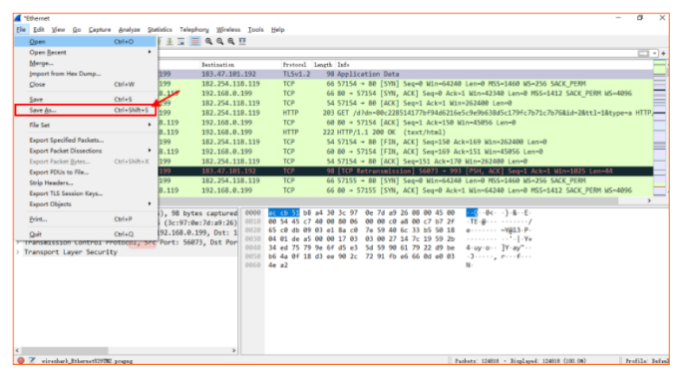

Step 3. If the issue persists, we may need to gather additional information before you contact technical support. Please refer to the following article for guidance on collecting network camera information:

[All Cameras] How can I check if the camera IP is used by another device?

Question

How can I check if the camera IP is used by another device?

Answer

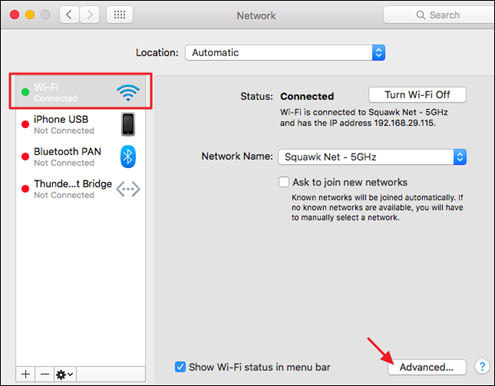

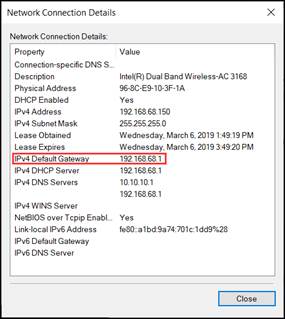

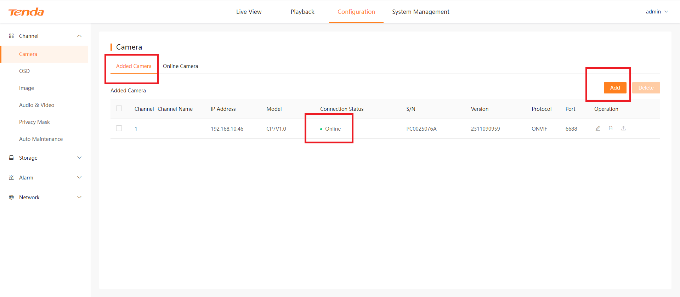

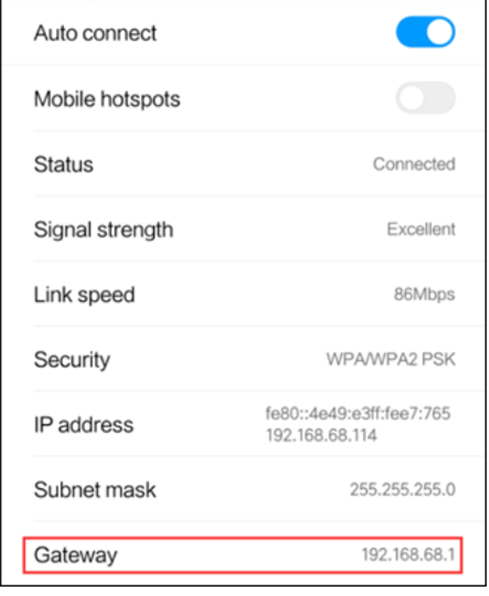

IP conflicts occur when two devices on the same network are assigned the same IP address. This can lead to connectivity issues, and it’s essential to resolve such conflicts to ensure smooth network operation. If you suspect your camera’s IP address might be used by another device, here’s how you can check and resolve it.

1. Disconnect the camera from the network.

2. Connect a PC to the same network as the camera. Then, open the Windows Command Prompt (cmd.exe).

3. Execute the ping command followed by the camera’s IP address:

ping <Camera IP>

If you are unable to locate the device or computer using the originally designated IP, consider setting a new IP address for the camera to avoid IP conflicts.

[All cameras] How to use PowerShell to test if the camera IP and ports can be accessed?

Question

How to use PowerShell to test if the camera IP and ports can be accessed?

Answer

There are several ways to test if your camera IP can be reached, one of the most used is the “ping” command:

Unfortunately, the ping command has its limitations and wont be able to verify if the ports of the pinged IP are open (ping commands are sent using random ports). In order to check the port connectivity you can use the “Test-NetConnection” command in power shell which can test connectivity to a specific IP and port. To do so please follow the next steps:

Step 1. Open the Windows PowerShell, you can do it by typing “PoweSheel” in the start menu search:

Step 2. Type the following command:

Test-NetConnection -ComputerName [IP address] -Port [port number]

Where the [IP address] is the camera IP and the [port number] is the port that you are trying to verify.

Step 3. Press enter to run the command and the following will appear:

The process will take a couple of seconds and once finished it will display the connection status as follows:

If the connection cannot be stablished, the following error will appear:

Note: the same process can be used to check ND/VAST2/VSS connectivity (all of those devices/software uses different ports to communicate).

If there is a connection error you can do the following to ensure that the camera port can be accessed:

If after checking the points mentioned above you are still unable to access the camera using its IP and port please contact Technical Support for assistance.

[All cameras] How to reset your camera to factory defaults?

Question

How to reset your VIVOTEK camera to factory defaults?

Answer

All VIVOTEK cameras possess a reset button which can allow you to reset the device to factory defaults. To reset the camera to factory defaults please follow the next steps:

1. Locate the camera reset button, if you are unfamiliar with its location please go to our website and search for your camera model.

In the download section you will be able to find the “User manual” and the “Quick installation guide”, both documents have information regarding the location of the camera reset button.

2. Press and hold down the reset button for 10 seconds, the camera LEDs will start blinking rapidly.

The camera will reboot (LED will stop blinking), after rebooting it will begin the reset process (LED start blinking again).

3. Wait until the camera finish resetting. After 1~2 minute the process will be over.

Please note that resetting your camera to factory defaults will reset all the settings and configurations applied to the camera. So once the camera finished the process you will need to configure the device again to your needs.

What should I do when the camera’s live view or video stream fails to display?

Question

How to troubleshoot when the camera’s live view or video stream fails to display?

Answer

When you’re unable to watch video streaming from a VIVOTEK camera, there are several troubleshooting steps you can follow:

1. Check that the browser is compatible with the camera:

VIVOTEK cameras are compatible with Internet Explorer for the 8000 series or older, and with Chrome and Edge for the 9000 series. Be sure to use the appropriate browser to access your camera.

2. Upgrade the camera to the latest firmware available.

VIVOTEK constantly keeps improving camera firmware to increase product reliably and resolve know issues which might be related to the video stream. Please be sure to upgrade your camera to the latest version available:

Following the firmware upgrade, kindly clear your browser cache to confirm that video streaming is visible.
3. Check if the camera sensor is still generating images

VIVOTEK cameras include a snapshot feature that operates separately from the video stream, allowing you to check if the image sensor is functioning properly. If your camera is not displaying video, you can try using the following URL in your browser to retrieve a snapshot:

Before sending following URL to the camera, please ensure that the CSRF feature is disabled.

If you need guidance on how to disable the CSRF feature, please refer to the following link: [All cameras] What to do when you cannot send CGI command to the camera after upgrade the camera firmware to the latest? – VIVOTEK Support Center
The URL command as below:

http://{Camera_IP_address}/cgi-bin/viewer/video.jpg

For Mutiple sensor camera, please use the below URL command to check camera streaming.

http://{Camera_IP_address}//cgi-bin/viewer/video.jpg?channel=0&streamId=0&qulity=quality

Channel 0=first lens.

If there is no image displayed, this will mean that the video sensor might be compromised.

4. Use and RTSP Player to verify if the camera can send data through RTSP

Try to use an RTSP player like VLC Media Player to verify if a VIVOTEK camera can send data through RTSP, you can follow these steps:

If the player cannot play videos, this could mean that the camera’s RTSP module is having trouble sending videos.

4. Reset the camera to factory defaults

Resetting the camera to factory defaults will return it to a state unaffected by any new external configurations. If you are experiencing video issues, please try resetting the camera to factory defaults to see if the problem can be resolved. The following guide explains how to reset your device to factory defaults: [All cameras] How to reset your camera to factory defaults?

If these steps do not resolve the streaming issue, contacting your camera vendor might be necessary. They can provide more specific guidance based on the exact model and configuration of your camera.

.

<p>The post Network Camera Troubleshooting Guide first appeared on NVR IPCAMERA SECURITY.</p>

The practical way to calculate your camera count is to map what must stay visible, where activity can come from, and how much detail you want. This planner turns those questions into a camera-by-camera plan before you buy or drill any holes.

There is no universal number of security cameras that every home needs. A small home with several hidden approaches may need more views than a larger home with one clear entrance.

The practical way to calculate your camera count is to map what must stay visible, where activity can come from, and how much detail you want. This planner turns those questions into a camera-by-camera plan before you buy or drill any holes.

The Short Answer

Count coverage zones, not rooms. A coverage zone is an area that needs its own reliable view, such as a front entrance, driveway, backyard door, or important shed.

One well-placed camera may cover more than one nearby feature. Two areas usually need separate cameras when they cannot fit in the same clear view, must remain visible at the same time, or require different angles for useful detail.

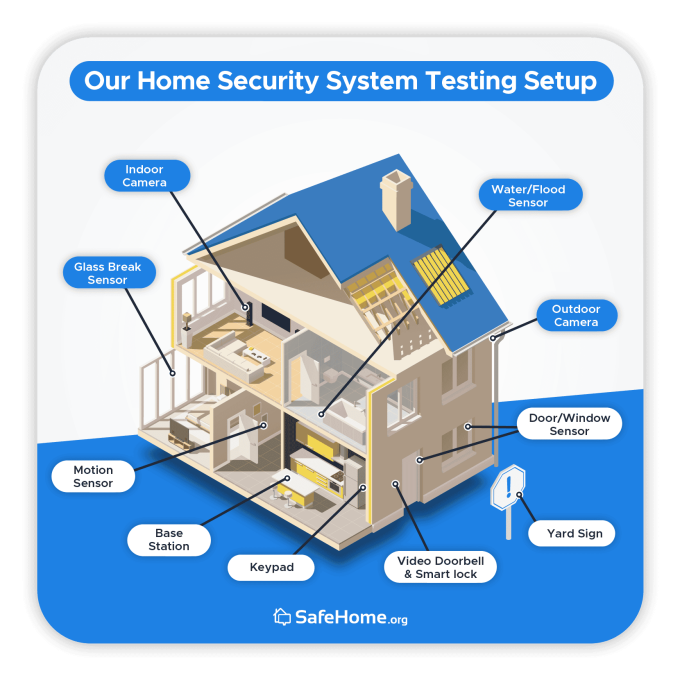

How Many Security Cameras Do I Need? A Practical Home Coverage Planner

Start With Coverage Needs

Camera count should come as the result of the plan. First decide what you want to understand after an alert or incident. Do you need to know that someone entered the yard, see the route they took, identify a delivered package, or get a closer view of a face or vehicle?

A very wide camera can make the scene look complete while leaving people too small for the detail you expected. A moving PTZ camera can inspect different directions, but it cannot keep every direction visible at once. A high-resolution camera can preserve more detail, but distance, lighting, movement, and angle still affect the result.

If you are planning a full system for the first time, our broader home security camera planning guide explains the main camera types, power options, storage choices, and features before you narrow down the count.

Read the home security camera planning guide

The Six-Step Home Camera Coverage Planner

Write down specific events rather than vague areas: a visitor reaching the front door, a package being left, a vehicle entering the driveway, someone opening the side gate, or movement near a shed. Several events may fit in one view.

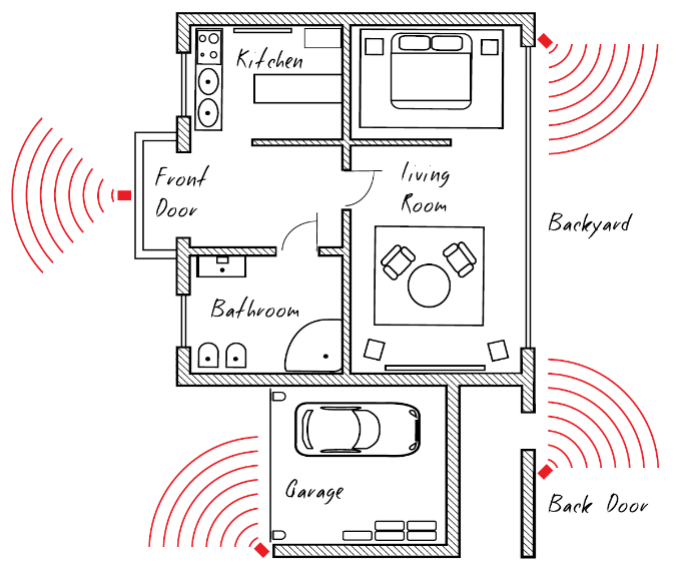

Sketch the home, street, driveway, doors, gates, paths, stairs, fences, and detached structures. Add arrows showing how a person or vehicle would move through the property. These routes usually reveal the most valuable camera positions.

Use three priorities: must cover, helpful to cover, and optional. Start with entrances and routes tied to a real concern. Do not add a camera to an empty side of the house only because the wall exists.

Decide whether the view only needs to show that activity happened, preserve the route and context, or capture closer identifying detail. The farther and wider the scene, the smaller people and objects become in the image.

A front walkway and nearby porch may fit one camera. A driveway and side gate around a corner probably will not. Keep zones separate when both need continuous coverage or one would sit near the weak edge of the frame.

Stand near the proposed mounting point and use a phone photo or temporary camera position to inspect the angle. Test in daytime and darkness, then check whether faces, packages, gates, and vehicles appear large enough for your goal.

Prioritize entrances and constrained routes. Large open areas can remain optional unless they relate to a specific concern.

Give Each Camera One Primary Coverage Goal

Different positions serve different goals: broad awareness, route context, or closer detail at a specific point.

Match the Camera Type to the Shape of the Zone

A fixed camera is often enough for a door, gate, narrow side path, or other approach that stays in one direction. Its advantage is that the important area never leaves the frame.

Use a wide view for a porch, compact front yard, broad driveway, or room where the full scene is more important than distant fine detail. Avoid widening the view so far that the subject becomes tiny.

PTZ can follow movement or let you check different parts of an open area. It may reduce the number of cameras in some layouts, but a second event can happen while the lens is looking elsewhere.

A fixed wide lens can preserve the main scene while a PTZ lens follows activity or looks toward a nearby corner. This can combine two viewing roles at one mounting point, but it does not see through walls, fences, or dense landscaping.

Use another fixed view when a gate, rear door, side path, or outbuilding is physically hidden. Adding the right second camera is more reliable than expecting one camera to overcome the property layout.

Property shape determines whether nearby areas can share one view or need separate cameras.

See when one PTZ camera can replace multiple cameras

Learn about wide-angle and PTZ coverage in one dual-lens camera

Example Camera Counts for Common Home Layouts

These are starting points for planning, not fixed recommendations. A camera should earn its place by covering an event or route you care about.

Common Reasons One Camera Is Not Enough

A PTZ camera can turn between a driveway and side yard, but it cannot record both directions continuously unless another fixed lens preserves one of the views.

Lens distortion, weaker lighting, obstructions, and reduced subject size can make an edge view less helpful than the preview suggests. Center the highest-priority area when possible.

A distant person may occupy only a small part of the image. Compare 2K and 4K camera detail, but also improve placement, distance, lighting, and the angle of approach.

Glare, deep shadows, reflective walls, limited infrared range, and fast movement can weaken a view that looks excellent during the day. Always review actual nighttime footage.

Cars, columns, eaves, fences, shrubs, and seasonal foliage can create blind spots. Move the camera or add a second angle instead of assuming digital zoom will recover a blocked view.

Compare 2K and 4K security camera detail

Make Sure the Rest of the System Can Support the Count

More cameras create more charging, wiring, Wi-Fi, storage, notifications, and maintenance. Before adding an optional view, confirm how it will be powered, where it will record, and whether the network and app can handle the full system.

For permanent multi-camera coverage, compare wired and wireless camera systems rather than assuming wireless is always easier. A battery or solar camera can simplify installation, while wired power or PoE can suit locations that need continuous operation. Backup power, local storage, and cloud backup are separate decisions from the number of cameras.

A typical household does not need maximum-security redundancy at every angle. Protect the most important routes first, make sure the recordings are retrievable, and expand only when the first system leaves a real gap.

Compare wired and wireless camera systems

Browse aosu multi-camera systems

The Five Questions to Answer Before You Buy

If you cannot name one, the camera may be optional.

If yes, plan a fixed view or a second lens.

Test the real distance instead of judging only from the advertised field of view.

Check night lighting, glare, motion, and the actual route a person would take.

A smaller system that records reliably is preferable to extra cameras that frequently go offline or overwhelm the household with alerts.

To Wrap Up

The number of security cameras you need is the number of distinct, worthwhile views your home requires. Start with entrances and approach routes, assign a detail goal to each area, and combine zones only when one camera can cover them clearly and continuously.

You can always add another camera later. A focused first plan is easier to install, review, and maintain than buying a large bundle before you know which views actually help.

FAQs

How many security cameras does the average house need?

There is no reliable universal number. A compact home may need two to four well-planned views, while a detached home with separate front, rear, driveway, and side access may need three to six or more. The layout and the events you want to capture are more important than square footage alone.

Can one security camera cover the whole front of a house?

Sometimes. One camera may cover a compact porch, walkway, and part of a driveway when they fit in one clear view. Use separate cameras when areas are around a corner, need different detail, or must remain visible at the same time.

Do I need security cameras on every side of my house?

Not automatically. Prioritize entrances, gates, driveways, concealed approaches, and areas tied to a real concern. A blank wall with no accessible route may not deserve its own camera.

Is it better to have more cameras or higher-resolution cameras?

They solve different problems. More cameras can cover separate angles and blind spots. Higher resolution can preserve more detail within a view, but it cannot see around corners or fully overcome poor distance, lighting, movement, or placement.

Should security cameras overlap?

A small amount of overlap can help follow movement between zones and provide another angle at an important entrance. Complete overlap is usually unnecessary unless the area is unusually important or you need redundancy.

<p>The post How Many Security Cameras Do I Need? A Practical Home Coverage Planner first appeared on NVR IPCAMERA SECURITY.</p>

Editorial note: Hikvision menus, functions and terminology vary by recorder model, firmware branch, region, camera generation and user privileges. This guide explains a reliable system methodology; always compare the instructions with the manual and release notes for the exact model installed at your site.

Introduction: What a Hikvision NVR System Does

A Hikvision Network Video Recorder (NVR) is the management and recording centre of an IP video-surveillance system. Unlike an analogue DVR, which normally receives camera signals over coaxial cable, an NVR communicates with network cameras through Ethernet and IP protocols. The recorder can therefore combine live viewing, scheduled and event-based recording, playback, user management, alarms, storage policies, analytics and remote access within one operational platform.

The most important change in the 2026 operating environment is that a contemporary NVR should be treated as an intelligent network appliance rather than a passive hard-disk box. Hikvision presents NVR 5.0 as an AIoT platform that brings together video, audio, alarm, access control and other application functions. The official product overview highlights customized live views, event-oriented search, AcuSearch, a centralized event centre and scenario-based intelligent applications [1]. These capabilities are valuable only when the underlying installation has been planned correctly: the cameras must have adequate power and bandwidth, the recorder must have compatible firmware, the storage system must match the required retention period, and remote access must be secured.

This 2026 manual is designed for homeowners, technicians, system integrators and small-business administrators who need a structured commissioning reference. It covers physical installation, first access, network design, camera onboarding, recording and storage, playback, mobile access, user permissions, maintenance and troubleshooting. It also explains why a short commissioning checklist is not enough for a system that may retain sensitive personal, commercial or public-space footage.

*Figure 1. A reference architecture showing the relationship between cameras, PoE infrastructure, the NVR, storage, local clients and controlled remote access.*

1. Plan the System Before Connecting Hardware

A successful installation begins with a written design. Count the cameras, identify the field of view required at every position, note whether each camera is powered by PoE or a separate supply, and define how many days of footage the organisation must retain. A recorder selected only by channel count may be unsuitable if its incoming bandwidth, decoding capability, PoE budget, storage interfaces or analytic workload is insufficient.

The cable plan should distinguish between camera traffic and management traffic. In a small installation, cameras may connect directly to the PoE ports on a compatible NVR. In a larger or more security-conscious deployment, cameras can connect to managed PoE switches, while the NVR and administrator workstation occupy a protected management network. The correct design depends on the model, but the principle is consistent: document every device address, switch port, power source and uplink before commissioning.

.

Use the NVR category on nvripc.com as an internal starting point for related recorder guides. Readers who are still comparing components can also consult the site’s IP camera category and CCTV systems category. Internal links should be reviewed after publication to ensure that category pages and any recommended articles remain active.

2. Physical Installation and Power Considerations

Install the recorder in a clean, dry and ventilated location. Leave clearance around the chassis, avoid placing it directly above a heat source, and use a properly rated power supply or uninterruptible power supply (UPS). A UPS is particularly useful because an abrupt power loss can interrupt recording, corrupt configuration changes or shorten the life of storage drives. The UPS should be sized for the recorder, attached PoE equipment, network switch and any necessary monitor for the expected shutdown or ride-through period.

Mount cameras according to their optical purpose rather than merely their physical convenience. A camera aimed into a bright window may produce poor identification even when its advertised resolution is high. Outdoor models require suitable weather protection and cable sealing; indoor models should not be placed where vibration, condensation or direct glare will undermine the image. Confirm that the cable termination is protected, especially where an Ethernet connection exits an external wall.

Before finalizing a dome or turret position, verify the field of view during both day and night conditions. Infrared reflection from nearby surfaces, vehicle headlights and changing sun angles may create false events or obscure faces. The installation is not complete when the camera displays an image; it is complete when the image remains useful for the defined security objective.

3. First Startup: Identity, Time and Baseline Configuration

Connect a monitor and mouse, or use the supported local and web access method for the exact model. During initial startup, create a strong, unique administrator password and do not reuse a password from another device or online account. Record the credentials in an approved password manager rather than on a label attached to the recorder. If the system supports additional verification or account protection, enable it for administrative access.

Set the correct region, date, time zone and daylight-saving behaviour where applicable. Then configure a trusted time source, such as an approved NTP service, if the device and network policy permit it. Consistent timestamps are essential for incident reconstruction: a camera that is several minutes ahead of the recorder can make an otherwise coherent event difficult to interpret. Check the timestamps on the NVR, cameras, workstation and mobile client after synchronization.

The initial configuration should also include a descriptive device name, a documented serial number or asset identifier, the intended video standard, display settings and a backup of the baseline configuration. Exporting a configuration backup after a stable installation creates a recovery point, but the backup itself must be protected because it may contain sensitive configuration information.

Hikvision’s official NVR 5.0 device access and configuration guide provides a model-family-specific reference for this stage. The same support page lists related topics, including the startup wizard, PoE camera addition, operator permissions, redundant recording, RAID and GUI 5.0 playback [2].

4. Network Configuration: IP Addresses, Gateways and DNS

An IP camera system is only as reliable as its network plan. Assign addresses in a documented range and avoid accidental conflicts with printers, access points or DHCP pools. Depending on the topology, cameras may obtain addresses from DHCP during discovery and later receive reserved or static assignments. The chosen method should be predictable and maintainable; changing camera addresses without updating the NVR can interrupt recording.

The recorder’s default gateway should point to the correct router only when traffic must leave the local subnet. A gateway is not a substitute for a firewall policy. DNS should be configured deliberately, and NTP should be allowed only when it is necessary and approved. For a segmented system, create a camera VLAN or other restricted network boundary, then permit only the flows required between cameras, the NVR, management clients and approved remote services.

Bandwidth planning must consider the aggregate incoming bitrate, live-view decoding and uplink capacity. A useful engineering approach is to add the configured bitrates of all cameras, then preserve margin for overhead, bursts, playback and future expansion. High-resolution main streams are appropriate for evidence retention, while lower-bitrate sub-streams can reduce the load for multi-camera live view and remote monitoring. Test the actual network under simultaneous recording, playback and live-view conditions rather than relying only on theoretical link speed.

5. Adding Hikvision and Third-Party IP Cameras

For Hikvision cameras connected to compatible PoE ports, the NVR may discover and activate them through its camera-management interface. Confirm that each camera is assigned to the intended physical position, that the camera has an acceptable password state, and that the channel displays the correct name. If cameras are connected through a separate switch, add them through the recorder’s supported network-camera workflow and verify reachability, protocol and credentials.

Third-party cameras may require ONVIF or another supported integration method. Compatibility is not guaranteed merely because both devices use Ethernet. Check the NVR’s supported protocols, camera firmware, stream encoding, authentication method, audio capability and event support. A camera may provide a live stream while failing to expose motion events, metadata, audio or advanced analytics. Record these limitations in the commissioning report.

After adding a camera, validate four separate conditions: live view, continuous or scheduled recording, event-triggered recording and playback. Confirm that the image orientation, resolution, frame rate, compression, exposure and time overlay are correct. Where analytics are used, perform a controlled test with an appropriate target and document the result. Do not assume that an enabled checkbox is equivalent to a validated alarm.

6. Recording, Compression and Retention

Recording policy should reflect the risk model. Continuous recording provides the most complete timeline but consumes more storage. Event recording can extend retention and reduce review time, but it depends on reliable detection and correct pre-recording and post-recording intervals. A hybrid policy is often practical: continuous recording at a lower operational bitrate combined with higher-quality event or alarm handling for critical areas, subject to the model’s capabilities and local requirements.

H.265 or H.265+ may reduce bitrate compared with older compression profiles, but the exact result depends on scene movement, lighting, keyframe interval, image complexity and compatibility with client software. A reduction in storage consumption should never be assumed without measuring the configured stream. Readers can review nvripc.com’s related NVR setup guide for H.265 compression and bitrate and then verify the exact menu names in the model manual.

Storage capacity is a function of bitrate, camera count, recording hours and retention days. A simplified planning relationship is:

Required storage ≈ total bitrate × recording time × retention period, plus operational margin.

This is an engineering estimate, not a guarantee. Motion density, audio, metadata, RAID overhead and recorder filesystem behaviour can change the result. Initialize drives only after confirming that any existing data may be erased. Configure the recording schedule, overwrite policy, redundancy or RAID options according to the system’s risk tolerance. If a recorder supports redundant recording or a hot-spare design, test the failover process instead of treating the feature as self-proving.

7. Live View, Playback and Smart Search

Live view is primarily an operational function; it is not a substitute for evidence review. Configure meaningful camera names, logical views and layouts that correspond to the site. Avoid displaying more high-resolution streams than the monitor or workstation can decode smoothly. Where supported, use sub-streams for broad overview layouts and open the main stream when investigating a specific channel.

Playback should be tested from the NVR, web client and any approved desktop or mobile application that will be used in practice. Search by time first, then narrow by event, channel or motion region where available. Preserve original evidence before making clips or snapshots, and document the export date, operator, channel, time range and export format. An exported clip is easier to defend when its provenance is clear.

Hikvision’s NVR 5.0 overview describes Smart Search and AcuSearch as tools for faster investigation, including search by frame, event or actor [1]. These functions can reduce review time, but they do not eliminate the need for human verification. Lighting, occlusion, camera angle and algorithmic limitations can produce both missed detections and false positives.

8. Remote Access with Hik-Connect

Remote access should be enabled only when there is a legitimate operational need and an identified administrator. The preferred approach is to use the manufacturer’s supported service and current application version, follow the official onboarding sequence, and avoid exposing the recorder’s administrative interface directly to the public internet. Do not forward arbitrary ports merely because a remote-view tutorial suggests it; assess the security implications and the requirements of the local network policy first.

The official Hikvision Hik-Connect software page and Hik-Connect setup support article should be used for current application and account procedures. When remote access is configured, use separate named accounts, limit permissions, enable notifications only where they are useful, and remove devices or users that are no longer authorized.

Test remote access from a network that is not the same as the site LAN. Confirm that the user can perform only the intended actions, that playback and notifications behave as expected, and that disabling the service removes the remote path. Remote access must be reviewed after firmware changes, router replacement, password changes and staff turnover.

9. Cybersecurity Hardening and Privacy

A surveillance system processes information that may identify people, reveal routines or expose business operations. Security therefore includes confidentiality, integrity and availability. Hikvision’s Network Security Hardening Guide is the relevant official reference for measures users can take to secure network devices and improve network security [3].

At a minimum, change factory credentials, use unique accounts, apply the principle of least privilege, install firmware from the correct regional support channel, disable unused services, restrict management interfaces to trusted networks, and maintain an inventory of devices. Administrative actions should be attributable to named users. If the system supports audit logs, review them periodically and protect exported logs as operational records.

Privacy governance should define who may view live images, who may export footage, how long footage is retained, and how requests for access or deletion are handled under applicable law. The technical configuration cannot answer these policy questions alone. Camera placement should also avoid unnecessary capture of private areas, and audio recording should be enabled only when justified and permitted.

*Figure 2. Security controls should be layered across governance, identity, devices, networks and data rather than concentrated in one setting.*

10. Routine Maintenance and Firmware Management

Create a maintenance calendar. At each review, check camera reachability, recording status, disk health, time synchronization, storage consumption, system temperature, UPS status and the success of representative playback. A green status indicator is useful but insufficient; a short test export proves more than an icon.

Firmware updates should be matched to the exact product model, hardware revision and region. Hikvision maintains a firmware download portal and a dedicated NVR 5.0 firmware page. Read the release notes, back up configuration, record the current version and schedule the update during a controlled maintenance window. Never interrupt power during an update. Afterward, verify passwords, camera connections, recording schedules, time settings, remote access and analytics because firmware changes can alter defaults or compatibility.

Export a configuration backup after every significant change and store it securely. A backup is not a disaster-recovery plan unless the organisation knows where it is, who can restore it and whether the restoration procedure has been tested. For critical systems, maintain replacement hardware or a documented recovery path.

*Figure 3. A verification-led commissioning sequence for installation, security, network, cameras, storage and operational testing.*

11. Troubleshooting by Layer

Troubleshooting is faster when the problem is isolated to a layer. If a camera is completely offline, start with power, cable, PoE budget, link lights and address assignment. If the camera is reachable but does not display in the NVR, inspect credentials, protocol, stream compatibility and channel configuration. If live view works but playback is absent, inspect the recording schedule, disk initialization, overwrite state, time synchronization and channel status.

If playback is available but remote access fails, test the local system first, then DNS, gateway, firewall policy, service status, account permission and the client application. If video appears choppy, compare the main and sub-stream profiles, decode capacity, network utilization and storage performance. If notifications are excessive, refine the detection region, sensitivity, target classification, lighting conditions and event linkage rather than simply disabling alerts.

.

12. Final Commissioning Checklist

Before handing over the system, confirm that every camera has a documented name and position; every channel produces an acceptable image; continuous, scheduled and event recording have been tested; playback and export work; timestamps are synchronized; disks are initialized and healthy; user permissions are appropriate; remote access is either securely configured or intentionally disabled; firmware versions are recorded; and configuration backups are stored safely.

A professional handover should include the system diagram, device inventory, IP address plan, camera map, retention policy, user-role matrix, firmware record, test results and maintenance schedule. These documents convert an installation into an operable system. They also make future troubleshooting less dependent on the memory of one technician.

Conclusion

A Hikvision NVR and IP camera system delivers the greatest value when it is designed as an integrated information system. The recorder, cameras, PoE infrastructure, storage, client software, user accounts and remote services must be configured as one chain. Hikvision’s NVR 5.0 direction adds intelligent search, event visualization and converged AIoT functions, but advanced features do not remove the need for disciplined fundamentals.

The most dependable 2026 workflow is therefore straightforward: plan the objective, install for image quality and power stability, harden the recorder before exposing it to a network, configure addresses and time, add and test every camera, calculate storage, validate playback, restrict remote access, maintain firmware and document the final state. Following that sequence produces a system that is easier to operate, investigate, secure and maintain over its service life.

References

[1]: https://www.hikvision.com/us-en/products/network-products/network-video-recorders/ “Hikvision Network Video Recorders and NVR 5.0 overview” [2]: https://www.hikvision.com/en/support/how-to/how-to-video/nvr-5-0-device-access-and-configuration/ “Hikvision NVR 5.0 device access and configuration” [3]: https://www.hikvision.com/us-en/support/cybersecurity/cybersecurity-white-paper/network-security-hardening-guide/ “Hikvision Network Security Hardening Guide” [4]: https://www.hikvision.com/us-en/support/download/firmware/ “Hikvision Firmware Download” [5]: https://www.hikvision.com/en/support/download/software/Hik-Connect/ “Hikvision Hik-Connect Software” [6]: https://supportusa.hikvision.com/support/solutions/articles/17000110900-how-to-setup-hikconnect “Hikvision Hik-Connect Setup Support”

SEO Keywords

Hikvision NVR and IP system user manual 2026, Hikvision NVR setup guide for beginners, how to configure Hikvision NVR step by step, Hikvision IP camera installation and configuration, Hikvision NVR network settings explained, Hikvision NVR PoE camera setup, Hikvision NVR H.265 recording settings, Hikvision NVR storage calculation for CCTV, Hikvision NVR motion detection setup, Hikvision NVR smart search tutorial, Hikvision AcuSearch NVR guide, Hikvision NVR 5.0 configuration manual, Hikvision NVR remote viewing with Hik-Connect, how to add Hikvision NVR to Hik-Connect, Hikvision NVR secure remote access, Hikvision NVR cybersecurity hardening,

Hikvision NVR firmware update procedure, Hikvision NVR playback and video export, Hikvision NVR recording schedule configuration, Hikvision NVR HDD initialization guide, Hikvision NVR RAID and redundant recording, Hikvision NVR ONVIF camera integration, Hikvision NVR troubleshooting no video, Hikvision IP camera offline troubleshooting, Hikvision NVR time synchronization NTP, Hikvision NVR user permissions and roles, Hikvision surveillance system VLAN design, Hikvision NVR bandwidth and bitrate planning, Hikvision NVR event recording best practices, Hikvision CCTV retention planning, Hikvision NVR 2026 user guide English, professional Hikvision NVR commissioning checklist

<p>The post Hikvision NVR and IP System User Manual 2026 first appeared on NVR IPCAMERA SECURITY.</p>
