This article is for the Arlo Secure experience with Library. If you have the Arlo Secure experience with Feed, visit: How to set up Arlo Cameras – Arlo Secure 4.0

This article applies to Arlo Ultra, Arlo Ultra 2, Arlo Pro 3, Arlo Pro 4, and Arlo Essential Wire-Free series cameras. To connect and install other Arlo devices, visit the links under: Set up other Arlo devices

For the best results use the Arlo Secure App for Arlo camera setup.

An Arlo SmartHub or Base Station is required for Arlo Pro 3, Arlo Ultra, and Arlo Ultra 2 cameras. To check compatibility, visit: Arlo SmartHub and Base Station Compatibility

An Arlo SmartHub or Base Station is optional for Arlo Pro 4 and Arlo Essential wire-free series cameras. For more information, visit: What are the benefits of using an Arlo SmartHub or Base Station?

To set up your camera using a SmartHub or Base Station:

Note: Arlo Ultra, Ultra 2, and Pro 3 must be installed using an Arlo SmartHub or Base Station.

Note: If an Arlo SmartHub or Base Station is not installed, tap Add New SmartHub.

Plug the Ethernet Cable into your SmartHub or Base Station and tap Continue.

Plug the AC adapter into the wall outlet, make sure the lights on the Arlo SmartHub or Base Station turn on, and tap Continue.

If you have trouble connecting the Arlo SmartHub or Base Station, visit: Arlo can’t discover my SmartHub or Base Station during installation; what do I do?

Note: Make sure the camera is within 3 to 6 feet of your Arlo SmartHub or Base Station during the setup process. Avoid placing the camera within close proximity to other Wi-Fi devices to avoid signal interference during the setup process.
If the search is taking too long, tap Manually Pair Device. Press the Sync button on the camera and tap Continue.

To set up Arlo Pro 4 or Arlo Essential wire-free cameras directly to your Wi-Fi:

How to set up Arlo Cameras – Arlo Secure 4.0

This article applies to:

VMC5040  VMC4040P  VMC4041P  VMC4050P  VMC4060P  VMC2020  VMC2030  VMC2032

This article is for the Arlo Secure App experience with Feed. If you have the Arlo Secure App experience with Library, visit: How to set up Arlo Cameras

This article applies to Arlo Ultra, Arlo Ultra 2, Arlo Pro 3, Arlo Pro 4, Arlo Pro 5S, and Arlo Essential Wire-Free series cameras. To connect and install other Arlo devices, visit the links under: Set up other Arlo devices

Need Help?

If you need help installing your new Arlo device, you can reach Arlo Support via the Need Help? button in the Arlo Secure App or on my.arlo.com.

Notes:

An Arlo SmartHub or Base Station is required for Arlo Pro 3, Arlo Ultra, and Arlo Ultra 2 cameras.

An Arlo SmartHub or Base Station is optional for Arlo Pro 4, Pro 5S, and Arlo Essential Wire-Free series cameras.

Arlo SecureLink is a technology that uses the sub-GHz wireless communication to communicate between Arlo devices. The Arlo Security Keypad Sensor Hub uses Arlo SecureLink to talk with devices such as the Arlo All-in-One Sensor and the Arlo Pro 5S Camera.

To set up an Arlo camera with an Arlo SmartHub or Base Station:

Note: Arlo Ultra, Arlo Ultra 2, and Arlo Pro 3 must use an Arlo SmartHub or Base Station.

1.Launch the Arlo Secure App.

2.Tap Devices.
Note: Make sure the correct Location where you want to add the camera is selected. For more information, visit: How do I switch my Location in the Arlo Secure App?

3.Tap .

4.Tap Cameras.

5.Tap Ultra, Pro, or Essential.

6.Select your camera.

7.Select an Arlo SmartHub or Arlo Base Station.
Note: If an Arlo SmartHub or Base Station is not installed, tap Add New SmartHub.
Plug the Ethernet Cable into your Arlo SmartHub or Base Station and tap Continue.
Plug the AC adapter into the wall outlet, make sure the LEDs on the Arlo SmartHub or Base Station turn on, and tap Continue.
If you have trouble connecting the SmartHub or Base Station, visit: Arlo can’t discover my SmartHub or Base Station during installation; what do I do?

8.Insert the battery into the camera, and tap Continue.
Arlo will begin looking for your camera.
Make sure the camera is within 3 to 6 feet of your Arlo SmartHub or Base Station during the setup process.
Avoid placing the camera within close proximity to other Wi-Fi devices to avoid signal interference during the setup process.
If the search is taking too long, tap Manually Pair Device.
Press the Sync button on the camera and tap Continue.

9.Name your Arlo camera and tap Continue.

10.Position your Arlo camera and tap Continue.

11.Tap Finish.
Note: Your camera will be added to Arm Away mode after installation where Motion Detection, Recording, Variable Length recording is enabled. For more information, visit About Arlo Routines, Modes, Rules, and Automations

To set up Arlo Pro 4, Arlo Pro 5S, or Arlo Essential wire-free camera directly to your Wi-Fi router:

1.Launch the Arlo Secure App.

2.Tap Devices.

3.Tap .

4.Tap Pro or Essential.

5.Select your camera.

6.Select Connect without SmartHub and tap Continue.

7.Check your mobile device settings to ensure you are connected to a 2.4 GHz network.
Note: Arlo Pro 5S cameras work with 2.4 GHz and 5 GHz frequency bands after installation is complete on 2.4 GHz. For more information, visit: How does the Arlo Pro 5S Camera use 5GHz Wi-Fi networks?

8.Return to the Arlo Secure App and tap Continue.

9.Enter your Wi-Fi SSID (Network Name) and Password.

10.Tap Continue.

11.For Arlo Essential wire-free cameras:
Press and hold the Sync button on the bottom of the camera for two seconds.

12.For Arlo Pro 4 and Arlo Pro 5S:
Insert the battery into the camera and tap Continue.
When the LED on the front of the camera is blinking blue, tap Continue.
If the LED is not blinking blue, tap LED is not blinking blue.
Press and hold the Sync button on the inside of the camera and tap Continue.
When the LED begins blinking blue, tap Continue.

13.Hold the QR code about four to six inches in front of your Arlo camera.

14.When you hear a chime, tap Continue.
Note: If you are having trouble, visit: My Arlo camera will not scan the QR code during setup

15.Arlo will begin looking for your camera.
Make sure the camera is within 3 to 6 feet of your Wi-Fi router during the setup process.
Avoid placing the camera within close proximity to other Wi-Fi devices to avoid signal interference during the setup process.

16.Name your Arlo camera and tap Continue.

17.Position your Arlo camera and tap Continue.

18.Tap Finish.
Note: Your camera will be added to Arm Away mode after installation where Motion Detection, Recording, Variable Length recording is enabled. For more information, visit About Arlo Routines, Modes, Rules, and Automations

To set up other Arlo devices, visit:

For more information, visit:

To troubleshoot setup issues, visit:

How to set up the Arlo Pro and Pro 2 Camera – Arlo Secure 4.0

This article applies to:

VMC4030P  VMC4030

This article is for the Arlo Secure App with Feed. If you have the Arlo Secure App with Library, visit: How to set up the Arlo Pro and Pro 2 Camera

The following instructions apply to setting up the Arlo Pro or Arlo Pro 2 camera. To setup other Arlo camera models, visit: How to set up Arlo Cameras – Arlo Secure 4.0

To complete the Arlo Pro or Arlo Pro 2 setup process, you will need an Arlo SmartHub or Base Station. Install the Arlo SmartHub or Base Station first before installing your cameras. For more information, visit: How do I connect my Arlo SmartHub or Base Station to the Internet? – Arlo Secure 4.0

If you are setting up multiple cameras, only sync one camera at a time.

To set up an Arlo Pro or Pro 2 Camera:

1.Launch the Arlo Secure App.

2.Tap Devices.
Note: Make sure the correct Location where you want to add the device is selected. For more information, visit: How do I switch my Location in the Arlo Secure App?

3.Tap .

4.Tap Cameras.

5.Tap Pro.

6.Tap Pro 2 or Pro.

7.Select an Arlo SmartHub or Arlo Base Station. If only one Arlo SmartHub or Base Station is installed, tap Continue when Arlo has detected the device.
Note: If an Arlo SmartHub or Base Station is not installed, tap Add New SmartHub.
Plug the Ethernet Cable into your Arlo SmartHub or Base Station and tap Continue.
Plug the AC adapter into the wall outlet, make sure the LEDs on the Arlo SmartHub or Base Station illuminate, and tap Continue.
If you have trouble connecting the Arlo SmartHub or Base Station, visit: Arlo can’t discover my SmartHub or Base Station during installation; what do I do?

8.Insert the battery into the camera, and tap Continue.
Unlock the battery compartment by pressing the latch button and pulling back gently.
Insert the battery as shown and close the battery door.

9.Press the Sync button on the camera for about two seconds and then release the button.

10.When the LED on the camera is blinking Blue, tap Continue.

11.Arlo will begin looking for your camera.
Note: Make sure the camera is within 3 to 6 feet of your Arlo SmartHub or Base Station during the setup process. Avoid placing the camera within close proximity to other Wi-Fi devices to avoid signal interference during the setup process.
If the search is taking too long, tap Manually Pair Device. Press the Sync button on the camera and tap Continue.

12.Name your Arlo camera and tap Continue.

13.Position your Arlo camera and tap Continue.

14.Tap Finish.
Note: Your camera will be added to the  Arm Away mode after installation. Motion Detection, Recording, Variable Length recording are enabled. For more information, visit: About Arlo Routines, Modes, Rules, and Automations

How to set up the Arlo Wire-Free Camera – Arlo Secure 4.0

This article applies to:

VMC3030

This article is for the Arlo Secure App with Feed. If you have the Arlo Secure App with Library, visit: How to set up the Arlo Wire-Free Camera

The following instructions apply to setting up the original Arlo Wire-Free Camera (VMC3030). To setup other Arlo camera models, visit: How to set up Arlo Cameras – Arlo Secure 4.0

To set up the Arlo Wire-Free Camera:

1.Launch the Arlo Secure App.

2.Tap Devices.

3.Tap .

4.Tap Cameras.

5.Tap Others.

6.Tap Arlo.

7.Select an Arlo SmartHub or Arlo Base Station or tap Continue if only one Arlo SmartHub or Arlo Base Station is installed.
Note: If an Arlo SmartHub or Arlo Base Station is not installed, tap Add New Base Station.
Plug the Ethernet Cable into your Arlo SmartHub or Arlo Base Station and tap Continue.
Plug the AC adapter into the wall outlet, make sure the LEDs on the Arlo SmartHub or Arlo Base Station illuminate, and tap Continue.
If you have trouble connecting the Arlo SmartHub or Arlo Base Station, visit: Arlo can’t discover my SmartHub or Base Station during installation; what do I do?

8.Insert the batteries into the camera:

Unlock the battery compartment by sliding and holding the latch.

Insert the batteries as shown and close the battery door.

How to set up the Arlo Essential Indoor Camera – Arlo Secure 4.0

This article applies to:

VMC2040

This article is for the Arlo Secure App with Feed. If you have the Arlo Secure App with Library, visit: How to set up the Arlo Essential Indoor Camera

For best results, use the Arlo Secure App for Arlo Essential Indoor Camera setup.

An Arlo SmartHub or Base Station is optional.

Need Help?

If you need help installing your new Arlo device, you can reach Arlo Support via the Need Help? button in the Arlo Secure App or on my.arlo.com.

To set up the Arlo Essential Indoor Camera directly to your Wi-Fi router:

1.Launch the Arlo Secure App.

2.Tap Devices.
Note: Make sure the correct Location where you want to add the device is selected. For more information, visit: How do I switch my Location in the Arlo Secure App?

3.Tap .

4.Tap Cameras.

5.Tap Essential.

6.Tap Essential Indoor Camera.

7.Review the Meet your Arlo Essential Indoor Camera screen and tap Continue.

8.Find a location to place the camera that is near an outlet and within range of your Wi-Fi network.

9.Tap Continue.

10.Select Connect without SmartHub and tap Continue.

11.Check your mobile device settings to ensure you are connected to a 2.4 GHz network.

12.Return to the Arlo Secure App and tap Continue.

13.Enter your Wi-Fi SSID (network name) and Password.

14.Tap Continue.

15.Use the provided cable and power adapter to connect to an outlet, then plug the micro-USB portion of the cable into your camera.

16.Once the Privacy Shield on the camera opens, tap Continue.

17.Press the Sync button on the camera.

18.When the LED on the front of the camera is flashing blue, tap Continue.

19.Hold the QR code about four to six inches in front of your Arlo camera.
When you hear a chime, tap Continue.
If you are having trouble, visit: My Arlo camera will not scan the QR code during setup

20.Arlo will begin looking for your camera.
After the camera is found, name your Arlo camera and tap Continue.

21.Position your Arlo camera and tap Continue.

To set up the Arlo Essential Indoor Camera with an Arlo SmartHub or Base Station:

1.Launch the Arlo Secure App.

2.Tap Devices.
Note: Make sure the correct Location where you want to add the device is selected. For more information, visit: How do I switch my Location in the Arlo Secure App?

3.Tap .

4.Tap Cameras.

5.Tap Essential.

6.Tap Essential Indoor Camera.

7.Review the Meet your Arlo Essential Indoor Camera screen and tap Continue.

8.Find a location to place the camera that is near an outlet and within range of your Wi-Fi network.

9.Tap Continue.

10.Tap Continue to add your device to the Arlo SmartHub or Base Station.

11.Use the provided cable and power adapter to connect to an outlet, then plug the micro-USB portion of the cable into your camera.

12.Once the Privacy Shield on the camera opens, tap Continue.

13.Press the Sync button on the camera.

14.When the LED on the front of the camera is flashing blue, tap Continue.

15.Follow the in-app instructions to complete the setup.

How do I set up my Arlo Go 2 Camera? – Arlo Secure 4.0

This article applies to:

VML2030

This article is for the  Arlo Secure App experience with Feed. If you have the Arlo Secure App experience with Library, visit: How do I set up my Arlo Go 2 Camera?

Arlo Go 2 gives you the flexibility of using 2.4 GHz Wi-Fi or LTE for connectivity. You can also use LTE as a backup in case your Wi-Fi internet connection is interrupted.

Note: When using both 2.4 GHz Wi-Fi and LTE mode, Wi-Fi will always be the primary mode of connection.

Arlo Go 2 works with the same Arlo Secure App as all other Arlo cameras and devices. However, to connect your Go 2 camera to the mobile network, an activated SIM card with a mobile data plan must be inserted into the camera.

Note: We recommend that you charge the battery before mounting your camera. Your camera LED indicator light will blink amber if your battery needs charging. The indoor charging cable that came with your camera works with most power adapters.

Need Help?

If you need help installing your new Arlo device, you can reach Arlo Support via the Need Help? button in the Arlo Secure App or on my.arlo.com.

To set up your Arlo Go 2 camera using LTE only:

1.Launch the Arlo Secure App.

2.Tap Devices.
Note: Make sure the correct Location where you want to add the device is selected. For more information, visit: How do I switch my Location in the Arlo Secure App?

3.Tap .

4.Tap Cameras.

5.Tap Go 2.

6.Tap Continue.

7.Follow the instructions for installing your SIM card as shown on the Arlo Secure App and tap Continue.
For more information, visit: How do I install a SIM card in my Arlo Go 2 Camera?
The LED in front of your camera should blink blue. If the LED is not blinking blue, press the Sync button on the inside of your camera.

8.Tap Continue.

9.Hold the QR code in the Arlo Secure App, 4 to 6 inches in front of your camera.
You should hear a chime from your Arlo device. If you didn’t hear a chime, visit: My Arlo camera will not scan the QR code during setup

10.Tap Continue.

11.Name your Arlo camera and tap Continue.

12.Position your Arlo camera and tap Continue.

13.Tap Finish.

To set up your Arlo Go 2 camera with Wi-Fi:

Note: Before setting up your Arlo Go 2, make sure that your mobile device is connected to a Wi-Fi network. For more information, visit: How do I connect my mobile device to a 2.4 GHz Wi-Fi network to set up my Arlo camera?

1.Launch the Arlo Secure App.

2.Tap Devices.
Note: Make sure the correct Location where you want to add the device is selected. For more information, visit: How do I switch my Location in the Arlo Secure App?

3.Tap .

4.Tap Cameras.

5.Tap Go 2.

6.Tap Set Up with Wi-Fi.

7.Follow the instructions for installing your SIM card as shown in the Arlo Secure App and tap Continue.
Note: You may skip this step if you are not using a SIM card.
The LED in front of your camera should blink blue. If the LED is not blinking blue, press the Sync button on the inside of your camera.

8.Tap Continue.

9.Verify your mobile device is connected to a 2.4 GHz Wi-Fi network and tap Continue.

10.Enter your Wi-Fi credentials, then tap Continue.

11.Hold the QR code in the Arlo Secure App, 4 to 6 inches in front of your camera.
You should hear a chime from your Arlo device. If you didn’t hear a chime, visit: My Arlo camera will not scan the QR code during setup

12.Tap Continue.

13.Name your Arlo camera and tap Continue.

14.Position your Arlo camera and tap Continue.

15.Tap Finish.

If the Arlo Go 2 camera is installed too far from your Wi-Fi router, it may cause the battery to drain quicker. For more information, visit: How do I control whether my Go 2 Camera connects to Mobile or Wi-Fi?

<p>The post How to set up Arlo Cameras first appeared on NVR IPCAMERA SECURITY.</p>

Before you can connect a Smart Garage Camera to your home network, you will need:

The LED on the Smart Garage Camera must be blinking blue. If the LED is not blinking blue or is flashing blue/green, unplug the power supply and reconnect the power supply.

The myQ app supports the use of more than one myQ Smart Garage Camera. You will have to follow the myQ app set-up steps for each camera you want to add. When setting up more than one camera, it is recommended to pick a distinguishing name for each camera so you can easily find and select the camera you want to view in the app.

How to set up the Smart Garage Camera

Note: During the setup process, monitor the status of the LED on your myQ Smart Garage Camera for any changes. If you are still unable to connect, use the last LED status observed during the in-app setup to troubleshoot further and see Unable to Connect the myQ Smart Garage Camera to Wi-Fi Overview.

myQ Camera Frequently Asked Questions

The following FAQs answer many of the general questions about myQ Cameras. The FAQs also include links to articles where you may find more information.

How do I connect my camera to my home Wi-Fi network?

How do I enable Motion Recording in the myQ app?

Motion Events will only be recorded when Motion Recording is enabled in the Camera Settings of the myQ app.

See Enable Motion Recording in the myQ App for more help.

How do I Live Stream in the myQ app?

Live Stream gives you the ability to view your camera feed live.

See How to Live Stream in the myQ App for more information.

How do I adjust the camera volume in the myQ app?

The camera volume in the myQ app is controlled by the built-in volume controls on your mobile device.

See How to Adjust the Camera Volume in the myQ App for more information.

How do I use the Push to Talk camera feature in the myQ app?

Push To Talk gives you the ability to listen and speak through the camera.

See How to Use the Push To Talk Camera Feature in the myQ App to get help with setting up this feature.

Can I use more than one type of myQ Smart Camera?

The myQ app supports the use of more than one myQ Smart Camera. You will need to follow the myQ app set-up steps for each camera you want to add. When setting up more than one camera, it is recommended to pick a distinguishing name for each camera so you can easily find and select the camera you want to view in the app. We would recommend signing up for the 30 day multi-device plan if connecting multiple cameras.

How high should I mount my camera?

Smart Garage Camera/Indoor Camera – Within 10’ of an existing outlet (comes with 10’ power cord)

Smart Outdoor Camera – 7-10’ recommended height (comes with 25’ power cord)

Is my camera able to withstand extreme temperatures?

Smart Indoor Camera – Rated for indoor use

Smart Garage Camera – Rated for extreme garage temperatures from -4° to 122° F (-20°C to 50°)

Smart Outdoor Camera – Rated for temperatures ranging from -4° to 122° F (-20°C to 50°)

Video Keypad – Rated for temperatures ranging from -4° to 122° F (-20°C to 50°)

Is my camera weatherproof?

Smart Indoor Camera – Rated for indoor use and not designed to withstand weather elements.

Smart Garage Camera – Rated for extreme garage temperatures from -4° to 122° F (-20°C to 50°) but not designed to withstand weather elements.

Smart Outdoor Camera – Rated for temperatures ranging from -4° to 122° F (-20°C to 50°). Power cable and adapter fitted with extra gasket seals to prevent water damage. IP 65 rated Water Resistant.

Video Keypad – Rated for temperatures ranging from -4° to 122° F (-20°C to 50°) and is IP 55 rated Water Resistant.

How do I reset my camera?

See How to reset a myQ device for more help.

I see an error and was unable to name my camera. Do I need to start over?

Before starting over, check the LED status on the Camera. If solid green, force close the myQ app and relaunch to confirm if the device is showing. You can update the name by tapping the gear icon in the video window.

If the light is not solid green, start over or see How to reset a myQ device for more help.

How can I adjust the camera position?

Smart Indoor Camera – Adjust camera head swivel.

Smart Garage Camera – Adjust camera head swivel. Older SGC1 models will also have a swivel camera arm.

Smart Outdoor Camera – Loosen collar at base and adjust camera arm. Adjust camera head swivel.

Video Keypad –

My Outdoor Camera is not recognizing movement. How can I fix that?

Ensure the camera is mounted at the appropriate height of 7’-10’. Installation higher than the recommended height may not allow for proper movement and person detection. Adjust the angle of your camera so the lens is not receiving direct sunlight or other light sources.

Recommended Router Settings for myQ Cameras

When setting up a LiftMaster camera, there may be a few Wi-Fi settings that need to be changed in order to successfully connect the device. Some settings may need to be given to your internet service provider (ISP) to have them configured for your site or home see When to Contact Your Internet Service Provider (ISP)

Recommended Router Settings

Note: If attempting to change any router settings yourself, be sure to back up your router’s current settings before any changes are made and have the router’s manual available.

myQ cameras require these ports in order to communicate to our server

Verify that ports are not being blocked by your router or a firewall product

Note: User-modified routers using open-source firmware (such as DD-WRT, OpenWRT, etc.) have not been tested with myQ products. While some of these open-source versions may work with myQ products, compatibility is unknown.

Unable to Connect the myQ Smart Garage Camera to Wi-Fi Overview

myQ Smart Garage Cameras require a Wi-fi internet connection to access the myQ server. If the myQ Smart Garage Camera is not connecting to the server, the issue could be due to the router, mobile device connection, or Internet connection.

When attempting to connect, the camera’s LED indicator lights will go through a sequence of flashes before finally turning solid green to confirm the connection. Each step of the sequence indicates what the camera is attempting to do and how you approach troubleshooting depends on the LED light’s behavior and color.

Before You Begin

Make sure to check the status of the LED on the myQ Smart Garage Camera and use the list below to determine a resolution.

Note: Chamberlain Group Technical Support does not troubleshoot routers. If additional assistance is needed to access a home router, please contact your internet service provider.

LED Light	Connection Status	Troubleshooting Resource(s)
No LED	The camera does not have power	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and No LED
Solid White	Camera is powering up	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and LED Is Solid White
Flashing Blue	Unable to connect to your home Wi-Fi network	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and LED Is Flashing Blue
Solid Blue	Unable to connect to your mobile device	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and LED Is Solid Blue
Flashing Blue and Green	Unable to connect to your home Wi-Fi router	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and LED Is Flashing Blue and Green
Flashing Green	Unable to connect to myQ internet server	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and LED Is Flashing Green
Solid Green	Connected to myQ server, but device not added to myQ account	Unable to Connect the myQ Smart Garage Camera to My Home Wi-Fi Network and LED is Solid Green
Flashing Purple	Camera is updating firmware	Unable to Connect the myQ Smart Garage Camera to my Home Wi-Fi Network and LED is Flashing Purple
Flashing Red	Camera is overheating, going into protection mode	Unable to Connect the myQ Smart Garage Camera to my Home Wi-Fi Network and LED is Flashing Red

How to forget a myQ Camera in Bluetooth Settings

When you experience an issue with your Smart Garage Camera or garage door opener’s integrated camera being connected via Bluetooth, but the camera is not connecting to Wi-Fi, these steps will walk you through “forgetting” the myQ Camera in Bluetooth on your phone.

How to forget a myQ Camera in Bluetooth Settings

Apple:

1.On your phone, tap Settings

2.Tap Bluetooth

3.Find the Camera in the list

• Smart Garage Cameras will start with SGC

• Integrated Cameras start with GDO

•

1.Tap the blue “i” icon () to the right of the Camera

2.Select Forget this Device

Android:

1.On your phone, tap Settings

2.Tap Connections

3.Tap Bluetooth

4.Find the Camera in the list

• Smart Garage Cameras will start with SGC

• Integrated Cameras start with GDO

•

<p>The post myQ Smart Garage Camera Setup Guide first appeared on NVR IPCAMERA SECURITY.</p>

1. Wi-Fi Range Extender:

2. Mesh Wi-Fi System:

3. Powerline Adapters:

4. Reposition Your Router:

5. Upgrade Your Router’s Antenna:

6. Consider a Wired Connection:

Important Tips:

Alternative

Extending WiFi coverage to support an outdoor wireless security camera requires ensuring a strong and stable signal in the camera’s location. Here are practical methods to achieve this:

1. Position the Router Strategically

2. Use a WiFi Extender or Repeater

3. Install a Powerline Adapter with WiFi

4. Upgrade to a Mesh WiFi System

5. Use a Dedicated Outdoor Access Point

6. Upgrade the Camera’s WiFi Antenna (If Removable)

7. Check for Interference

8. Switch to a Wired Connection

9. Test Signal Strength

Would you like guidance on selecting specific equipment or troubleshooting signal issues?

By considering these options, you can effectively extend your Wi-Fi range and ensure a reliable connection for your outdoor security camera.

Deploying outdoor WiFi is always necessary for deploying outdoor wireless security cameras. There are many options for extending WiFi. The optimal choice depends on the places and environments in that outdoor wireless cameras are installed.

There are two advisable solutions to extend the WiFi just around your house’s outdoor perimeter within 100 meters (300 feet). A network extension to the remote location farther than 300 feet will need a point-to-point wireless bridge.

1. Near Site WiFi Extension to the Outdoor Wireless Security Cameras (up to 100 meters or 300 feet)

It’s hard for WiFi signals to penetrate wire-filled stucco walls or stone walls. To provide strong WiFi outside for the outdoor cameras, one WiFi extender installed outdoors would avoid the stifling impact of walls on WiFi signals. There are two kinds of products—Powerline WiFi extenders and outdoor WiFi access points—to provide WiFi outside the home.

1.1 Near Site Outdoor WiFi for Cameras: Powerline WiFi Extenders

If you install your outdoor wireless camera under your eaves or in the backyard, plugging in a powerline WiFi extender around is an excellent way to solve the outdoor WiFi issues. As the powerline adapters are rated as indoor devices, a covered patio or waterproof electric box is needed to stand the harsh outdoor environments.

TP-Link TL-WPAxx series powerline wireless adapter kit is the easiest solution, providing two powerline adapters. One adapter installed indoors relays the data from the network cable to the power line. The second adapter broadcasts the WiFi signal to your cameras. Refer to the Outdoor Solution Guide for the installation tutorial and examples. The complete introduction of Powerline adapters will help you understand whether this solution is suitable for you.

1.2 Near Site Outdoor WiFi for Cameras: Outdoor WiFi Access Points

If your patio is not enclosed or the outdoor wireless cameras are installed further from your home, you may need an outdoor access point. TP-Link offers Omada EAP series omnidirectional outdoor access points for outdoor WiFi. They come with IP67 or IP65 waterproof and dustproof housing and a -30–70°C (-22–158°F) operating temperature range. They are designed to protect the outdoor access points against harsh outdoor conditions.

According to the areas of deploying outdoor cameras, there are two deployment methods. The basics are listed below. Refer to Get Outdoor WiFi with Outdoor WiFi Access Points for more details. Go to the Outdoor Solution Guide for the installation tutorial and examples.

1.2.1 WiFi Outside for Relatively Small Areas

One or two outdoor WiFi access points are deployed to connect the outdoor wireless cameras in relatively small areas. With the included passive PoE adapter, connect the Omada outdoor access points with your existing router to simultaneously provide data and power using a single Ethernet cable.

1.2.2 WiFi Outside for Relatively Large Areas

Several outdoor WiFi access points are deployed to connect outdoor wireless cameras across relatively large areas. The PoE switches or passive PoE adapters connect the Omada access points with a single Ethernet cable. Omada Mesh technology can wirelessly connect to the outdoor access points without additional cable if some access points cannot link to LAN ports. With Mesh technology, the maximum distance of extending outdoor WiFi can be multiple hundreds of meters.

2. Remote Site Network Expansion (More than 100 m and up to 30 km)

You can use the Pharos CPE series directional outdoor wireless antennas to build a wireless bridge to expand the network for miles. It is perfect for remote surveillance systems covering vast areas. You can also broadcast the wireless signals with an additional wireless access point on the remote site when necessary.

Refer to Pharos Solution to discover what Pharos products can bring. Go to the Outdoor Solution Guide for the installation tutorial and examples of Pharos wireless products. Refer to How to Connect Your Cameras from a Long Distance for using fibers to connect remote cameras.

3. Summary of Extending WiFi to Outdoor Wireless Security Cameras

So, ready to install your outdoor wireless cameras and choose the best outdoor WiFi solution. Let us know your idea about the outdoor WiFi on social media with #tplinkoutdoor!

Related Tags :

“best long range wifi extender for outdoor security camera with thick walls”, “how to extend wifi signal to outdoor camera 100 feet away”, “how to weatherproof a wifi extender for outdoor use”, “outdoor wifi extender with ethernet port for wired camera connection”, “best mesh wifi system for extending wifi to outdoor cameras”, “how to connect wifi extender to Arlo/Ring/Nest outdoor camera”, “troubleshooting wifi connection issues with outdoor security camera”,

“improving wifi signal strength for outdoor camera in remote location”, “how to avoid wifi interference for outdoor security cameras”, “using a point-to-point wifi bridge for long distance outdoor camera connection”, “extending wifi to a detached garage for security camera without running wires”, “best outdoor wifi solutions for rural areas with weak internet connection”, “how to choose the right wifi extender for your outdoor security camera setup”

<p>The post How to Extend WiFi for the Outdoor Wireless Security Camera first appeared on NVR IPCAMERA SECURITY.</p>

What to do When Your Camera is Offline

The Solink support team is ready to help. Our team works with your location(s) to troubleshoot camera issues so that you can get back to recording as soon as possible. To do this, we check the following, based on your camera type:

Troubleshoot Offline Camera

IP Cameras: What to Look For

Solink support can identify what type of camera you have. IP cameras usually have one Ethernet cable connected to the camera.

These types of cameras optimize connection by getting power (Power over Ethernet, or POE for short) and transmitting data (sending data to the Solink system) over a single cable. A typical IP camera and Ethernet connection looks like this:

An Ethernet cable’s end looks like this:
​

Each camera will have an Ethernet cable that connects into a POE switch. In most environments, the switch will look similar to the following:

How to Troubleshoot an Offline IP Camera

Once you have found the POE switch, ensure that:

.

Analog Cameras – What to Look For

Solink support can identify if your cameras are analog. Analog cameras usually have 2-3 cables attached – one for power, one for video signal, and one (optional) for an audio signal.

The different cables look similar to the following image:
​

If your cameras are analog, Solink supplies an analog encoder to your location. This device converts the old analog signal into digital so that we can record it properly on our system. A standard analog encoder is displayed in the following image:

Your analog camera video cables are connected to the rear side of the encoder.

The power cables for your analog cameras are usually wired to a CCTV power supply box, or are plugged into a UPS. The image below displays an example of a CCTV power supply box:

​

How to Troubleshoot an Offline Analog Camera

If an analog camera is offline, you will either see NO VIDEO text on the Solink interface (and Live Monitor, if applicable), or a black screen for some models. In this case, check the following:

.

Status of the Solink Software

Solink support can help confirm that there are no issues with the Solink interface itself that would cause a camera to stop recording. Please feel free to reach out to us at any time to confirm if there are any issues.

Troubleshoot Live Monitor

Troubleshoot Live Monitor

Is your live monitor down? Use this guide to troubleshoot.

If you encounter any of the following issues, please read the instructions in this section to attempt to troubleshoot the issue or reach out to our support team via live chat, phone or email.

No Input/Blank Screen

If the live monitor displays no input or a blank screen, try troubleshooting the issue with the following steps:

1.Check if the recording device is turned on. If not, turn the device on (this could take up to 10 minutes). The photos below display two different models of the recording device, for reference:

2.

2. If the recording device is on but the live monitor is still not working, ensure the cables are connected correctly; you should have an HDMI cable connected to HDMI port 1 or port 2. Additionally, follow the cord and ensure that it is securely plugged in to your monitor as well.

3. Reboot the HDMI/VGA adapter (the device shown in the following image). To reboot this device:

TurboNAS Login Screen

Please let the support team know if this screen is displayed. Use live chat or send the team an email at How To Setup Nas For Hikvision Ip Camera

Frozen Cameras

If any cameras are frozen on your live monitor, try the following steps to troubleshoot the issue:

<p>The post Troubleshoot Offline Camera first appeared on NVR IPCAMERA SECURITY.</p>

[All Cameras] How can I check if the camera IP is used by another device?

Question

How can I check if the camera IP is used by another device?

Answer

IP conflicts occur when two devices on the same network are assigned the same IP address. This can lead to connectivity issues, and it’s essential to resolve such conflicts to ensure smooth network operation. If you suspect your camera’s IP address might be used by another device, here’s how you can check and resolve it.

1. Disconnect the camera from the network.

2. Connect a PC to the same network as the camera. Then, open the Windows Command Prompt (cmd.exe).

3. Execute the ping command followed by the camera’s IP address:

ping <Camera IP>

If you are unable to locate the device or computer using the originally designated IP, consider setting a new IP address for the camera to avoid IP conflicts.

Vivotek IP Camera Troubleshooting v1

How to use PowerShell to test if the camera IP and ports can be accessed?

Question

How to use PowerShell to test if the camera IP and ports can be accessed?

Answer

There are several ways to test if your camera IP can be reached, one of the most used is the “ping” command:

Unfortunately, the ping command has its limitations and wont be able to verify if the ports of the pinged IP are open (ping commands are sent using random ports). In order to check the port connectivity you can use the “Test-NetConnection” command in power shell which can test connectivity to a specific IP and port. To do so please follow the next steps:

Step 1. Open the Windows PowerShell, you can do it by typing “PoweSheel” in the start menu search:

Step 2. Type the following command:

Test-NetConnection -ComputerName [IP address] -Port [port number]

Where the [IP address] is the camera IP and the [port number] is the port that you are trying to verify.

Step 3. Press enter to run the command and the following will appear:

The process will take a couple of seconds and once finished it will display the connection status as follows:

If the connection cannot be stablished, the following error will appear:

Note: the same process can be used to check ND/VAST2/VSS connectivity (all of those devices/software uses different ports to communicate).

If there is a connection error you can do the following to ensure that the camera port can be accessed:

If after checking the points mentioned above you are still unable to access the camera using its IP and port please contact Technical Support for assistance.

[All cameras] How to reset your camera to factory defaults?

Question

How to reset your VIVOTEK camera to factory defaults?

Answer

All VIVOTEK cameras possess a reset button which can allow you to reset the device to factory defaults. To reset the camera to factory defaults please follow the next steps:

1. Locate the camera reset button, if you are unfamiliar with its location please go to our website and search for your camera model.

In the download section you will be able to find the “User manual” and the “Quick installation guide”, both documents have information regarding the location of the camera reset button.

2. Press and hold down the reset button for 10 seconds, the camera LEDs will start blinking rapidly.

The camera will reboot (LED will stop blinking), after rebooting it will begin the reset process (LED start blinking again).

3. Wait until the camera finish resetting. After 1~2 minute the process will be over.

Please note that resetting your camera to factory defaults will reset all the settings and configurations applied to the camera. So once the camera finished the process you will need to configure the device again to your needs.

How can you troubleshoot when you cannot watch video streaming?

Question

How can you troubleshoot when you cannot watch video streaming?

Answer

When you’re unable to watch video streaming from a VIVOTEK camera, there are several troubleshooting steps you can follow:

1. Check that the browser is compatible with the camera:

VIVOTEK cameras are compatible with Internet Explorer for the 8000 series or older, and with Chrome and Edge for the 9000 series. Be sure to use the appropriate browser to access your camera.

2. Upgrade the camera to the latest firmware available.

VIVOTEK constantly keeps improving camera firmware to increase product reliably and resolve know issues which might be related to the video stream. Please be sure to upgrade your camera to the latest version available:

3. Check if the camera sensor is still generating images

VIVOTEK cameras have a snapshot feature that works independently from the video stream and can be used to verify if the image sensor is functioning properly. If you find that your camera is not displaying videos, please use the following URL in your browser to see if you can retrieve a snapshot:

http://<Camera_IP_address>/cgi-bin/viewer/video.jpg

If there is no image displayed, this will mean that the video sensor might be compromised.

4. Use and RTSP Player to verify if the camera can send data through RTSP

Try to use an RTSP player like VLC Media Player to verify if a VIVOTEK camera can send data through RTSP, you can follow these steps:

If the player cannot play videos, this could mean that the camera’s RTSP module is having trouble sending videos.

4. Reset the camera to factory defaults

Resetting the camera to factory defaults will return it to a state unaffected by any new external configurations. If you are experiencing video issues, please try resetting the camera to factory defaults to see if the problem can be resolved. The following guide explains how to reset your device to factory defaults: [All cameras] How to reset your camera to factory defaults?

If these steps do not resolve the streaming issue, contacting your camera vendor might be necessary. They can provide more specific guidance based on the exact model and configuration of your camera.

How to reload in Internet Explorer mode when browsing in Microsoft Edge?

Question

VIVOTEK legacy network cameras and Linux-based NVRs can only get streaming by installing plugins on Internet Explorer.

However, the Internet Explorer 11 desktop application will no longer be supported on certain versions of Windows 10 after June 15, 2022.

Microsoft encourages customers to move to Microsoft Edge.

This article will share how to reload in Internet Explorer mode when browsing in Microsoft Edge.

Answer

1. Open Edge browser.

2. Go to settings and more”…”→ Click ”Settings” → ” Default browser” → Choose “Allow” in Allow sites to be reloaded in Internet Explorer mode → Restart

3. Use Edge to access cameras or NVRs. (You will see this plug-in isn’t supported)

4. Go to settings and more”…” → Click “Reload in Internet Explorer mode”.

Note: Please add the address to trusted site if Edge show 401 Unauthorized.
How to add a website as a trusted site for Microsoft Edge

Remember to install all required add-on and program.

You will see the image.

5. Enable “Open this page in Internet Explorer mode” → Done

<p>The post Vivotek IP Camera Troubleshooting v1 first appeared on NVR IPCAMERA SECURITY.</p>

WiFi Camera 3rd Gen setup via Green Feathers app

This guide shows you how to set up your WiFi Bird Box Camera, Solar Powered WiFi Camera, or Garden Wildlife Camera on WiFi

.

Before you begin

Test the WiFi signal strength by taking your smartphone/tablet to the site where you plan to install your camera; if it has a weak signal at the installation site then the camera may struggle to maintain a connection (see section 9 Hints & Tips at the bottom of the guide for help with WiFi signal strength)
.

Insert a micro SD card if you have one; hold the camera with the lens facing up, then insert the micro SD card with the metal contacts facing up. Push it in fully until you feel it click into place. If you have trouble inserting the SD card to the point where it clicks into place, hold it down with your thumb then use a thin object like a pen to push it down fully
.

Before you mount the camera in the bird box, make sure it’s connected to your WiFi router and can be viewed on the app. It’s best to set the camera up when it’s plugged in a different room to your router, then once it’s connected you can unplug it and install it in the final location

Ensure the device being used to set up the camera is connected to the same WiFi network that you want the camera to be connected to (this is only required for the setup process)

Make sure you know the name and password of the WiFi network which the camera will be connected to

Make sure that you are connecting the camera to a 2.4GHz WiFi signal; if you don’t know what this is you can read more here
.

Plug in the power supply into the trailing cable of the camera; after the camera has powered on you will hear a three note chime, and the camera will start saying “Wait for WiFi config”

Remove the lens cap on the camera, if it has one, and remove the cap on the reset button
.

.

Download the Green Feathers app for Android from the Google Play store by clicking here.

Download the Green Feathers app for iOS from the App store by clicking here.

Let’s get started

To get started, open the app:

.

1. Registering an account

Tap ‘Sign Up’ to create an account, then select ‘Agree’ for the ‘User Agreement and Privacy Policy’. If you have already signed up then skip below to the section called ‘Adding the camera to the app’.

.

.

Once your account is all setup, just log in to the app!
.

2. Adding the camera to the app

The first time you go to the Home page, you can choose to allow the app to use your device location. This is not essential, but helps with some features. Next, click the green ‘+’ icon at the top right of the screen.

..

Now select the model of camera you are setting up, then select “QR mode”:

.

.

3. Setting to QR mode and resetting the camera

Follow the instructions on the app or below to reset the camera.
.

Now tick ‘Next step’ and select ‘Next’.
.

.

4. Entering the WiFi details

Now you need to enter the details of the WiFi network that you want the camera to connect to. The name of the WiFi network which your phone or tablet is connected to should be automatically filled in, so just enter the password. To change the WiFi network your device is connected to, tap the icon to the right of the WiFi name:

.

5. Scanning the QR code

When you select ‘Next’, the app will display a QR code to you. Point the camera 15-20cm away from the QR code, directly facing the screen, and the camera should register it and say ‘Connect router’. When it says this, tap the ‘I Heard a Prompt’ button.

If the camera is not scanning the QR code, try slowly increasing or decreasing the distance between the camera and phone screen to bring the QR code into focus. It can sometimes be easier with the phone placed on a flat surface to help keep the camera pointed in the right direction while slowly moving it.

It is also possible to re-adjust the focus on the lens which can be done by gently twisting it. The nut around the bottom of the lens will need loosening first. It is best to adjust the lens a small amount at a time as it shouldn’t be far out of focus.

After you have tapped the ‘I Heard a Prompt’ button, the app should automatically begin connecting to the camera.
.

.

After a minute or so, it should have found the camera and added it to the app, you can set a name for the camera now, or later on in the settings menu.

.

6. Troubleshooting

If the camera does not connect to your WiFi:

.

If you have connected it to your internet router, but it shows the message ‘Establishing encrypted channel‘ and doesn’t load:

Remember, this guide only applies to the 3rd Gen NCIP3WF which was released in December 2020, if you have an older model of the camera have a look at our guide for the NCIP9WF or for the NCIP2WF. If you are unsure which camera you have, have a look at this article.

.

7. Adding and renaming the camera

Now you can rename the camera by tapping the pencil icon to the right of the camera name. Once it is added, to view the camera go back to the ‘Home’ page using the icon at the bottom left then select your camera from the list.

.

.

To view the camera go back to the ‘Home’ page using the icon at the bottom left then select your camera from the list.

.

To do next

Getting started with your Solar Powered Battery Camera

To view the settings for the camera, select the pencil and paper icon at the top right of the camera live feed. To find out more about the settings, have a look at this guide.

To read about the motion detection settings, have a look at this guide.

If you want to get the device added to other phones, tablets or computers, you won’t need to go through this process again, just follow this guide to get it done in a few minutes.

For a list of all the useful guides we have for this camera, you can look here.

.

Hints & Tips

Wired Bird Box Camera 3rd Gen setup via Green Feathers app

This guide only applies to 3rd Gen Green Feathers Wired Bird Box camera (GFIP3) or Garden Wildlife camera (GFIP320BWF) when not using WiFi

If you are unsure which model of camera you have, have a look at this article.

Before you begin

.

Download the Green Feathers app for Android from the Google Play store by clicking here.

Download the Green Feathers app for iOS from the App store by clicking here.

.

Let’s get started

To get started, open the app:

1. Registering an account

.

Once your account is all set up, just log in to the app!
.

.

2. Selecting the connection method

On the Home page, click the green ‘+’ icon at the top right of the screen.

Select the type of camera that you have from the grid shown, for wired setup it will either be Garden Wildlife Camera or Wired Bird Box Camera.

.

.

Now select Ethernet mode and follow through the prompts that show on the screen to connect your camera.

.

.

The app will start searching for your camera with a 2minute count down, once it has been found you will be presented with the screen below.

Once the circle has filled and the camera is connected to the network, you can set a name for the camera by tapping on it.

If the camera does not connect at this stage, try going through the wired setup steps again without resetting the camera.

.

4. To do next

To view the settings for the camera, select the pencil and paper icon at the top right of the camera live feed. To see the meanings of the settings, have a look at this guide.

If you want to get the device easily added to other phones, tablets or computers, you won’t need to go through this process again, just follow this guide to get it done in a few minutes!

.

5. Resetting the camera

1. Power on the device and wait for it to play three notes to indicate it has started up
2. Press and hold the reset button for 5 seconds; you will hear it say ‘Reset, camera reboot’.
3. When the camera starts saying ‘Wait for Wi-Fi config’ or has a flashing red indicator light, tick ‘Next step’. Once your camera has been reset you can re-connect it to Wi-Fi.

.

<p>The post Green Feathers 3rd Gen Camera Setup Guide first appeared on NVR IPCAMERA SECURITY.</p>

What is iCSee?

iCSee is a mobile application designed for remote video surveillance. It allows users to connect and control various security cameras, network video recorders (NVRs), and digital video recorders (DVRs) using their smartphones or tablets. iCSee provides real-time video monitoring, playback, and management of surveillance devices over a network connection. The app offers features such as live streaming, motion detection alerts, two-way audio communication, video recording, and cloud storage options. iCSee is compatible with a wide range of IP camera brands and models, making it a popular choice for home security, business surveillance, and other monitoring needs.

What is iCSee camera?

iCSee Camera refers to any camera compatible with the iCSee mobile application.

Can my camera be connected to iCSee?

iCSee was developed by Xmeye, a company that specializes in security surveillance and video intelligence research and development. They focus on providing technical services, and solutions in the security monitoring field, including various modules, main boards, software, and cloud services.

So, generally speaking, only cameras using Xmeye module solutions can be adapted to iCSee app.

How to install iCSee for PC?

Wired cameras can be accessed on PC by downloading the VMS software. But, for Macbook users, the software currently only supports local area network connection.

For wireless cameras, it is recommended to connect through mobile devices, as accessing via PC may result in connection timeouts or instability.

VMS Downloading (Windows)

VMS Downloading (Macbook)

How to install iCSee app for mobile devices?

iCSee is a free app available for both iOS and Android platforms, offering full functionality without any costs or subscription fees. Follow these simple steps to install it on your device:

.

Explore our camera range: iCSee WiFi cameras, V380 4G cameras, and Ubox solar cameras. Engineered for home security, our cameras are affordable, low-power and durable, and our market share in third world countries is growing rapidly.

.

This tutorial applies to both icsee and icsee pro cameras.
Since the app is always being updated, the interface may be a little different.

Camera description

The details are subject to your manual.

Connect To The Power Supply

Plz connect camera to the power cable,and turn on the power .

If you need to storage the video via the local TF card, plz install the TF card first then turn on the power.

（TF card doesn’t support the hot plugging,  plz plug and unplug memory card when device is power off)

Video tutorial

How To Use Icsee Camera 2024

Read Also : XMEYE NVR Face Recognition guide

.

Register/Login

1.Open”iCSee” app, click “sign up” then use the phone number or mailbox to register account.

2.Register successfully, enter your phone number or mail number in the login interface, enter the password, login your app.

3.You can also use the wechat, facebook, line or the temporary visit to login app.

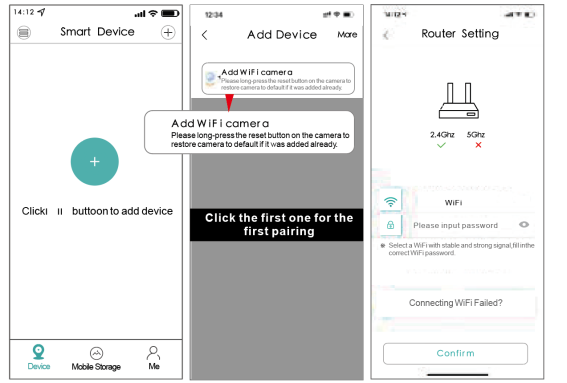

[Auto-pairing] WiFi Network Configuration

Note: camera can support 2.4G wifi for the time being, doesn’t support 5Gwifi, plz set the router parameter to2.4G first before configuring network, during the connection, phone,router and camera need keep within the 2m distance

1.Phone connect to the wifi network.

2.Click the “+”in the upper right corner click the “Add WiFi camera” according to the device’s voice prompt, follow the app interface guide to enter router’s password,click “confirm” start to configure network(if the device doesn’t appear voice prompt for a long time, you can long press the reset to restore default, then go on to configure network).

3. Enter the search device’s interface, the device is in the connection process, plz wait.

※ Program search, do not operate other programs ;

※ When the camera prompts “succes  sfully connected to router”, it will automatically go to the next step.

※ The camera fails to hear the prompt “succes sfully connect to router”. Please restore factory Settings and match again.

4. After connecting successfully ,interface will prompt to set device’s password and name for your device, after finishing, follow the app interface guide to complete network configuration .

5. After finishing, device will show in the device’s list, it represent the device is connecting successfully.

6. Click it you can view the monitoring image, and do the relevant operation and setting.

Note: Movement tracking is only for indoor ip cameras , bullet ip camera and dome cameras do not have this function

Note: If the automatic etwork configuration fails, you can choose the following two methods to configure the device

The second type: [Manual configuration] Wired network

1. Long press the camera Reset button for 10 seconds to restore the device to factory settings .

2. Connect your router to camera via network cable.

3. Connect phone to your router wifi network.

4. Login “iCSee” app, click the “+”in the upper right corner, and click “more” in the upper right corner.

5. click “Add the camera on same router.

6. Enter search device interface, click searched camera to add device,device will show in the device’s list, which represent device connect successfully.

7. Click it to view the monitoring image, also can do the relevant operation and setting

Manual configuration: AP netless direct connection mode

When there is no network in the installation environment, please select the following pairing method;

 1. Long press the camera Reset button for 10 seconds to restore the device to factory settings .

2. Short press the camera Reset button 2-5 to enter the direct connection mode (most devices will voice prompt “enter direct connection mode”).

3. Open the mobile phone desktop-settings-wireless network, search for the device wireless hotspot name, Enter the wireless password:1234567890, connect to the wireless hotspot of the device;

Indoor IP Camera hot spot name: robot_xxxx;

Other kind of camera hot spot names: camera_xxxx;

Tips:

AP hotspot mode is only used for installation when there is no network in the environment, and cannot be remotely monitored,can only be accessed within 10 meters of the establishment of the hotspot!

4. Open the ‘iCSee’ APP, and directly add the device in the local direct connection mode.

5. The device is displayed on the device list interface, which means that the device is successfully connected.

6. Click the ‘Play’ button to enter the monitoring screen and perform related operations and settings.

7. If you have already registered an account to log in, please click the “+” sign at the top right, and click the “AP direct connection” mode to add.

How to set up mobile tracking？

Note: Mobile tracking and smart humanoid alert can’t be used at the same time;

●Click the “Mobile Tracking” switch buttonin the preview interface to turn on the corresponding function;

●Motion tracking: when it’s on, as long as an object enters the camera’s illumination range, camera will track the moving trajectory;

●Watch Point: set a fixed position, when the camera is operating or tracking, it will automatically return to the set position after staying for a period of time;

How to set the dual-ligh tal ert mode Star light full color？

Note: Mobile tracking and smart humanoid alert can’t be used at the same time;

Open the ‘iCSee’, click the ‘real-time playback’ , click or slide to the “light” or the “bulb” icon in the screen to open the setting screen;

●Night colored lights：When the light is insufficient, the white light will start, and the image will be colorful;

●Infrared night vision： When the light is insufficient, the infrared light is activated and the image becomes black and white;

●Double light alert：When the light is insufficient, the infrared light will be activated. When someone enters the monitoring screen, the white light will be triggered and the image will be colorful.
After a few seconds when the person walks away, the infrared mode will be switched on and the image will become black and white;

How to s et the humanoid alert function?

Note: Mobile tracking and smart humanoid alert can’t be used at the same time;

Open the ‘iCSee’, click the device real-time playback, click on the upper right button ‘setting’ ，Enter the ‘settings’-smart alarm, open the interface to make related settings.

Function introduction:


●Notification: Must be turned on to receive alarm trigger information.

●Humanoid detection: only judge and detect people to trigger an alarm;

●Show Tracking: When the human figure appears on the screen, the human figure can be tracked and reminded; Rule setting: select the designated area [Warning Line], when someone enters the divided area, the alarm can be triggered;

Add shared device

1. Click “Share” in the device list to pop up the QR code page using the main phone.

2. Log in to the ‘iCSee’ APP with the mobile phone you want to share,
click the “+” sign in the upper right corner of the APP main interface, click “Scan QR code to add a camera” , scan the QR code of the device shared by others or input Add the device serial number (the shared device must be connected to the Internet and successfully
added to the APP).

How to Restore factory settings/AP hotspot switching？

1. Long press the camera ‘Reset ‘ button for 10 seconds, and you can let go when you hear ‘ Restore factory setting,please wait’.

2. Short press the camera Reset button 2-5 to enter the direct connection mode (most devices will voice prompt “enter direct connection mode”).

How to query device serial number and info?

1. Open the ‘iCSee’, enter the real-time playback of the device, click on the upper right setting to enter the setting center-about the device , the QR code can be directly scanned and shared with other family members to watch (the QR code valid time is 30 Minutes); if exceeded, it will automatically expire;

2. If you find that the device time is not synchronized, please click the device time to synchronize it;

HOW TO USE THE CAMERA?

1.Please open the software to register one and log in to your account if you do not have an account.

2.Click “+” > Set up “MY DEVICE” to WiFi

3.Enter your WiFi password. Then click “confifirm” and wait for the camera to connect it.

Notes

* Please reset the device if the camera does not have any voice reminders for more than 180 seconds.

* Please check the WiFi password again and make sure the WiFi channel is 2.4GHz.

* Please do not make the device too far away from the Router.

4.Upon a successful connection, you can set up the name and the password of the camera.

SHARE THE CAMERA：

1.The administrator can send the QR code and password of the camera to the other persons.

2.Scan the QR code by the administrator to share with you and add the camera.

Infographics

.

<p>The post How To Use Icsee Camera 2024 first appeared on NVR IPCAMERA SECURITY.</p>

The following Swann Security cameras can only be viewed and accessed via the Swann Security app from a mobile device.

They cannot be added to Swann security system recorders, such as DVRs, NVRs, and NVWs. These recorders are compatible with specific system camera models.

Can a SWIFI camera work without Internet?

Internet is required as the SWIFI cameras communicate to the P2P server using the Internet to stream to the Swann Security app and upload recordings to the cloud.

Compatible Routers

Any of the following routers are compatible provided they have a 2.4 GHz frequency:

For more information, see What router WiFi frequency band is my SWIFI camera compatible with: 2.4GHz VS 5GHz Frequency?

Compatible Wi-Fi extender or repeaters

It is possible for the SWIFI camera to pair to the router via WiFi extender if the extender is compatible and setup correctly to the router. Troubleshooting and configuration of your extender’s settings have to be performed by your router manufacturer support team, Internet Service Provider or your IT department. See this article: How to boost your WiFi signal and extend WiFi range.

Tip: Try to pair the camera to the router first to check whether its internal network adapter is working. If it works via router but not extender, then there’s a chance the extender is not compatible.

Swann Wi-Fi camera FAQs

Read More : Swann Security Troubleshooting All Devices

Not Compatible / Not Recommended

We do not recommend SWIFI cameras to be connected to the following devices because they cannot provide the necessary network configuration information to the camera to allow it to join the network automatically unless your network device is configured. Troubleshooting and configuration of your device’s settings have to be performed by your router manufacturer support team, Internet Service Provider or your IT department.

Can I view my SWIFI camera on a TV / computer or record to a DVR / NVR?

The cameras above are hub-free. A hub is a base station or recording/storage device that connects via the Internet to the cameras. In contrast, a hub-free camera operates on Wi-Fi exclusively without requiring any additional hardware to store footage.

A hub-free (standalone) Wi-Fi camera is only capable of:

These features make a hub-free Wi-Fi camera suitable for users who prefer a wireless setup, easier DIY installation, less hardware, and less footage to check in low-traffic areas of view.

Accessing live view, recordings, and other settings are covered in the manuals below for your device:

How do I tell whether my router’s WiFi signal is 2.4GHz or 5GHz for pairing a SWIFI camera?

This is one of the most common reasons why a connection will fail while trying to pair a SWIFI camera to your Swann Security account. If you try to pair a SWIFI camera to the incorrect frequency or SSID name, the error that appears on the app can be one of the following:

Via Mobile Device Settings

One way to tell if the phone is connected to the correct frequency of the router is by checking the name of the SSID (the default name of your router’s WiFi hotspot):

In the example above, the router has multiple SSIDs. An SSID that has “_2.4GHz,” “24G,” “2.4,” or “24” appended at the end is most likely a 2.4GHz signal. This is the network your phone needs to be connected to before you start pairing a SWIFI camera.

To avoid connecting to a 5GHz SSID, see How to forget 5GHz connection for pairing a SWIFI camera.

Via Router GUI

If you see two or more Wi-Fi network names that belong to you without 24 or 5, then one may be a 5 GHz band. To identify which name uses 2.4 GHz or 5 GHz, login to your router’s settings.

For assistance with accessing or navigating your router, contact the manufacturer of your router or your Internet Service Provider if you do not know. Swann Tech Support can only assist in pairing IF your router has a 2.4GHz signal and if you already know the correct WiFi credentials of your router.

How to change the time zone of my SWIFI camera in the Swann Security app?

The error “Device Timezone Out of Sync” appears if your camera’s time zone is different from your phone app’s time zone.

If your camera is in a different location (with different time zone) than your mobile device, you can ignore hit Cancel.

If the date and time displayed on the camera’s Live View is incorrect, do the following:

Repeat each step for each camera device paired to your Swann Security account.

How to create Guest account on a WHD-PTCAM using SwannView Link software?

Installing SwannView Link

Adding the camera

Since the computer is on the same router or modem already, when you open SwannView Link the camera will be auto-detected, but the password will not be entered yet. You will see the error message below. Just click on OK.

How to forget 5GHz connection for pairing a SWIFI camera

Some mobile devices have a tendency to switch between hotspots or SSID automatically. This can disrupt the pairing process when setting up your SWIFI camera to your mobile device.

To avoid connecting to a 5GHz signal or the wrong hotspot during pairing, forget the 5GHz connection:

Note: If you see a WiFi name that ends with _ext, it is most likely a WiFi extender.

How to hard reset Floodlight Security Camera (SWIFI-FLOCAM2 / SWWHD-FLOCAM)

Performing a factory or hard reset of the camera will:

How to factory reset via physical button

1.Locate the Reset button (see below figure) on the SWIFI-FLOCAM2 / SWWHD-FLOCAM. It is behind the camera module covered by a rubber flap.

2.Press and hold the Reset button (for 20 seconds).

3.When the blue LED indicator on the camera turns off, release the Reset button.

4.The camera will start the factory reset process which can take up to 2 minutes.

5.Once factory reset is complete, it will be in Pairing mode (LED will be in slow blinking blue).

After you factory reset your device, you’ll have to pair it with your Wi-Fi network again.

How to hard reset SWIFI-2KOCAM / SWIFI-SPOTCAM / SWWHD-OUTCAM

Performing a factory or hard reset of the camera will:

How to factory reset via physical button

1.Locate the Reset button (see below figure) on the twin cable of the SWIFI-2KOCAM / SWIFI-SPOTCAM / SWWHD-OUTCAM.

2.Press and hold the Reset button (for 20 seconds).

3.When the blue LED indicator on the camera turns off, release the Reset button.

4.The camera will start the factory reset process which can take up to 2 minutes.

5.Once factory reset is complete, it will be in Pairing mode (LED will be in slow blinking blue).

After you factory reset your device, you’ll have to pair it with your Wi-Fi network again.

How to hard reset SWIFI-BUDDY

Performing a factory or hard reset of the camera will:

How to factory reset via physical button

1.Ensure the camera has been fully charged for at least 4 hours prior.

2.Locate the SET button and RST pinhole (see below figure) on the back of the camera.

3.Press and hold the SET and RST button (pin required).

4.After 2 seconds, release RST button.

5.Once blue LED turns off (or after 15 seconds), release SET button.

6.Once factory reset is complete, it will be in Pairing mode (LED will be in slow blinking blue) and you will hear it say “Ready for pairing”.

After you factory reset your device, you’ll have to pair it with your Wi-Fi network again.

How to hard reset SWIFI-CORECAM / SWIFI-COREPRO

Performing a factory or hard reset of the camera will:

How to factory reset via physical button

1.Ensure the camera has been fully charged for at least 4 hours prior.

2.Locate the Reset button (see below figure) on the camera.

3.Press and hold the Reset button (for about10 seconds).

4.Once the LED indicator on the camera turns off, release the Reset button.

5.The camera will start the factory reset process which can take up to 2 minutes.

6.Once factory reset is complete, it will be in Pairing mode (LED will be in slow blinking blue).

After you factory reset your device, you’ll have to pair it with your Wi-Fi network again.

How to hard reset SWIFI-PTCAM2

How to hard reset SWIFI-XTRCAM

How to set SWIFI-MOTION / SWIFI-WDOOR / SWIFI-LEAK / SWIFI-ISIREN to pairing mode

Setting the sensor or siren to pairing mode will:

Note: If the sensor or siren is paired to your account and the Wi-Fi details did not change, it will connect back to the same network once pairing mode times out after 3 minutes.

Why does my WiFi camera stop recording motion after a minute?

Wireless standalone cameras can only record by PIR/motion. Where the camera is mounted can have an impact on how effective movement is picked up and recorded.

Reasons:

 .

Fix: Reposition the camera or add another camera for a different angle of view.

The ideal position of the camera is 7-8 feet high, pointing downwards at an angle to cover the area where people will be walking across the camera’s path.

Can I pair my SWIFI-BUDDY to another receiver/chime?

How do I share my WHD-PTCAM?

Sharing the WHD-PTCAM

Scan to add a camera

How many files can I store in my SwannCloud account?

As of now, the SwannCloud can let you record 15 seconds per event and it will be stored approximately 5 days. In the future, there will be some other options to be chosen with regards to this but there are no approximate date of arrival yet.

How to check the battery level of my Wi-Fi camera?

This applies to SWIFI-CAM, SWIFI-CORECAM, SWIFI-COREPRO, SWIFI-XTRCAM, SWIFI-BUDDY, SWIFI-MOTION, SWIFI-LEAK, SWIFI-WDOOR, SWIFI-SIREN.

There are 2 ways:

• Dim than normal (for sensors)

• Blinking purple (for SWIFI cameras)

Note: If the Device Status is Disconnected, the battery level shown is the last that was synced to the Swann Security server and your phone before the camera disconnected. This means the current battery level cannot be seen until the camera is recharged and reconnected to the network.

How to delete recordings of a SWIFI camera in the Swann Security app

There are two ways to delete recordings of a standalone Wi-Fi camera that is compatible with the Swann Security app.

Delete one or few recorded clips:

1. Go to Playback.

2.Tap on the Storage (microSD card) icon on the top beside the logo.

3.Select your device. (pause and wait for the clips to load. If there are none, it means that the camera does not have a microSD card or internal storage)

4.Tap on the trash / bin icon beside the recording with timestamp you wish to remove.

Delete all recordings (Format the internal storage)

Note: Formatting deletes all recordings from local storage or microSD card. It will not delete the recordings from the cloud. Once deleted, they cannot be recovered.

1.Go to Devices > select your device.

2.Go to Settings > System Settings.

3.Tap Format.

4.Select Confirm.

How to hard reset 4K Floodlight Camera (SWIFI-4KOCAM)

How to hard reset SWIFI-2KICAM

How to hard reset SWIFI-ALERTCAM / SWWHD-INDCAM

How to hard reset SWIFI-CAM

How to hard reset SWIFI-FOURTIFY

How to hard reset SWIFI-TRACKCM

Performing a factory or hard reset of the camera will:

How to factory reset via physical button

1.Locate the Reset button (see below figure) on the SWIFI-TRACKCM.

2.Press and hold the Reset button (for 20 seconds).

3.When the blue LED indicator on the camera turns off, release the Reset button.

4.The camera will start the factory reset process which can take up to 2 minutes.

5.Once factory reset is complete, it will be in Pairing mode (LED will be in slow blinking blue).

After you factory reset your device, you’ll have to pair it with your Wi-Fi network again.

How to playback recordings? ( via Swann Security App)

Playback tab

Open Swann Security, login your account, tap on Playback

NOTE: As of v2.7.45 in Android, you can get a preview (like a GIF) instead of a generic icon for a recorder’s clip if you enable Show playback preview under Stream Option.

• Go Back to see results. Tap the burger icon at the upper left.

Playback Interface

How to test Wi-Fi password for pairing SWIFI cameras

This step is useful:

 How to forget the network in your mobile device:

.

<p>The post Swann Wi-Fi camera FAQs first appeared on NVR IPCAMERA SECURITY.</p>

Reolink NVR Setup Guide, Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system. You can play back any recorded video, back up local data, and do more. For more features, refer to RLK8-810B4-A NVR security system.

If you have ordered an RLN8-410 or are interested in it, and want to get some basic information about this product before placing it in use or placing the order, you may refer to the below introductions.

This article includes the following 4 parts which will help you quickly understand the use and working principles of the NVR:

Unboxing for RLN8-410

Product Overview

You may find detailed information about the structure and components of the NVR below.

Installation

You can connect either hard-wire the PoE cameras or connect WiFi cameras wirelessly (except for battery-powered cameras) to the NVR. Below is a common network topology of the connection.

For more instructions on the configurations, you may refer to the sections Wired Connection and Wireless Connection.

Wired Connection

Applies to cameras that are hard-wired to the NVR.

Step 1. Connect your Reolink IP cameras to the Reolink PoE NVR.

Step 2. Log into your NVR, and go to the IP channel.

Old UI:

New UI:

Step 3. Select Auto Add so that all the cameras in the same LAN can be automatically shown on the list.

Step 4. If you have never changed the password of the IP cameras (the default password of the IP camera is blank) and there are enough channels for all the cameras, you may press Apply to add all the IP cameras to the NVR.

Step 5. If you have changed the User Name and the Password of your cameras, please put the password of the camera to log in.

Old UI:

Please drag the menu bar to the password column and use the soft keyboard to input the required information.

New UI:

Please click Modify to input the required information.

Step 7. Click Apply to save and apply the configuration.

For more detailed instructions, you could refer to the articles below:

Reolink NVR Setup Guide

Read More : Reolink NVR IPCAM how to reset password methods

Wireless Connection

Applies to wifi cameras (except for battery-powered cameras) attempting to add to the NVR.

Step 1. Connect the WiFi camera to the same LAN as the PoE NVR.

Step 2. Connect the camera to the WiFi of the router.

Step 3. Add the camera to the PoE NVR: Toggle the “Auto add” on and hit “Modify” to input the login credentials.

Old UI:

New UI:

For more details of the configurations, please refer to the links below:

Initial Setup

You can do the initial setup on a monitor or TV connected with an HDMI/VGA cable, or through the Reolink App or Reolink Client.

Step 1. Connect the NVR to a Monitor or TV via the VGA or HDMI cable.
Step 2. Connect the camera’s RJ45 network socket to any PoE Camera port on the NVR using the Ethernet cables provided.
Step 3. Connect an Ethernet cable from the LAN port of the NVR to the LAN port of your router.
Step 4. Connect the mouse to the USB port.

Step 5. Connect the Power Adapter. Please use the supplied power adapter. For the PoE NVR device, it is 48 volts.
Step 6. And then you will see the below splash screen. System booting up might take a few seconds.
Step 7. Follow the Setup Wizard to set your NVR, click Next to continue and at the last step, click Finish to save all the settings.
For more detailed instructions, you may refer to the articles below:
.

Step 1. Power the camera and the NVR, then launch the Reolink App on your phone.
Step 2. During start-up, you will find the NVR shown on the Delive List automatically on Reolink App.

Step 3. Click the device you want to add to start initialization.

Step 4. For security considerations, you need to create a password for the first time.
Step 5. Then name your device and modify other settings on the second step page.
For more detailed instructions, you may refer to the article: How to Do Initial Setup for Reolink NVR via Reolink App.

Step 1. Click the “+” icon, select UID, then fill in the blanks with the UID number of your NVR, See How to find the UID of your device.

Step 2. Create a device password, then click Next.
Step 3. Create a device name then click Finish.
For more detailed instructions, you may refer to the article: How to Initial Set up NVR via Reolink Client (New Client).

.

How to Add Reolink Cameras to Reolink PoE NVR

Reolink PoE NVR allows you to record videos for Reolink IP cameras without using a computer. To do that, you need to add the camera to the NVR first. The cabling for PoE NVR is shown below.

Applies to: All Reolink IP cameras (excluding battery-powered cameras) and PoE NVRs with the hardware version H3MB02/H3MB16

You may then follow the steps below to add Reolink cameras to Reolink PoE NVR.

Step 1. Connect your Reolink IP cameras to the Reolink PoE NVR. There’re two different ways of powering your IP cameras:

There are two ways of connection:

 a. Connect the PoE cameras to the PoE NVR directly via an Ethernet cable. (suggested way)

 b. Alternatively, you can power on this camera by a PoE switch/injector and connect to your router, then add this camera to the POE NVR system in the same local network.

All Reolink WiFi cameras (except for battery-powered cameras) can be used with Reolink PoE NVRs, too. You need to connect them in LAN, the connection diagram is as below:

Note: Make sure all the IP cameras you want to add to the NVR are connected to the same network (LAN) as the NVR. Otherwise, the cameras won’t be shown on the scanned list and cannot be automatically added to the NVR.

Step 2. Log in to your NVR, and go to the IP channel.

Step 3. Select Auto Add, and click Scan so that all the cameras in the same LAN can be automatically shown on the list.

Note: The number of cameras that can be added to the NVR may vary depending on the NVR channel numbers of the NVR.

Step 4. If you have never changed the password of the IP cameras (the default password of the IP camera is blank) and there are enough channels for all the cameras, you may click Apply to add all the IP cameras to the NVR.

However, if you have changed the login passwords of the IP cameras or there is no spare channel to display all the IP cameras, you may need to go through a few more steps.

Step 5. If you have an 8-channel NVR and more than 8 IP cameras, please choose the 8 of them you want to add to the NVR and manually change the other cameras’ Channel to None.

Note: You may assign the IP cameras to any channel you want, but you cannot have two cameras on the same channel, otherwise configurations would fail to be saved.

Step 6. If you have changed the User Name and the Password of your cameras, please drag the menu bar to the password column and use the soft keyboard to input the required information.

Step 7. Click Apply to save and apply the configuration.

Here is a video to show how to add WiFi cameras to PoE NVR:

Note:

RLN8-410 (with the hardware version H3MB02) and RLN16-410 (with the hardware version H3MB02 and H3MB16) don’t work with 8MP cameras including B800/D800. The 4k cameras can only work with RLN8-410-E (with the hardware version H3MB16 and H3MB18) and RLN16-410 (with the hardware version H3MB18). And only the RLN8-410(H3MB18, N3MB01) and RLN16-410 (H3MB18) support the Human/Vehicle detection function.

.

How to Initially Set up Reolink NVRs with Monitor Connected (New UI)

Want to do the initial setup for Reolink NVRs on a monitor? This article will do you a favor.

Applies to: RLN8-410 (hardware version H3MB18/N2MB02/N3MB01/N7MB01), RLN16-410 (hardware version H3MB18/N6MB01), RLN36.

You may follow this guide for proper cabling and initial setup of your Reolink NVRs with a monitor connected.

Here is a video for your reference:

Here is a diagram that will help you learn each option on the PoE NVR.

Now, please refer to the following steps to set up your NVR.

Step 1. Connect an Ethernet cable from the LAN port of the NVR to the LAN port of your router. And connect a mouse to the USB port.

Note: You can right-click to open the Menu on the live-view page.

Step 2. Connect the NVR to a Monitor or TV via the VGA or HDMI cable.

Notes:
1. If there is no display, please connect it to a VGA monitor and change its resolution to 1920*080.
2. If you need audio output on your TV monitor, the resolution MUST be set to 1920*1080 or 1280*720.

Step 3. Connect the camera’s RJ45 network socket to any PoE Camera port on the NVR using the Ethernet cables provided.

Step 4. Connect the NVR to a power outlet with the supplied power adapter, and then turn on the power switch.

Step 5. And then you will see the below splash screen. System booting up might take a few seconds.

Note: If the monitor screen remains black, check if you flip on the power switch on the back of the NVR.

Step 6. General configurations. Set up the language, screen resolution, date Format, and time format. Then click Next.

Step 7. DST settings. Set up the system time and time zone, and enable/disable the DST option. Then click Next.

Step 8. Create a password for your NVR, and enable/disable screen auto-lock. Then click Next.

Step 9. Set up a password security question. Then click Next.

Step 10. Name your device and manage your HDD. Then click Next.

Step 11. Configure the network for your NVR. Then click Next.

Step 12. Set up E-mails for your NVR up to your need. Then click Next.

Done! Here is a sum-up of the Wizard Setup.

Troubleshooting for RLN8-410

Here are some troubleshooting tips for RLN8-410. You may check whether your camera’s issue is listed below. If not, you may go to the Troubleshooting section to find suggestions for more issues or you may contact Reolink support for help.

If the NVR stops working and the power LED is not on, you may follow the troubleshooting tips listed below to solve the problems.

Cause 1. Power adapter issue

Solution: Check the status LED on the power adaptor of the NVR. If the LED isn’t on, please plug the power adaptor into another socket as well as change another working power adaptor (48V) for a try. If the LED is on, please check the HDD issue below.

Cause 2. HDD issue

Solution: Please unplug the HDD and check if the NVR will power on when no HDD is plugged in. You may open the NVR housing and refer to How to Change the HDD for Reolink NVR to remove the HDD.

Cause 3. The voltage is not sufficient.

Solution: Unplug the cameras. If the NVR power LED goes on, please replug the camera back one by one.
For more information, please check POE NVR Failed to Be Power on.

When you connect the NVR via a monitor and start up the NVR, the NVR is freezing on the Reolink Logo Page. There are several possible causes for the issue. You may follow the troubleshooting tips listed below to solve the problem.
.

Cause 1. HDD issue

Solution: Please unplug the HDD and check if the NVR will power on when no HDD is plugged in. You may open the NVR housing and refer to How to Change the HDD for Reolink NVR to remove the HDD.

Cause 2. The voltage is not sufficient.

Solution: Unplug the cameras that are connected to the NVR and check if the NVR can boot up.

Cause 3. Firmware issue

Solution: Please refresh the firmware using a USB drive.

For more details, please check the article NVR is Freezing on the Reolink Logo Page.

If there’s no video output on the monitor from Reolink NVR, you may follow the troubleshooting tips listed below to solve the problem. There are several possible causes for the problem.
.

Cause 1. The video output resolution of the NVR is not supported by the monitor/TV.

Solution: Ensure that the lowest resolution of the TV/monitor is no less than 720p.

Cause 2. HDMI/VGA port on the NVR or the monitor/TV is defective.

Solution: Check whether the cable is defective by using it to connect other devices to the router and see if it works. Or please test with another HDMI/VGA cable or monitor/TV.
For more information, please check the article No Video Output on the Monitor/TV from Reolink NVR.

If you found that the NVR is rebooting, below are some possible causes and solutions that you may refer to.

Cause 1. UPS issue

Solution: If you use the UPS to power the NVR on, please plug the NVR directly into a wall socket and have it run for one or two days then check if the NVR reboots.

Cause 2. HDD issue

Solution: Please unplug the HDD and have the NVR run for one or two days then check if the NVR reboots.

Cause 3: The cameras and the NVR are both grounded.

Solution: Please unplug all the cameras from the NVR and have the NVR run on its own for one or two days and check if it still reboots (Please disable auto-reboot before you run the test). If the NVR doesn’t reboot, the issue may be caused by both the NVR and the cameras being grounded. Please check whether the cameras and the NVR are grounded. If yes, please unground either the NVR or the cameras to fix the issue.

For more details, please refer to POE NVR Reboots Automatically.

If you noticed that after plugging the new cameras into the NVR, the camera’s image does not show up on the monitor and it prompts “video loss”. The following troubleshooting may be helpful to you.

Cause 1. No available channels

Solution: Delete the offline cameras from the IP channel, or manually assign a channel for the camera.

Cause 2. The new camera is distributed with the same IP address as the other cameras.

Solution: Please reset the camera and restore the NVR.

Cause 3. The camera shows “invalid password” or “incorrect username and password”.

Solution: Put the password of the camera.

For more details, please refer to Fail to Add PoE Cameras to NVR.

If you fail to connect the NVR through the network, below are some possible causes and solutions for your reference.

Cause 1. NVR is powered off.

Solution: Check whether the power light is on. If it is off, please refer to POE NVR Failed to Power on.

Cause 2. The LAN port is defective.
Solution: Please check if the LAN port on the back lights up or not. If not, please try another ethernet cable and port on the router for a test.
Cause 3. The gateway is 0.
Solution: Please change a router or switch and further check the issue. Please also reboot the NVR and check if the issue remains.

Please upgrade the NVR’s firmware to the latest firmware.

For more details, please refer to Failed to Connect NVR in LAN.

When you fail to playback the videos of the NVR and find the capacity of the HDD is 0GB, or it shows “HDD not detected”, here are some possible causes for your reference.
.

Cause 1. The firmware version of the NVR is old.

Solution: Please find out the firmware version of the NVR and go to the Download Center to download and unzip the package to upgrade it.

Cause 2. The format of the HDD is wrong.

Solution: Please format/init the HDD to try again, please refer to Check/Init HDD via PoE NVR.

Cause 3. Defective HDD

Solution: Please unplug and replug the HDD to see if it works. If possible, please test with another working HDD.

For more details, please refer to HDD Capacity Shows 0GB.

.

Configuration – RLN8-410

RLN8-410 is an eight-channel network video recorder that is used for centrally controlling the devices that are connected to it. With diffenernt hardware versions, RLN8-410 can acheive different features. Generally, it can be used for setting up detection for the cameras, managing the channels, upgrading the devices that are connected, etc.

To better learn the working principles and settings of this NVR, here are some instructions for your reference.

Note: You can click on the keywords below to jump to the corresponding section.

Motion Detection

Generally, Reolink cameras are capable of motion detection. RLN8-410 is able to manage the configurations of motion detection for cameras that are connected to it.

To achieve the detection settings you want, you could try on the monitor, the Reolink App, or Reolink Client. Below are some instructions for your reference.

Old UI:
1. Log into your NVR on a monitor and go to the NVR settings.
2. For configuring motion recording, go to “Menu>Recording>Schedule” page, then select the channel (camera) and check the Enable box. Select “Motion” and tap on the grids to choose the time that you want to enable motion detection recording, and then click Apply to save the settings.

3. For setting up motion detection, go to “Menu>Alarm”. Click on “Motion Detection>Set”, then you can configure the motion detection settings (including motion detection area and sensitivity), motion schedule, and action.

For more details, please refer to:
How to Set up Motion Detection Recording via Reolink PoE NVR
How to Set up Motion Detection Area via Reolink PoE NVR
How to Set up Motion Detection Sensitivity via Reolink PoE NVR

New UI:
1. For setting up motion recording, log in to your Reolink PoE NVR on a monitor. Go to “Menu>Surveillance>Daily Schedule” page.

2. For setting up motion detection for cameras, go to “Settings>Camera>Detection”.

For more details, you may refer to the articles below:
How to Set up Motion Detection Recording via Reolink PoE NVR (New UI)
How to Set up Motion Detection Area via Reolink PoE NVR (New UI)
How to Set up Motion Detection Sensitivity via Reolink PoE NVR (New UI)

1.Click  button to go to Device Settings>Channel Setting>Motion Detection.

.

For more details, please refer to:
How to Set Motion Detection Schedule for NVR via Reolink APP
How to Set up Motion Detection Sensitivity via Reolink App
How to Set up Motion Detection Zones via Reolink App

.

For more details, please refer to:
How to Set Motion Detection Recording for Reolink NVR via Reolink Client (New Client)
How to Set up Motion Detection Area via Reolink Client (New Client)
How to Set up Motion Detection Sensitivity via Reolink Client (New Client)

Smart Detection

Smart detection includes Smart Person, Vehicle, and Pet Detection. It is based on the traditional motion detection but with advanced algorithms and technology, which can tell people, vehicles, and pets from other objects. You can set up detection sensitivity, detection zone, object size, etc. for the cameras via the NVR.

Please notice that for 8-channel NVRs, only if the hardware version is N2MB02/N3MB01 can it achieve the smart detection settings.
To check the version of your NVR, you can refer to How to Find out System Information via Reolink App or contact Reolink Support Team for confirmation.

On Monitor

1. Please go to the Menu of your NVR, and go to “Surveillance>Record>Daily Schedule”.
2. Under the Record Schedule page, please choose the camera model/channel you want to set up the record schedule.
3. Under the Alarm schedule, please enable/choose the detection type and then enable the time & date for detection.

There are three detection types: ” Any Motion”,” Person” and ” Vehicle”. Please enable/choose either of them or combine two options or all of them together according to your own needs.
For more details, you may refer to the articles below:
How to Set Smart Detection via the PoE NVR System (New UI) (Video)
How to Set up Smart Person/Vehicle Detection via POE NVR system
How to Set up Smart Person Detection only via Reolink POE NVR System
How to Set up Vehicle Detection only via Reolink PoE NVR System
How to Set the Maximum and Minimum Object Size via POE NVR System (New UI) (Video)

.

On Reolink App

.

For more details, please refer to:

How to Set up Smart Person/Vehicle Detection via Reolink APP
How to Set up Smart Person Detection only via Reolink APP
How to Set up Smart Vehicle Detection only via Reolink APP

.

On Reolink Client

.

For more details, please refer to:
How to Set up Record Schedule via Reolink Client (New Client)
How to Set up Smart Person Detection only via Reolink PC Client
How to Set up Smart Vehicle Detection only via Reolink PC Client

.

Buzzer

Buzzer includes motion buzzer and exception buzzer. It is the sound that comes from the NVR when the cameras detect motions or the NVR detects abnormalities. Conditions like HDD full, HDD error, network disconnected and IP conflict will be marked as exceptions.

You could set up motion buzzer via the monitor, Reolink App, or Reolink Client. Please notice that the exception buzzer can only be set up via the monitor.
Below are some basic instructions for your reference.

Old UI:
1. Set up Motion Buzzer:
Go to “NVR>Menu>Alarm>Motion>Action”, and tick Buzzer for selected cameras (channels). Click Apply to save the settings.

2. Set up Exception Buzzer:
Go to “NVR>Menu>Alarm>Exception”, select the exception type you want, and tick Buzzer then click Apply to save the settings. Choose the Type for the exception alarm based on your requirement.
For more details, please refer to:
How to Set up Motion Buzzer for PoE NVR
How to Set up Video Loss Buzzer for PoE NVR
How to Set up Exception Buzzer for PoE NVR

New UI:
1. Set up Motion Buzzer:
Go to “Settings>Surveillance>Buzzer”, and enable Buzzer. Then click “Daily schedule” to choose the schedule and detection type.


2. Set up Exception Buzzer:
Go to “Settings>Surveillance>Buzzer (Exception)” and select the exception type you want.

For more details, you may refer to the articles below:
How to Set up Motion Buzzer for PoE NVR (New UI)
How to Set up Exception Buzzer for PoE NVR (New UI)

1.Click  button to go to Device Settings>Channel Setting>Buzzer. If you want to enable/disable the alarm buzzer, please turn it on/off the Buzzer.
Please notice that this setting will apply to all the cameras connected to the NVR.

For more details, please refer to How to Enable/Disable Alarm Buzzer for POE NVR via Reolink App.

Channel Management

When a camera is successfully connected to the NVR, it will be distributed an IP address and a channel by the NVR for connection. Hence, with the NVR, you’re able to check the status of all the connected cameras at the same time. On the channel management page, you’re able to check the status of each channel/camera, delete the offline devices, arrange channel orders, etc.

Below are some basic instructions that you may refer to.

On Monitor (Old UI)

1.Launch your Monitor of NVR, go to Menu>IP channel page. Then you will find the camera status in the sidebar of the IP channel page.

2.If you would like to delete the offline cameras, change the Channel of the disconnected IP camera to None and then click on Apply.

3.If you would like to change the display order of the camera, expand the selection bar to assign a channel for each camera. After that, click Apply to save the settings.

For more details, please refer to:
How to Check Camera Status on IP Channel page Via Reolink PoE NVR
How to Delete Offline Camera Information on IP Channel Page via Reolink NVR
How to Arrange the Display Order of Cameras on Reolink NVR

On Monitor (New UI)

1.Launch your Monitor of NVR, then chooseMenu>Channel>Replace. You will find the camera status in the sidebar of the IP channel page.

2.If you would like to delete the offline camera, click on the offline camera and tap the Delete button to delete it from the NVR. Then the channel this camera was taken is free now.

For more details, please refer to the articles below:
How to Check Camera Status on IP Channel Page via Reolink PoE NVR(New UI)
How to Delete Offline Camera Information on Channel Management Page via Reolink NVR(New UI)
How to Arrange the Display Order of Cameras on Reolink NVR(New UI)

.

Upgrade

As a centralized management system, RLN8-410 is able to upgrade both the NVR and the cameras that are connected to it. Below are some basic steps of upgrading for your reference.

1.Unzip/extract the firmware file on your PC and transfer the PAK file to a USB, then insert the USB to the NVR USB port.
Please notice that there are two USB ports on the NVR. One is at the front and the other one is at the back of the NVR.

2.Log in to your Reolink PoE NVR on an NVR monitor, then go to Device Settings>System>Maintenance page.

3.Choose the correct firmware file and start to upgrade.
*If you only want to upgrade the firmware for the PoE NVR, you may click the Upgrade From USB and select the correct firmware file, then tap on the Upgrade button.
*If you need to upgrade the firmware for cameras that are connected to the PoE NVR, please choose Upgrade IPC From USB, then select the correct firmware for each channel and click on the Upgrade button to start upgrading.

For more details, please refer to How to Upgrade Firmware via PoE NVRs.
For upgrading the NVR only, you can also refer to How to Upgrade Firmware via Reolink Client (New Client).

1.Unzip the firmware file (.pak file) on your PC and transfer it to a USB, then insert the USB to the NVR USB port.

2.Log in to your Reolink PoE NVR on an NVR monitor, then go to Device Settings>System>Maintenance page.

3.Choose the correct firmware file and start to upgrade.

*If you only want to upgrade the firmware for the PoE NVR, you may click the Upgrade From USB and select the correct firmware file, then tap on the Upgrade button.
*If you need to upgrade the firmware for cameras that are connected to the PoE NVR, please choose Upgrade IPC From USB, then select the correct firmware for each channel and click on the Upgrade button to start upgrading.

For more details, please refer to How to Upgrade Firmware via PoE NVRs (New UI).
For upgrading the NVR only, you can also refer to How to Upgrade Firmware via Reolink Client (New Client).

.

<p>The post Reolink NVR Setup Guide first appeared on NVR IPCAMERA SECURITY.</p>

Safety Caution

All PRODUCTS & PARTSThis product may require cabling,we suggest to test all products&parts before installation and cabling×Dismiss this alert.

Nvr product description

1.  WIFI Antenna Ports:Double antennas to WIFI range

2. WAN Port:Connect your NVR to Internet

3. VGA Port:For viewing on VGA monitor

4. HDMI Port:For viewing on HDTV

5. USB Ports:For mouse and backup

6. Power Input

IP Cameras product description

①. WiFi antenna:WiFi connection with NVR；
②. DC Port:input power 12V 1A;
③. Reset Button:press reset button for 10 seconds to restore factory setting and enter into matching-code mode;
④. RJ45 Port:for pair the camera with NVR,or connect the camera by wired connection

Note:Working temperature ranging from -13 degrees Fahrenheit to 122 degrees Fahrenheit.

Installation Instruction of WIFI NVR KIT

EseeCloud Wireless Security Camera System Installation

Read More : Wi-Fi NVR Kits User Manual

Note:The NVR can work with the router by wireless connection and wired connection Wired connection: when your NVR connect by RJ45 to your router,it will get network settings automatically Wireless connection: right click your NVR mouse and choose System Setup→Network Setup→Wireless Internet→Enable the Wireless LAN→find your own wifi network,and put wifi password here (pls notes it doesn’t work with 5G WIFI network)×Dismiss this alert.

Setup The System

This system is standalone with embedded Linux Operating System in the NVR. Just like a desktop PC, need to hook a screen to the NVR to enter the OS .Any TV,monitor with VGA or HDMI input should work for it.

If you connect the NVR with monitor shows Hiseeu logo or shows black,normally it is your monitor resolution is lower then the NVR.You can press the left side of the mouse for 30s,then it will reboot.

If still can’t work,pls change a monitor,thanks.

When you turn on the NVR box, the monitor will get below interface: Setup Wizard- -Down- -General setup- -Next -wireless setup- -Next- -Fast network- -Next -Format the hard drive- -Next

CHECK NVR NETWORK , CHANGE NVR SYSTEM LOGIN PASSWORD

Once you have completed connecting the NVR,wait approximately 2-3 minutes.Next you will see the window below on your monitor screen.For your first time to login in,User name is admin,there is no password,just choose ok to get into the menu.
(if you forget the password,pls find the solution on the FAQ page)

Tips: To protect your privacy,please set your password at earliest convenience(don’t set the password over 8 characters).Right click the mouse→System Setup→System Admin→User to set password.

How to check if your Cloud is online and Network status is healthy ?

Right click the mouse of the register,choose Fast Network.In the middle of the window you should see Cloud status as ONLINE and Network Status as Healthy Network.

If this does not appear, select Manual Config then enable DHCP,Click Apply,then power off the NVR box,wait a few seconds and power up.

Once you power up, repeat the steps outlined as above.Cloud status must be ONLINE and Network Status must be Healthy Network.If this does not happen,you will not be able to view remotely

Menu Do What

Menu bar

Split Screen: change status of live view.You can choose to view multiple cameras or any single camera.

Video Manage: manage IP cameras and NVR channels.

System Setup: all system settings.

Video Playback: playback recorded videos.

Video Backup: backup recorded videos.

Color Adjust: adjust the image setting of the each camera

PTZ Control: control PTZ camera

Volume: Adjust volume of audio cameras(works only for audio cameras).

Setup Wizard: step by step guide of 1st time general settings.

Fast Network: shortcut to network settings.

Wireless Add: add IP cameras into NVR channels wirelessly.

Exit System: logout,reboot,close screen output and shut down the system.

System Setup

Click right button→Choose System setup; enter the menu that enables you to do all settings related to this system.

Menu Do What

There are 3 modes for reocrd.

Note: Users can setup any period of time they want,for example 0:00:00-23:59:59,That’s 24 hours×7days recording.When NVR detects hard disk,the default setting will be 24 hours×7 days recording.

The priority of Alarm is higher than that of Motion,and the priority of Motion is higher than that of Time.

Video Playback

Steps: right clik mouse in main menu→Video playback→choose date,channel,record mode→click search→then can view playback file.(IE browser can’t check the playback directly,so you can use the Eseecloud software on computer or check on your phone app Eseecloud and IP RPO)

Warm prompt:

1.IIIustration for playback button: play, pause, fast forward×2,×4,×8

2.Play file:Choose the recording file in file list,as number “1” shown in picture.Choose one of the recording,click “play” to play to recording file;

3.Video backup:Choose the recording file in file list,as number “1” shown in picture.Insert the U flash disk,click “video backup” to backup the file;

4.Timeline: Click “date”and “time”at left bottom to check the timeline of recording,as number “2″ shown in picture;

5.On the timeline with recording file,left click the mouse,the can playback the file.

Notes: you can see four channel cameras playback at the same time,if you want to check other channels you need select the correct channel at first,then choose search to find it playback.

How to Backup the video

Use U disk to copy video,so easy and convenient!

The playback files is avi. format, you can use VLC player to check it on your computer VLC player.
download link: https://www.videolan.org

View on PC via lE or Eseecloud and Phone APP Eseecloud or IP PRO

To View on the the PC

To view on browser,you have to connect the NVR and your computer to the same router.Enter the IP address of NVR on the browser’s address bar.(We recommend using IE or Micorosoft Edge) Right click the mouse→system setup→Network Setup→IP address (Start with 192.168… )
You can change language on the right top corner.

To view on Eseecloud software on PC

Input Cloud ID (Right click the mouse→fast network→Cloud ID)
Input User Name and Password (If you doesn’t change the user name and password,User Name is admin ,no password)
please download Eseecloud software from： https://ipproapp.com/computer
user name is admin,no password,choose login

*Select “Add”
*Select “Cloud ID”.enter the cloud ID(9 or 10 numbers).You can find it on your home monitor screen.
Or right click the mouse, choose Fast network find cloud ID here
* Username is NVR system user name on your home monitor screen
* Password is your NVR system password on your home monitor screen.(If you don’t change It in your setup,it should be no password)
* Channels: Input 4 or 6 or 8. If you have 4 cameras,enter 4 etc.
* Click Confirm and you will see the video.

if you check in the local network,you can use the NVR IP address to add the system (Find the IP address on Fast network page or Network setting page)

To View on IE browser

Find the IP address: right click your mouse and choose Fast network, you will see the IP address here.
Enter the NVR’s IP address in your IE browser for example: http://192.168.1.105(If the default WEB port 80 has been changed e.g. to 100,you need to add new port number when input IP address in the browser,for example: http://192.168.1.105:100).

To view on the Phone

Users can use cellphone to scan the QR code below to install the APP free of charge,or users can search “Eseecloud”or ’IP PRO‘ on APP store or Google Play then install the APP.

Click “+”→other ways to add/ scan the QR code on your fast network page→Network connected device→input Cloud ID and User name and password (user name and password is the same one you login in NVR)

Tips: if you’ve set a password on your NVR system,please update your password on APP to view.
And if your camera loading for a long time and don’t show image,you can right click your NVR mouse and choose System Setup→Network setup,change the MTU to 1000.

Playback On Mobiles

In the Eseecloud APP,while viewing live video of the system,click Playback,you will enter the remote playback menu.The APP Playback only check one channel at one time

Tips: Videos in playback are HD mode for real time which requires very good transmission condition.
We suggest to playback in LAN.Remote playback out of LAN may not 100% work due to connection & network condition.

Extend WIFI Range

Wireless connection is easy and convenient, but it’s not universal application. Because of the character of WIFI, the WIFI signal will decrease when going through some obstacles Some methods can be applied to bypass obstacles and extend WiFi range.

Position The Antenna Correctly

WIFI range is like an apple and the antenna of NVR is in the center of it.WIFI signal is strong all around the WIFI range.Antenna of NVR should be put straight up,if not,WIFI signal will be weak.
According to the signal transmission character of antenna, the antenna of cameras should overlap or parallel to NVR WIFI range,as pictures showed below:

Use Antenna Extension Cord to prolong WIFI distance

Installation method of antenna extension cord

Note:When WIFI signal is not strong enough against walls,users can take off the original antenna and subtitute antenna extension cord.Drill a hole on the wall to let the extension cord go through and simply it where WIFI signal is strong.

Set up cascading connection in a reasonable solution,extend wifi signal transfer distance

Note:
Repeater function can’t strengthen WIFI signal for wireless NVR kit, but can extend the distance by repeaters→WIFI cameras.

Only when the repeater cameras and repeated cameras are positioned correctly,WIFI distance will be extended.

Repeater function and 3 meters antenna extension cord are two methods to extend WIFI range.
Users can choose one according to real situation.

Repeater Setup

Step 1. Right click the NVR mouse,and choose “Video Manage”- -then left click Repeater”

Step 2. Add repeater
As picture shown below,click icon + besides channel 3,choose other channel.

Step 3. As picture shown below, it means IPC1 is connected to NVR through IPC2 and IPC3.
IPC2 is connected to NVR through IPC3.IPC3 is connected to NVR directly.

Step 4. Click “Apply” and then click “refresh” to check if the setting is successful.

Delete Repeater

Move the mouse to targeted channels,left click to delete,and then click “Apply” and “OK”.

Application Example

As picture shown above, when IPCAM1 is put somewhere is out of NVR WIFI range,and there is IPCAM2 between them with strong WIFI signal,users can put IPCAM1 close to NVR and power it, setup IPCAM1 repeated by IPCAM2, and then install IPCAM1 to the presupposed place.

Camera add failure reasons and solutions

Q1: Failed to add the camera for the first time

Check whether the green light of the camera flashes normally. If the camera status light is not flashing green, use a thimble to lightly insert the configuration hole or long press the reset button until the camera indicator flashes.

Q2: Determine whether the binding failure caused by the router settings

1. The router has been set up to prevent Wi-fi squatter If the Wi-Fi connected to the camera is set to prevent Wi-fi squatter(black and white lists, MAC address filtering, etc.), the camera will not be able to connect to the Internet. The router’s prevent Wi-fi squatter settings need to be canceled.

2. The router is set up with 5GHz band wireless WiFi The camera does not currently support the connection of 5G band WiFi. Please open the router management page (generally marked with the address of the management page on the bottom label of the router), select the wireless setting 2.4GHz, and set it to on.

Q3: Check whether the mobile phone prohibit the permission of  EseeCloud to use data, WLAN, GPS

Domestic Android phones may prohibit the use of data, WLAN, GPS permissions for this application, resulting in the camera being unable to connect to WiFi. Solution (Android phone): Open the phone settings center-click “application management”-open the above permissions

Q4: Make sure that the WilFi account and password are filled in correctly

It is likely that the Wi-Fi account and password you connected to the camera are incorrect, resulting in the camera not being able to connect to the network. In particular, pay attention to whether there is a space input, and try to avoid complex and uncommon symbols.

Q5: Other questions

1. If the router is set to bridge mode, the WiFi signal will be unstable, causing the connection to fail. It is not recommended to use WiFi in bridge mode when the camera is networked.

2. If you are a campus / enterprise user and the school 1 company assigns each student / employee a static IP to access the Internet, you can manually enter the static IP information to access the Internet.At present, this situation is not supported by camera networking, need to select other available WiFi connections.

3. The camera does not support WPA / WPA2’s “enterprise” encryption method to connect the camera to the network. Support WEP, WPA–PSK 1 WPA2–PSK, or corporate WiFi without password. If the camera is networked in the corporate network environment, please confirm in advance whether the WiFi encryption method meets the camera networking requirements.

What should do if the camera is offline?

Q1: Camera offline processing method

1. Check whether your device is power-on and the status light is on;
2. If you are using WIFI connection, please confirm whether you have modified the WIFI in the environment where the device is located-including the WIFI password and name, if modified, please reconfigure WIFl;
3. If the reason cannot be resolved, please restore the factory settings and add the network again.

Device preview help

Different devices support different functions. Preview interface only shows the functions supported.

Light control:setup on/off,brightness,color temperature for light control device

Screenshot:snapshot current preview image

Recording: record current preview video

Full screen:tap button and switch to landscape viewing

Calendar:choose playback time to show all recording files wanted

Remote playback: device must to be inserted TF card.

Two way talk:press the button and talk for a long time

Installation mode:swith to wall installation and ceiling installation mode

Display mode: at ceiling installation mode,there have fisheye mode,cylinder mode,corridor mode and fulI screen mode

Cruise: setup auto cruise .

Sound:setup the sound on/off

Swith code stream:switch HD and SD

Split screen dispaly: choose screen channel number

Screen aspect ratio: can set the screen aspect ratio

PTZ control: control the movement of high speed dome

Timeline:drag the time line left and right to choose recording period . Use fingers to zoom in or zoom out the timeline

Add Camera

Add device

Method 1: Enter to device list interface after login, click the t’ button in the upper right corner of the interface, and select the add device” button.
Method 2: Click the’+’ button in the interface to enter directly to add device interface.

add camera

1. There is a QR code on the device body:
Scan the QR code on the device,display the device ID of the current device , click the Add ICON below jump to the prompt interface of operation guide.

add cameraadd cameraadd camera

2. Can’t find the device QR code :
lf there is no QR code on the device, click ‘Other ways to add’ and then select ‘Standalone camera’.

add cameraadd cameraadd camera

3. Please connect your mobile WiFi to the device hotspot.

Open Settings-> Select Wireless LAN > Select ‘IPCXXXXXXXXX’ device hotspot.

Connect hotspot,default password：11111111

add camera

4. After connecting successfully,return to APP.

Remote View: View video via WIFI or other network, please select Remote View.(most people choose)
Direct Connection: View video without network ,select Direct Connection. (few people choose)

5. Select Remote View to continue.
Select your wifi and enter your wifi password, then click Confirm .

add camera

add camera

6. Configuring, do not unplug the network! The network configuration process may take 1-2 minutes, please be patient.

add camera

7. Set device name and device password.
For added security, please set a password.

add cameraadd cameraadd cameraadd camera

Device Sharing
Generate shared QR codes ln the device list, click the “Share” button, set the right to share, choose to share, and generate QR codes.

Device SharingDevice SharingDevice Sharing

Scan and share QR code.
click on the’+’button in the upper right corner of the interface to enter to add device interface, click on scan add device, enter to scan interface, scan shared device QR code, after display the scan results then return to device list interface.
Note: You need to allow access to the camera and album to use this function properly.

Scan and share QR codeScan and share QR code

App Operation

Log in

This APP support “account log-in”, third-party log-in” and local experience”.
Account log-in: At log-in interface, input user name/cellphone number/email address and password, click ‘0K” and log in.
Third-party log-in: Click the icon of third-party network social software, authorize the APP to log in.Local experience: Users can use the APP without log-in.
Remember the password: Supportremem-berring the account and password that have been logged in, which is convenient for switching account login.
Note: Please pay attention thatLocal experience” mode will be stored at local.Once data is lost, it can’t be restored.

IP PRO Log in

Registration

Input cellphone number/email address to register, get verification code.
Input verification code and password, click “OK”. After registration it will move to device list.
Note: Each cellphone number/ email address can be used for registration once.

IP PRO RegistrationIP PRO Registration

Reset Password

Input registered cellphone number /email address to get verification code. Input verification code, reset password and click “OK”.
Then go back to log-in interface, log in with new password.

IP PRO Reset Password

Frequently Asked Questions

Question one：After installation, open the CMS and display “Cannot load plugin”?

Answer one：

1.Please confirm whether the installation path uses Chinese when installing, and the plugin is temporarily not compatible with Chinese path.

2.After confirming the non-Chinese path, if the problem persists, you can contact technical support for assistance.

Question two：After connecting multiple channels of video (more than 30 channels), videos stop for a few seconds , all channels are automatically disconnected into the black screen. The device connected again has no response. Do we need to restart the CMS?

Answer two：The new version of CMS3.0.1 runs with higher memory. If you connect many channels by the lower configuration computer, the computer system will run out of memory, causing the CMS to run abnormally. If the computer configuration is slightly lower, it is recommended not to connect too many channels. The optimization work has been planned for this situation.

Question three：When CMS is installed on the OSX system, it displays “File is corrupted” or “Unable to open” when it is opened?

Answer three：

1.Open “System Settings” → “Security and Privacy” → “Allow applications to be downloaded in the following location”, check “any source” (applies to versions prior to OSX10.12.X);

2.Open “Terminal”, enter the string “sudo spctl –master-disable”, press the “Enter” key, enter the sudo password (applicable to versions after OSX10.12.X). If the above method still does not work, please contact us to help you solve it.

Question four：After starting a window and flashing, it will not start or XP will appear. Open the software to indicate 0a00000000 memory referenced by 0x00000000 instruction. The memory cannot be ‘written’.

Answer four：Large probability video card driver problem, update the graphics card driver can solve

Question five：It shows  mfc100u.dll lost when opening computer

Answer five：Install VC++2010 library to solve the problem

More features

User Management

New user：①Click New User ②Enter username (required) + note name (optional)③Click to confirm

Modify permissions：

Default: The default permissions include screenshot, video, PTZ settings, video playback, remote download 5 items

modify：①Click edit permission ②Check the permissions and devices/channels that need to be assigned to new users (you can click to select all) ③Click to confirm

Other functions：

        ①Clear password: If the login password of the new user is forgotten, you can log in to the newly created user again by directly clearing the password and the internal setting data can be retained.

        ②Modify the note: Add a note, change the note or delete the note, go to the modify note operation

        ③Delete user: If you feel that the newly created user is not necessary, click delete user to delete the user.

New userModify permissionsModify user

Log query

Inquire：①Confirm ‘start time + end time’②Confirm ‘log type’ (including: alarm log, login log, operation log)③Selected area ④Click to query

Log query

Resource management

Screenshot：

search for：①Select ‘start time+end time’ ②Click search

Preview：①Method one selects ‘preview’ for right-click operation ②The second method is the screenshot file retrieved by direct click.

delete：①Method 1 Select ‘Delete’ for the right-click operation. ②The second method is to enter the screenshot preview state and click to select ‘delete’.

location：①Method 1 Select ‘Open location’ for right-click operation②Method 2 is to click ‘Save Location’ in the resource information.

Resource information：‘user, resource size, resolution, device name, associated channel, screenshot time, save location’, including the above content (as shown in Figure 2)

Replacement size：‘Original size, maximize, zoom in, zoom out, resource information, delete’, the screenshot preview status includes the above status/function that can be switched to

video：

search for：①Select ‘start time+end time+’②Select the recording type (including: preview video, playback video, default all types)③Click search

Resource information：‘user, resource size, recording type, device name, associated channel, recording time, save location’, including the above

Other functions：The operation steps of ‘preview, resource information, location, delete’ function are the same as the screenshots. For details, please refer to the operation in the screenshot.

Right click operationResource information

System Info

Version Information：The content is displayed as follows ‘version number, date’

change Password：①Enter ‘original password + new password + confirm new password’②Click to confirm ③Re-login verification password

sign out：Click the ‘Exit Login’ button to quit the login status of the current account.

System Info

User parameter

Basic Settings

Split screen number：The selected split screen number is displayed after the re-login, and the CMS provides split screen 1/4/6/8/9/16/25/36/49 nine forms of choice.

Display language：CMS currently defaults to 9 display languages, such as Simplified Chinese and English. When you choose to log in again, you will switch to the corresponding language.

Login Method：The cloud login mode is online. You need to connect to the external network when you log in. The local login does not have this hard requirement.

List style：The list style includes tree shape and graphics. The replacement is only the real-time preview interface and the display of the device list under the playback interface. The device list under other interfaces is unified into the tree list style.

Path modification：

①Screenshot path: The screenshot file is saved in the snapshot folder by default, and can be saved in other paths according to its own needs.

②Local recording path: The local recording file is saved in the record folder by default, and can be saved in other paths according to its own needs.

③Video download path: The files downloaded by the playback video are saved in the video_download folder by default, and can be saved in other paths according to their needs.

Preview sync time：Check the time when the device is previewed and the computer will be automatically synchronized (only ipc is supported)

note：After modifying the settings, click “Finish” and you will need to log in again. (It is best not to modify it to a directory containing Chinese)

advanced settings

Time zone setting：The local time zone can be selected according to the actual situation.

Automatic lock：Check the auto lock and enter the integer in minutes in the time frame. If no operation is performed on the CMS within the time of the input, the CMS will automatically lock.

Automatically connect video：After logging in to the auto-connect video, log in to the CMS and automatically connect to the device added to the device list. The number of connected channels is the number of split screens in the basic settings.

Basic Settingsadvanced settings

Equipment management

Add device

Add a LAN device：①Enter the device management interface ②Refresh LAN device ③Check the device and click Add (LAN device can be filtered by entering IP/ID in the filter box)

Add cloud ID device：Manually enter the device ‘cloud ID number + channel number’, select ‘type’ according to the actual situation of the device, and the rest can click to confirm (the password can be selected according to the actual settings of the device)

Add an IP/DDNS device：Manually enter the device ‘IP/DDNS+port+channel number’, select ‘type’ according to the actual situation of the device, and the rest can click OK.

LAN add

Modify device

Device modification：In the device management or preview interface, after selecting the device and clicking Modify, the device interface will be loaded.

Regional modification：In the modify device interface, click the area drop-down box.

Group modification：After selecting the group under the device management interface, click the modify button to load the modified group information interface.
